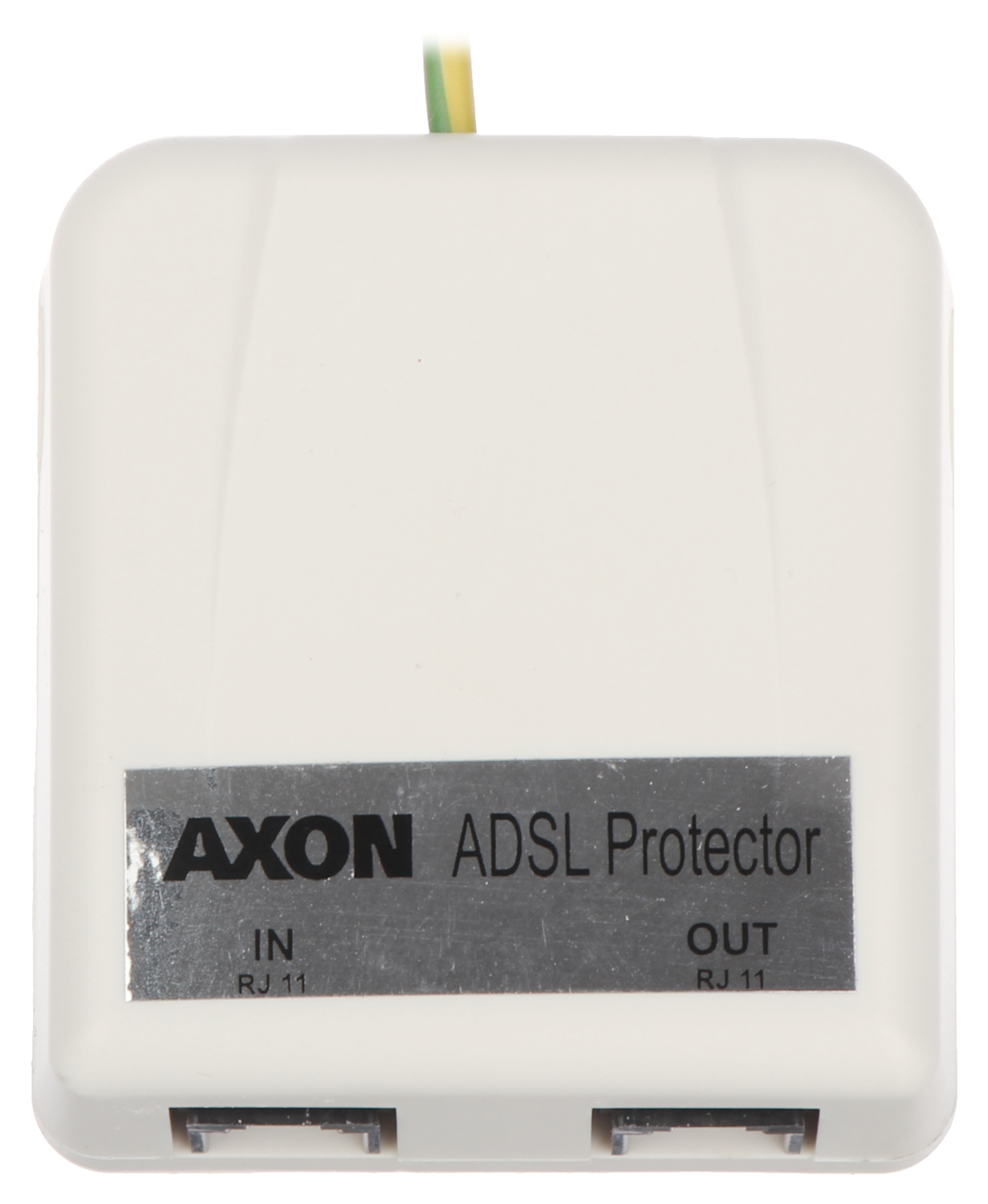

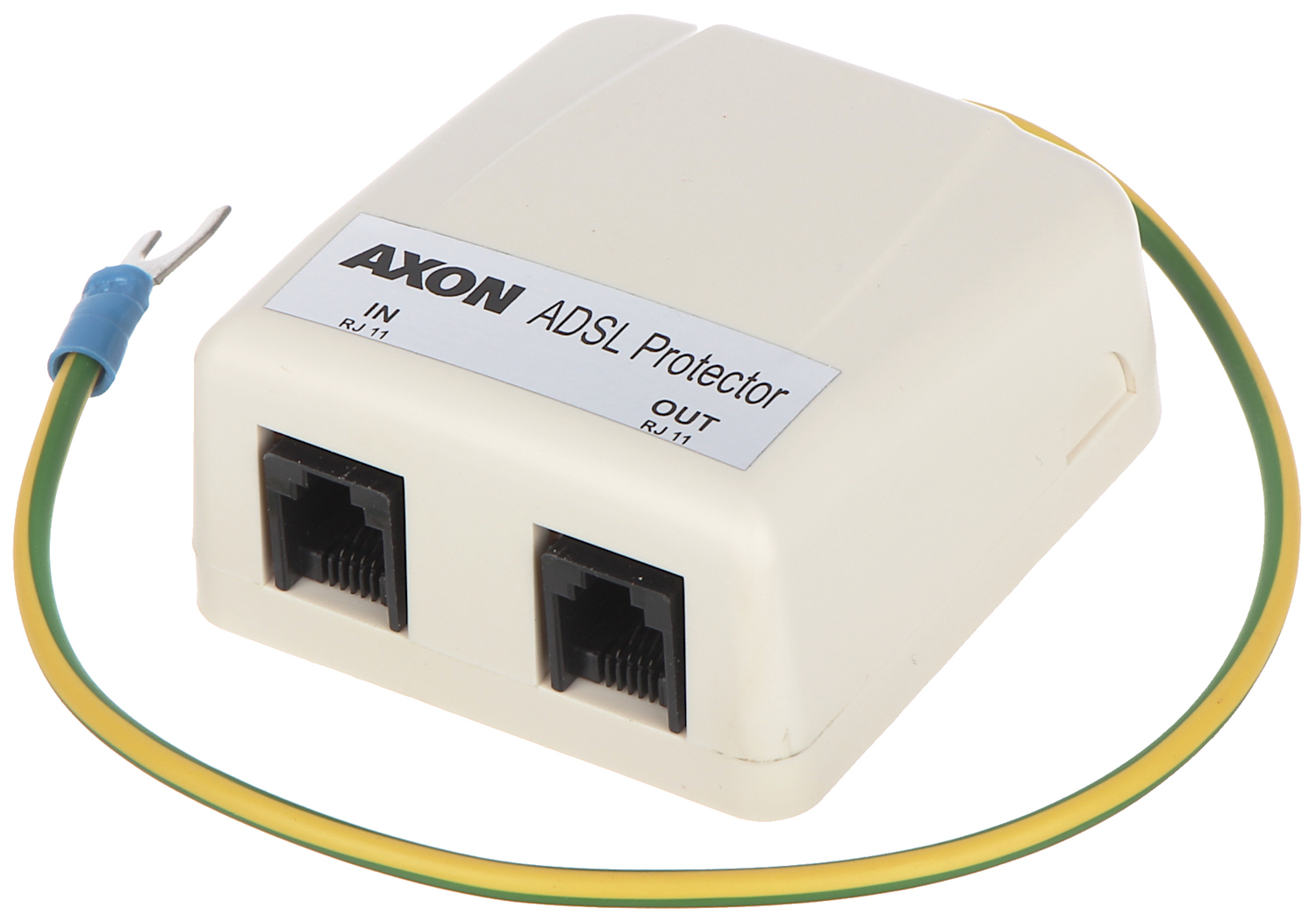

OVERVOLTAGE LIMITER AXON-ADSL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
It is designed to overvoltage protection of devices connected to ADSL telecomunication lines - it is perfect protection of ADSL modems; Nominal voltage (line-line): 120 V ; Protection level of surge suppressor: ≤ 600 V ; Nominal discharge current (line-PG): 5 kA (8/20µs) ; Maximal discharge current (line-PG): 10 kA (8/20µs) ;
| Nominal voltage (line-line): | 120 V |
| Maximal voltage (line-line): | 150 V |
| Protection level of surge suppressor: | ≤ 600 V |
| Nominal discharge current (line-PG): | 5 kA (8/20µs) |
| Maximal discharge current (line-PG): | 10 kA (8/20µs) |
| Capacity: | < 10 pF |

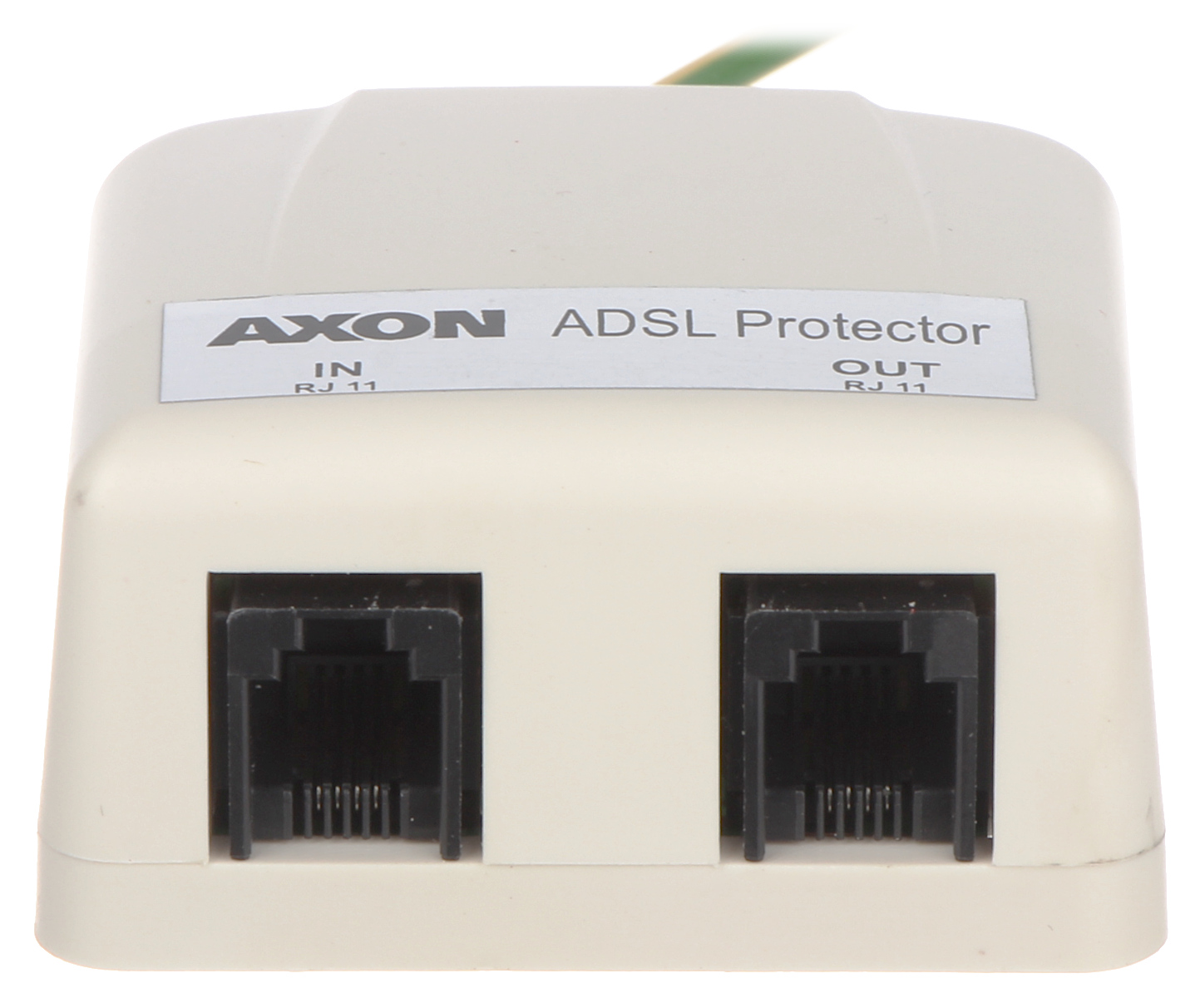

| Sockets type: | RJ11 (6P4C) |
| Dimensions: | 66 x 60 x 30 mm |
| Weight: | 0.05 kg |
| Guarantee: | 2 years |
Brand:
AXON
