VOLTAGE DISTRIBUTION PANEL A19-TS-35/PD-3U
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

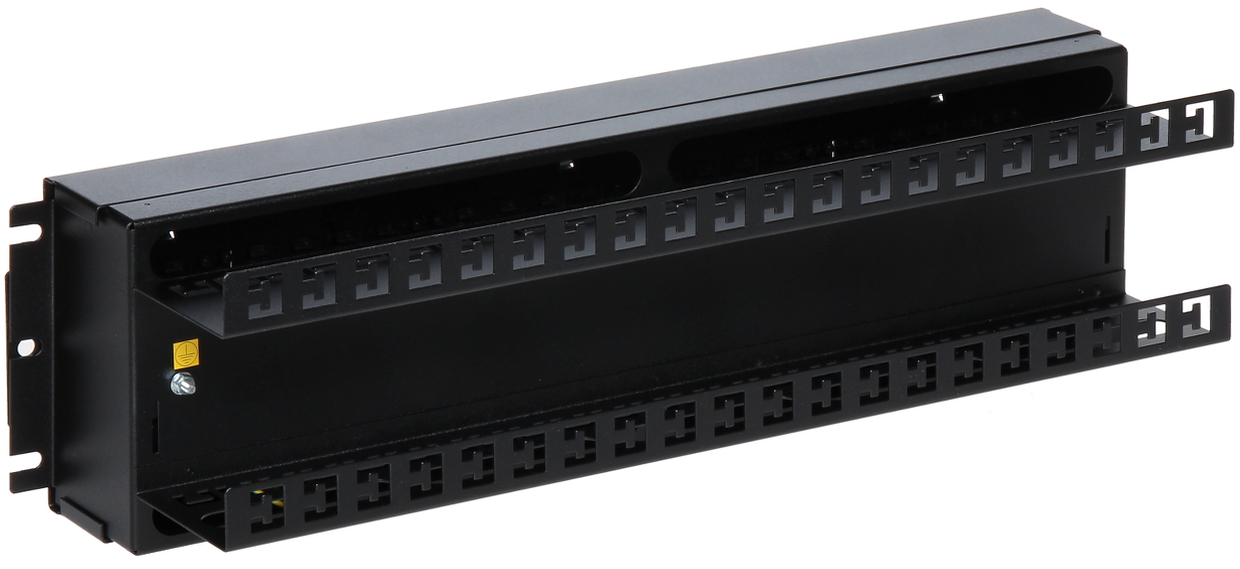

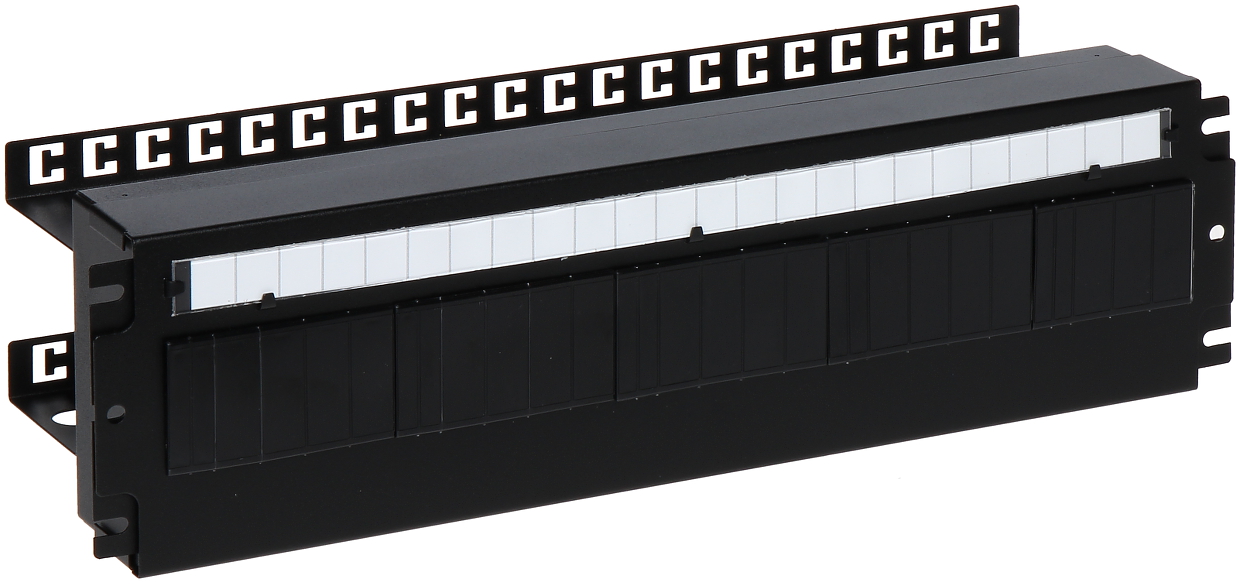

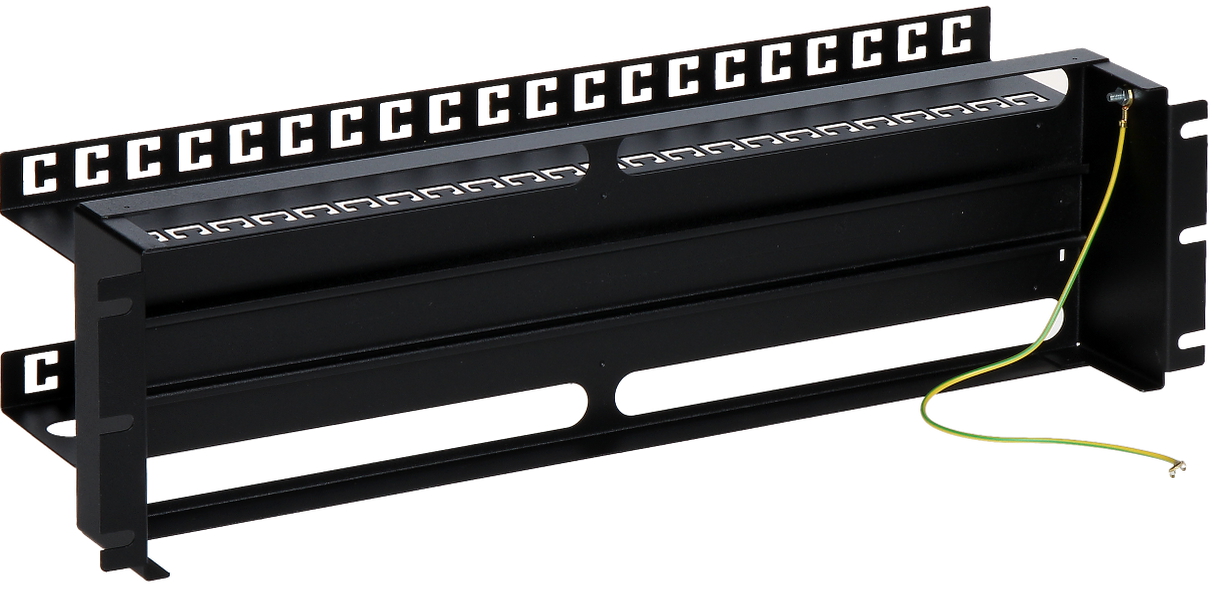

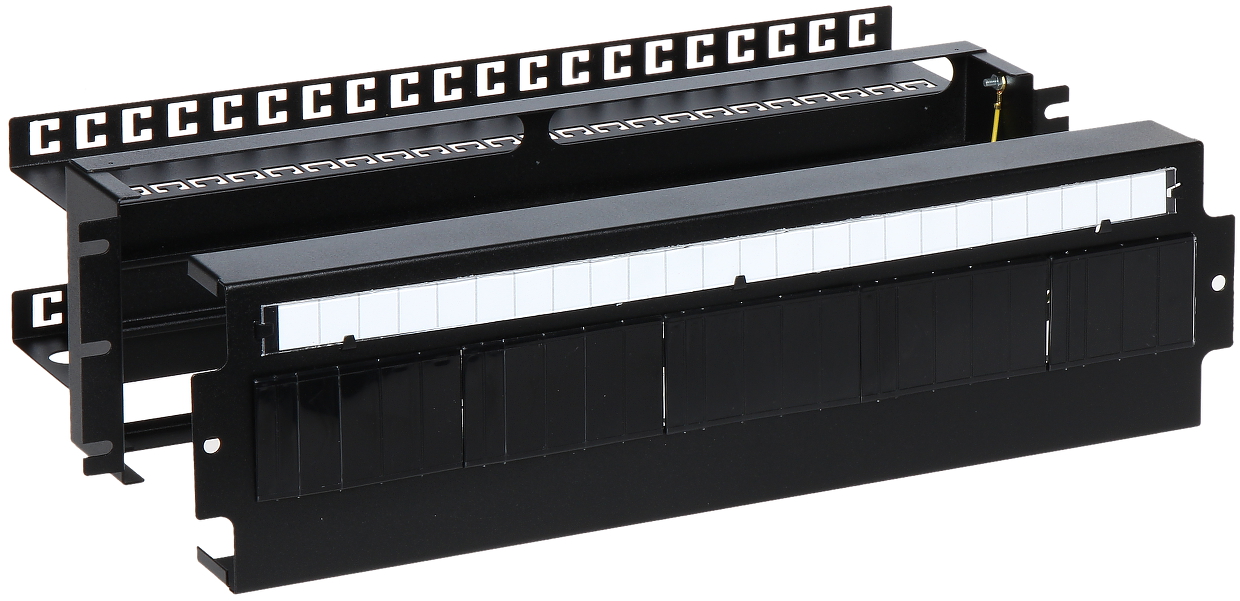

The A19-TS-35/PD-3U voltage distribution panel is intended for mounting electrical fuses, S type, in a RACK 19" cabinet; The enclosure can accommodate max. 24 fuses, 1 S wide.; Width: 19 " ; Height: 3 U ;
| Width: | 19 " |
| Height: | 3 U |
| Material: | Steel - powder painted |
| Color: | Black (RAL 9005) |
| "Index of Protection": | IP20 |
| Application: | RACK 19" |
| Main features: | |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 2.06 kg |

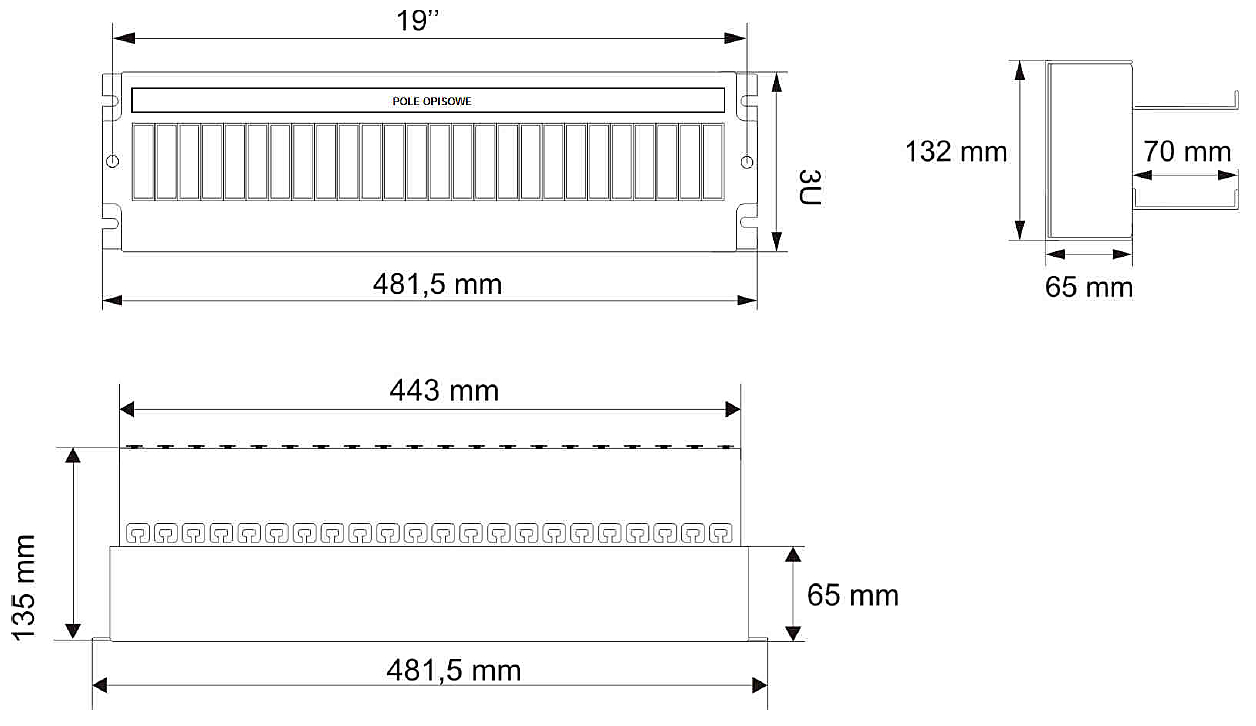

| Dimensions: | 445 x 125 x 55 mm Internal dimensions 481 x 132 x 135 mm External dimensions |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
