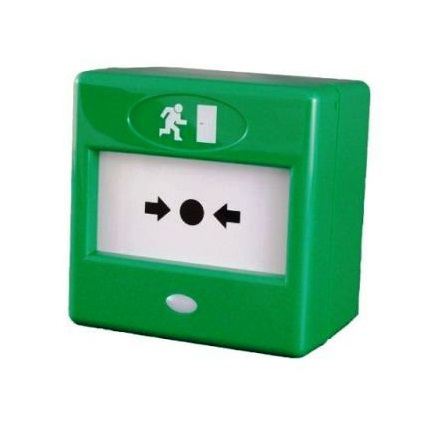

FP3/GR - Зеленая кнопка аварийного выхода IP44
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
|
Model |
FP/3GR |
|
Operating Voltage |
Nominally 12-24 Vdc |
|
SW1 – SW2 Contact Rating |
12A 125 / 250 Vdc |
|
SW3 Contact Rating |
3A 125 Vac |
|
Switch Type |
Single pole changeover |
|
LED Indicator |
Red LED with current limiting resistor 12 / 24 V |
|
Terminal Type |
2.5 mm insertion type, rated 10A / 250Vac |
|
IP Rating |
IP44 (for internal use only) |
|
Material |
Case ABS: operating element polycarbonate |
|
Operating Element |
Resettable (plastic) |
|
Operating Temperature |
From -10°C to +55° C |
|
Weight |
278 g |
|
Dimensions |
ø 92.5 x 110(H) mm |
