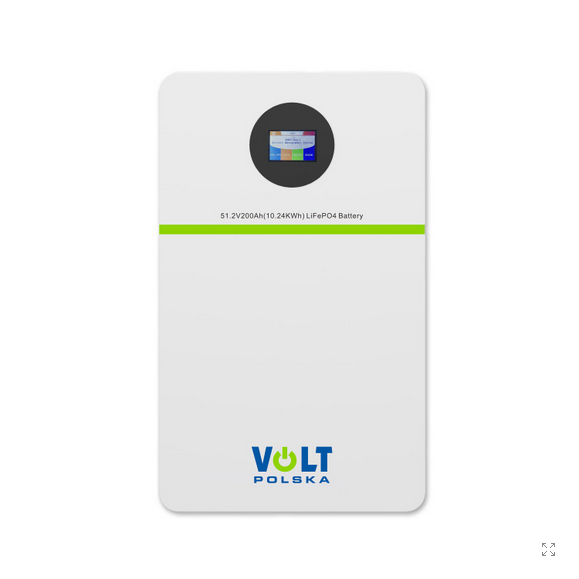

LiFePO4 - ULTRA-5 51,2V 200Ah 200A
48 Volts,
LIFEPO4 DEEP CYCLE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

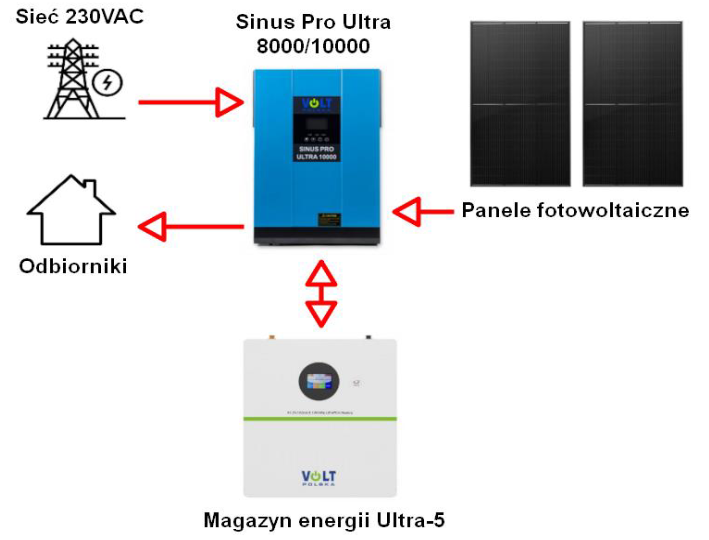

Energy storage systems ULTRA-5 51,2V 200Ah 200A are
designed to store energy produced via photovoltaic system.
They can be used in single-family houses and public space
e.g. restaurants, hotels, supermarkets, factories.
The general features are:
źThe use of lithium iron phosphate (LiFePO4) cells ensures
long life of the device and its safety.
źLong cycle life times with 6000 cycels. This enables to
charge and discharge the device while maintaining 60% of
its capacity.
źBMS (Battery Management System) that monitors various
parameters such as voltage, current, temperature and
state of charge. It also protects the device against
excessive discharge, overcharge and extreme
temperatures.
źThe modular design allows to connect the energy storage
systems in parallel, so you can increase the capacity in case
of growth energy demand.
źModern design and small size enables the installation of
device in almost every interior.
MODEL 51.2V200
Nominal voltage 51,2V
Recommend charge voltage 57,6V
Nominal capacity 200Ah
Max charge voltage 58,5V
Energy density 10240Wh
Recommend charge current 20A
Max continuous current 150A
Terminal type Plug-in
Terminal torque 8,5 Nm
Material SPCC
Cycle Life (0.2C, 25°C 80%
DOD) 6000 cycles
Efficiency >98%
6/12/24/36/48 Volt:
- 48 Volts
Battery type:
- LIFEPO4 DEEP CYCLE
Brand:
VOLT POLSKA
