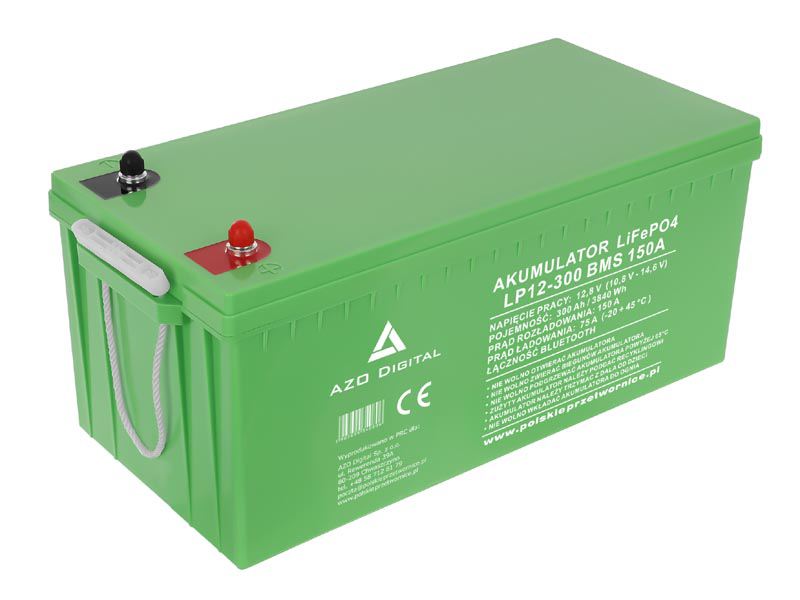

Akumulator LiFePO4 12V 300 Ah (150A) + BMS BLUETOOTH + heating mat
LIFEPO4 DEEP CYCLE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
BATTERY TECHNICAL PARAMETERS
Cell type: LiFePO4
Nominal voltage: 12.8 VDC
Nominal capacity: 300 Ah
Nominal capacity: 3840 Wh
Operating voltage: 10.8 - 14.6 VDC
Charging voltage: 14.6 VDC
Recommended charging voltage: 13.8 V
Maximum charging voltage: 14.6 VDC
Recommended discharge voltage: > 11.2 VDC
Critical discharge voltage: 10.8 VDC
Recommended charging current: < 75 A
Maximum charging current: 150 A
Maximum continuous discharge current: 150 A
Maximum discharge current: 180 A
Efficiency: > 98 %
Self-discharge (month): < 3%
Built-in BMS: YES
Bluetooth communication: YES
Life (0.2C, 25 St.C 100% DOD): 4000 cycles
Life (0.2C, 25 St.C 80% DOD): 6500 cycles
Battery series connection: Yes, max 4 pieces
Heating function: YES
Discharging temperature: -20 St. C ÷ 60 St. C
Charging temperature: -20 St. C ÷ 45 St. C
Storage temperature: -10 St. C ÷ 30 St. C
Dimensions: 522 x 240 x 220 mm
Weight: 26.5 kg
Connector: M8
Tightness class: IP65
Housing material: ABS
BMS TECHNICAL PARAMETERS
I overcharge protection: 155A (delay 5 sec.)
II overcharge protection: 180A (delay 2 sec.)
I discharge protection: 155A (delay 5 sec.)
II discharge protection: 180A (delay 2 sec.)
Overvoltage protection: 14.8 VDC (delay 1 sec.)
Undervoltage protection: 8.8 VDC (delay 1 sec.)
Thermal protection on: above 95°C
Thermal protection off: below 85 Deg.C
Cell type: LiFePO4
Nominal voltage: 12.8 VDC
Nominal capacity: 300 Ah
Nominal capacity: 3840 Wh
Operating voltage: 10.8 - 14.6 VDC
Charging voltage: 14.6 VDC
Recommended charging voltage: 13.8 V
Maximum charging voltage: 14.6 VDC
Recommended discharge voltage: > 11.2 VDC
Critical discharge voltage: 10.8 VDC
Recommended charging current: < 75 A
Maximum charging current: 150 A
Maximum continuous discharge current: 150 A
Maximum discharge current: 180 A
Efficiency: > 98 %
Self-discharge (month): < 3%
Built-in BMS: YES
Bluetooth communication: YES
Life (0.2C, 25 St.C 100% DOD): 4000 cycles
Life (0.2C, 25 St.C 80% DOD): 6500 cycles
Battery series connection: Yes, max 4 pieces
Heating function: YES
Discharging temperature: -20 St. C ÷ 60 St. C
Charging temperature: -20 St. C ÷ 45 St. C
Storage temperature: -10 St. C ÷ 30 St. C
Dimensions: 522 x 240 x 220 mm
Weight: 26.5 kg
Connector: M8
Tightness class: IP65
Housing material: ABS
BMS TECHNICAL PARAMETERS
I overcharge protection: 155A (delay 5 sec.)
II overcharge protection: 180A (delay 2 sec.)
I discharge protection: 155A (delay 5 sec.)
II discharge protection: 180A (delay 2 sec.)
Overvoltage protection: 14.8 VDC (delay 1 sec.)
Undervoltage protection: 8.8 VDC (delay 1 sec.)
Thermal protection on: above 95°C
Thermal protection off: below 85 Deg.C
Battery type:
- LIFEPO4 DEEP CYCLE
Brand:
AZO Digital
