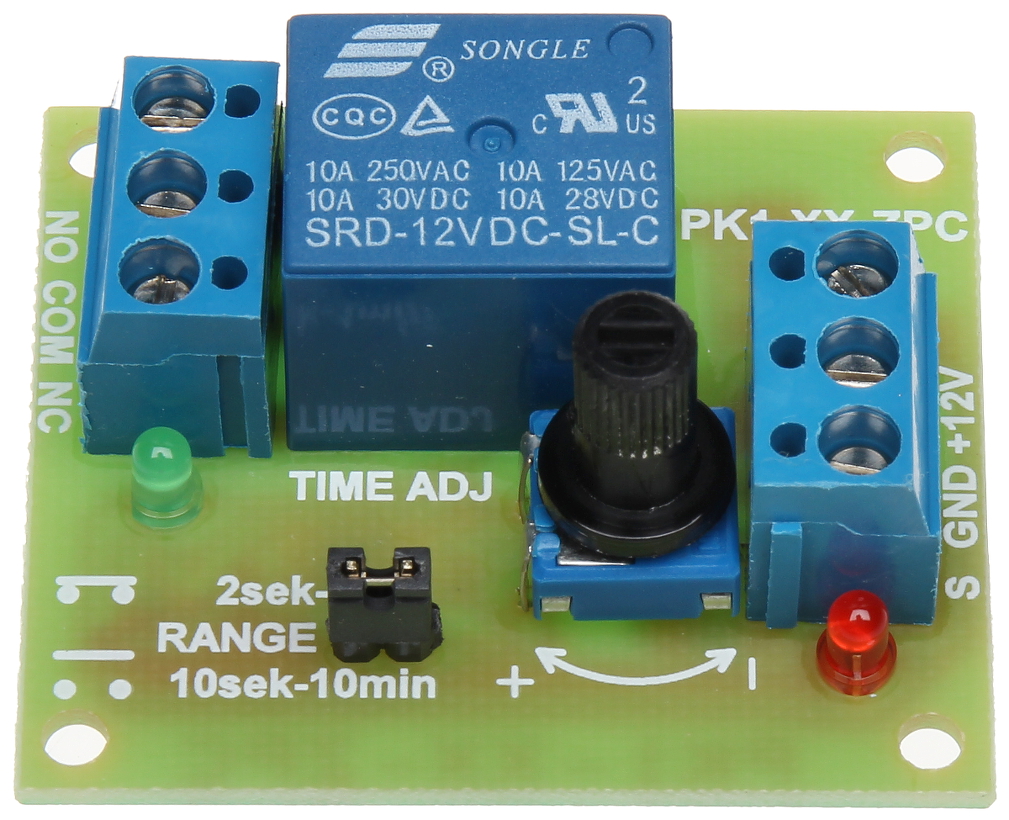

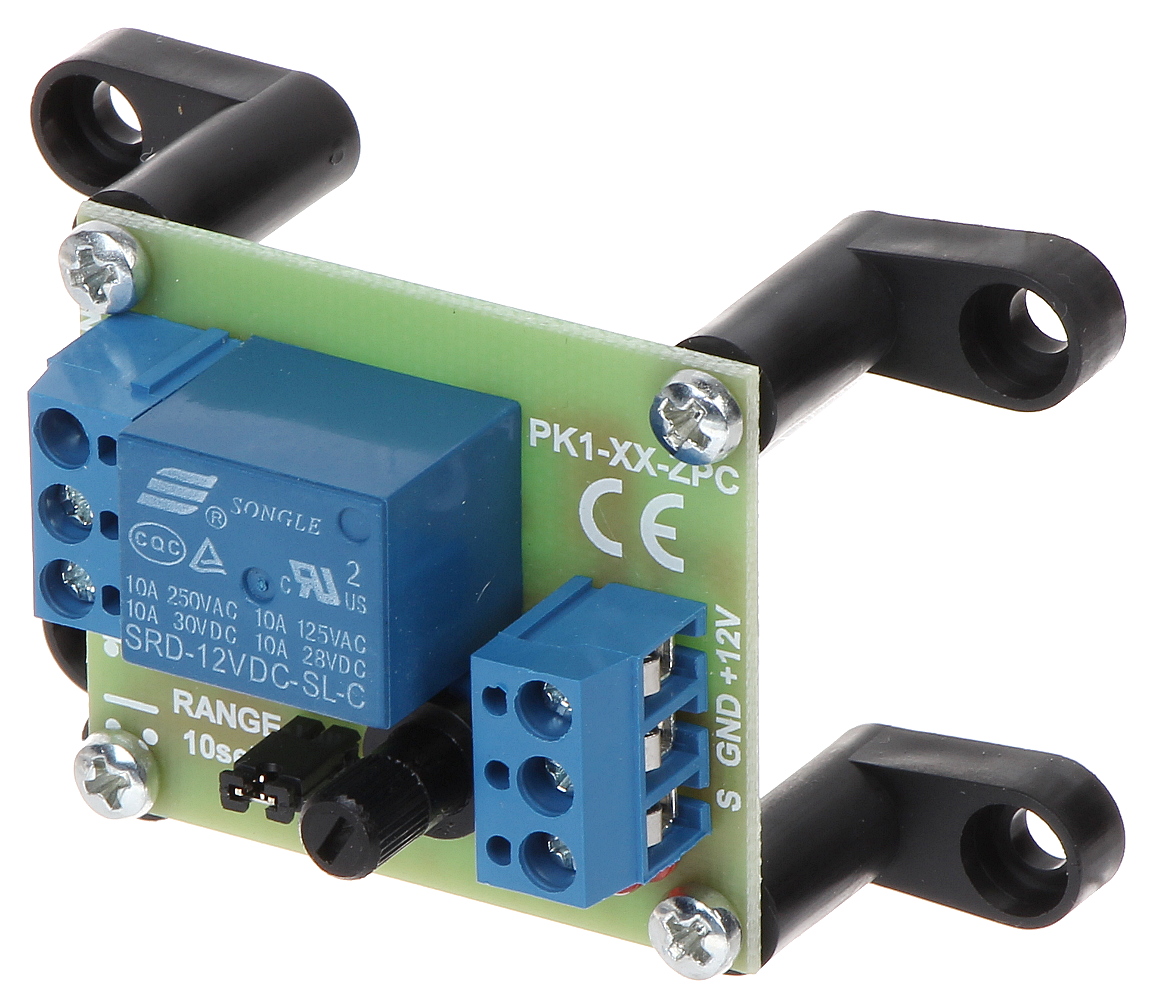

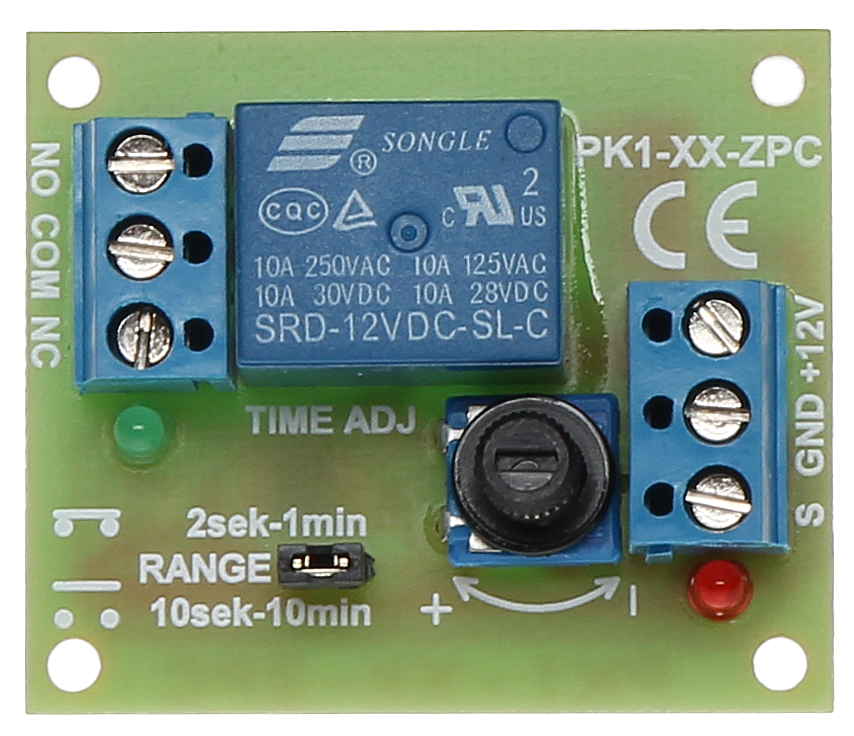

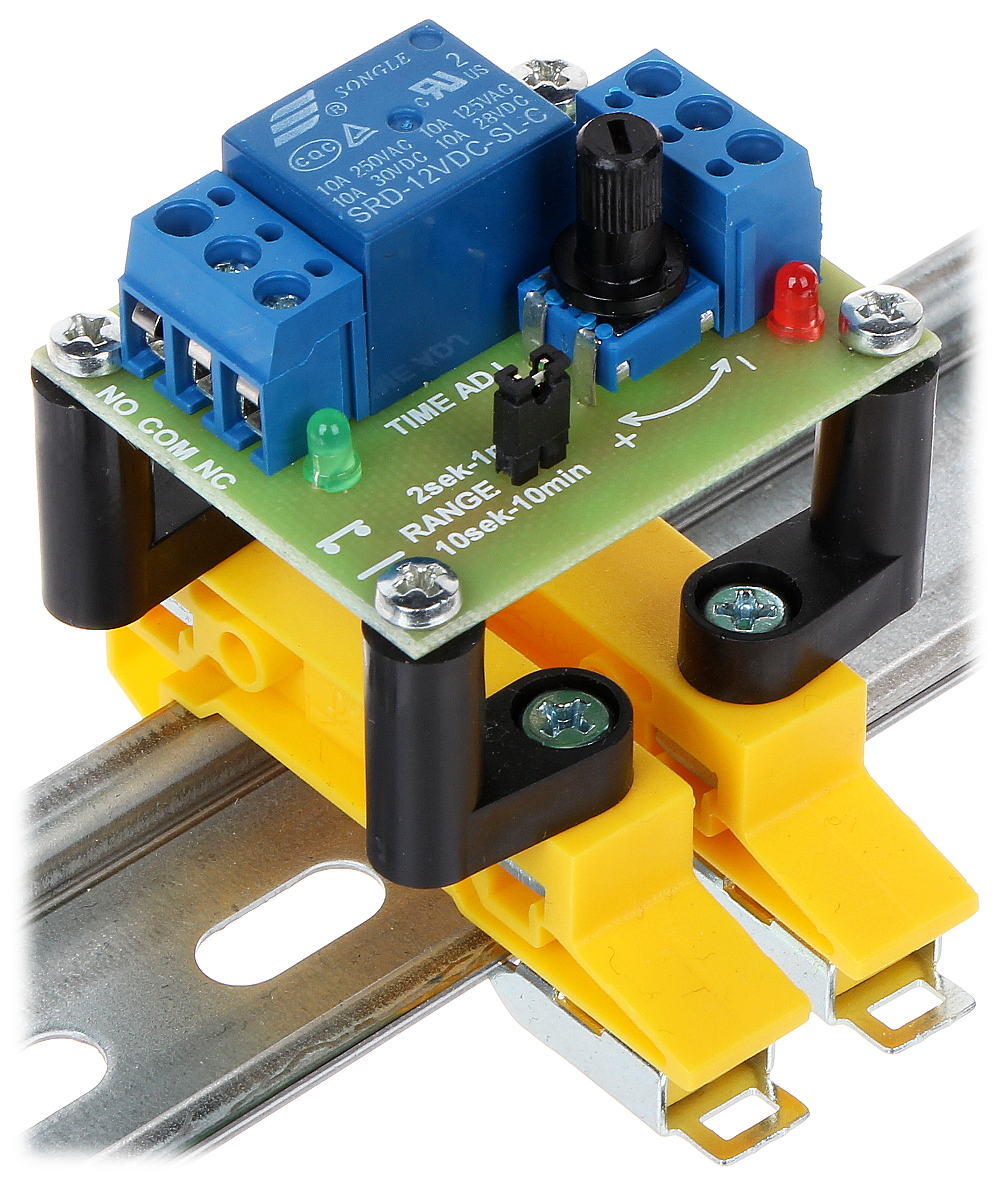

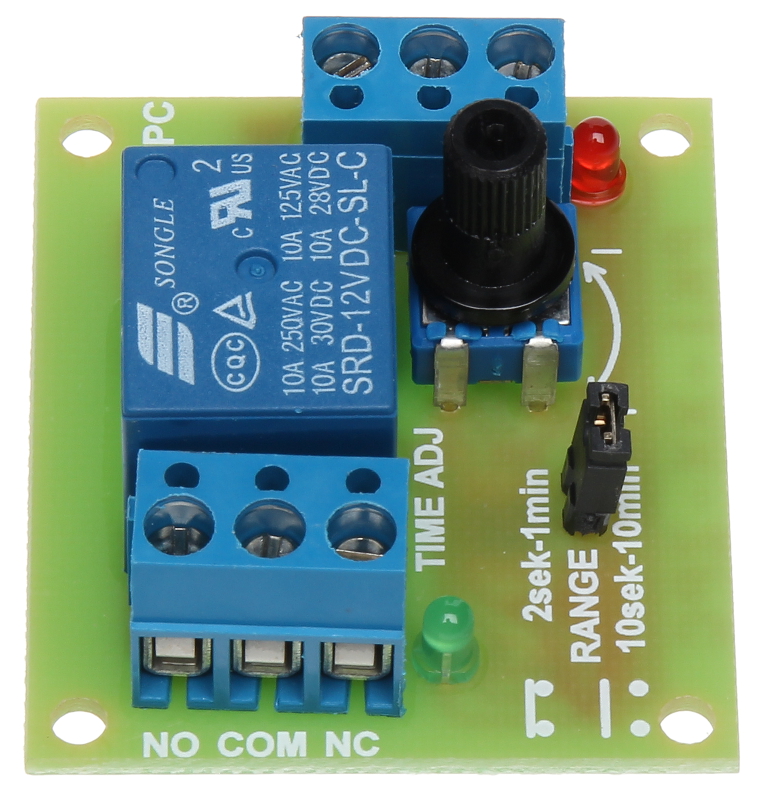

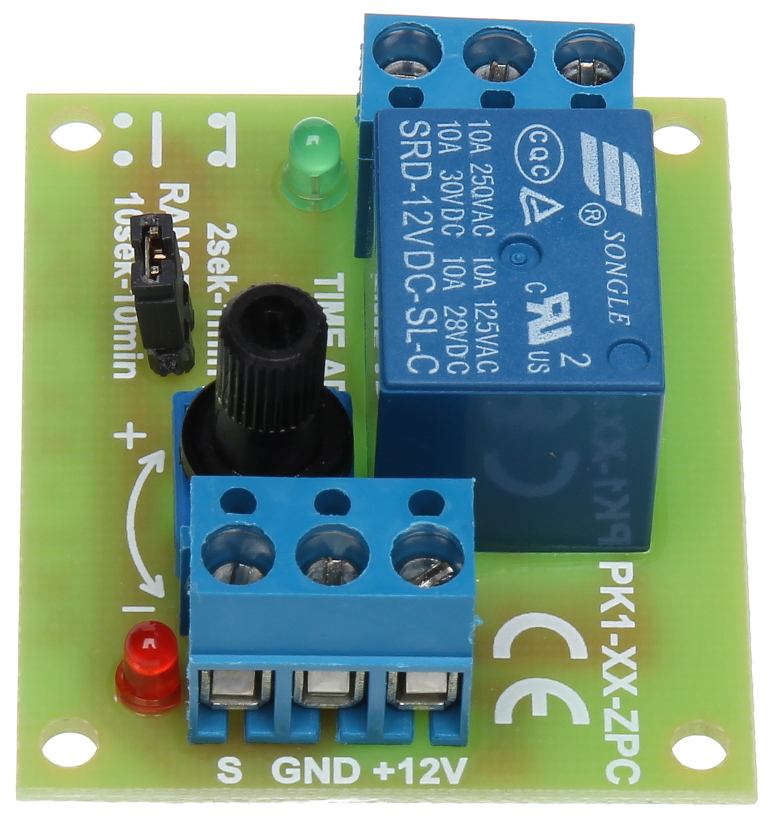

TIME RELAY MODULE PK1-12-ZPC DELTA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Number of relay outputs: 1 ; Power supply: 10 ... 16 V DC ; Relay maximal load: 10 A (max) @ 30 V DC / 50 V AC ; Output: 1 x NO/NC ; Main features: Time settings range 1. Range : 2 s ... 60 s, 2. Range : 10 s ... 10 minutes ;
| Number of relay outputs: | 1 |
| Power supply: | 10 ... 16 V DC |
| Current consumption: | 35 mA (max) |
| Relay maximal load: | 10 A (max) @ 30 V DC / 50 V AC (max) |
| Output: | 1 x NO/NC |
| Main features: | 1. Range : 2 s ... 60 s , 2. Range : 10 s ... 10 minutes |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.025 kg |
| Dimensions: | 47 x 40 x 23 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
