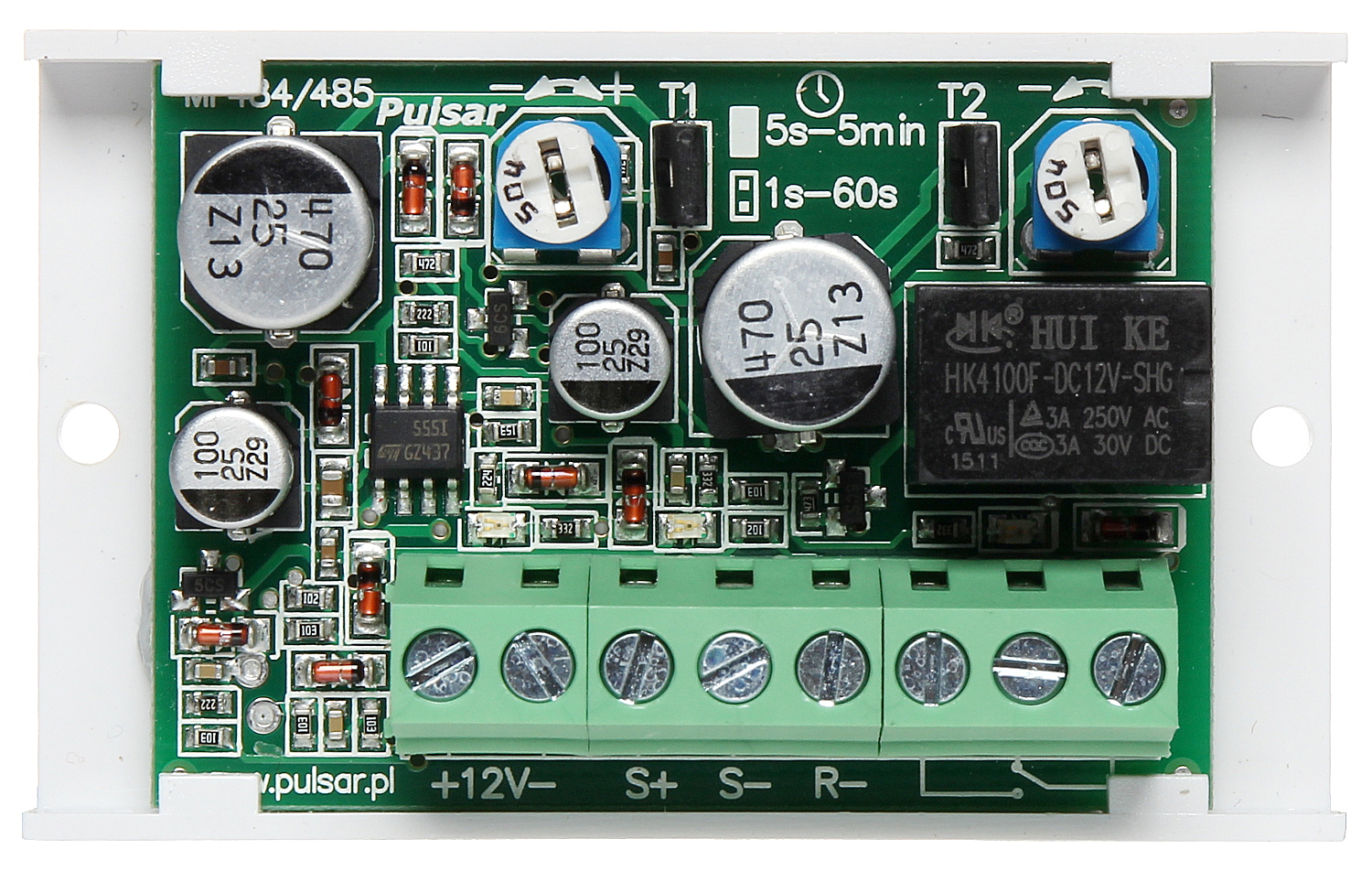

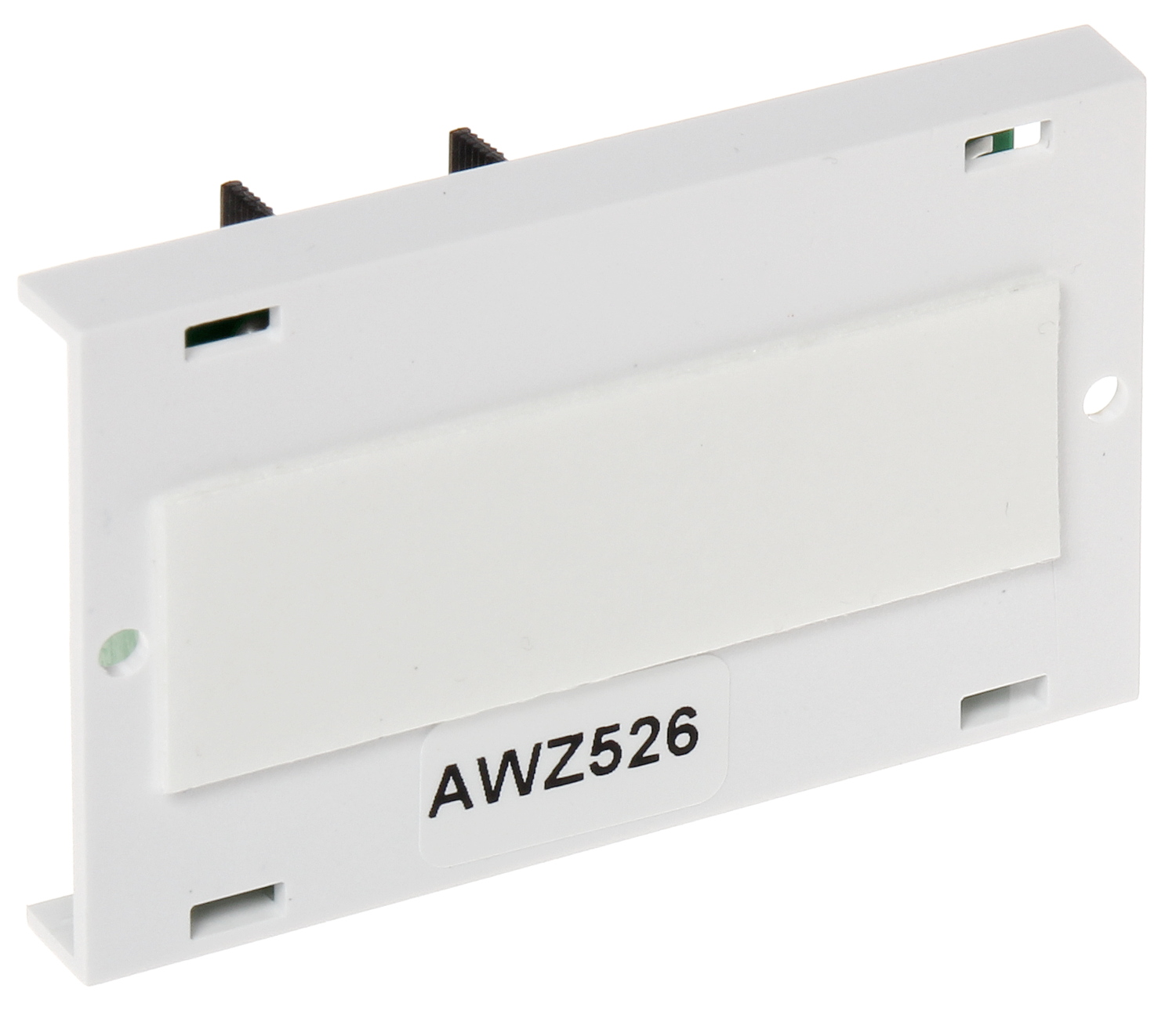

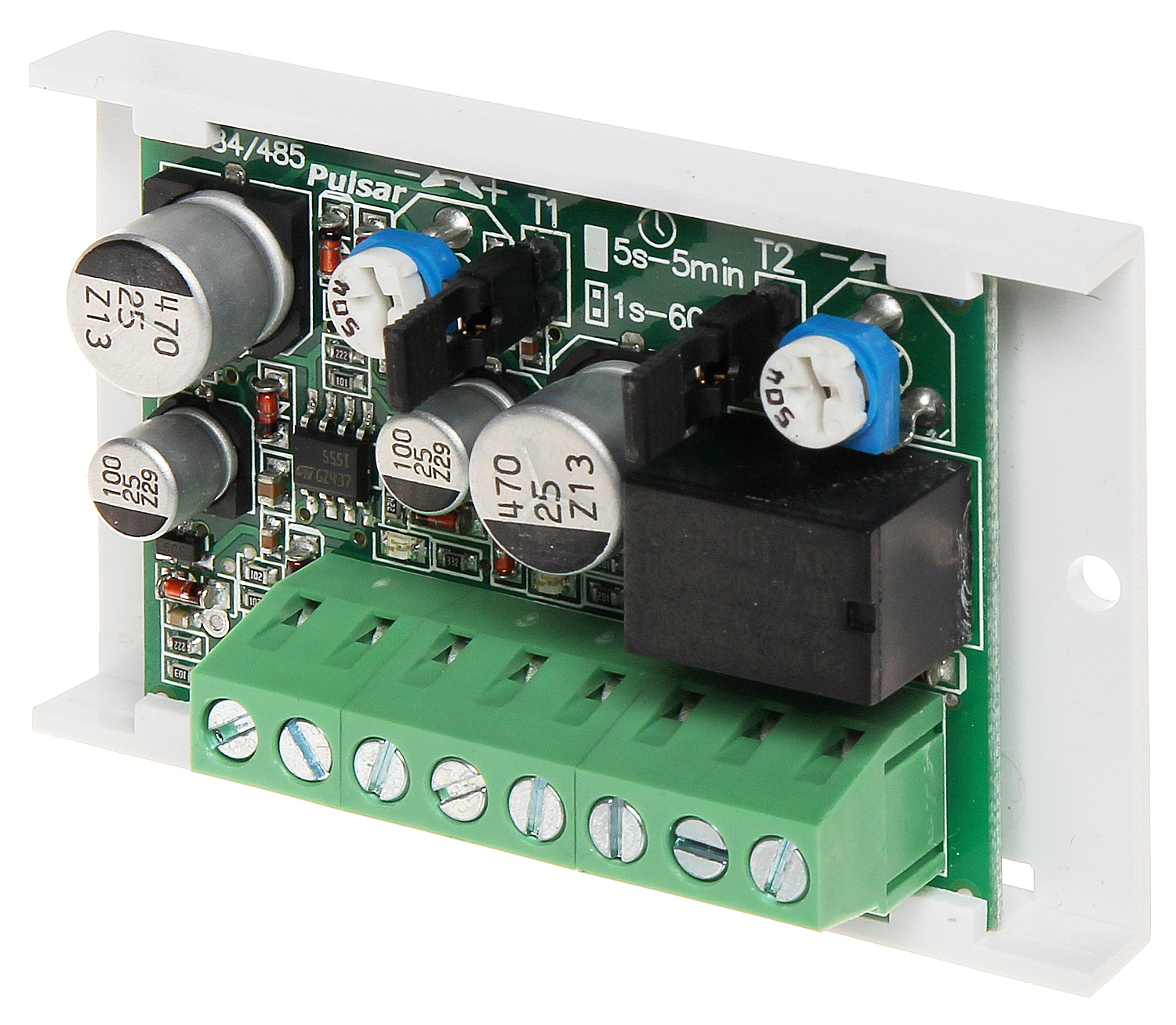

TIME RELAY MODULE AWZ-526
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Number of relay outputs: 1 ; Power supply: 10 ... 14 V DC ; Relay maximal load: 1 A (max) @ 30 V DC / 50 V AC ; Output: 1 x NO/NC ; Main features: Time settings range 1. Range : 1 s ... 60 s, 2. Range : 5 s ... 5 minutes ;
| Number of relay outputs: | 1 |
| Power supply: | 10 ... 14 V DC |
| Current consumption: | 35 mA (max) |
| Relay maximal load: | 1 A (max) @ 30 V DC / 50 V AC (max) |
| Output: | 1 x NO/NC |
| Main features: | 1. Range : 1 s ... 60 s , 2. Range : 5 s ... 5 minutes |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.035 kg |
| Dimensions: | 69 x 43 x 22 mm |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
