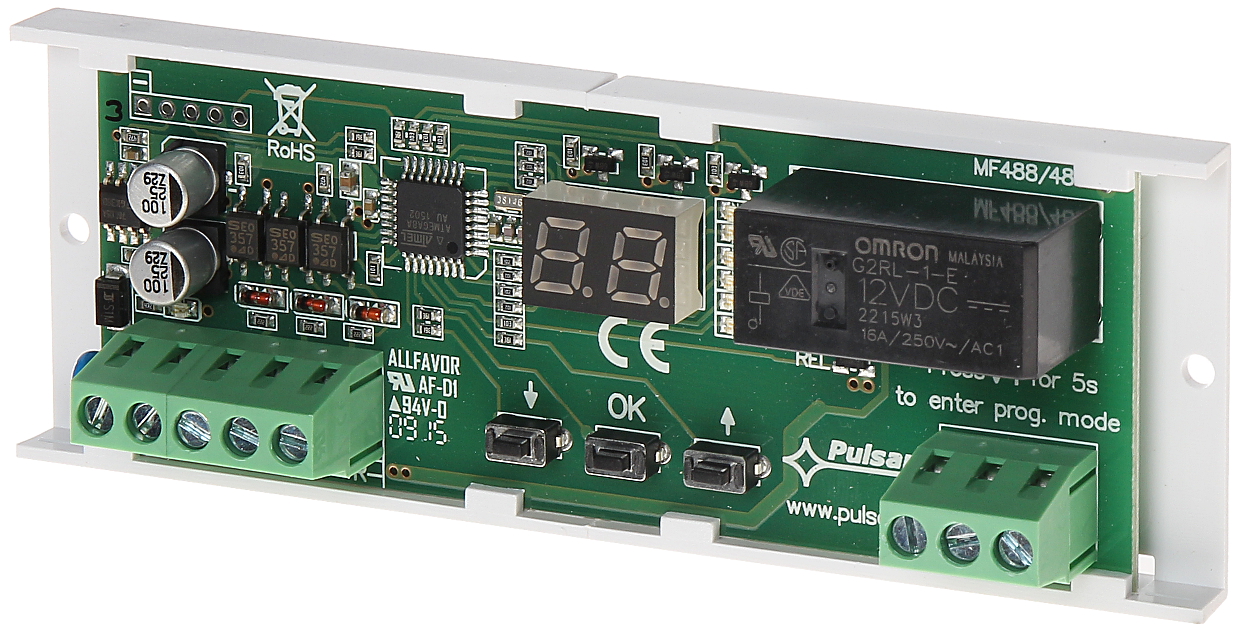

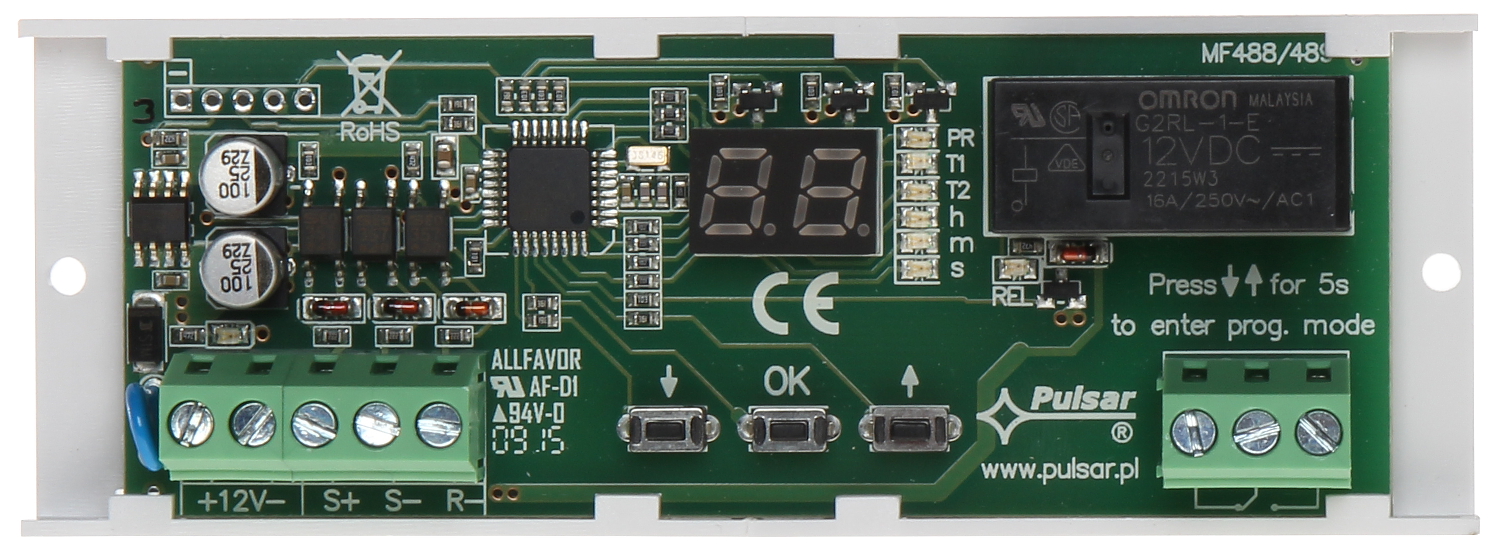

TIME RELAY MODULE AWZ-516 PULSAR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Number of relay outputs: 1 ; Power supply: 10 ... 14 V DC ; Relay maximal load: 10 A (max), 30 V DC / 250 V AC ; Output: 1 x NO/NC ; Main features: EEPROM non-volatile memory, Time settings range 1 s ... 99 h, ;
| Number of relay outputs: | 1 |
| Power supply: | 10 ... 14 V DC |
| Current consumption: | 51 mA (max) |
| Relay maximal load: | 10 A (max), 30 V DC / 250 V AC (max) |
| Output: | 1 x NO/NC |
| Main features: | |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.05 kg |
| Dimensions: | 100 x 43 x 23 mm |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
