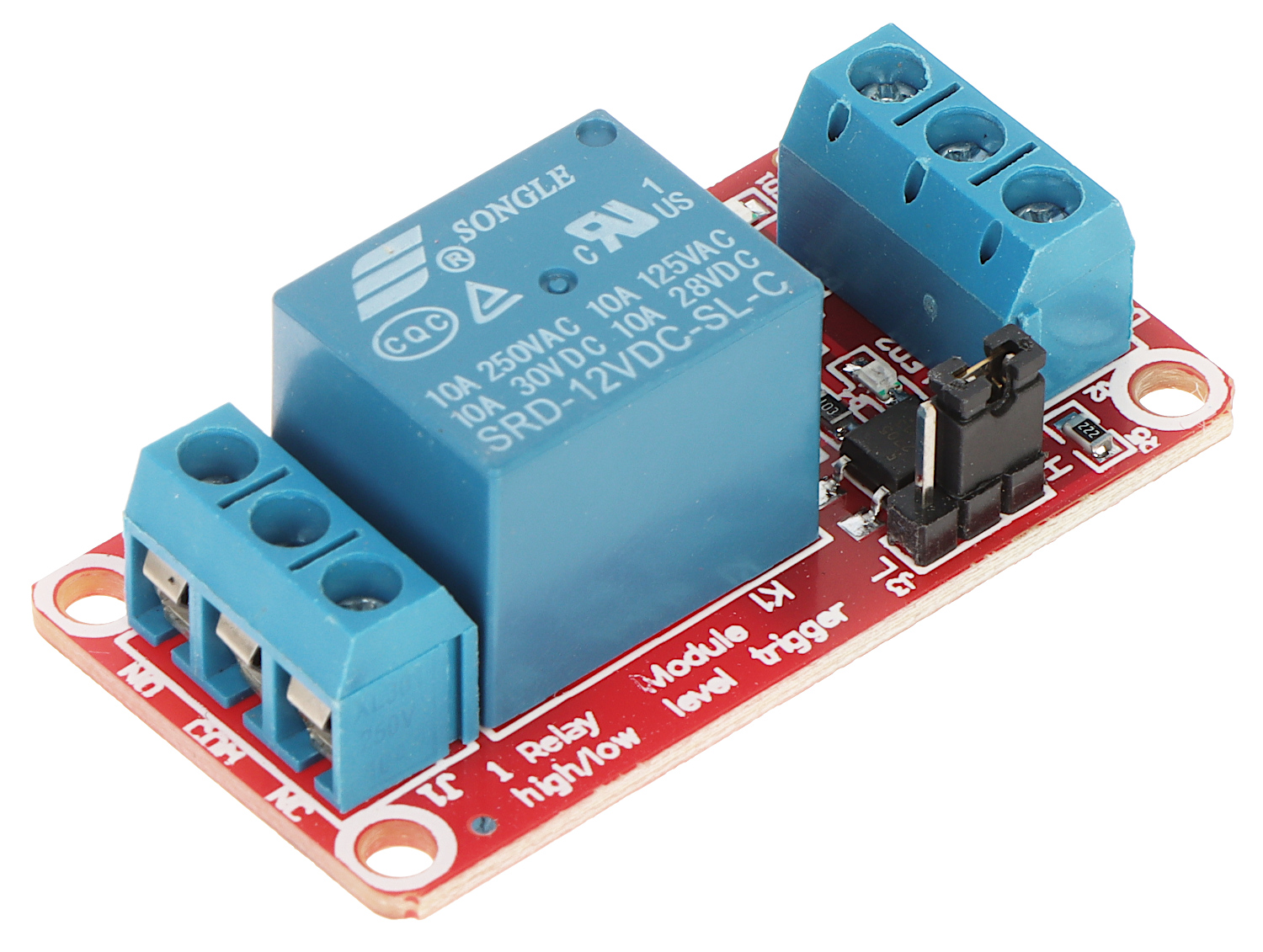

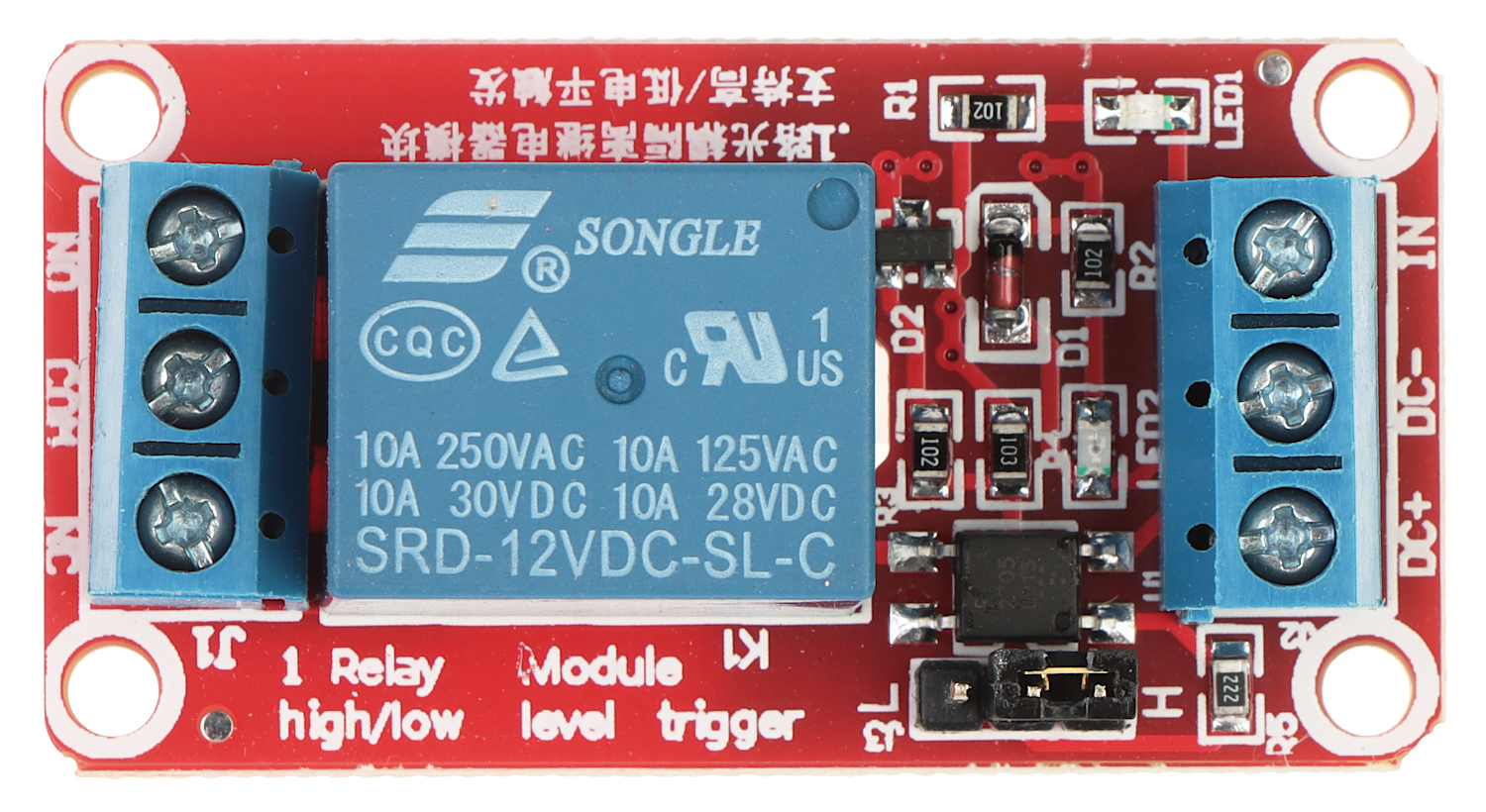

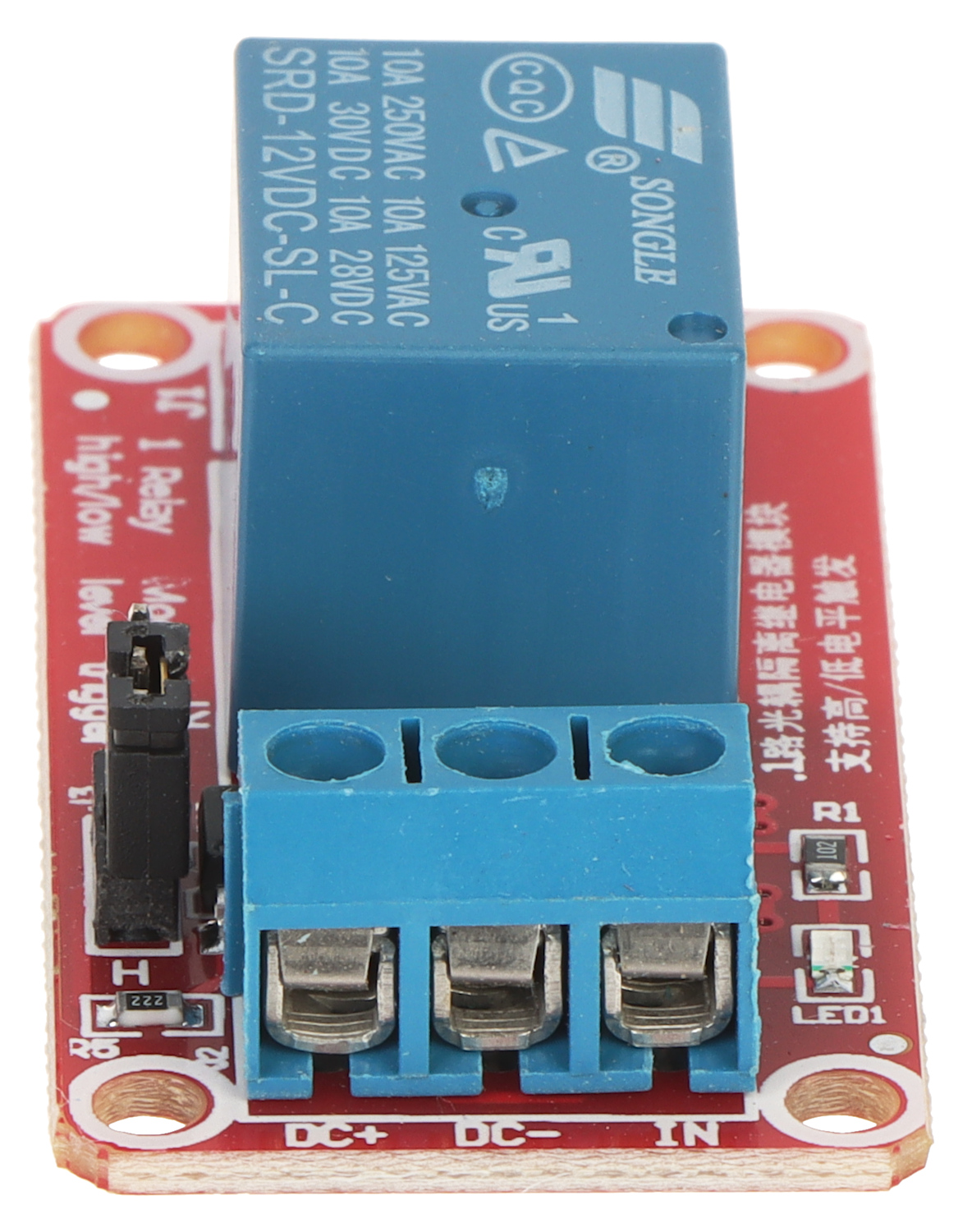

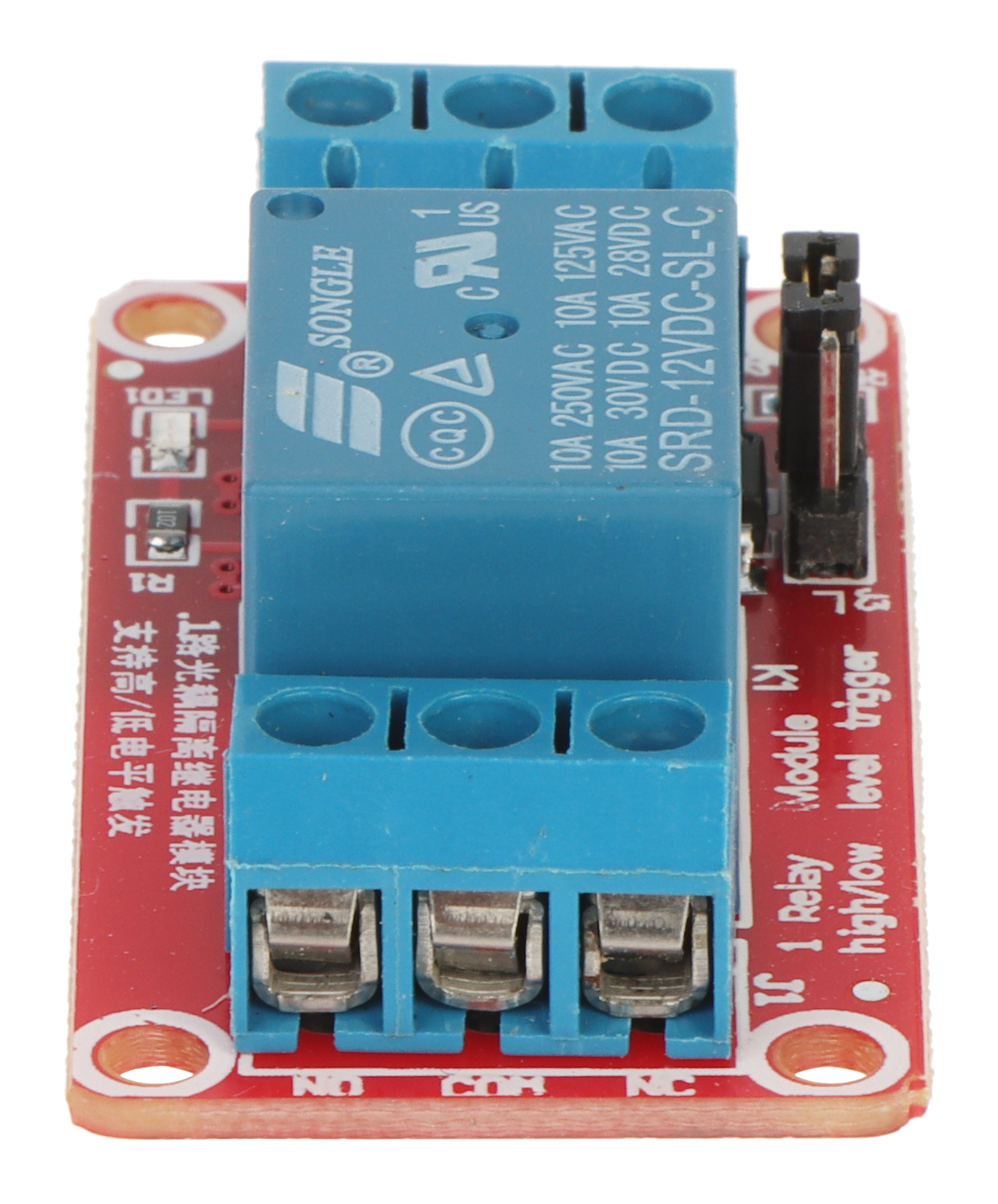

RELAY MODULE PK-551
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 1 ; Power supply: 12 V DC ; Current consumption: 65 mA, 5 mA - IN input ; Relay maximal load: 10 A (max) @ 28 V DC / 30 V DC / 125 V AC / 250 V AC ; Output: 1 x NO/NC ; Main features: relay inputs triggering by low or high voltage - Set with jumpers, LED indication ;
| Number of relay outputs: | 1 |
| Power supply: | 12 V DC |
| Current consumption: | |
| Relay maximal load: | 10 A (max) @ 28 V DC / 30 V DC / 125 V AC / 250 V AC |
| Output: | 1 x NO/NC |
| Main features: | |
| Weight: | 0.017 kg |
| Dimensions: | 50 x 26 x 19 mm |
| Guarantee: | 2 years |
Brand:
Delta Multimedia
