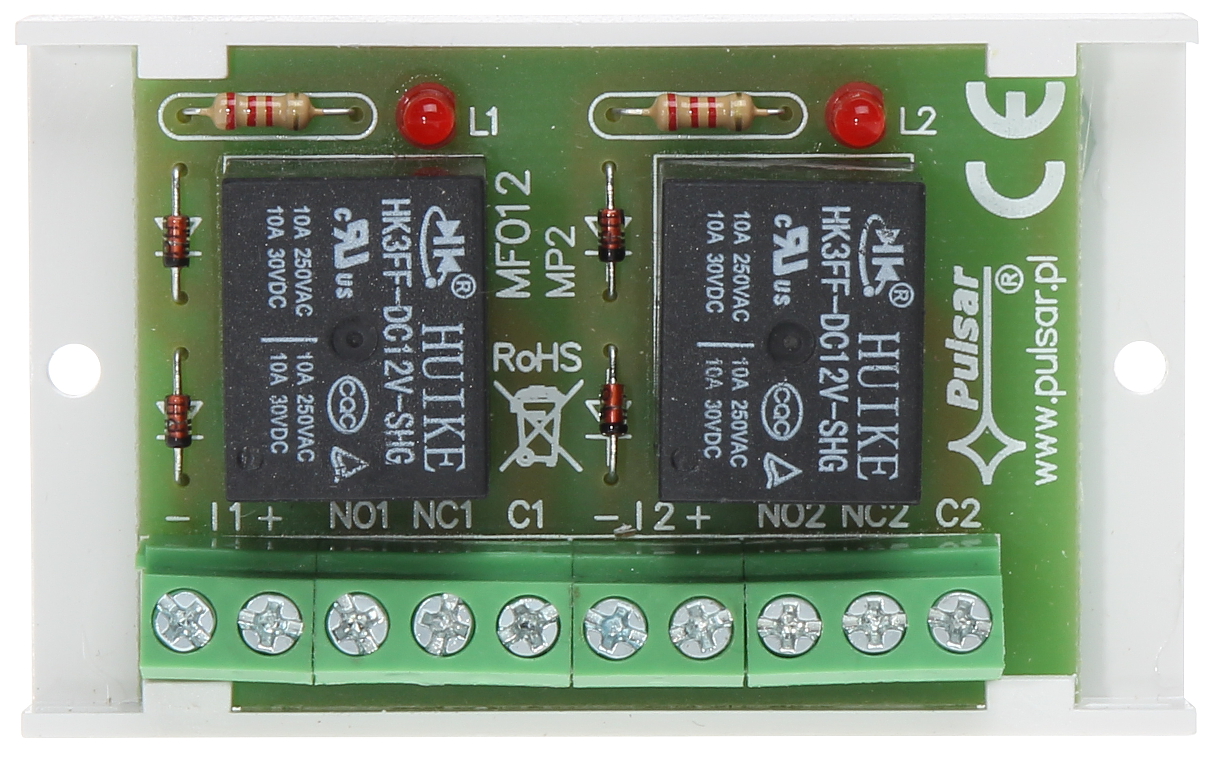

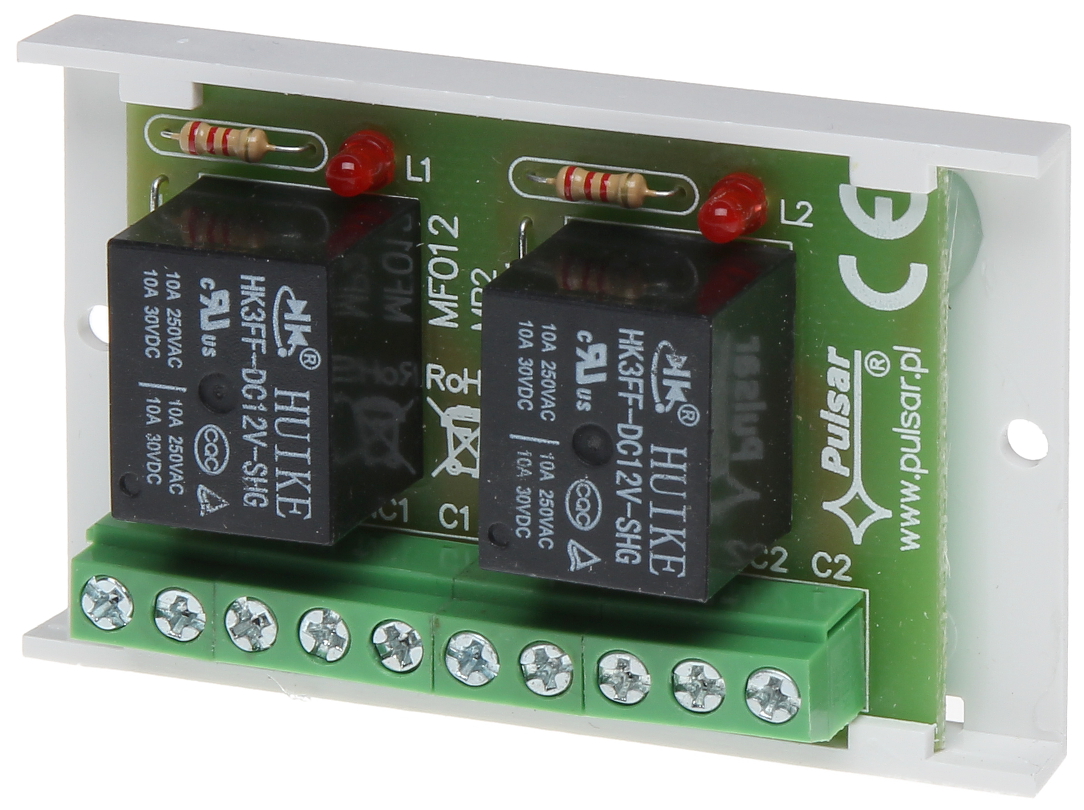

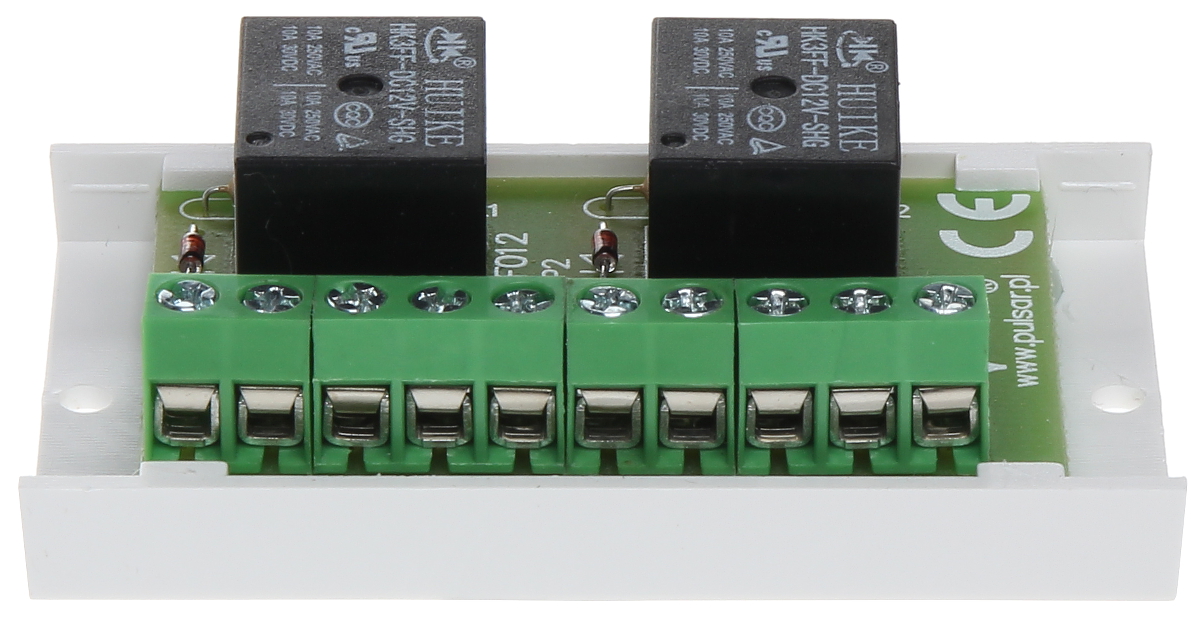

RELAY MODULE AWZ-529
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 2 ; Power supply: 10 ... 14 V DC ; Relay maximal load: 2 A (max), 30 V DC / 50 V AC ; Output: 2 x NO/NC ;
| Number of relay outputs: | 2 |
| Power supply: | 10 ... 14 V DC |
| Current consumption: | 37 mA per each relay at voltage 12 V DC |
| Relay maximal load: | 2 A (max), 30 V DC / 50 V AC (max) |
| Output: | 2 x NO/NC |
| Main features: | LED indication |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.04 kg |
| Dimensions: | 70 x 43 x 23 mm |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
