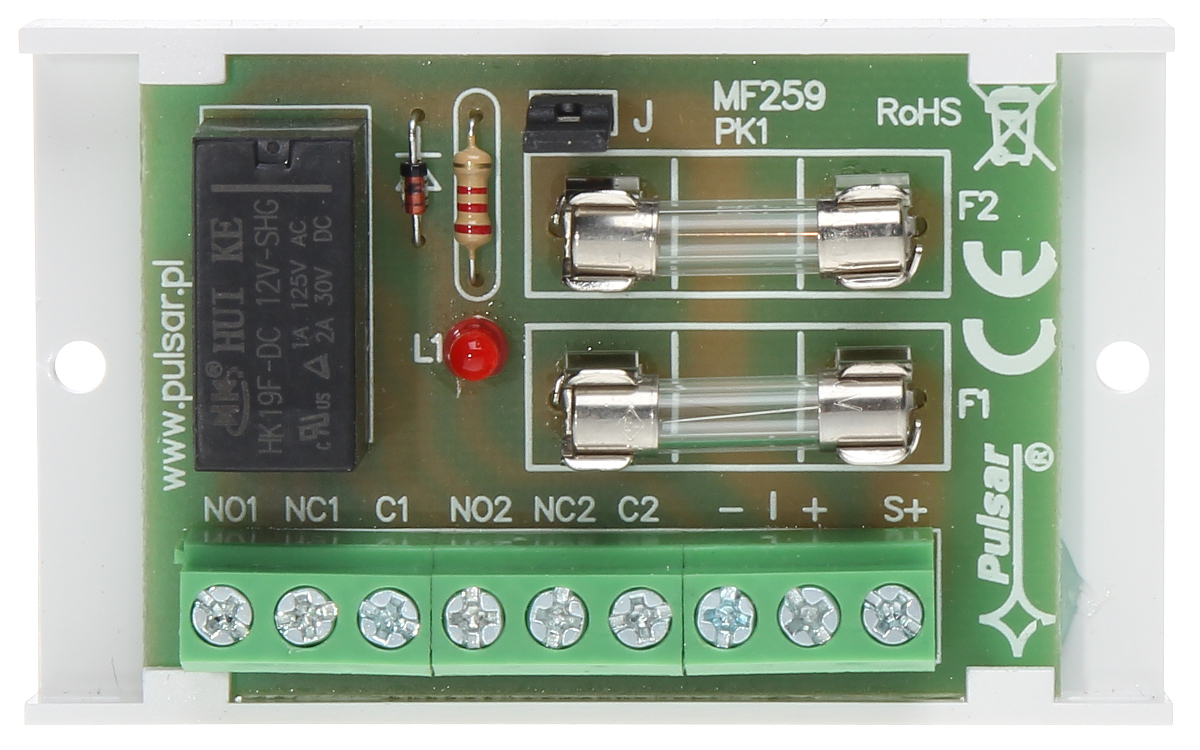

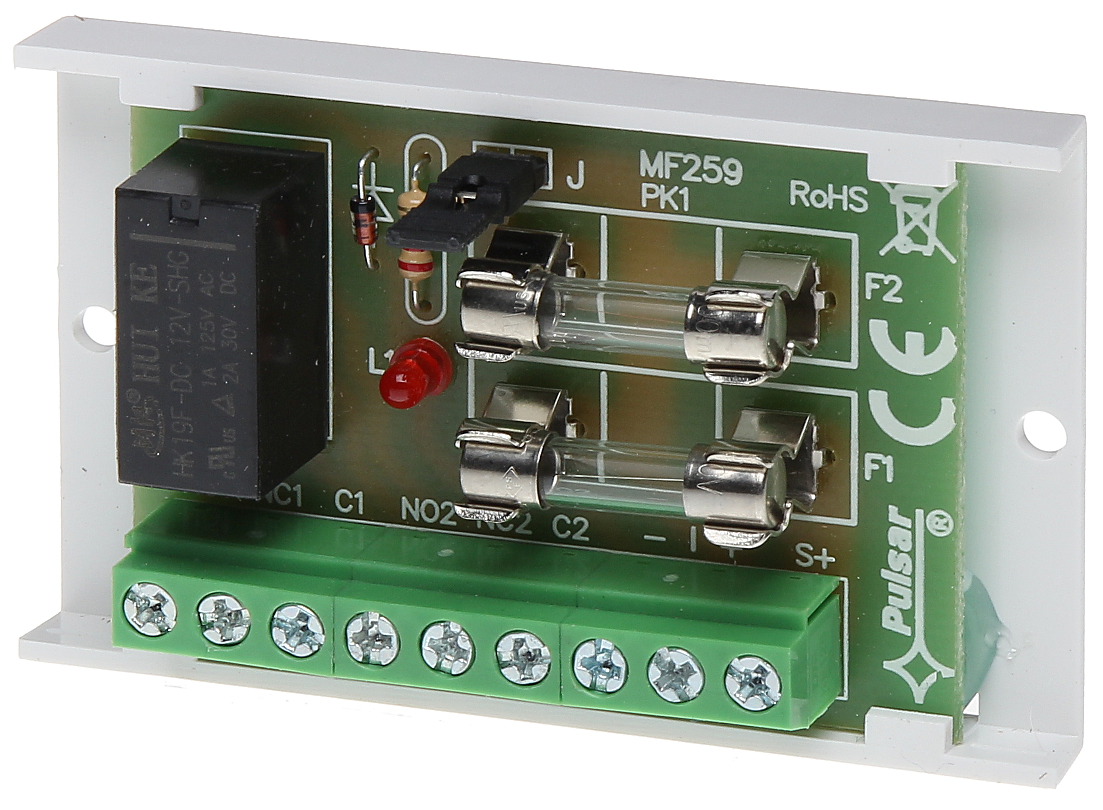

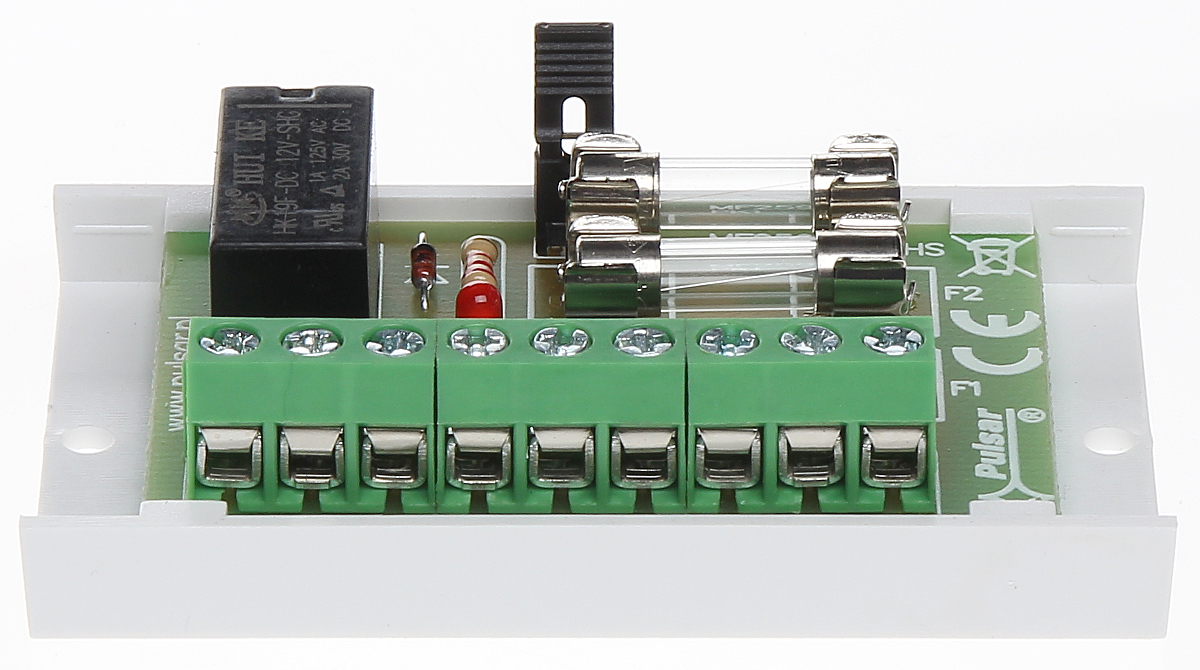

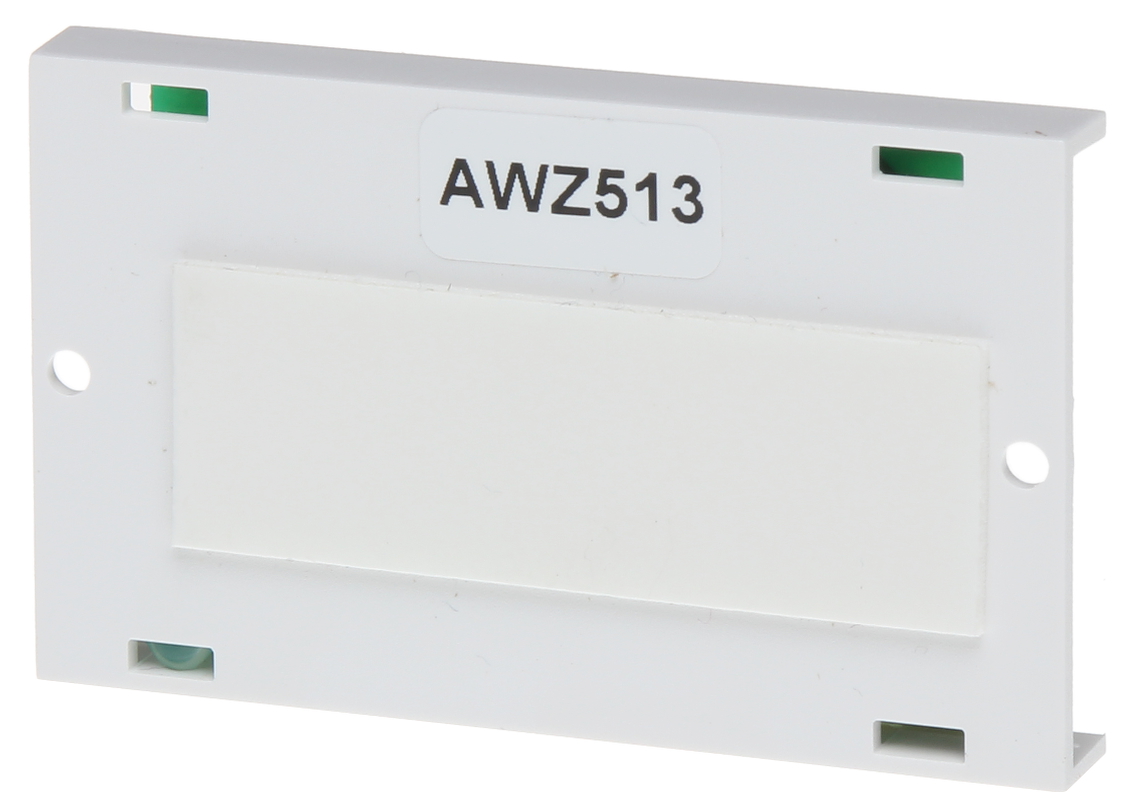

RELAY MODULE AWZ-513
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
It can be used to increase maximal load of controller transistor output line and for galvanic isolation between output line and load point; Number of relay outputs: 2 ; Power supply: 10 ... 14 V DC ; Relay maximal load: 2 A (max), 30 V DC / 50 V AC ; Output: 2 x NO/NC ; Main features: 2 x 5/20mm delayed fuse - 0.5 A, 2 A ;
| Number of relay outputs: | 2 - Relays controlled by a single control input |
| Power supply: | 10 ... 14 V DC |
| Current consumption: | 25 mA @ 12 V DC |
| Relay maximal load: | 2 A (max), 30 V DC / 50 V AC (max) |
| Output: | 2 x NO/NC |
| Main features: | |
| Operation temp: | -10 °C ... 50 °C |
| Weight: | 0.03 kg |
| Dimensions: | 70 x 43 x 24 mm |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
