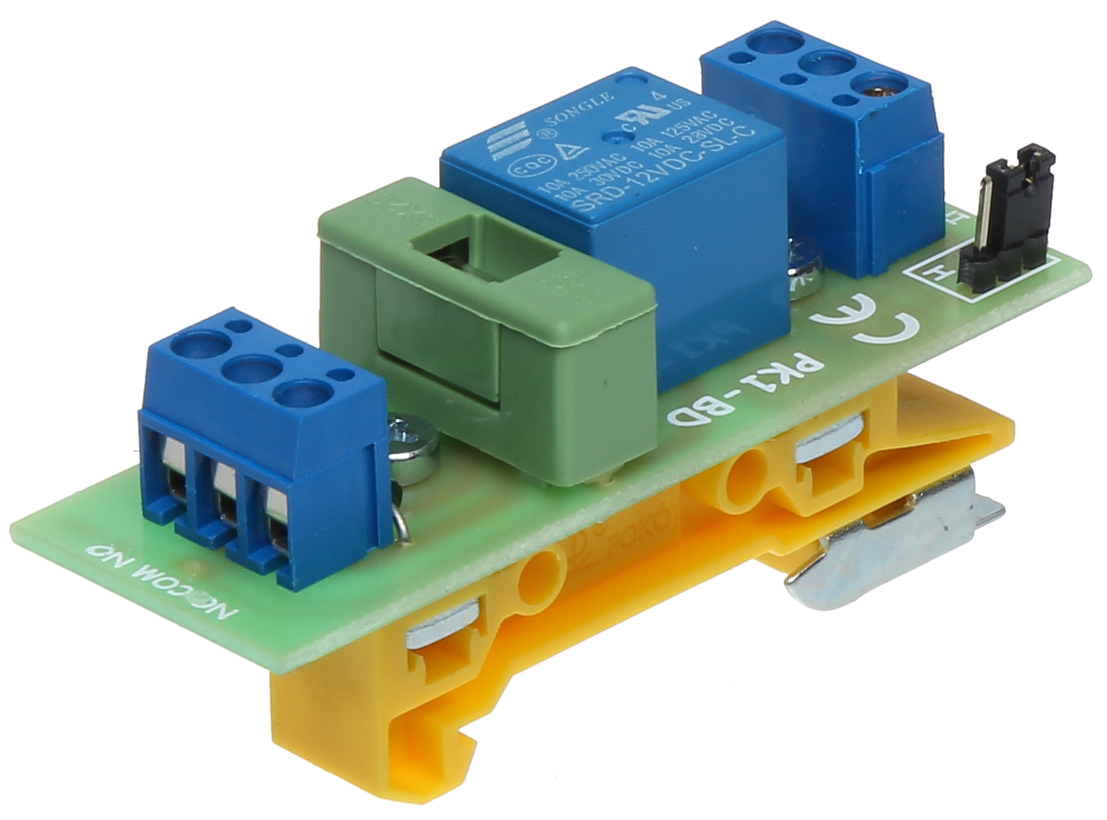

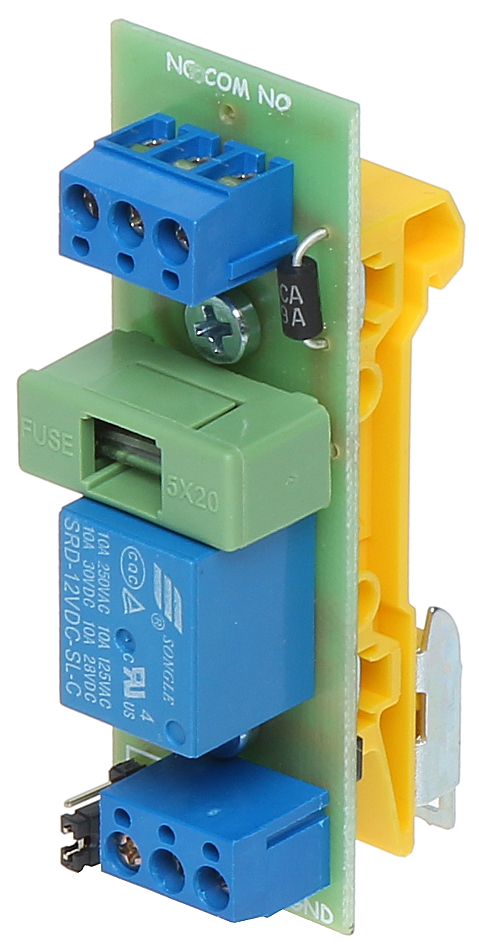

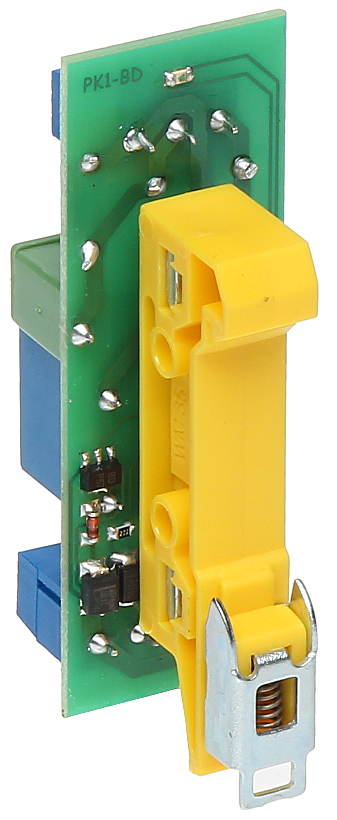

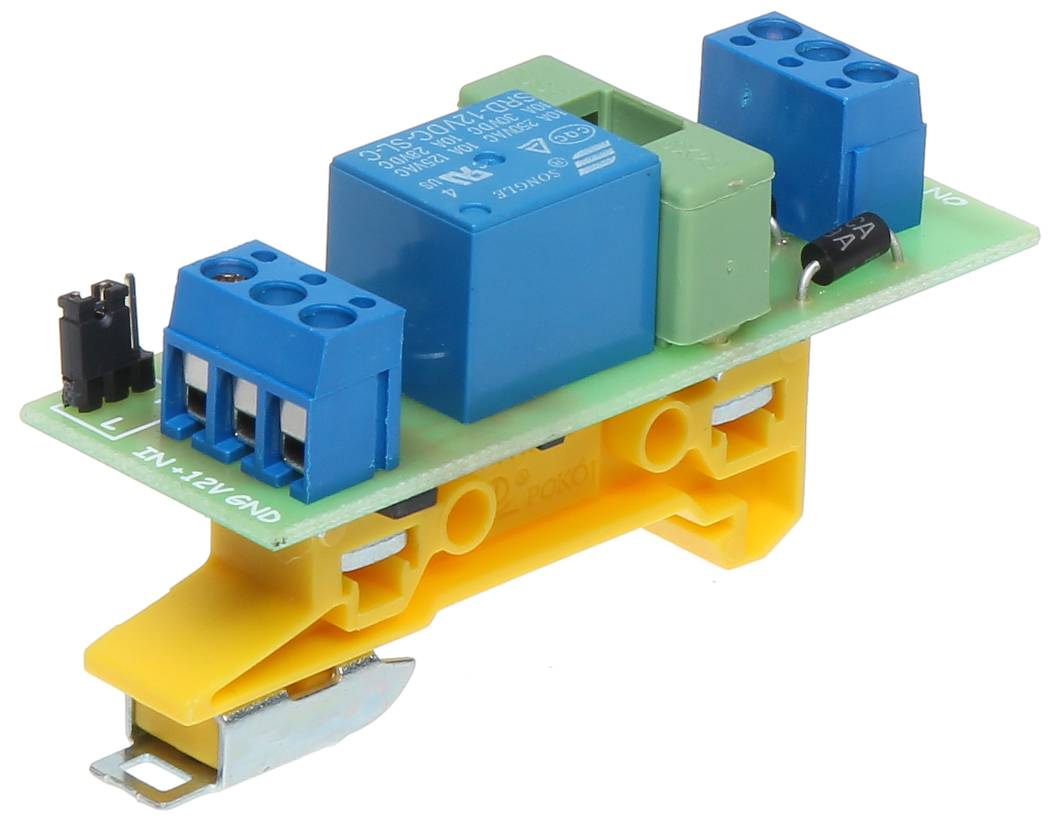

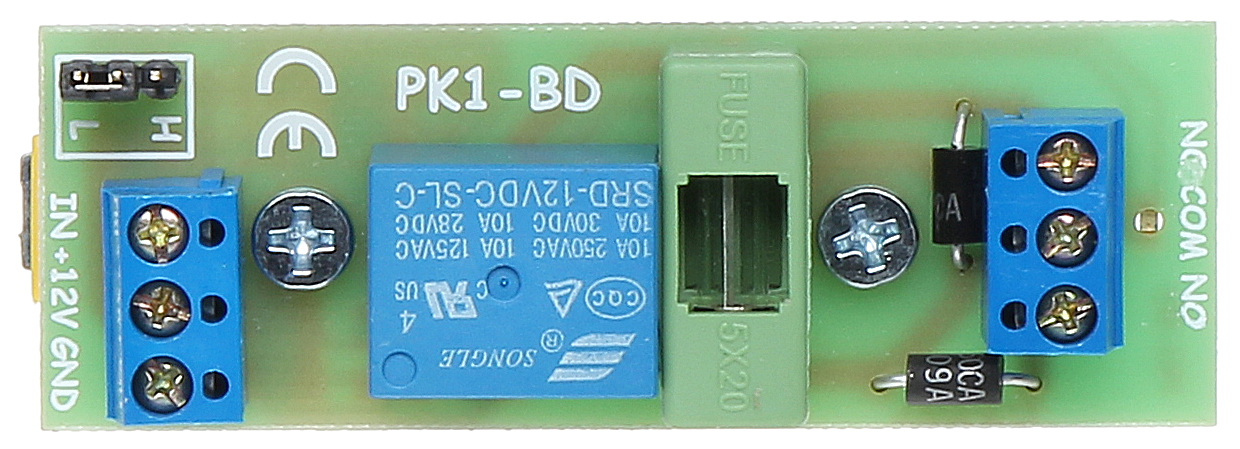

CONFIGURABLE CHANGE-OVER RELAY MODULE PK1-12-PDT DELTA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
The PK1-12-PDT module consists of a change-over relay and the configuration system setting out control of the relay with high or low state; Number of relay outputs: 1 ; Power supply: 10 ... 16 V DC ; Relay maximal load: 10 A (max), 30 V DC / 50 V AC ; Output: NO/NC ; Main features: DIN, TS-35 rail mounting, ;
| Number of relay outputs: | 1 |
| Power supply: | 10 ... 16 V DC |
| Current consumption: | 35 mA / 12 V DC |
| Relay maximal load: | 10 A (max), 30 V DC / 50 V AC (max) |
| Relay switching voltage H: | > 4 V |
| Relay switching voltage L: | < 2.7 V |
| Output: | NO/NC |
| Application: | relay for electromagnetic lock/electric strike |
| Main features: | |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.04 kg |
| Dimensions: | 78 x 27 x 41 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
