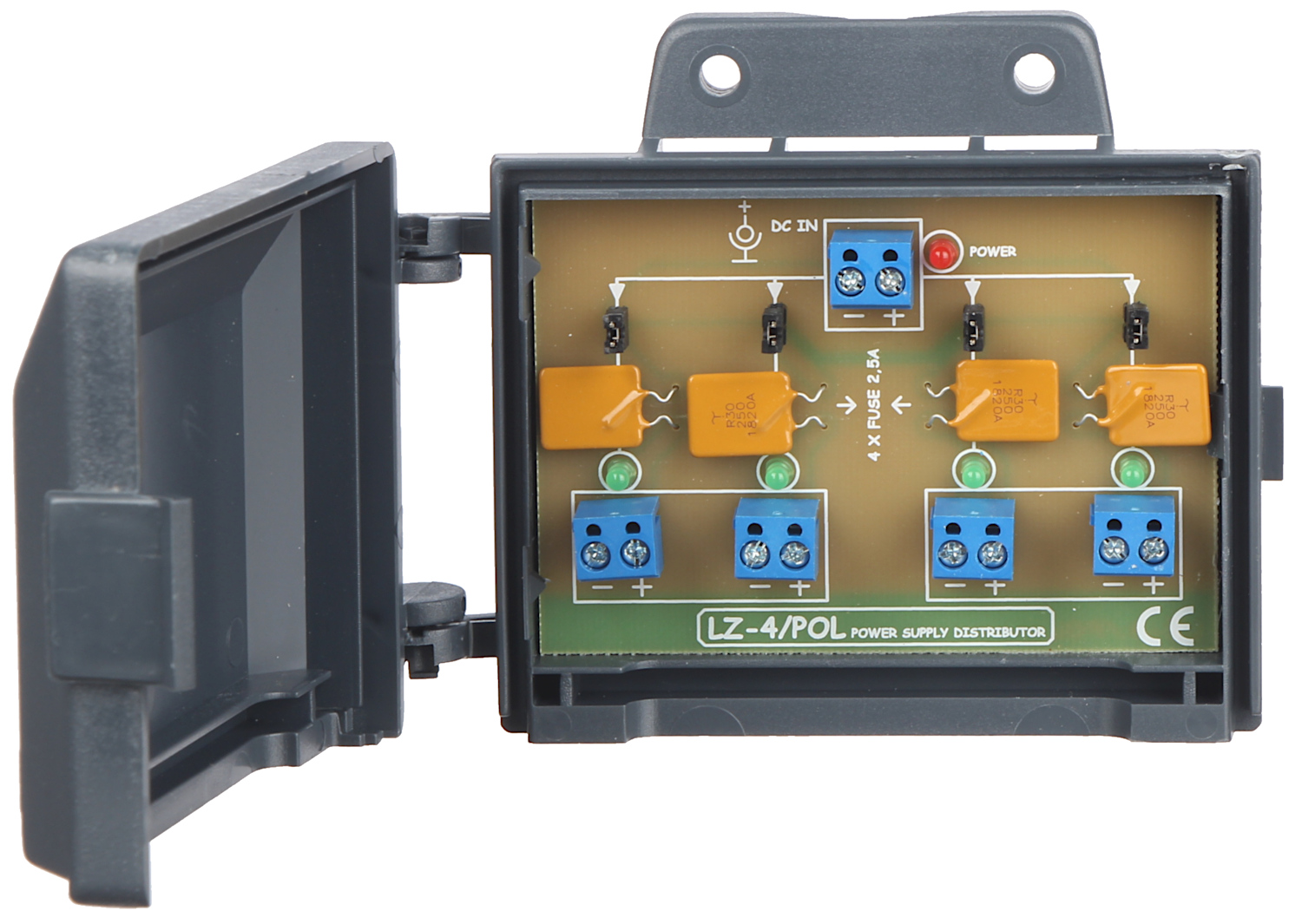

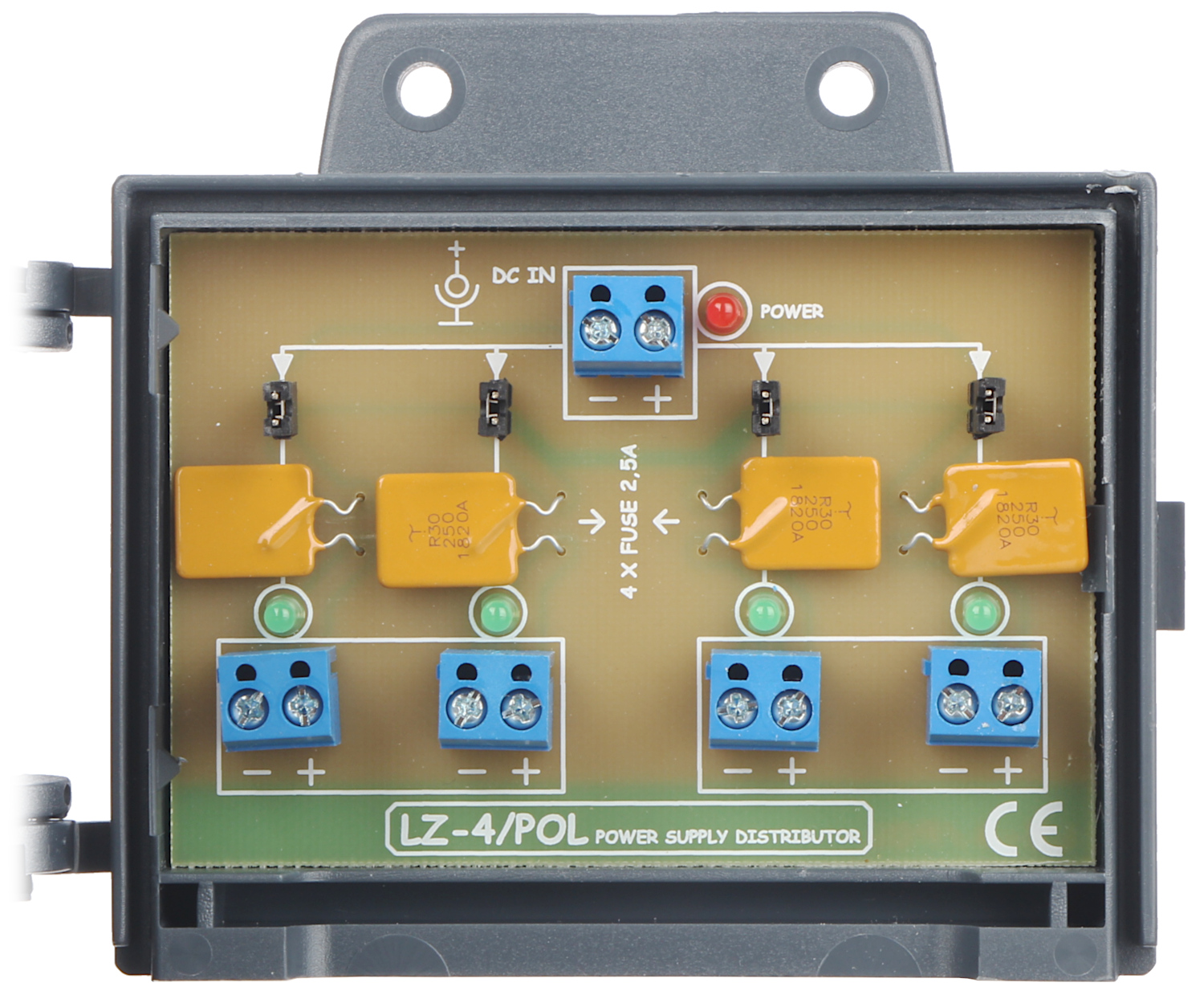

POWER SUPPLY DISTRIBUTOR LZ-4/POL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
The LZ-4/POL is a passive device and allows to distribute the power supply; Number of power outputs: 4 ; Max. output current for single output: 2.5 A ; Protection type: 4 x 2.5 A Polymer fuse ;
| Number of power inputs: | 1 |
| Number of power outputs: | 4 |
| Maximal power voltage: | 24 V DC (typical 12V) |
| Maximal power supply current: | 10 A |
| Max. output current for single output: | 2.5 A |
| Protection type: | 4 x 2.5 A Polymer fuse |
| Power connectors type: | Input : Cable terminals Output : Cable terminals |
| Operation temp: | -50 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Dimensions: | 120 x 91 x 37 mm |
| Weight: | 0.090 kg |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
