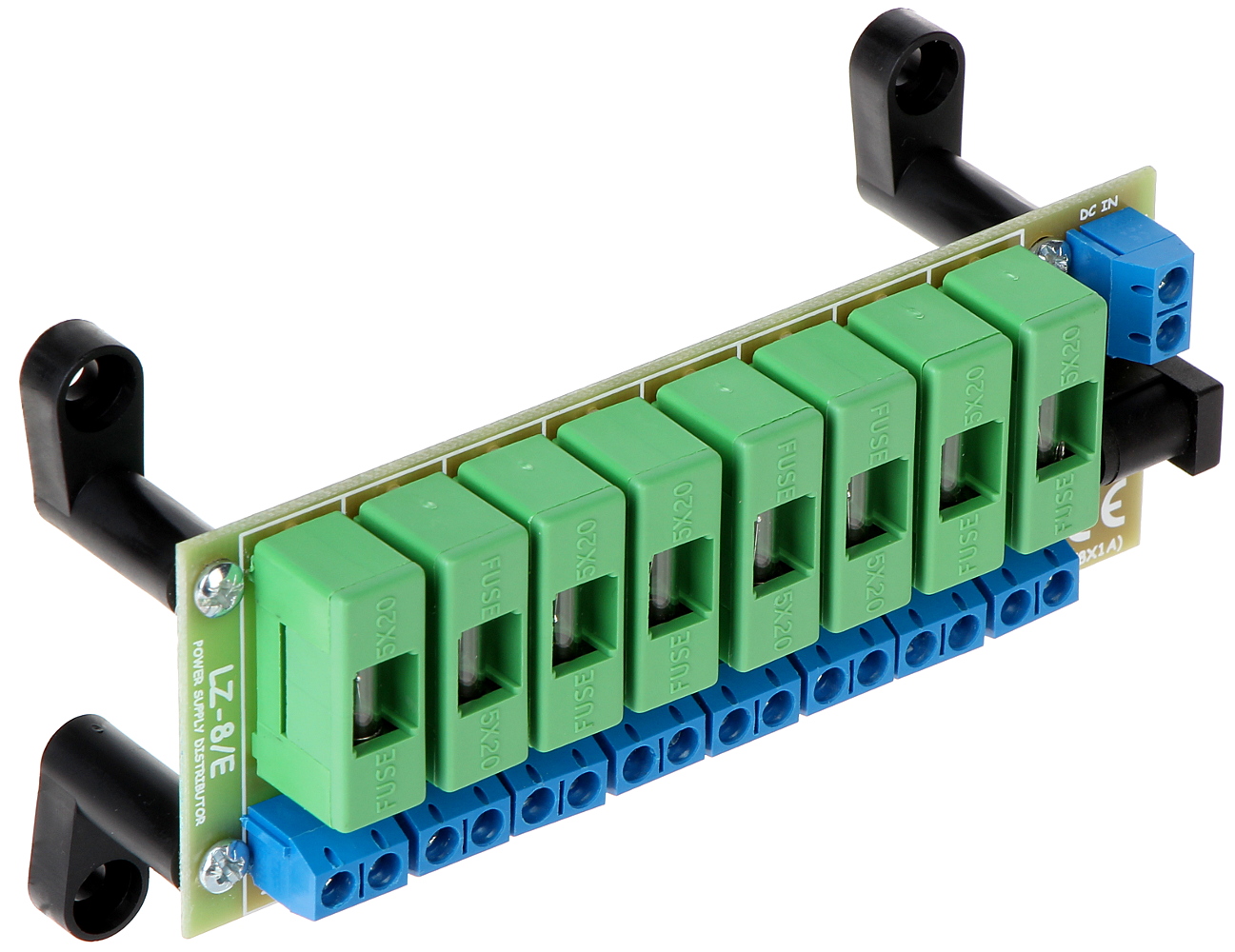

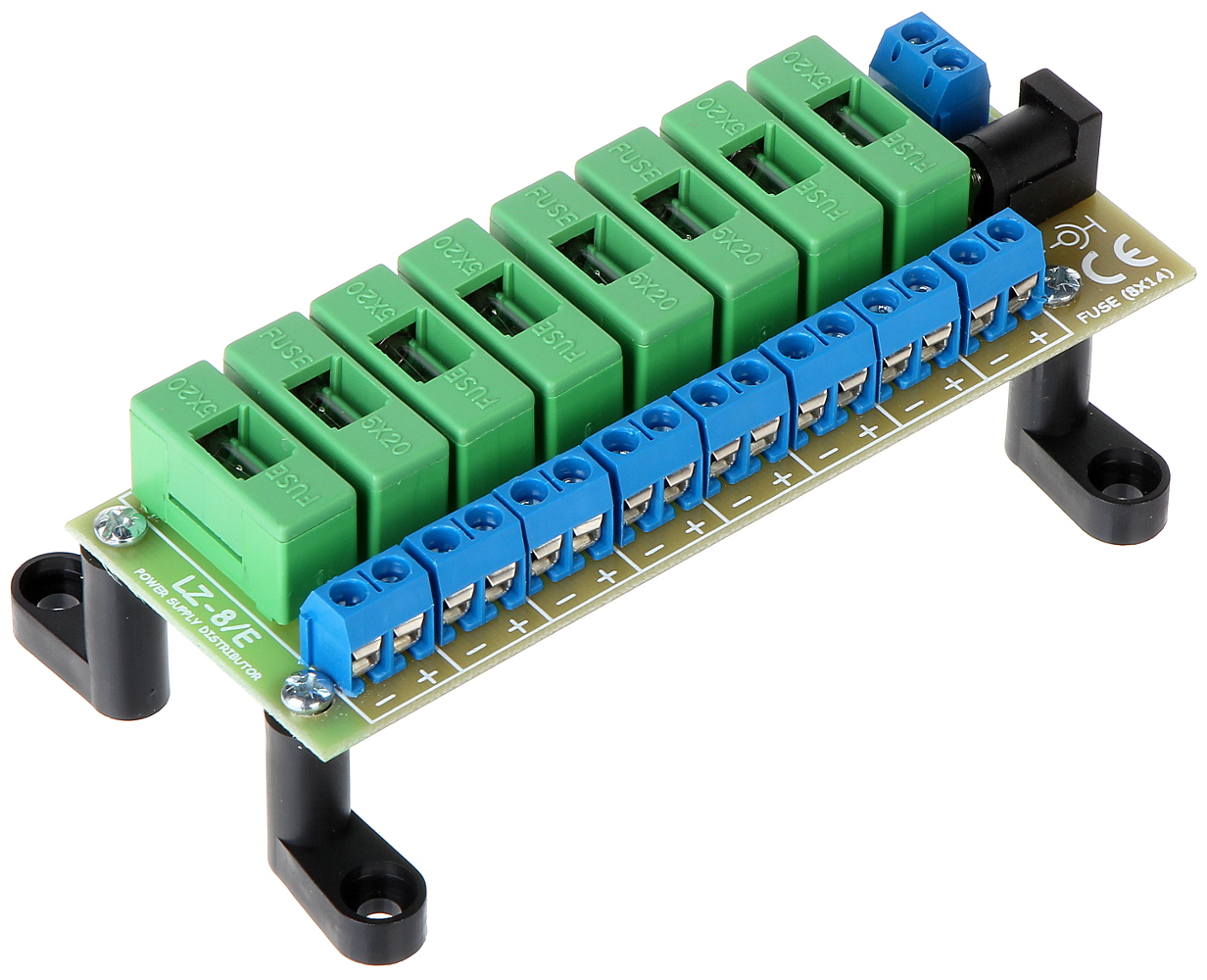

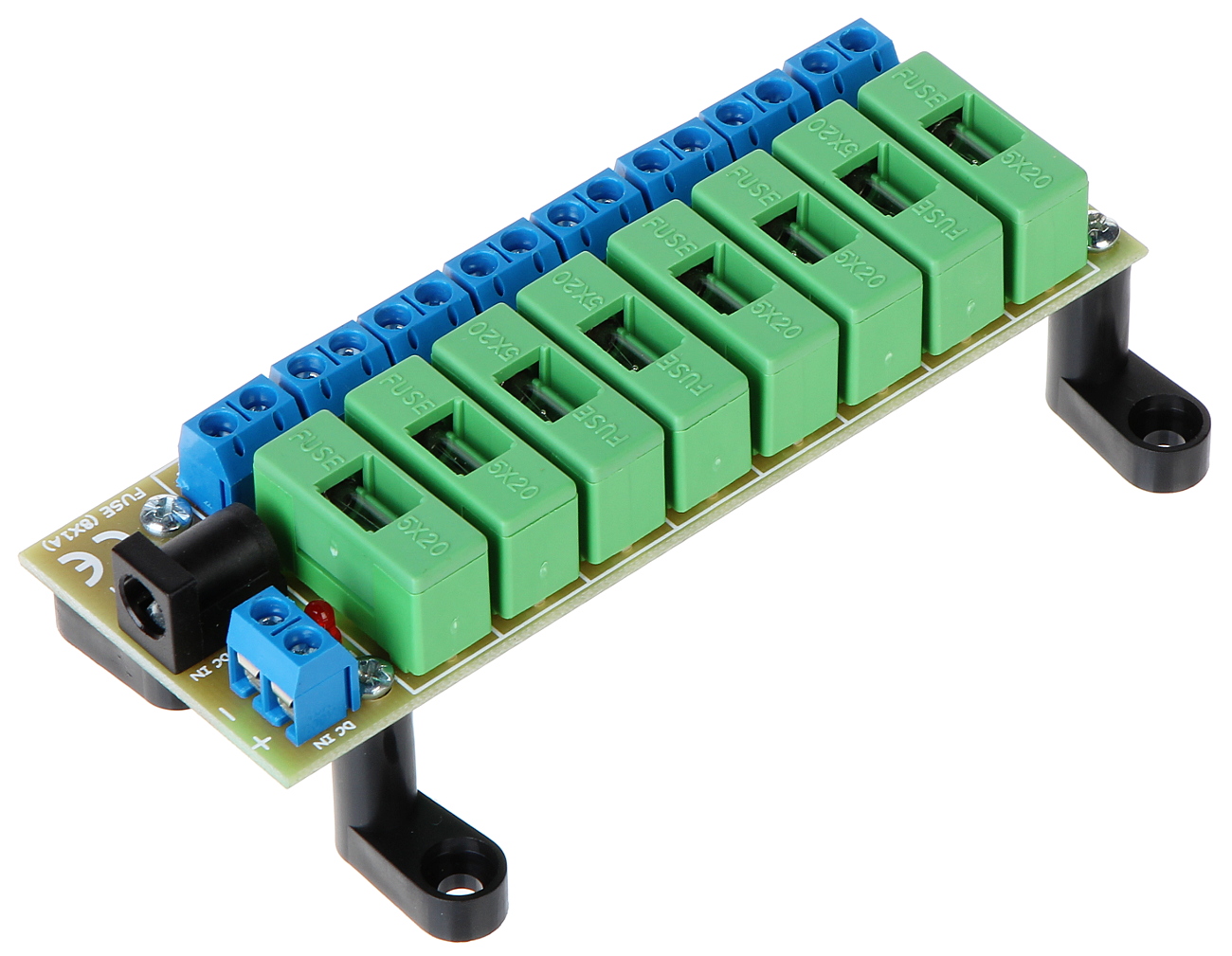

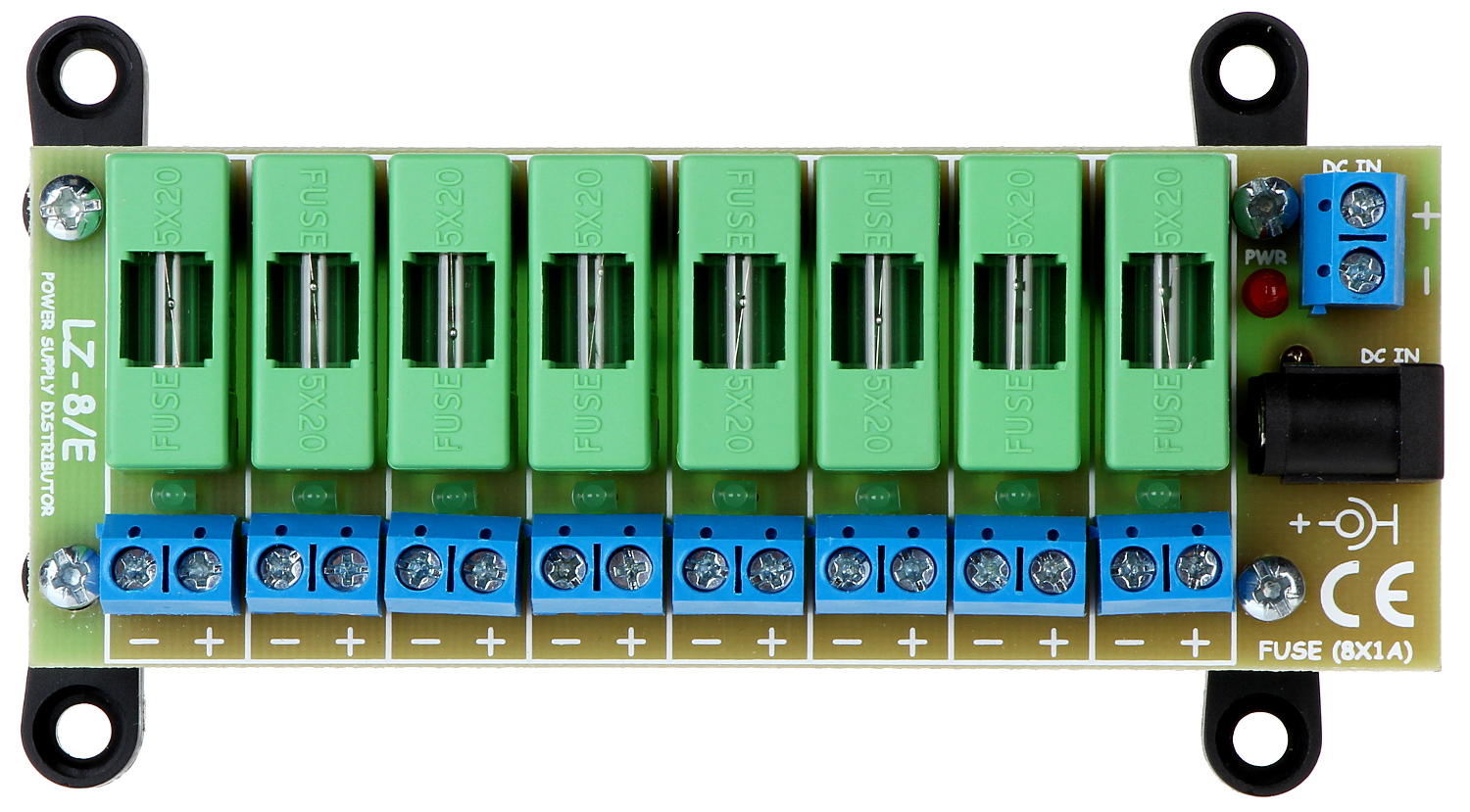

POWER SUPPLY DISTRIBUTOR LZ-8/E
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
The LZ-8/E is a passive device and allows to distribute the power supply; Number of power outputs: 8 ; Max. output current for single output: 1 A ; Protection type: 8 x 1 A 5/20mm delayed fuse ;
| Number of power inputs: | 2 |
| Number of power outputs: | 8 |
| Maximal power voltage: | 0 ... 24 V DC (typical 12V) |
| Maximal power supply current: | |
| Max. output current for single output: | 1 A |
| Protection type: | 8 x 1 A 5/20mm delayed fuse |

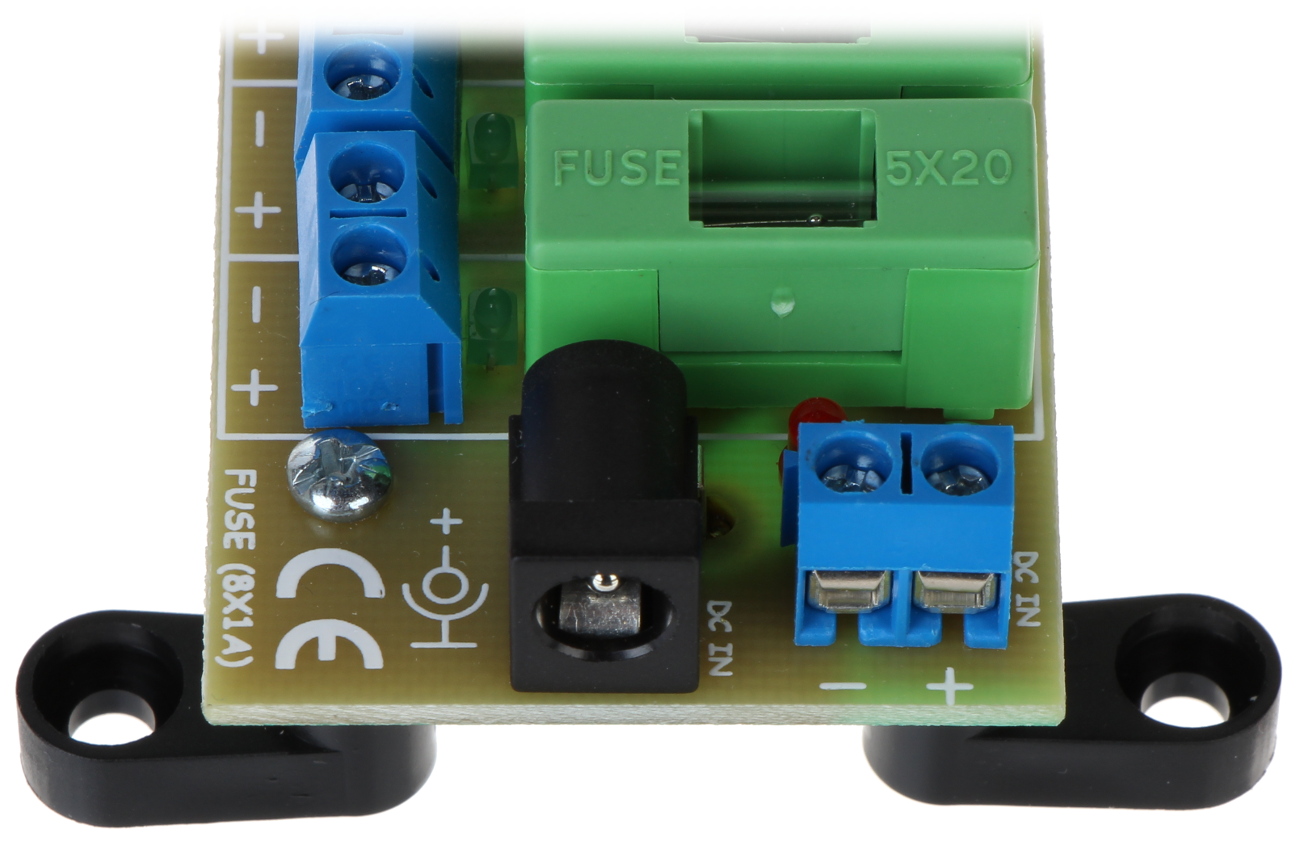

| Power connectors type: | Input : socket 2.1/5.5 mm / cable terminal Output : Cable terminals |
| Operation temp: | -50 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Dimensions: | 110 x 41 x 35 mm |
| Weight: | 0.060 kg |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
