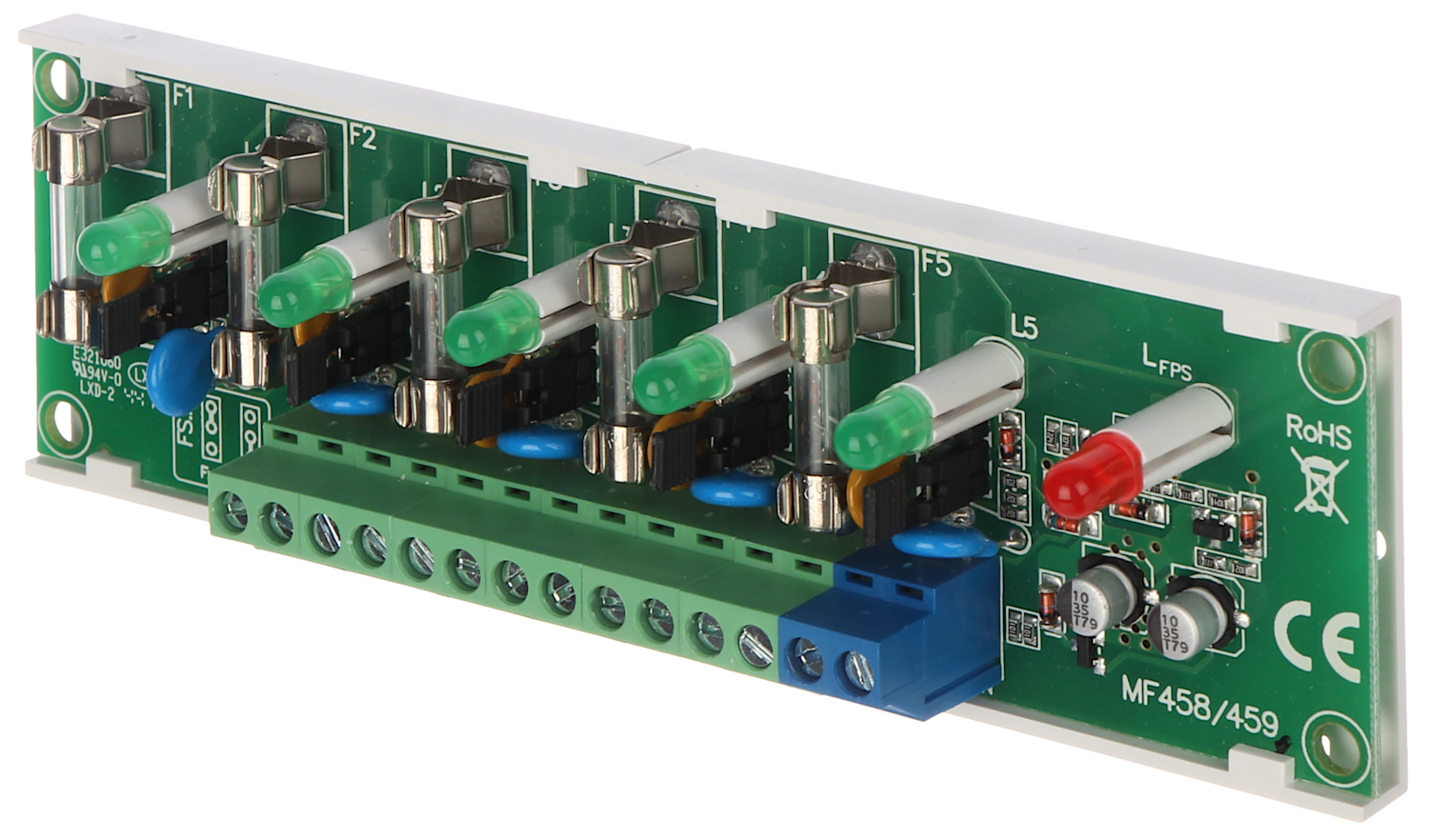

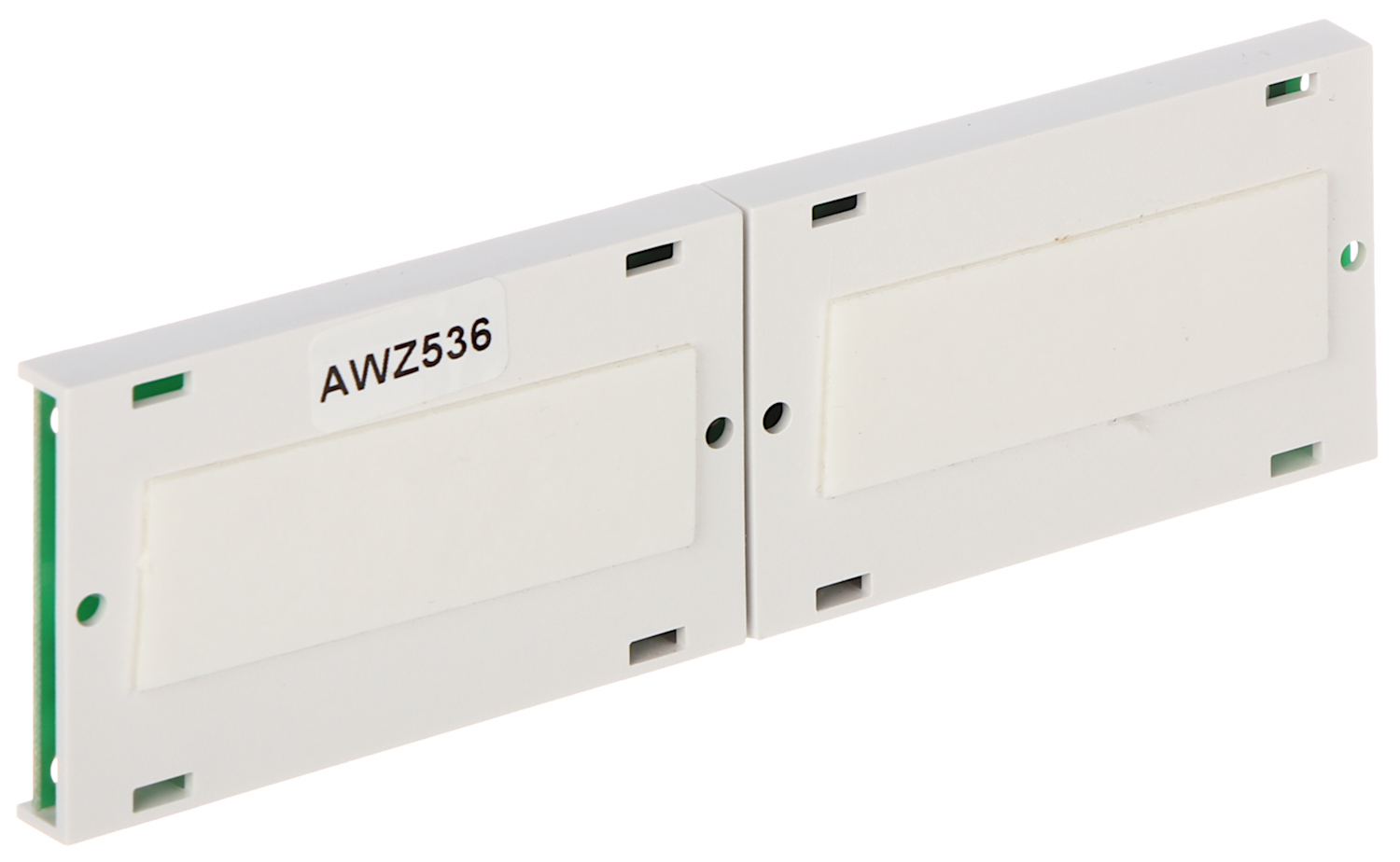

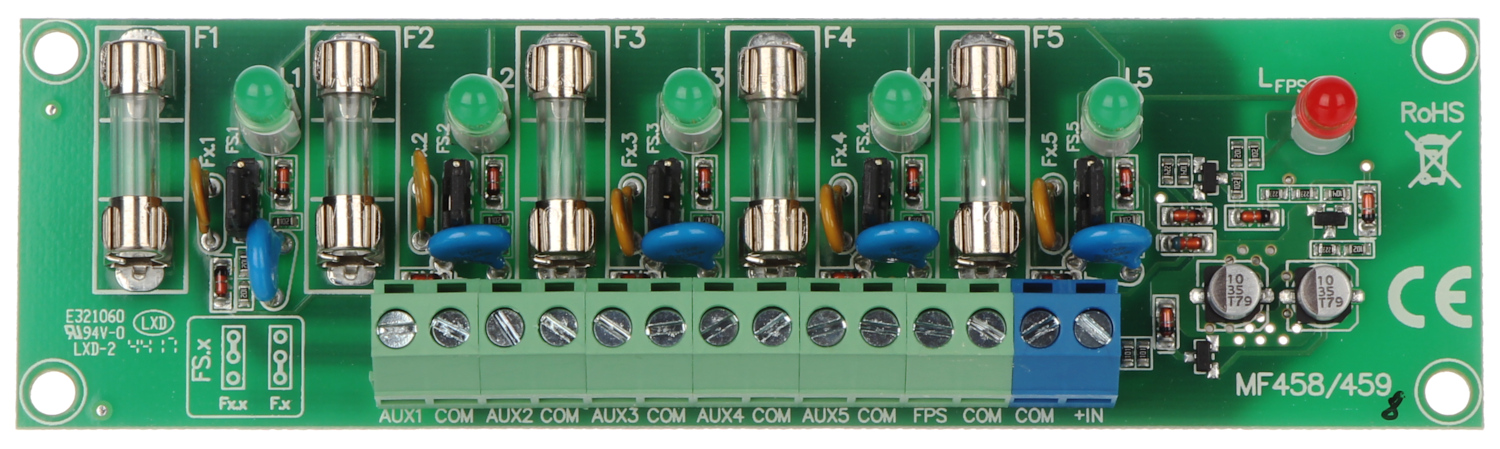

POWER SUPPLY DISTRIBUTOR AWZ-536
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Number of power outputs: 5 ; Max. output current for single output: 1 A ; Protection type: 5 x 1 A 5/20mm delayed fuse ; Main features: AW output (fault) - OC type 50mA, LED indication of at least one output fault ;
| Number of power inputs: | 1 |
| Number of power outputs: | 5 |
| Maximal power voltage: | 10 ... 30 V DC (typical 12V) 10 ... 24 V AC |
| Maximal power supply current: | 5 A Cable terminals |
| Max. output current for single output: | 1 A |
| Protection type: | 5 x 1 A 5/20mm delayed fuse |
| Power connectors type: | Input : Cable terminals Output : Cable terminals |
| Operation temp: | -10 °C ... 50 °C |
| Permissible relative humidity: | < 95 % |
| Main features: | AW output (fault) - OC type 50mA, LED indication of at least one output fault |
| Dimensions: | 140 x 43 x 29 mm |
| Weight: | 0.07 kg |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
