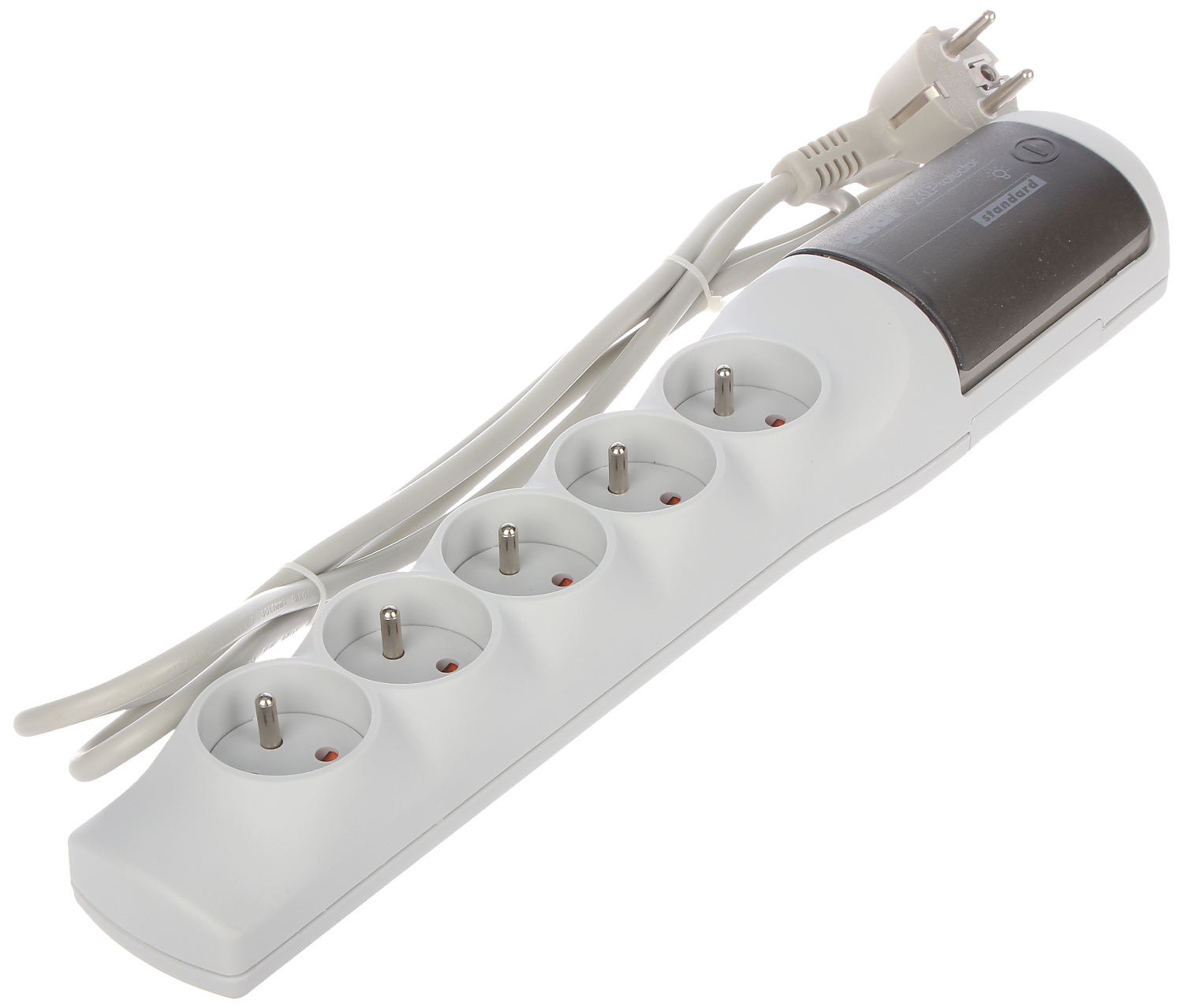

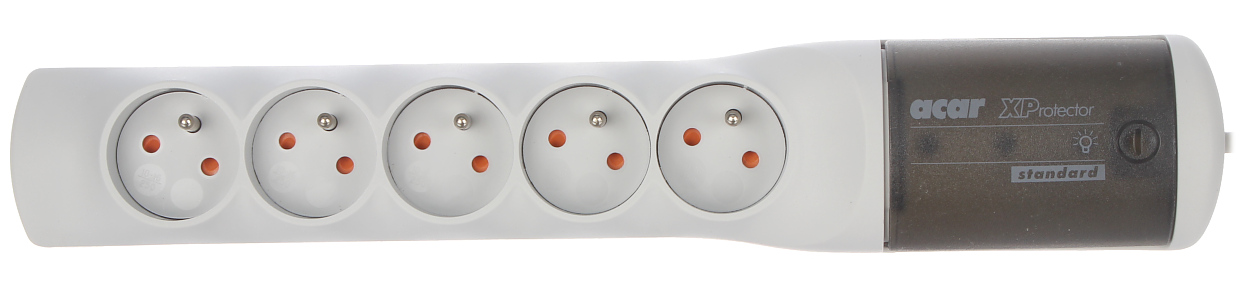

POWER DISTRIBUTION UNIT ACAR-XPROTECTOR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Protection device, protects the devices against lighting discharges or surges in AC 230V power lines; Total maximal current: 10 A ; Maximal total load: 2300 W ; Number of outlets: 5 grounded outlets 10A/250V ;
| Rated voltage: | 230 V AC / 50 Hz |
| Total maximal current: | 10 A |
| Maximal total load: | 2300 W |
| Response time: | < 25 ns |
| Number of outlets: | 5 grounded outlets 10A/250V |

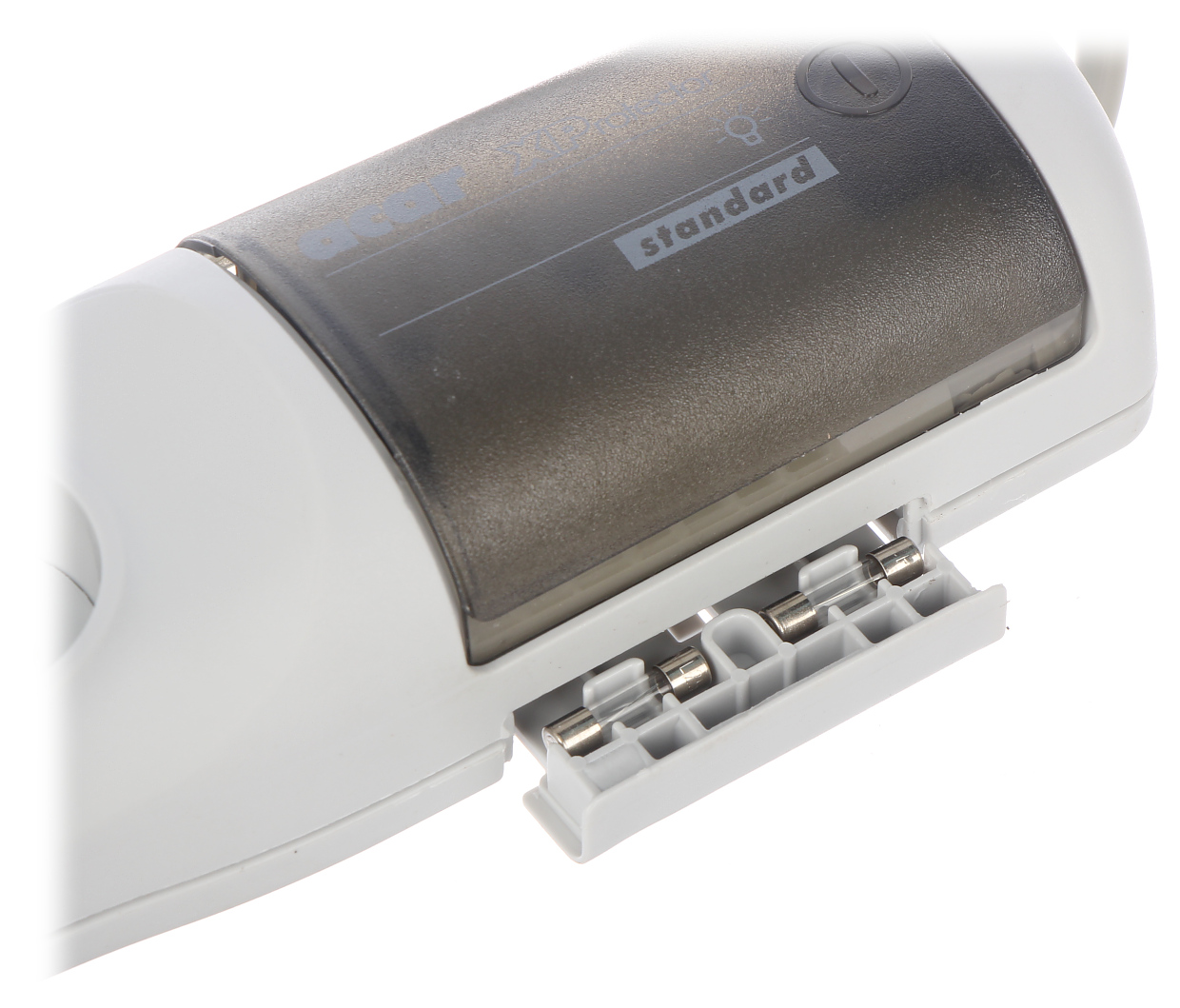

| Automatic delayed fuse: | 10 A / 250 V |
| Leak current: | < 0.5 mA |
| Nominal voltage of surge suppressor: | 250 V / 50 Hz |
| Protection level of surge suppressor: | ≤ 1.3 kV (L/N) |
| Nominal stroke current: | 1 kA (L/N) - (8/20µs) |
| Switch: | two-way, with light indication |
| Maximum stroke current: | 4.5 kA (L/N) - (8/20µs) |
| Length of the cable: | 1.45 m |
| Housing: | Plastic - non-flammable |
| Dimensions: | 365 x 65 x 52 mm |
| Weight: | 0.51 kg |
| Guarantee: | 2 years |
Brand:
ACAR
