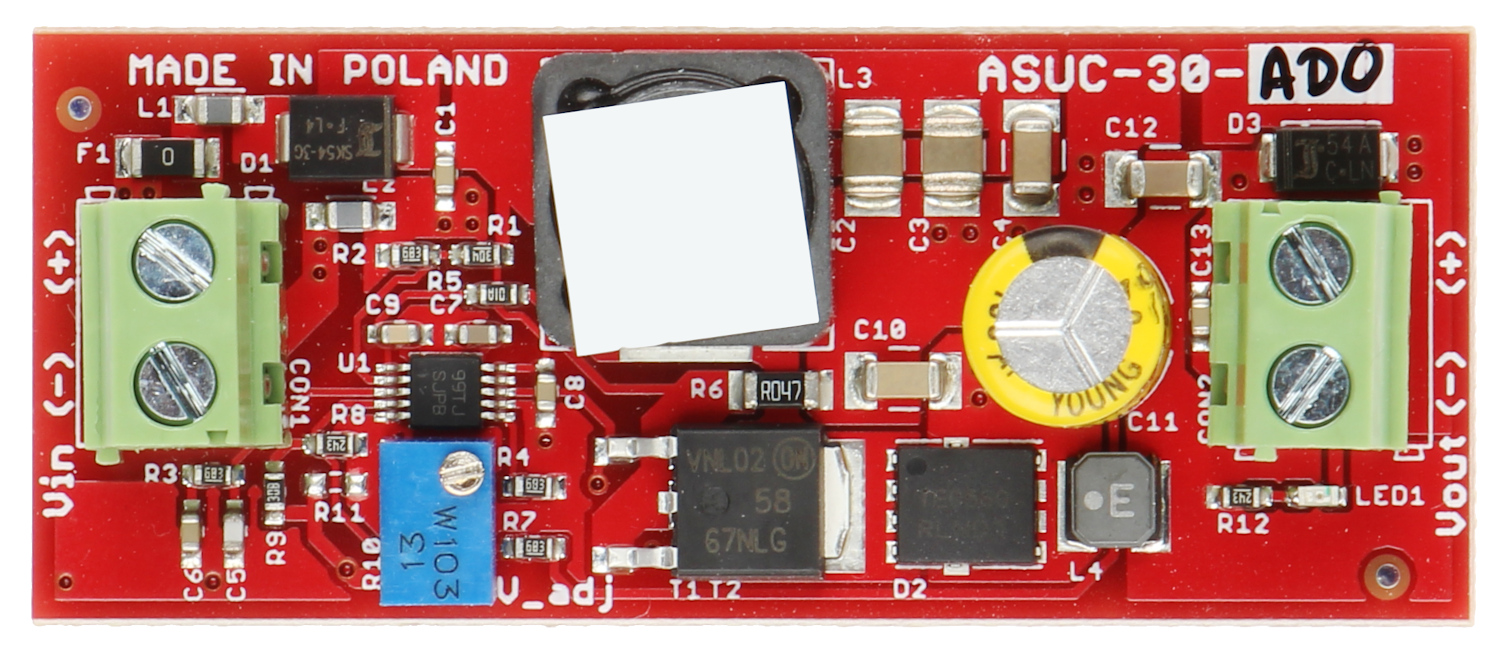

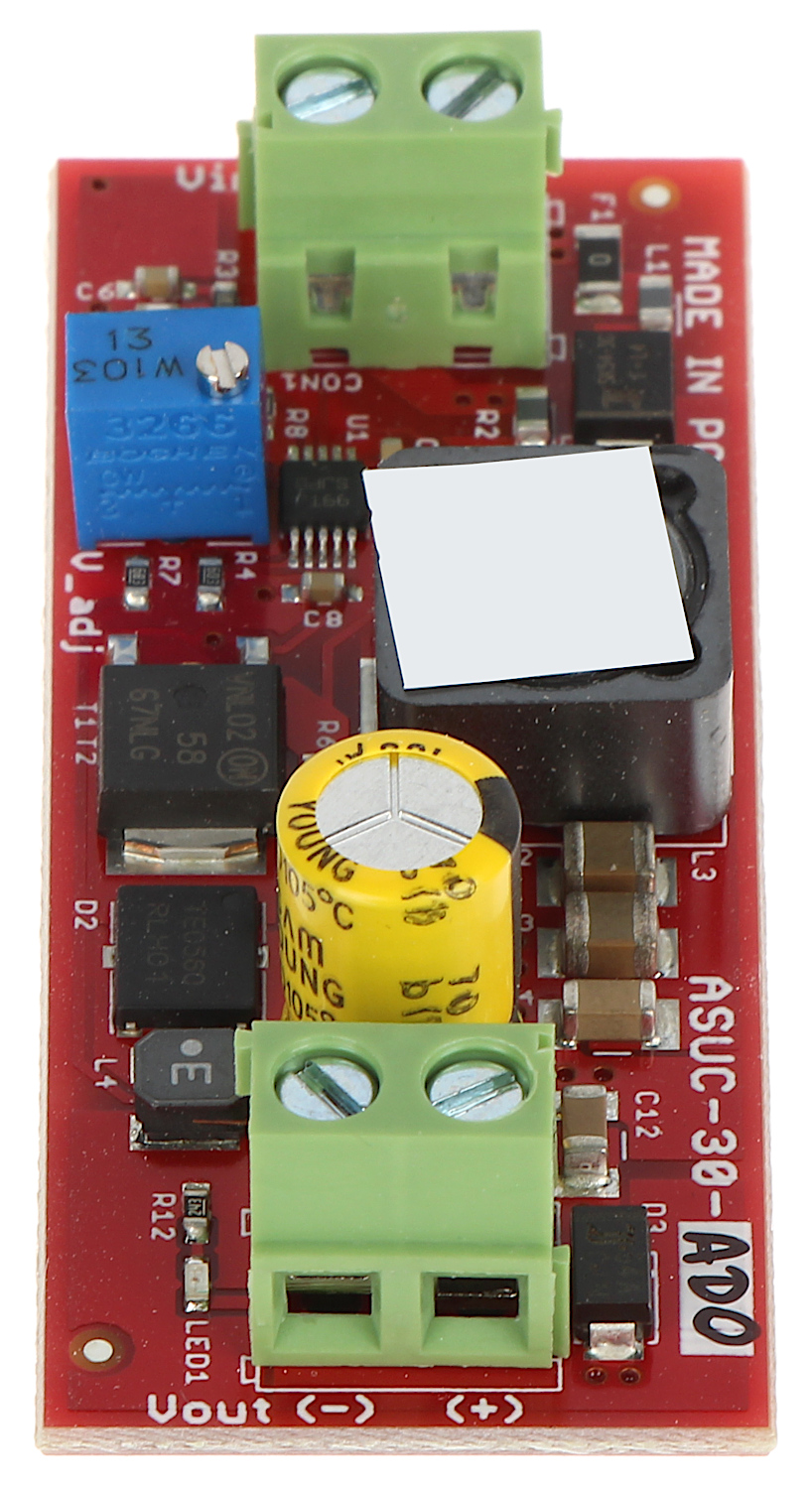

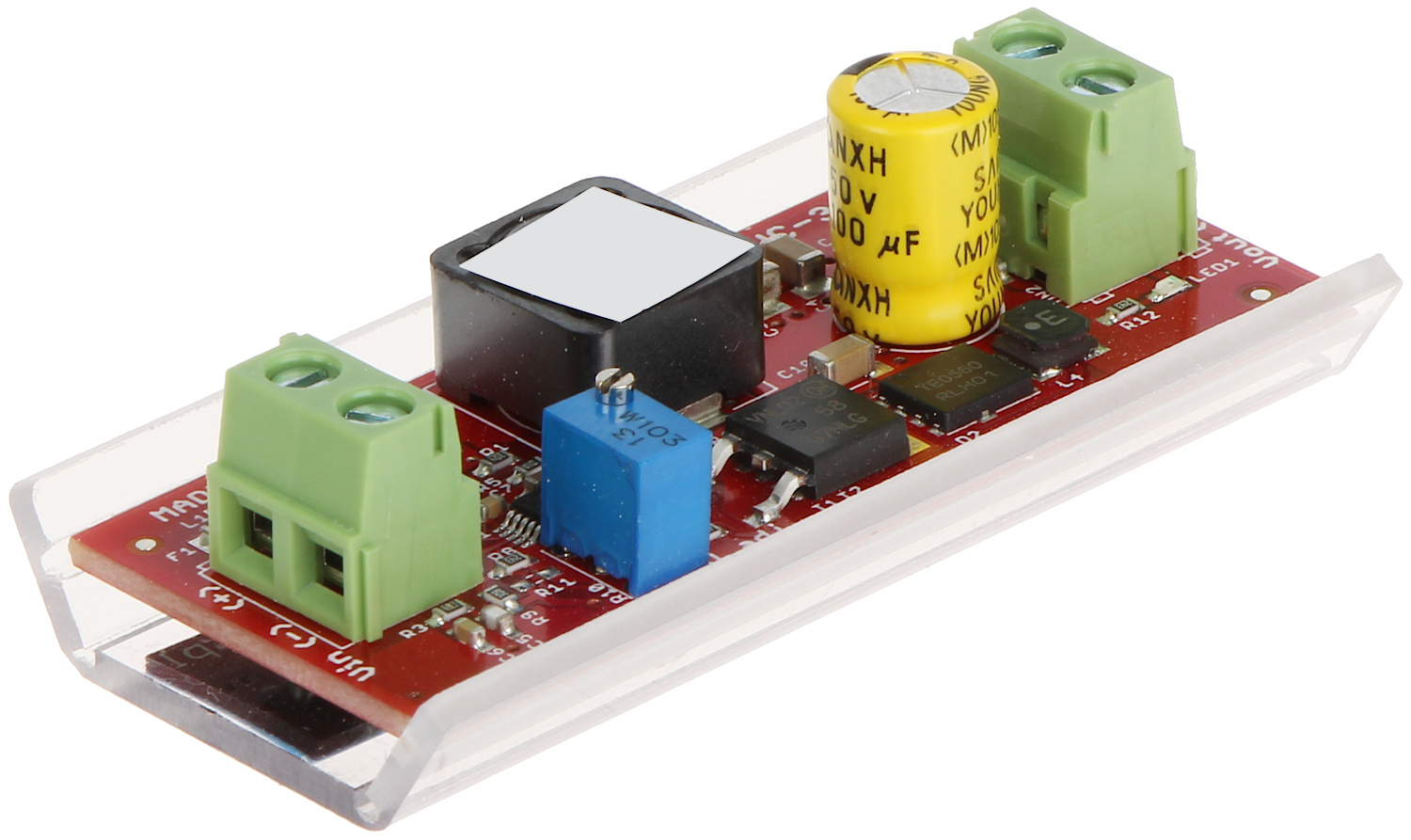

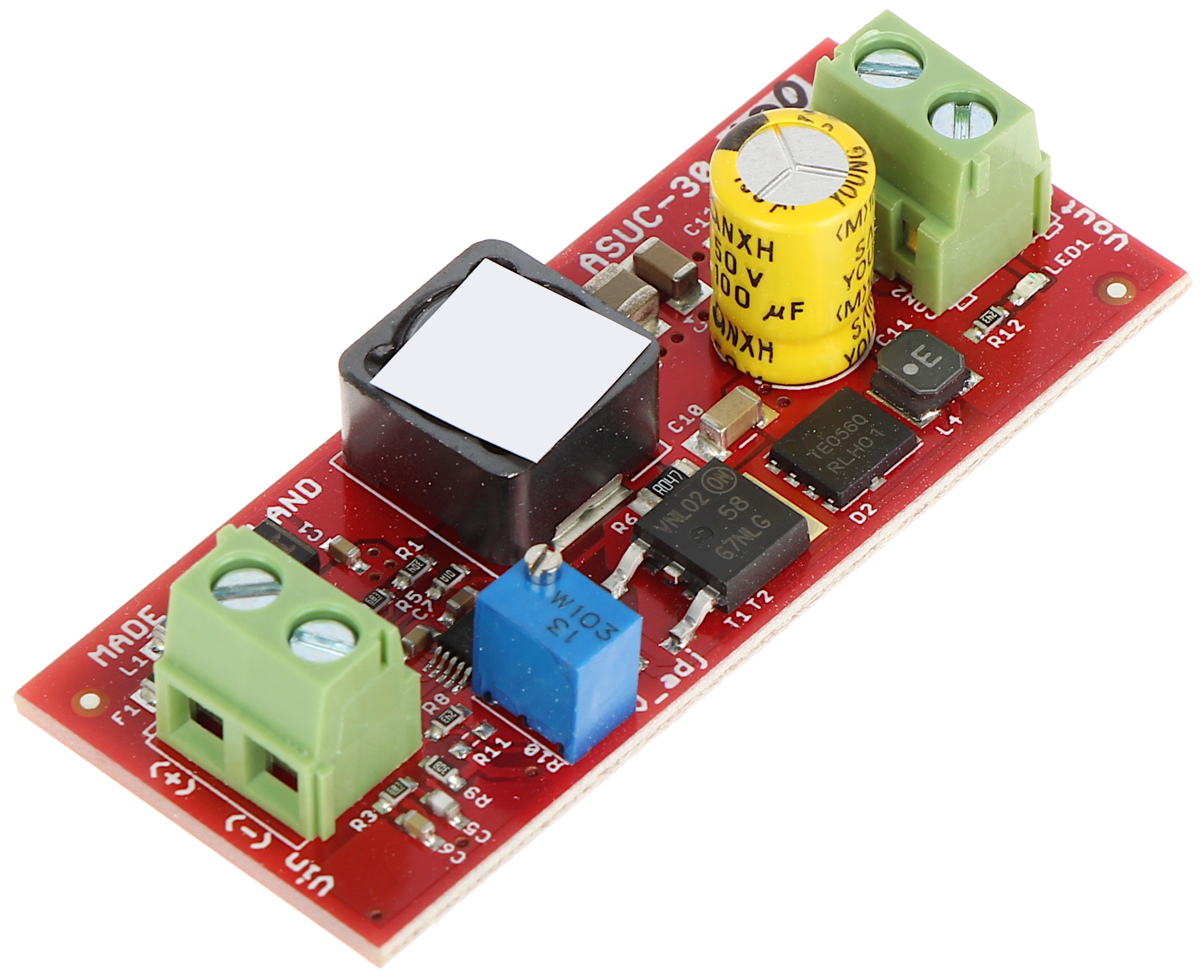

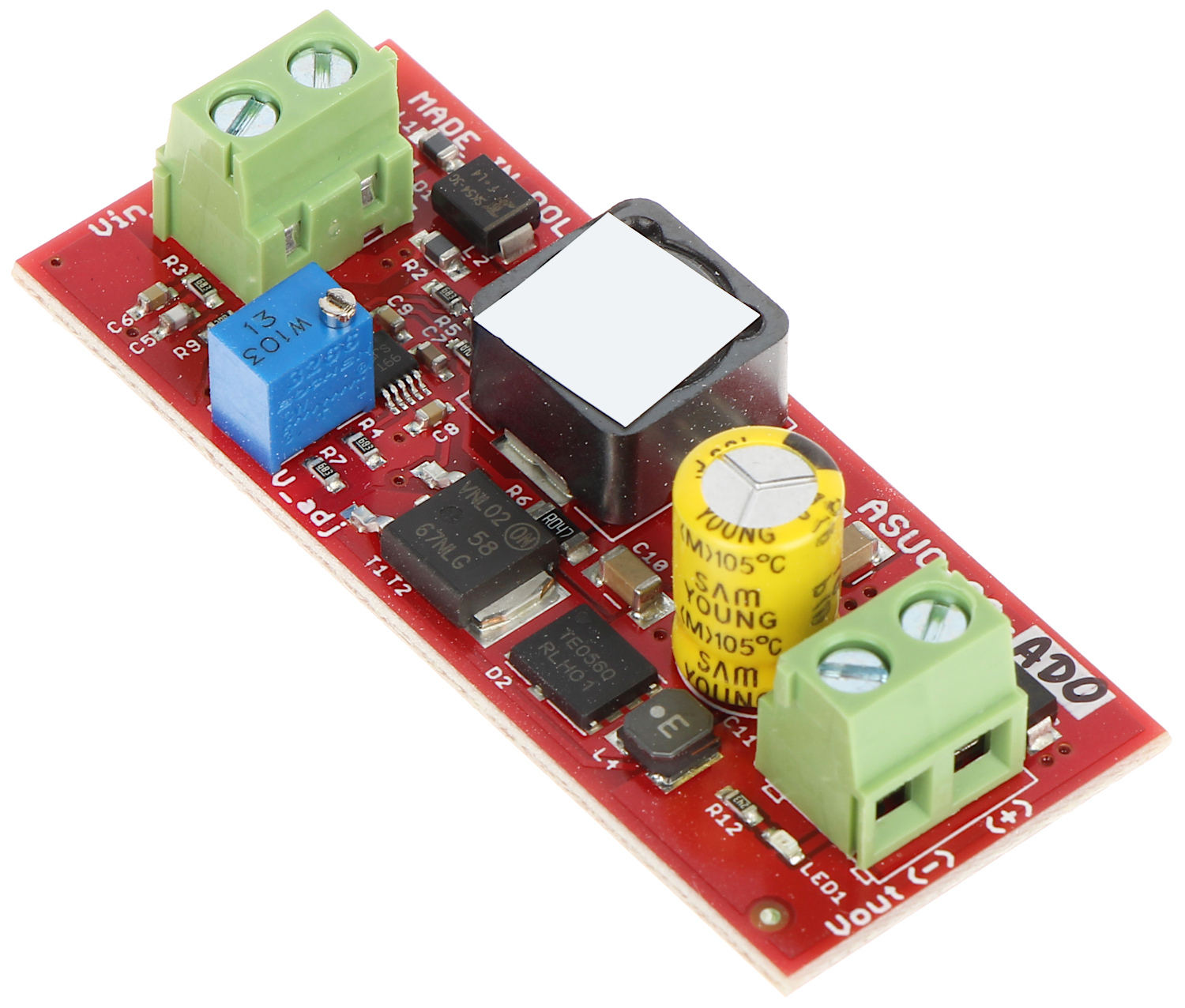

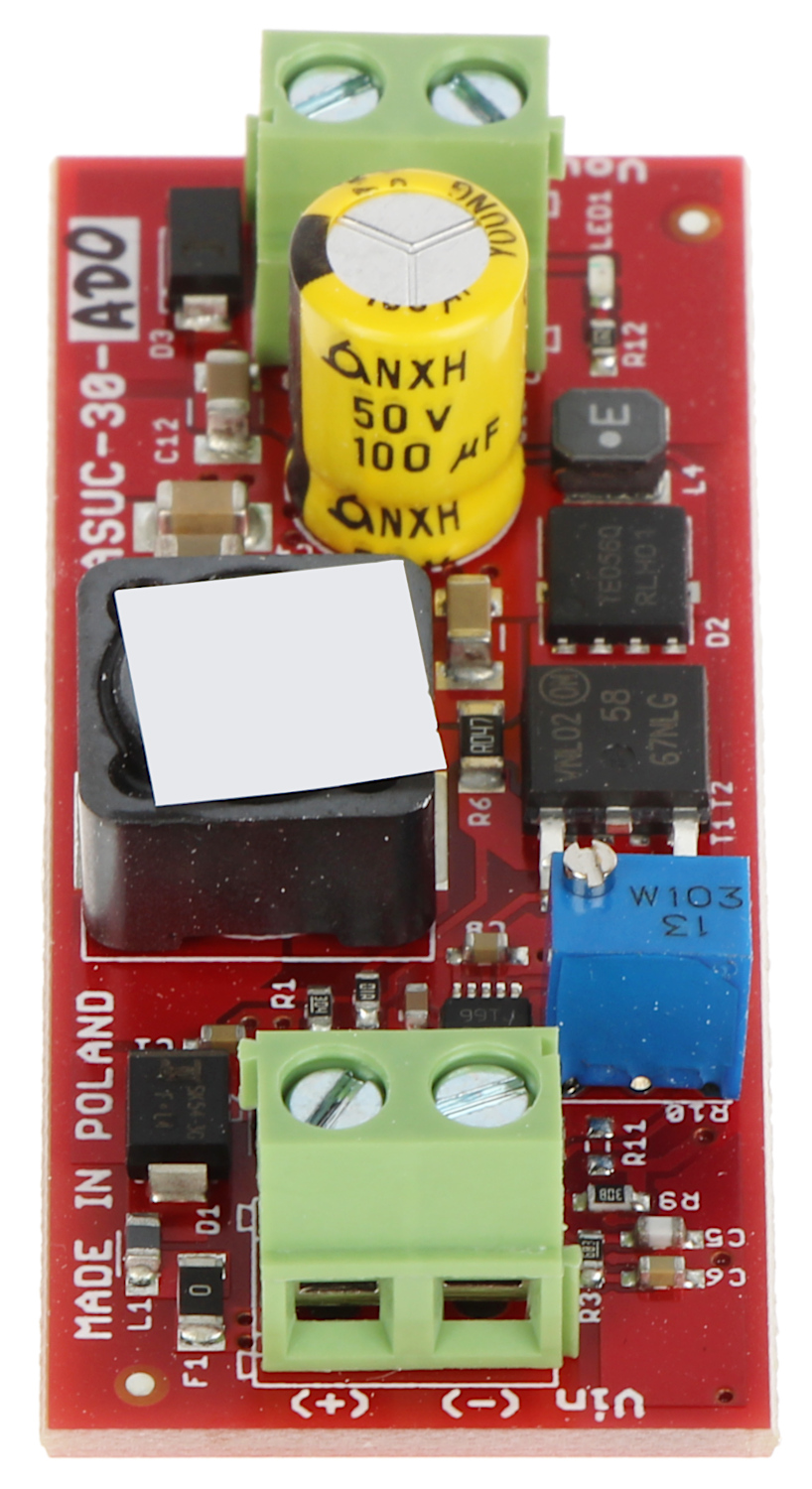

CONVERTER MODULE ASUC-30-AD0-OF DC/DC ATTE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Type: Increasing the voltage, DC/DC ; Number of inputs: 1 ; Number of outputs: 1 ; Power voltage: 10 ... 30 V DC ; Output voltage: 12 ... 48 V DC ; Output current: 2.5 A (max) ; Power: 30 W @ 12 V (max) ;
| Type: | Increasing the voltage, DC/DC |
| Number of inputs: | 1 |
| Number of outputs: | 1 |
| Power voltage: | 10 ... 30 V DC |
| Output voltage: | 12 ... 48 V DC |
| Output voltage adjustment: |  |
| Output current: | 2.5 A (max) |
| Power: | 30 W @ 12 V (max) |
| Protections: | Protection against reverse polarity of the input voltage |
| Weight: | 0.02 kg |

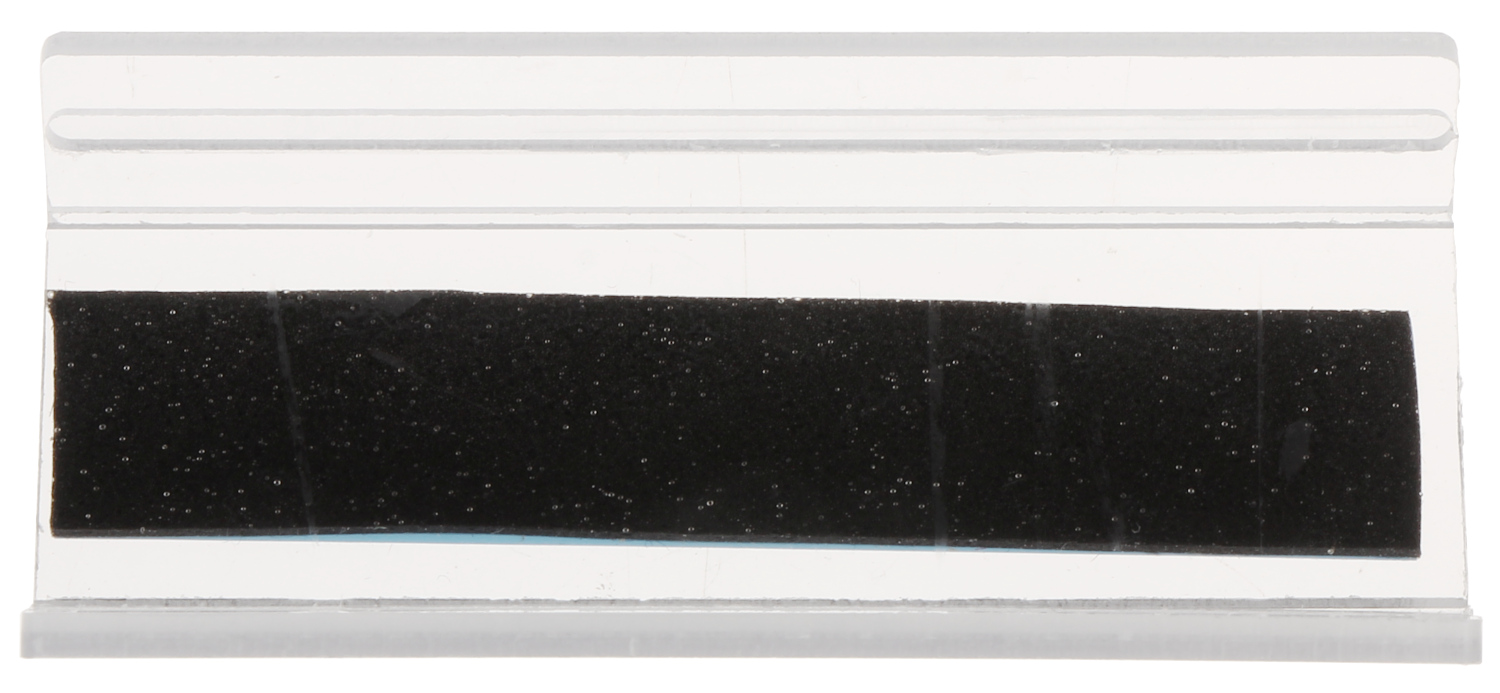

| Dimensions: | 62 x 31 x 20 mm (with bracket) 60 x 25 x 16 mm (without bracket) |
| Manufacturer / Brand: | ATTE |
| Guarantee: | 3 years |
Brand:
ATTE
