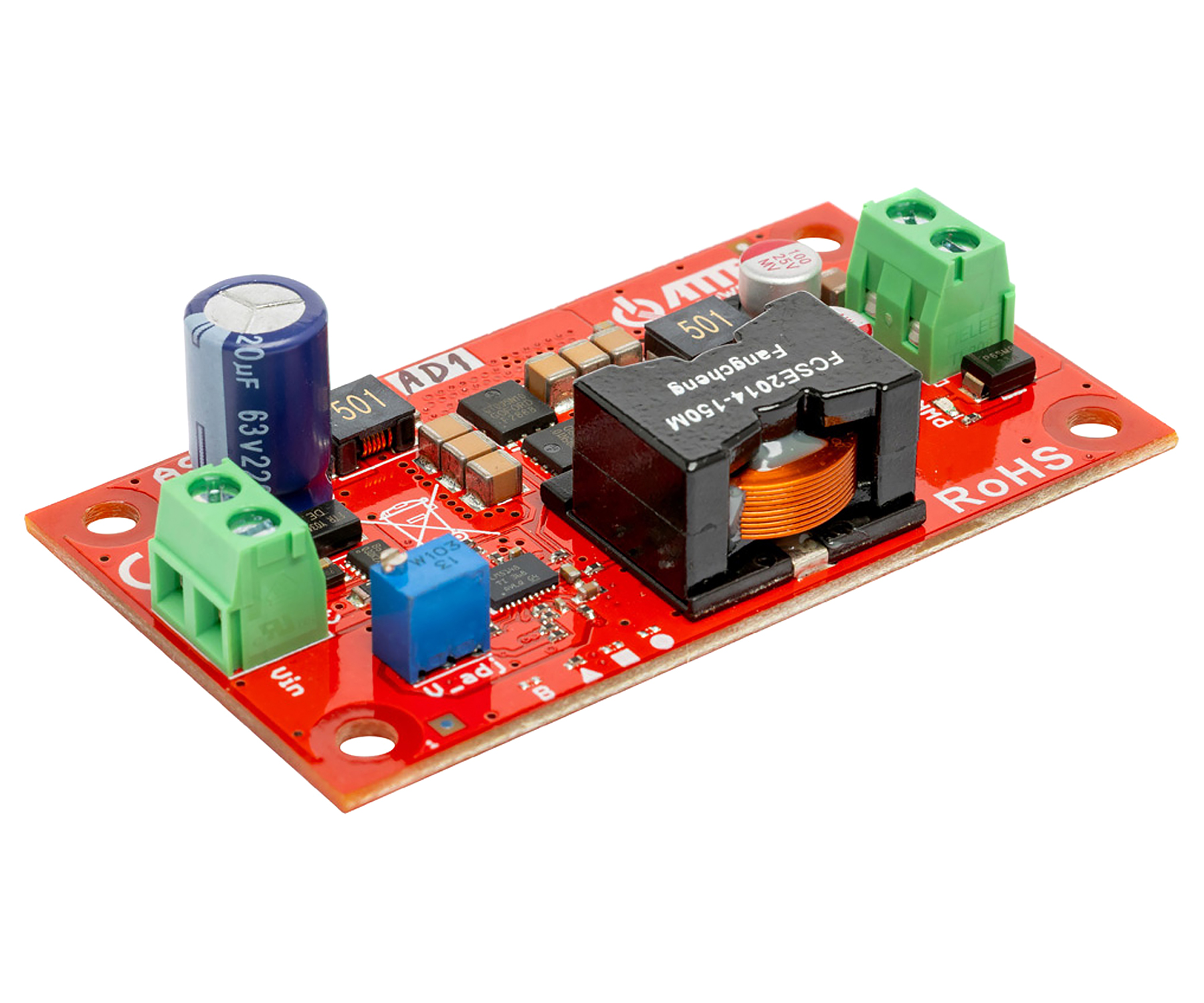

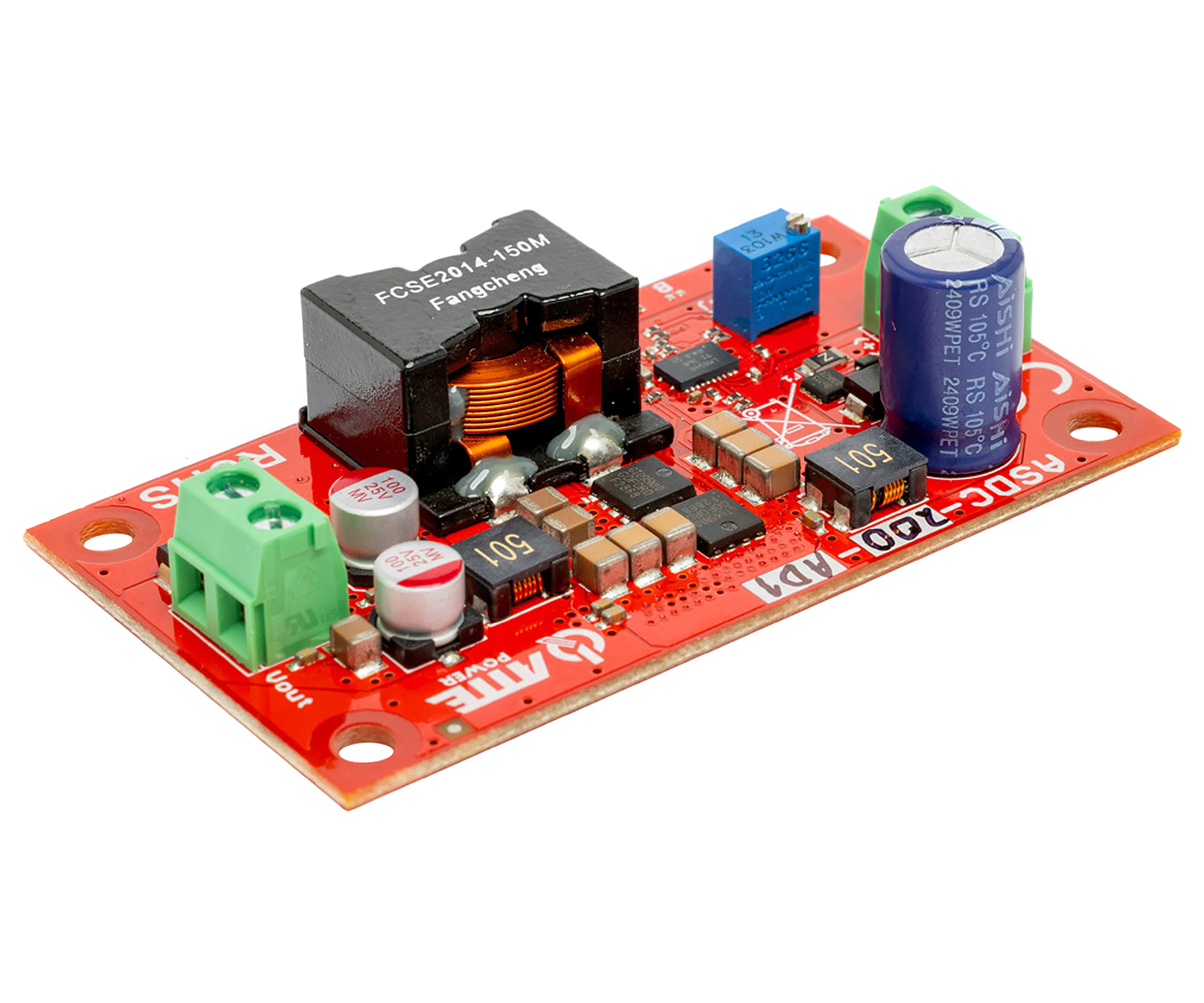

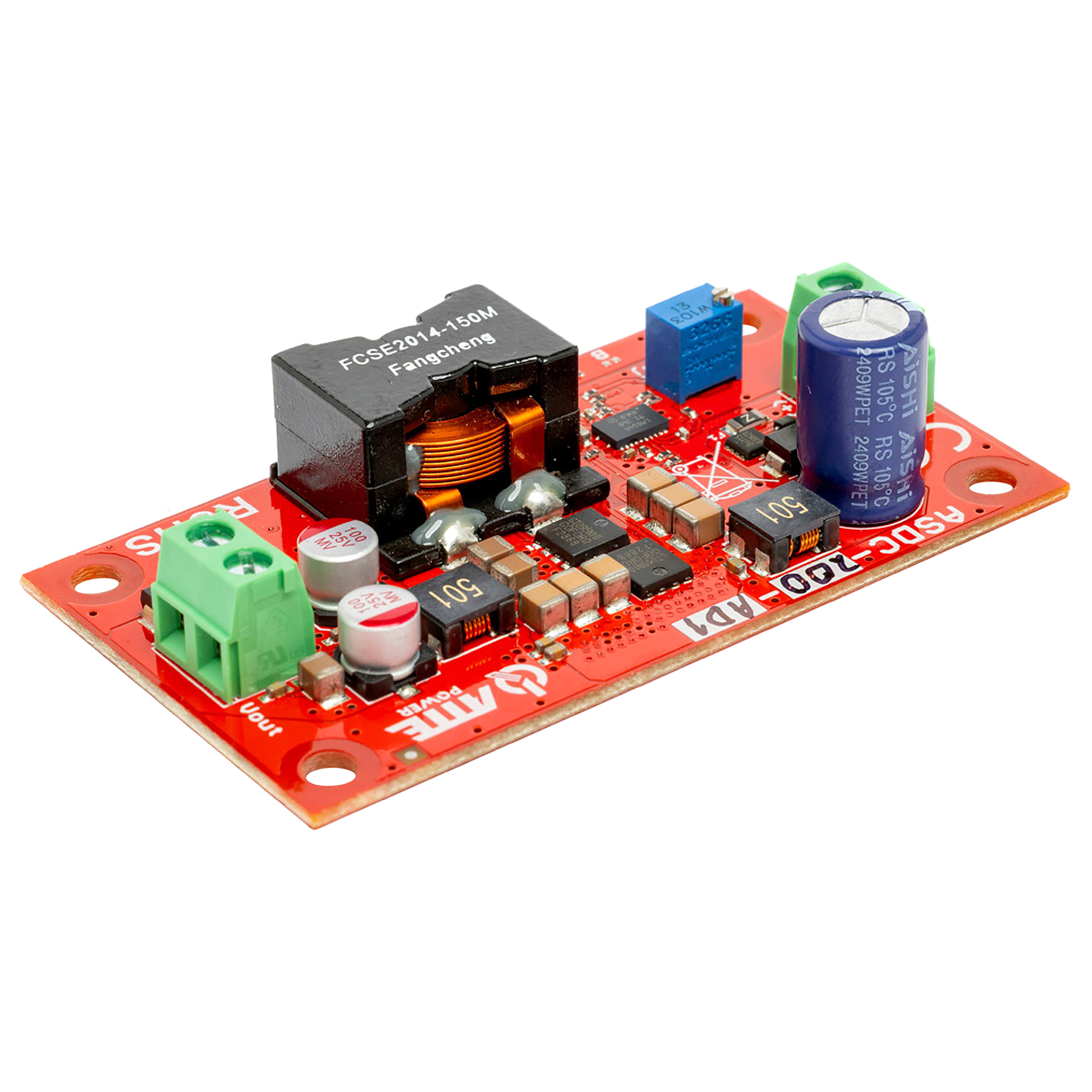

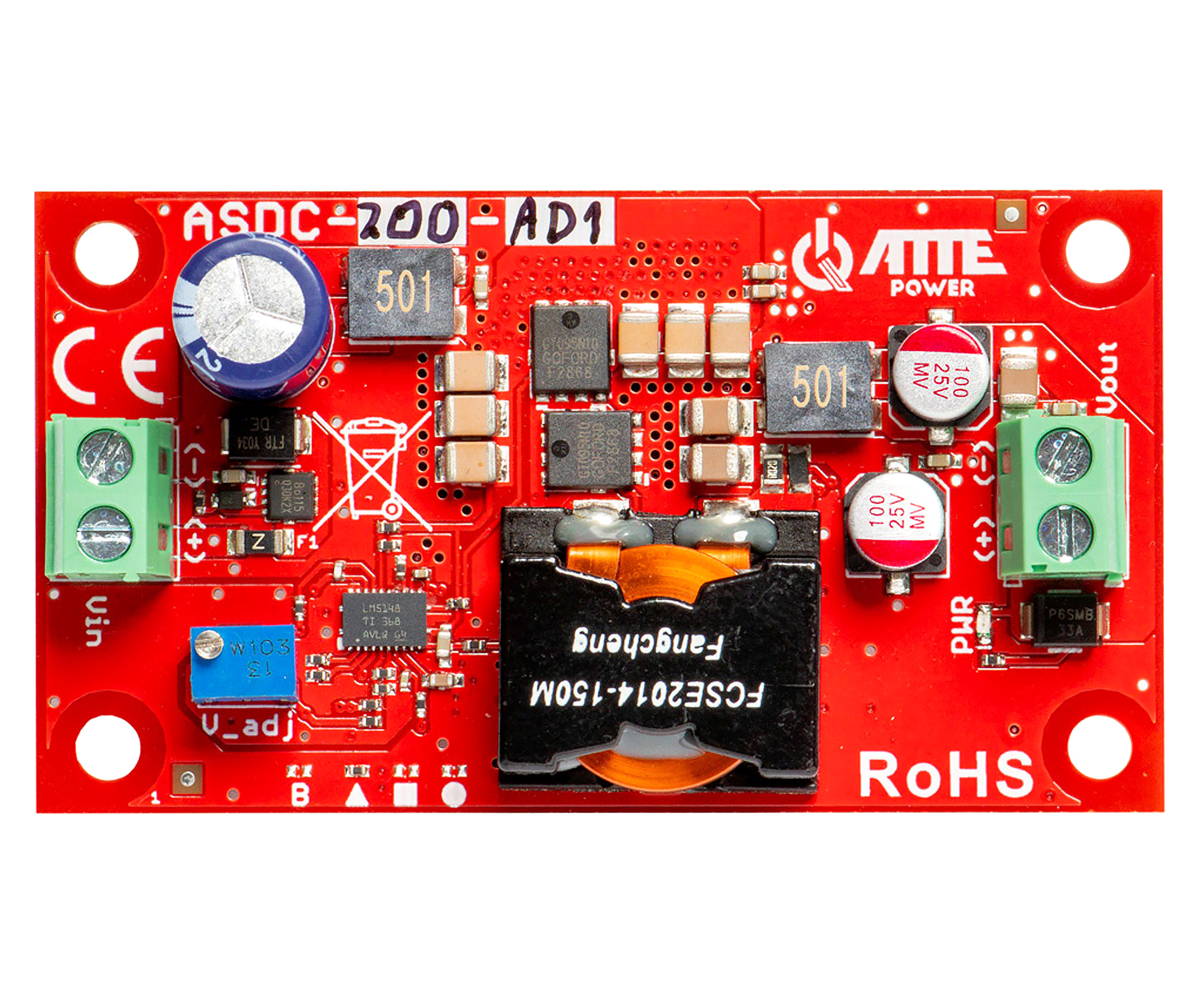

Модуль преобразователя ASDC-200-AD1-OF DC/DC ATTE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Type: Decreasing the voltage, DC/DC ; Number of inputs: 1 ; Number of outputs: 1 ; Power voltage: 16 ... 56 V DC ; Output voltage: 5 ... 24 V DC ; Output current: 8 A (max) ; Power: 200 W @ 24 V (max) ;
| Type: | Decreasing the voltage, DC/DC |
| Number of inputs: | 1 |
| Number of outputs: | 1 |
| Power voltage: | 16 ... 56 V DC |
| Output voltage: | 5 ... 24 V DC |
| Output voltage adjustment: |  |
| Output current: | 8 A (max) |
| Power: | 200 W @ 24 V (max) |
| Minimal voltage difference between out and in: | 3 V |
| Protections: | |
| Weight: | 0.037 kg |
| Dimensions: | 74 x 42 x 20 mm (without bracket) |
| Manufacturer / Brand: | ATTE |
| Guarantee: | 3 years |
Brand:
ATTE
