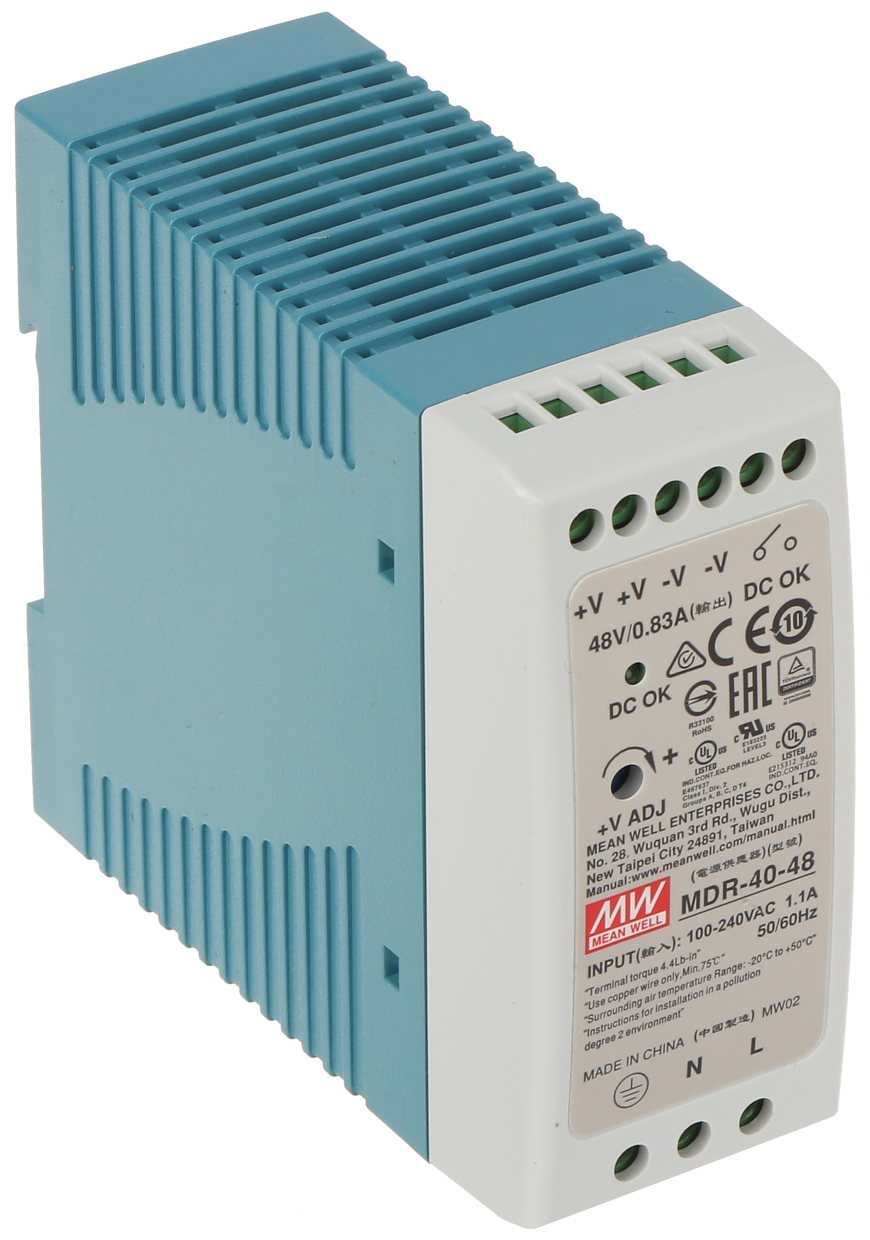

SWITCHING ADAPTER MDR-40-48 MEAN WELL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Output voltage: 48 V DC ; Output voltage adjustment: 48 ... 56 V ; Maximal load: 0.83 A ; Output power: 39.8 W ;
| Adapter type: | Switching |
| Power voltage: | 85 ... 264 V AC / 120 ... 370 V DC |
| Output voltage: | 48 V DC |
| Output voltage adjustment: | 48 ... 56 V |
| Voltage tolerance: | ± 1 % |
| Maximal load: | 0.83 A |
| Output power: | 39.8 W |
| Number of outputs: | 2 pcs |
| Efficiency: | 88 % |
| Housing type: | DIN |
| MTBF (Mean Time Between Faults): | min. 301700 hours |
| Vibration resistance: | IEC60068-2-6, 10 ... 500 Hz max. 2 G |
| Protections: | |
| Operation temp. / Relative humidity: | -20 °C ... 70 °C / 20 % ... 95 % |
| Weight: | 0.26 kg |

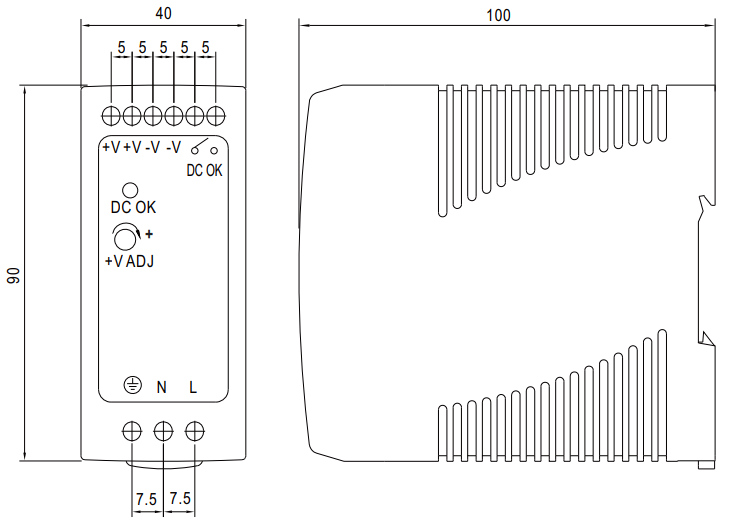

| Dimensions: | 40 x 100 x 90 mm |
| Manufacturer / Brand: | MEAN WELL |
| Guarantee: | 3 years |
Brand:
Mean Well
