SWITCHING ADAPTER SDR-480-24 MEAN WELL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Output voltage: 24 V DC ; Output voltage adjustment: 24 ... 28 V DC ; Maximal load: 20 A ; Output power: 480 W ;
| Adapter type: | Switching |
| Power voltage: | |
| Output voltage: | 24 V DC |
| Output voltage adjustment: | 24 ... 28 V DC |
| Maximal load: | 20 A |
| Output power: | 480 W |
| Instantaneous maximum power: | 720 W - 3 s (max) |
| Number of outputs: | 1 pcs |
| Efficiency: | 94 % |
| Housing type: | DIN |
| Relay output: | 1 pcs - DC OK |
| Protections: | |
| Operation temp. / Relative humidity: | -25 °C ... 70 °C / 20 ... 95 % |
| Weight: | 1.59 kg |

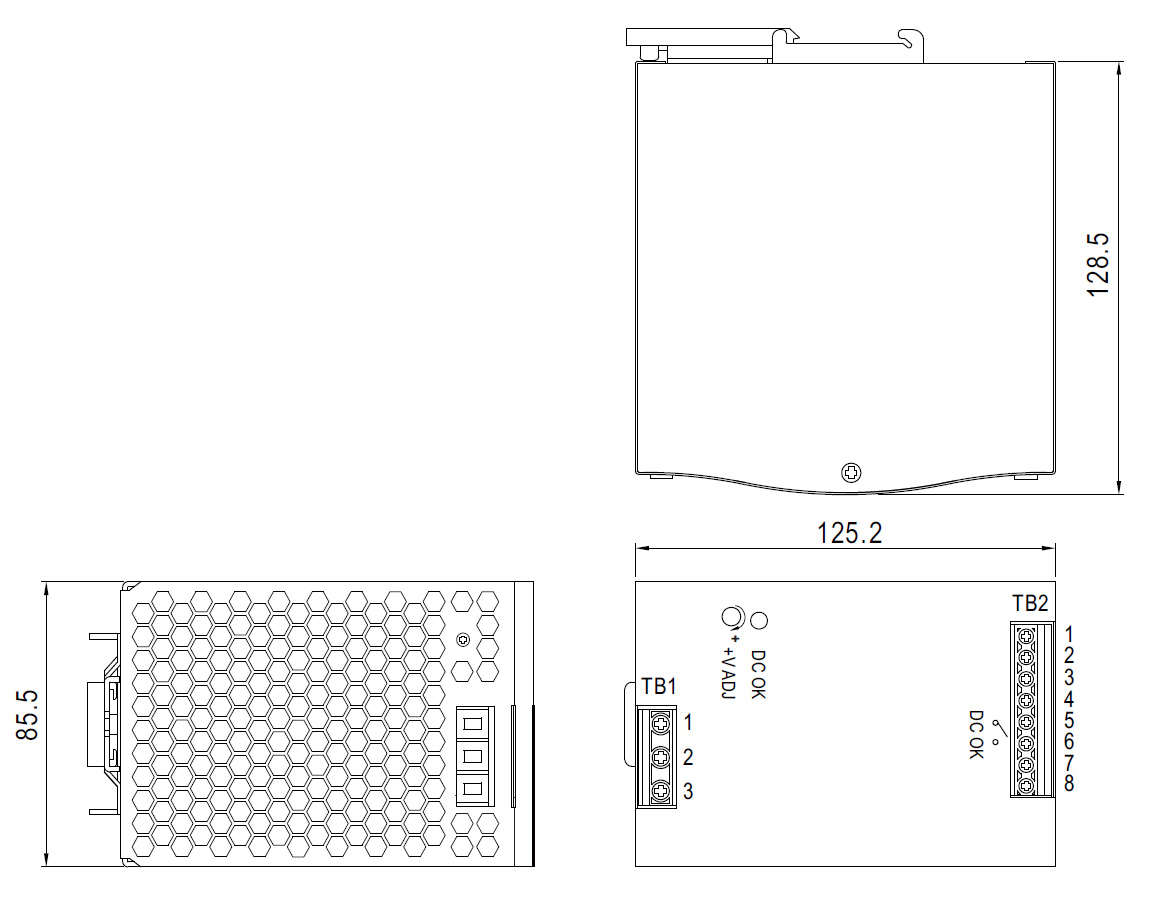

| Dimensions: | 139 x 125 x 86 mm |
| Manufacturer / Brand: | MEAN WELL |
| Guarantee: | 3 years |
Brand:
Mean Well
