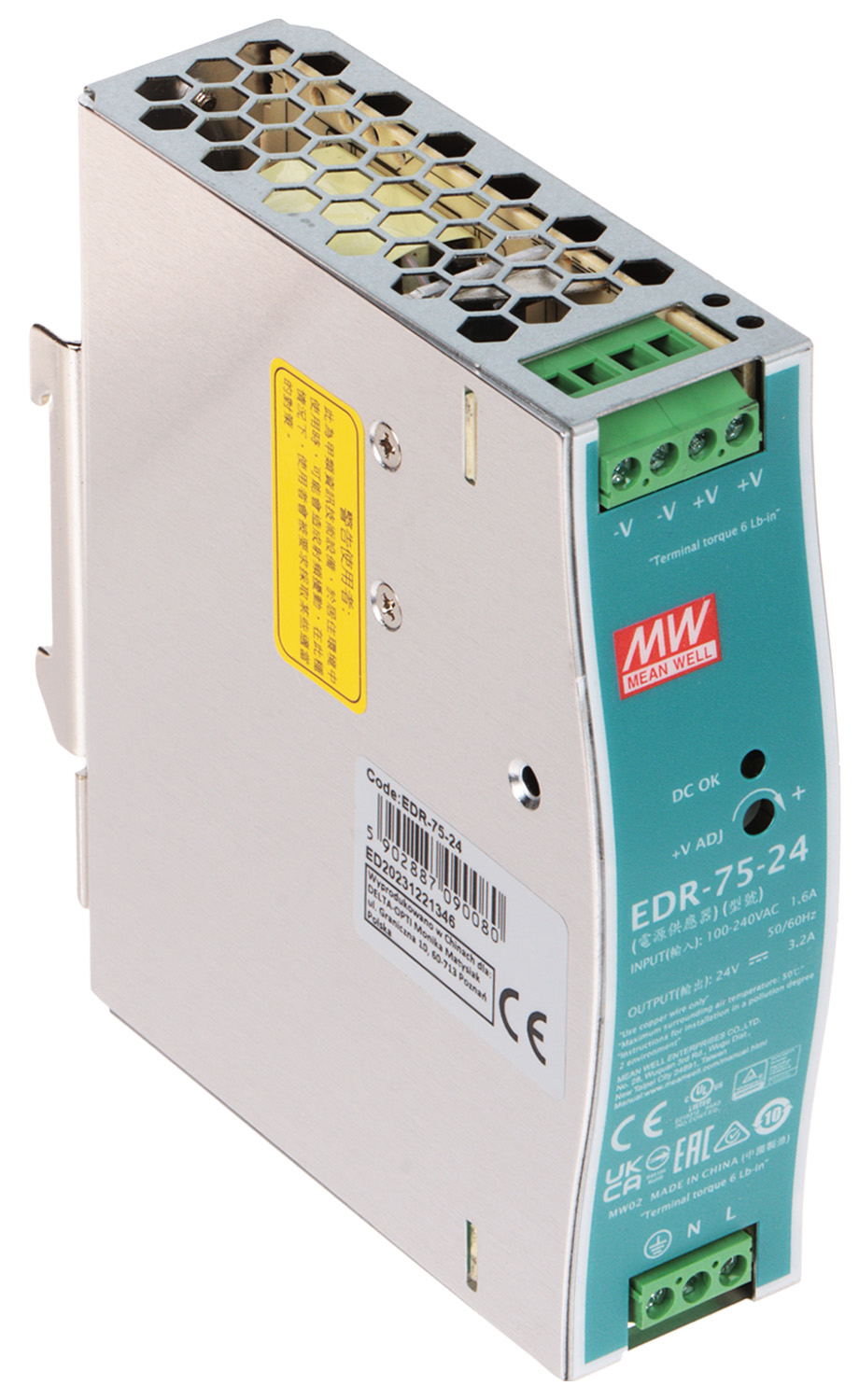

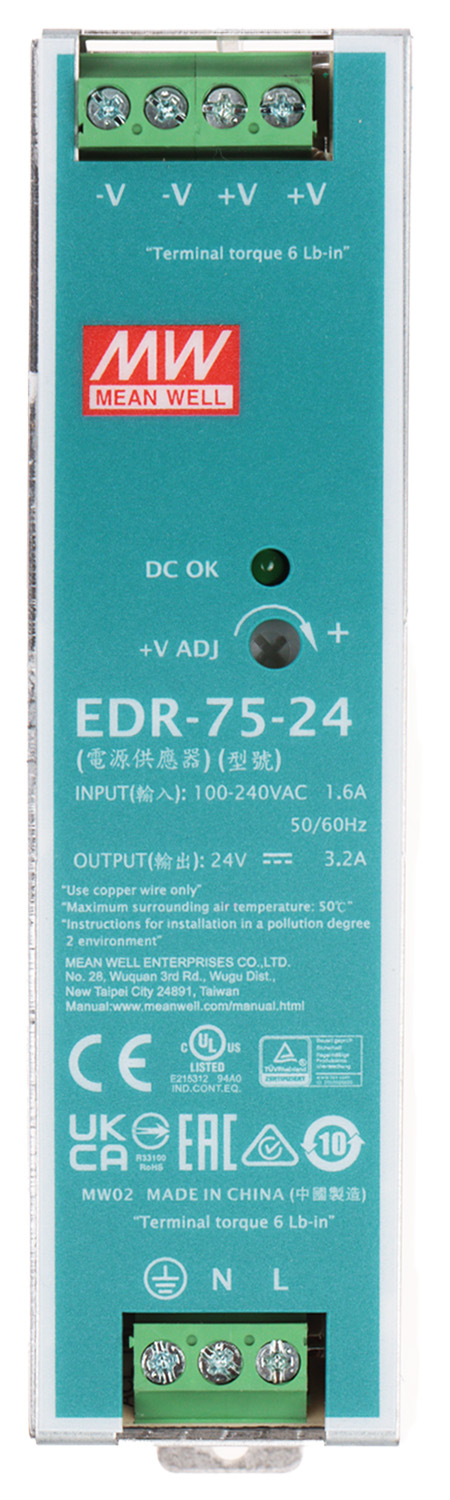

SWITCHING ADAPTER EDR-75-24 MEAN WELL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Output voltage: 24 V DC ; Output voltage adjustment: 24 ... 28 V DC ; Maximal load: 3.2 A ; Output power: 76.8 W ;
| Adapter type: | Switching |
| Power voltage: | |
| Output voltage: | 24 V DC |
| Output voltage adjustment: | 24 ... 28 V DC |
| Maximal load: | 3.2 A |
| Output power: | 76.8 W |
| Number of outputs: | 1 pcs |
| Efficiency: | 87.5 % |

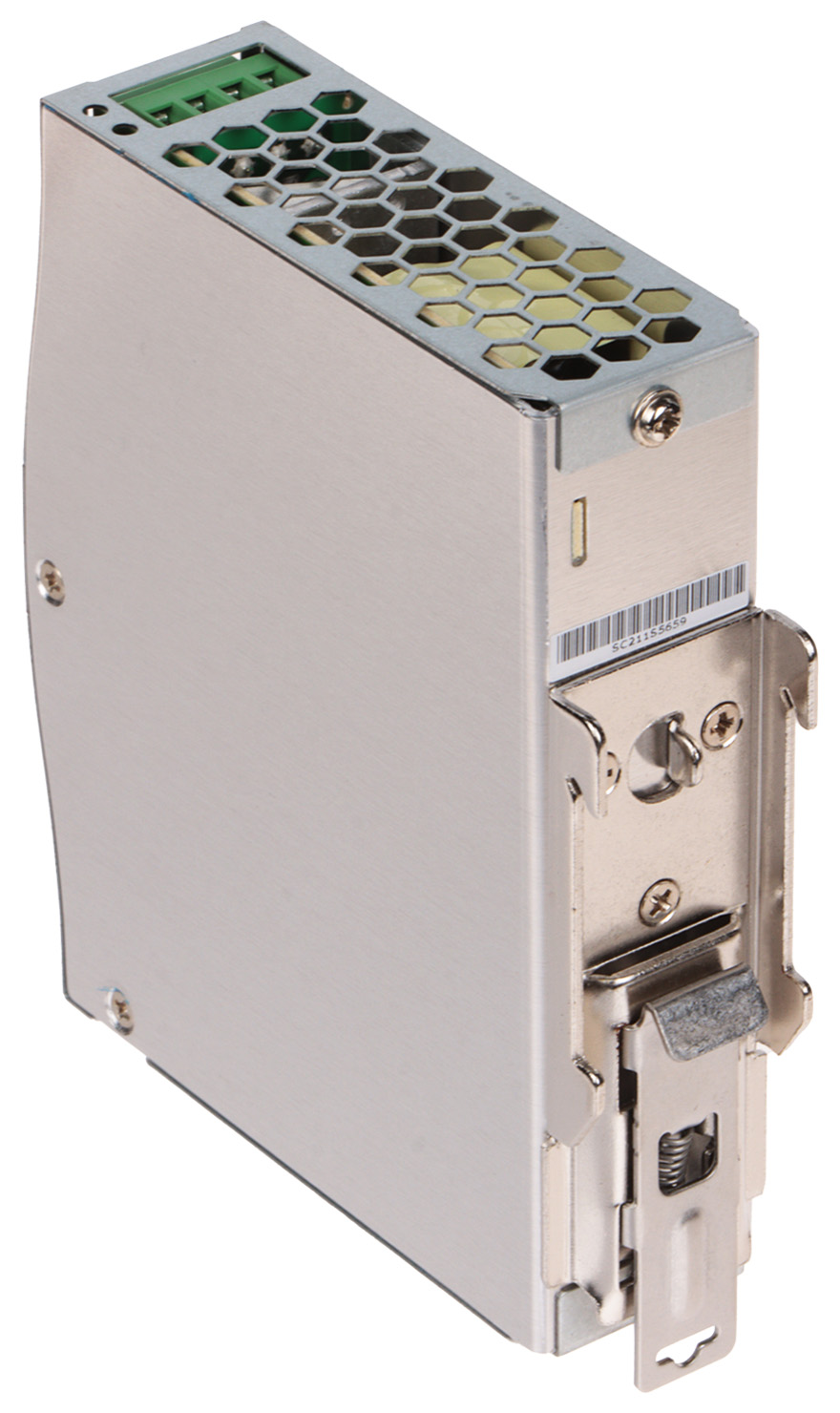

| Housing type: | DIN |
| Protections: | |
| Operation temp. / Relative humidity: | -20 °C ... 60 °C / 20 ... 95 % |
| Weight: | 0.42 kg |

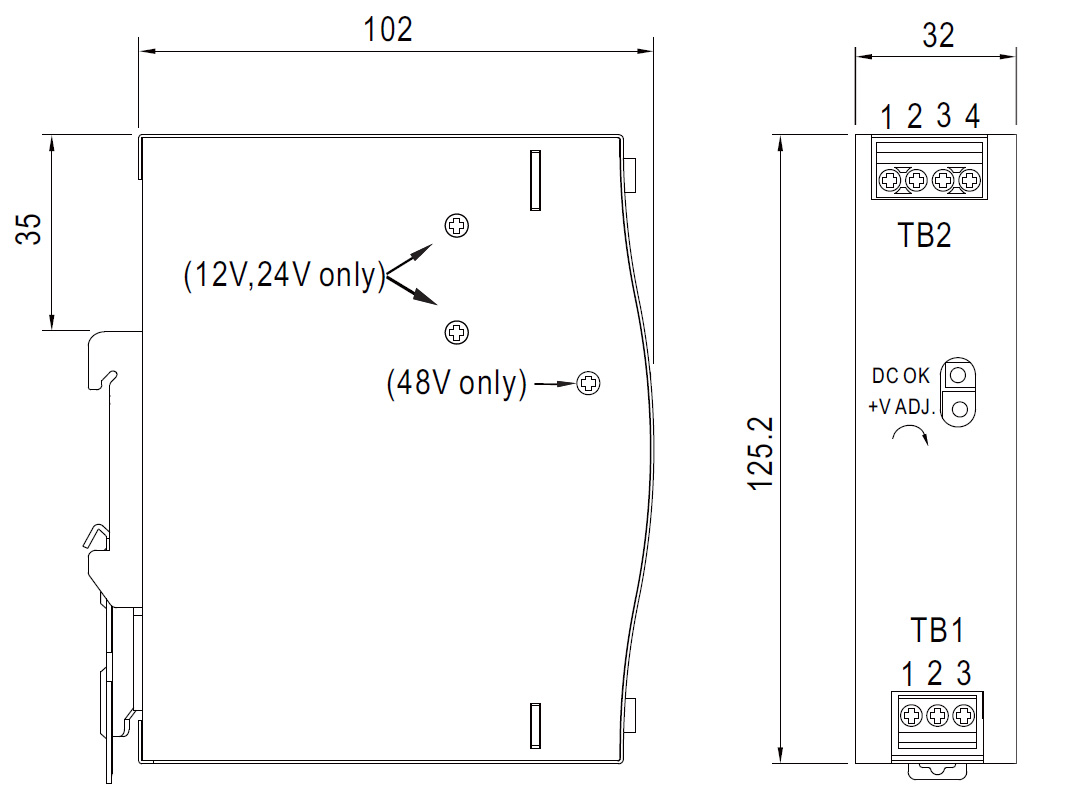

| Dimensions: | 126 x 112 x 32 mm |
| Manufacturer / Brand: | MEAN WELL |
| Guarantee: | 2 years |
Brand:
Mean Well
