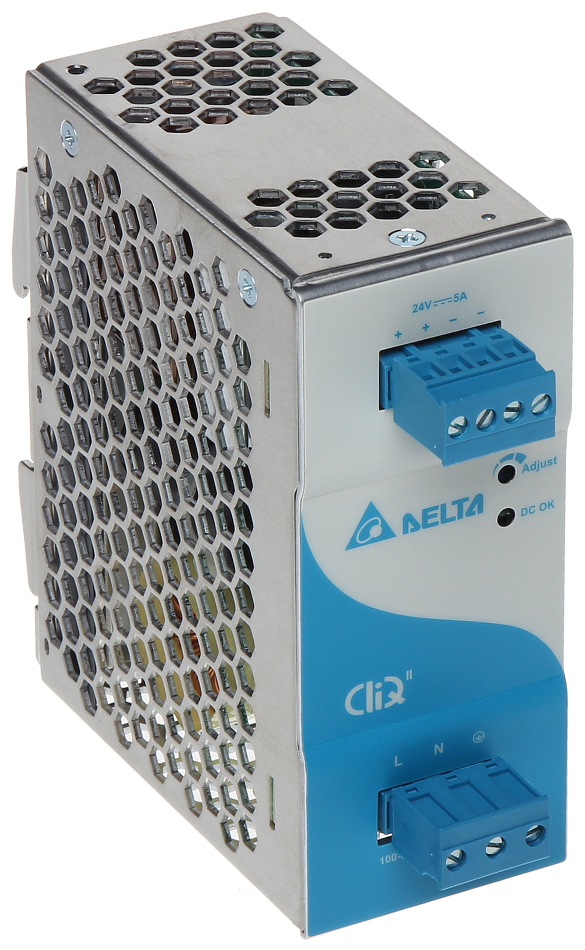

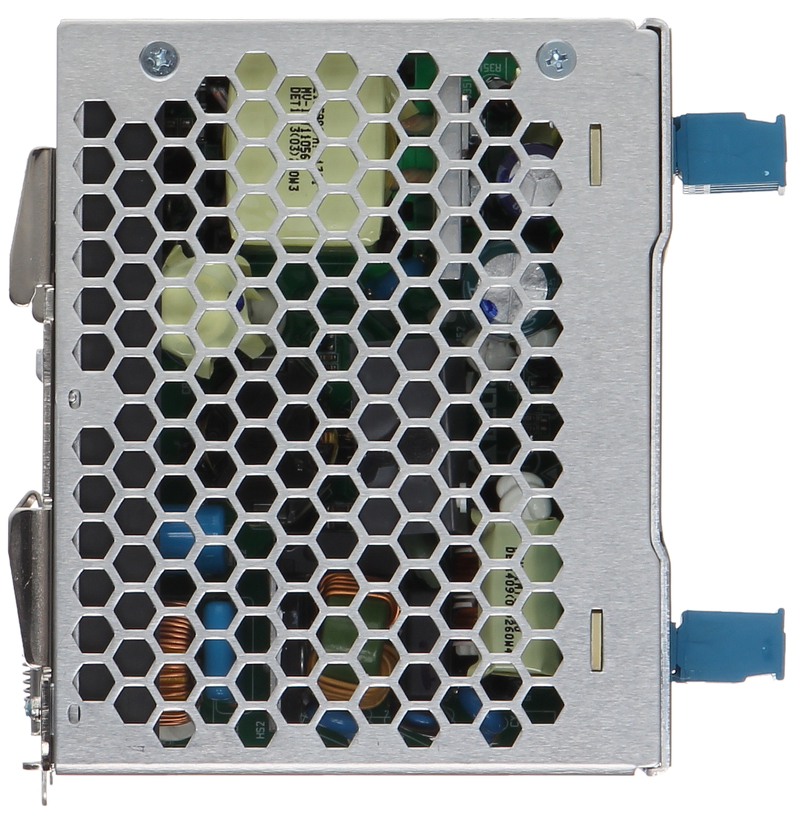

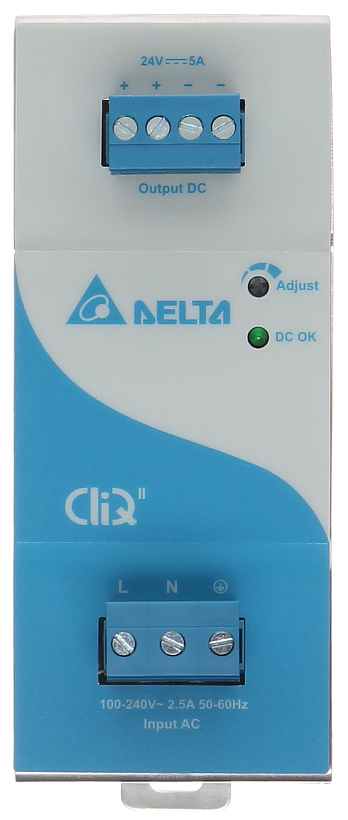

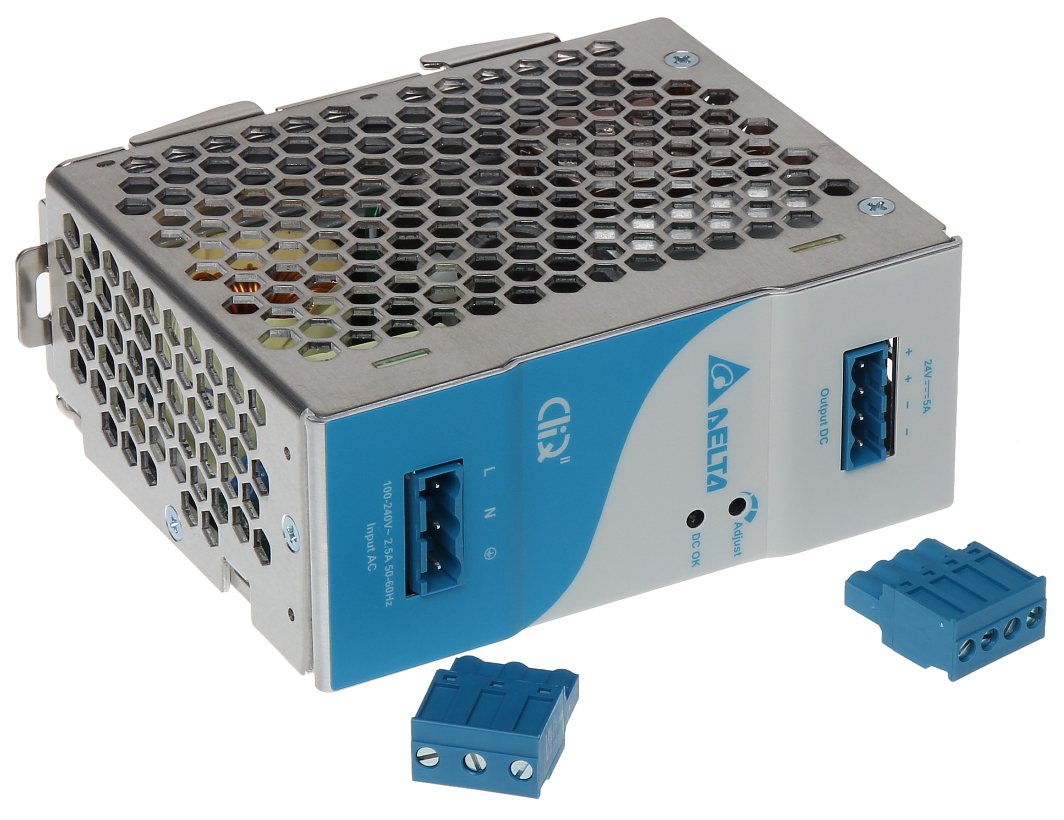

SWITCHING ADAPTER DRP-024V120W-1BN Delta Electronics
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Output voltage: 24 V DC ; Output voltage adjustment: 24 ... 28 V ; Maximal load: 5 A ; Output power: 120 W ;
| Adapter type: | Switching |
| Power voltage: | 86 ... 264 V AC |
| Output voltage: | 24 V DC |
| Output voltage adjustment: | 24 ... 28 V |
| Voltage tolerance: | ± 2 % |
| Maximal load: | 5 A |
| Output power: | 120 W |
| Number of outputs: | 2 pcs |
| Efficiency: | > 90 % |

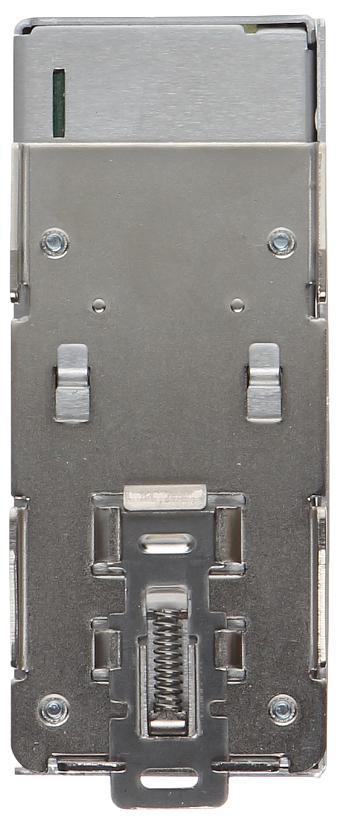

| Housing type: | DIN |
| MTBF (Mean Time Between Faults): | 800000 hours |
| Vibration resistance: | IEC60068-2-6, 10 ... 150 Hz max. 3 G for 60 minutes |
| Protections: | |
| Operation temp. / Relative humidity: | -20 °C ... 85 °C / < 95 % |
| Weight: | 0.72 kg |

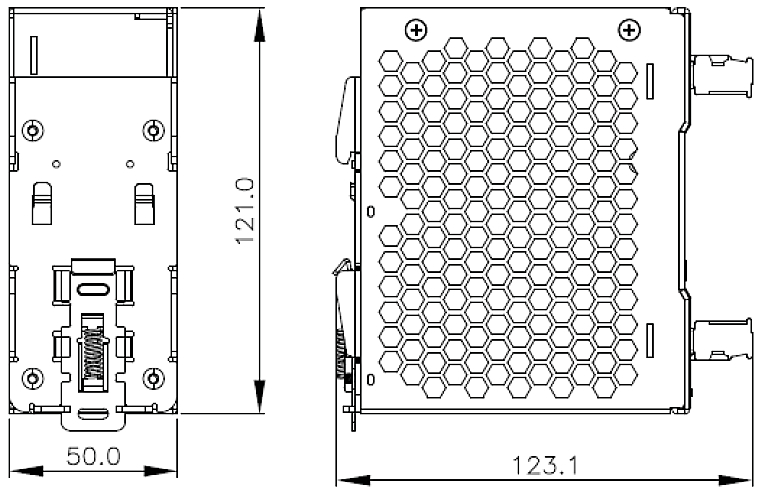

| Dimensions: | 50 x 121 x 123 mm |
| Manufacturer / Brand: | Delta Electronics |
| Guarantee: | 5 years |
Brand:
Delta Electronics
