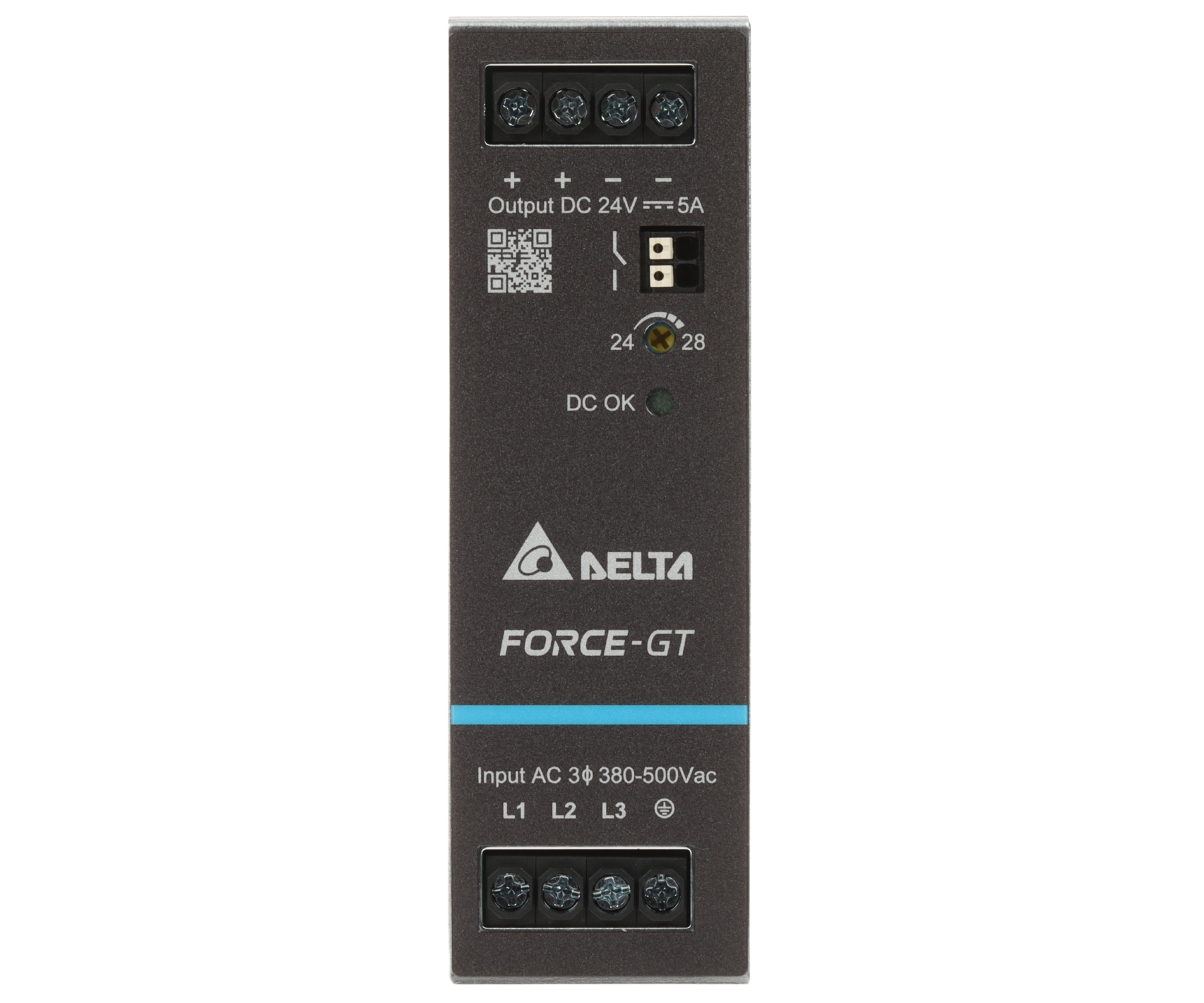

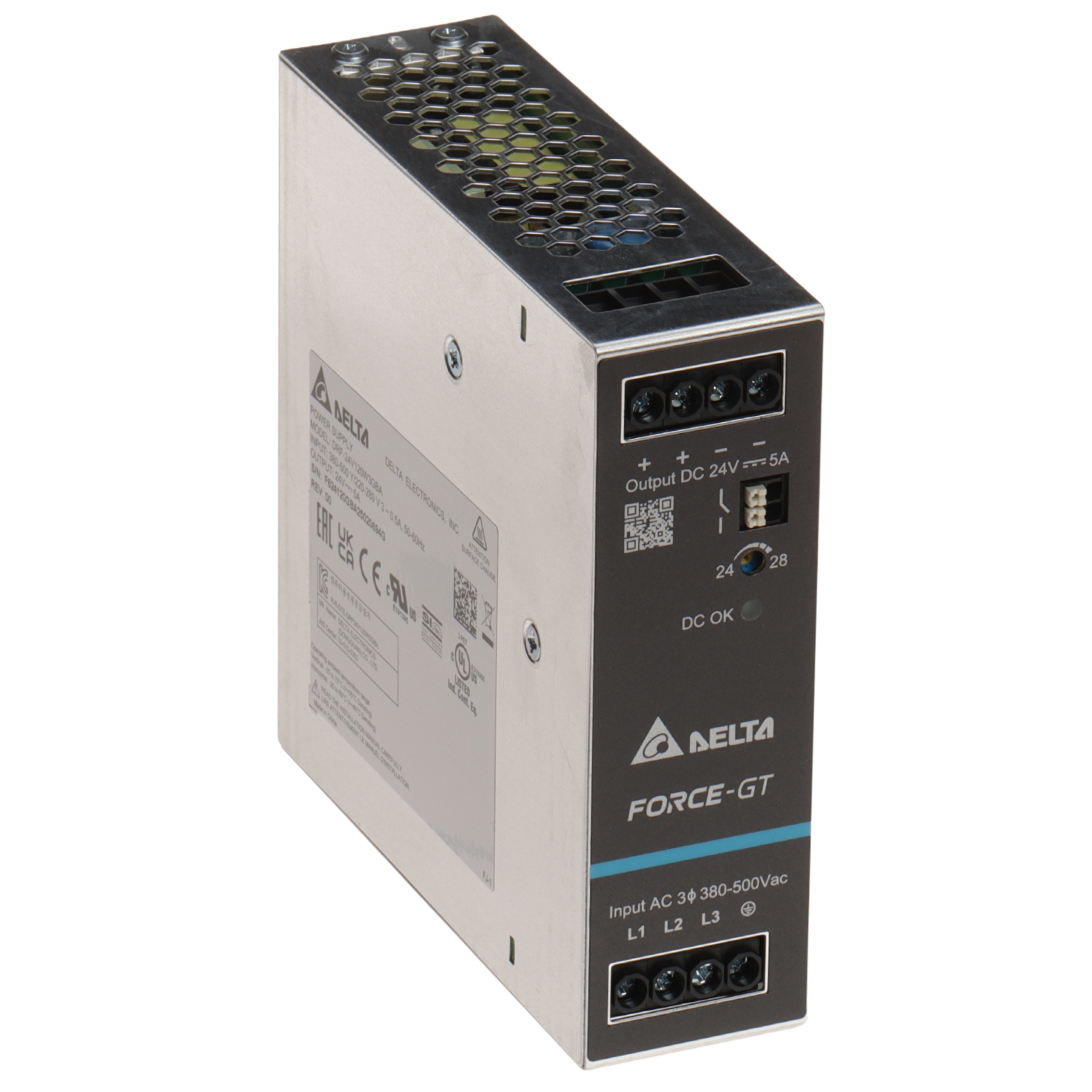

SWITCHING ADAPTER DRF-24V120W3GBA FORCE-GT (3 PHASES) Delta Electronics
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Power voltage: 380 ... 500 V AC (3 phases) ; Output voltage: 24 V DC ; Output voltage adjustment: 24 ... 28 V ; Maximal load: 5 A ; Output power: 120 W ;
| Adapter type: | Switching |
| Power voltage: | 380 ... 500 V AC (3 phases) |
| Output voltage: | 24 V DC |
| Output voltage adjustment: | 24 ... 28 V |
| Voltage tolerance: | ± 1 % |
| Maximal load: | 5 A |
| Output power: | 120 W |
| Number of outputs: | 2 pcs |
| Efficiency: | |
| Housing type: | DIN |
| MTBF (Mean Time Between Faults): | 700 000 hours |
| Vibration resistance: | IEC60068-2-6, 10 ... 500 Hz max. 3 G for 60 minutes |
| Protections: | |
| Operation temp. / Relative humidity: | -40 °C ... 60 °C / 5 % ... 95 % |
| Weight: | 0.57 kg |

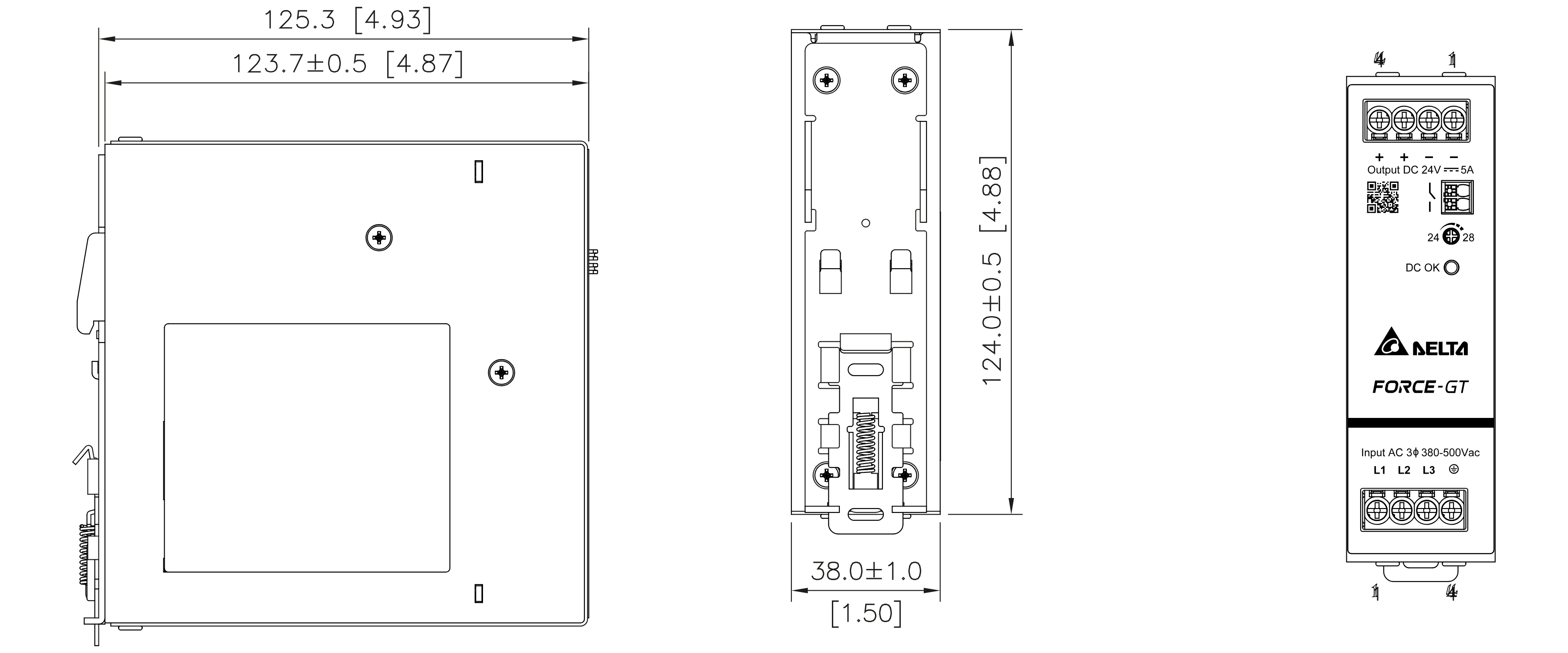

| Dimensions: | 38 x 131 x 124 mm |
| Manufacturer / Brand: | Delta Electronics |
| Guarantee: | 2 years |
Brand:
Delta Electronics
