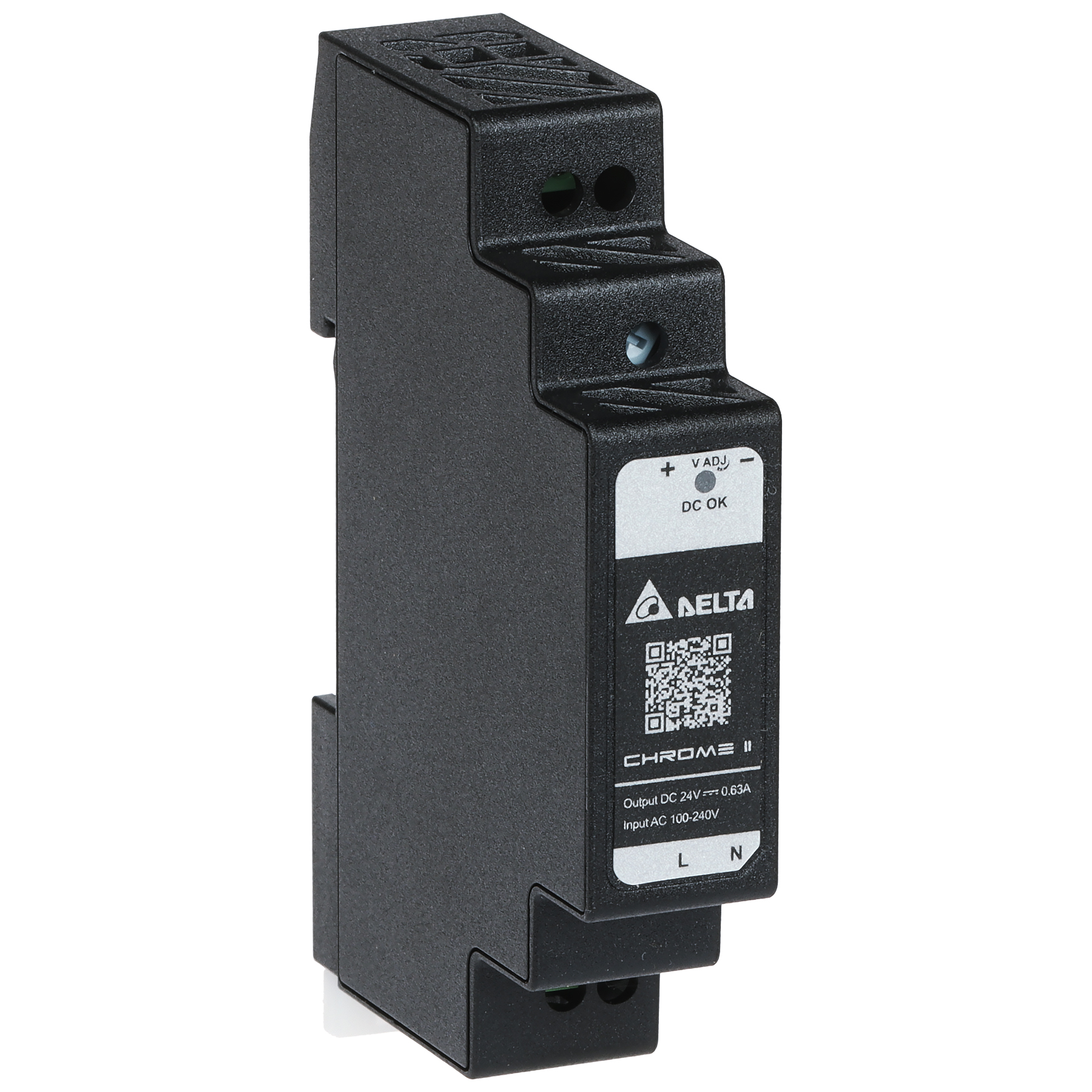

SWITCHING ADAPTER DRC-24V015W1RZ Delta Electronics
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Output voltage: 24 V DC ; Maximal load: 0.63 A ; Output power: 15 W ;
| Adapter type: | Switching |
| Power voltage: | 85 ... 264 V AC 120 ... 375 V DC |
| Output voltage: | 24 V DC |
| Output voltage adjustment: | 21.6 ... 26.4 V |
| Maximal load: | 0.63 A |
| Output power: | 15 W |
| Number of outputs: | 1 pcs |
| Efficiency: | 85.5 % (typical) |
| Housing type: | DIN |
| Vibration resistance: |  |
| Protections: | |
| Operation temp. / Relative humidity: | -40 °C ... 75 °C / 5 ... 95 % |
| Weight: | 0.06 kg |

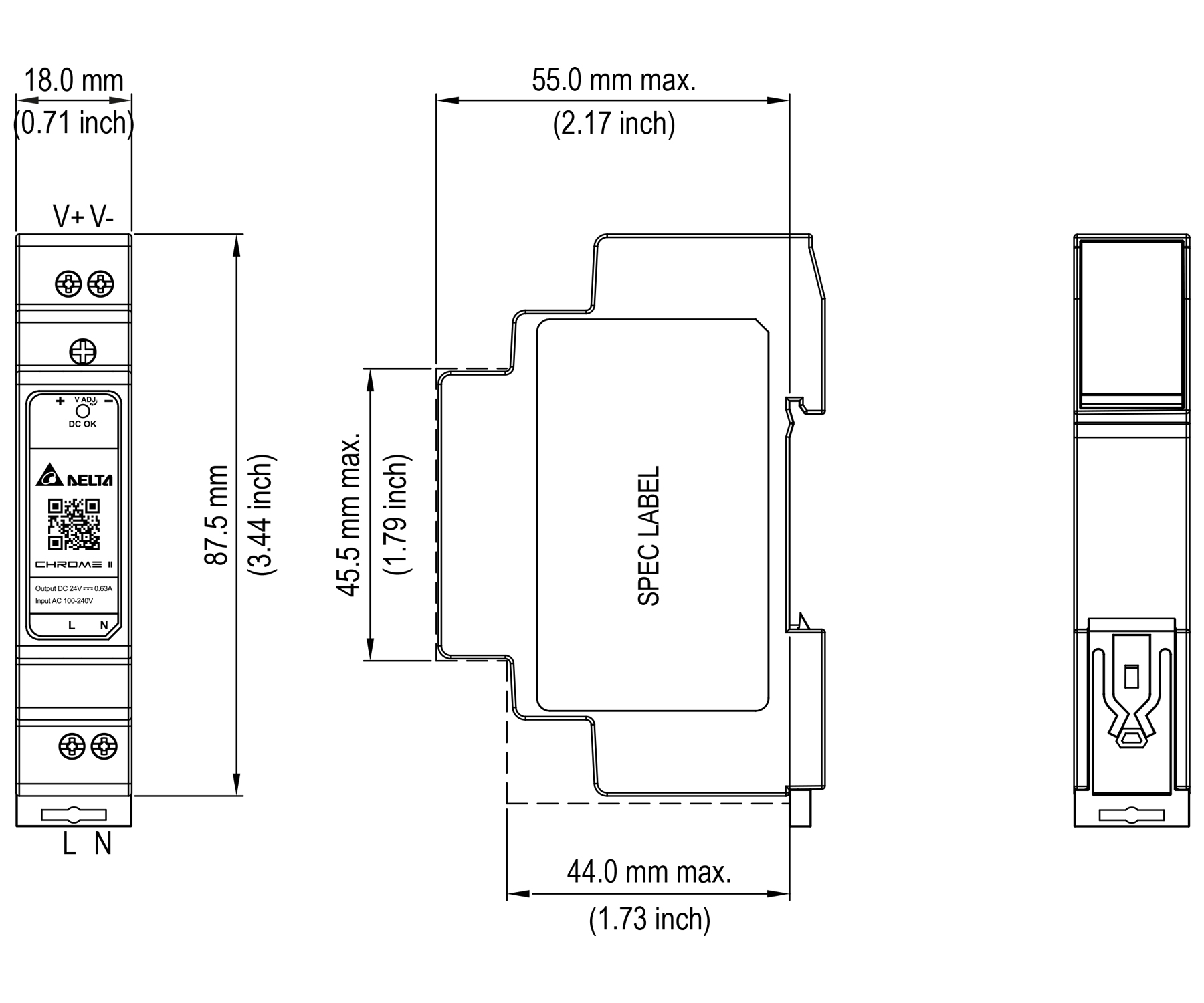

| Dimensions: | 18 x 92 x 60 mm |
| Manufacturer / Brand: | Delta Electronics |
| Guarantee: | 5 years |
Brand:
Delta Electronics
