SWITCHING ADAPTER SDR-120-12 MEAN WELL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Output voltage: 12 V DC ; Output voltage adjustment: 12 ... 14 V DC ; Maximal load: 10 A ; Output power: 120 W ;
| Adapter type: | Switching |
| Power voltage: | |
| Output voltage: | 12 V DC |
| Output voltage adjustment: | 12 ... 14 V DC |
| Maximal load: | 10 A |
| Output power: | 120 W |
| Instantaneous maximum power: | 180 W - 3 s (max) |
| Number of outputs: | 1 pcs |
| Efficiency: | 89 % |

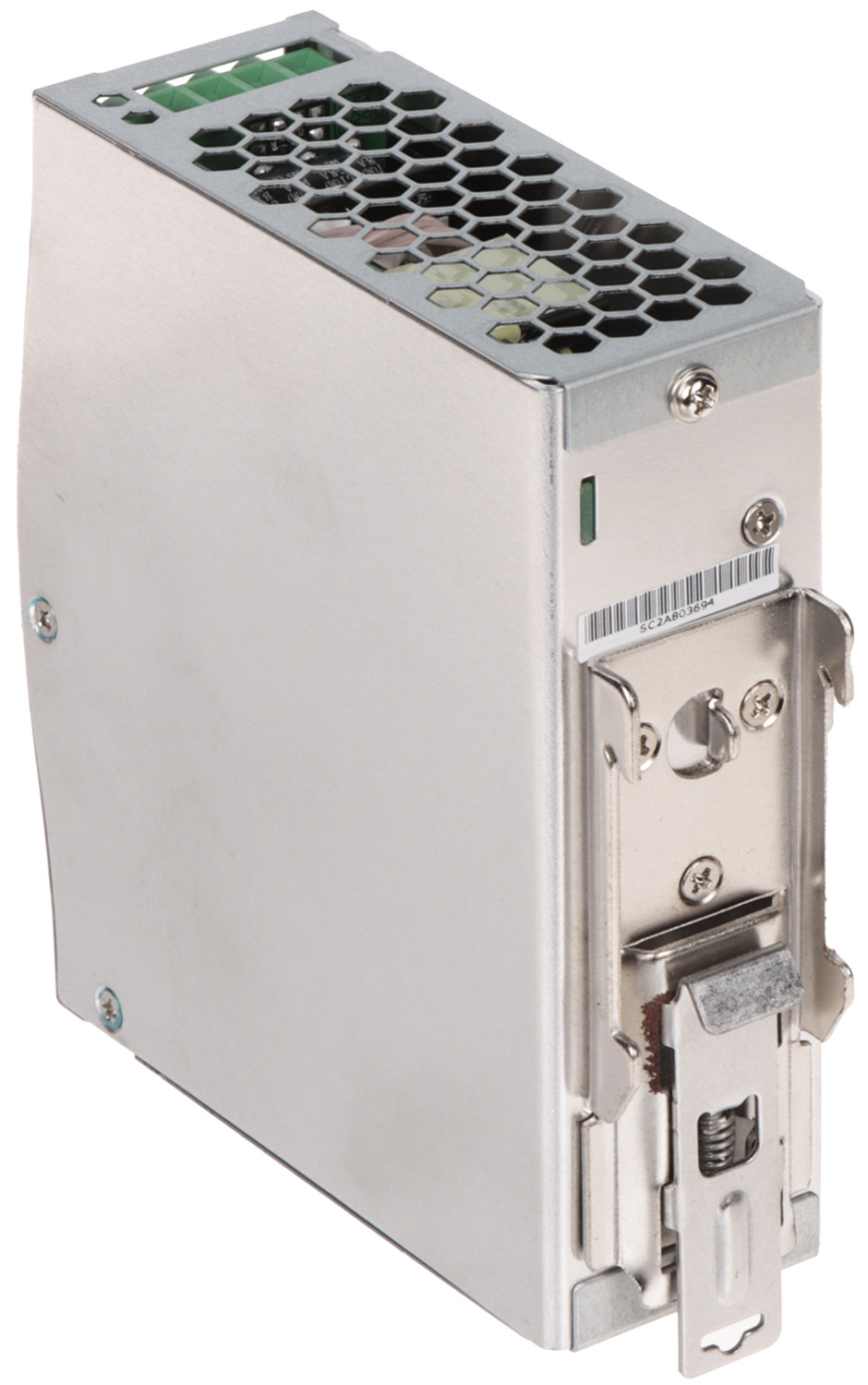

| Housing type: | DIN |
| Relay output: | 1 pcs - DC OK |
| Protections: | |
| Operation temp. / Relative humidity: | -25 °C ... 70 °C / 20 ... 95 % |
| Weight: | 0.62 kg |

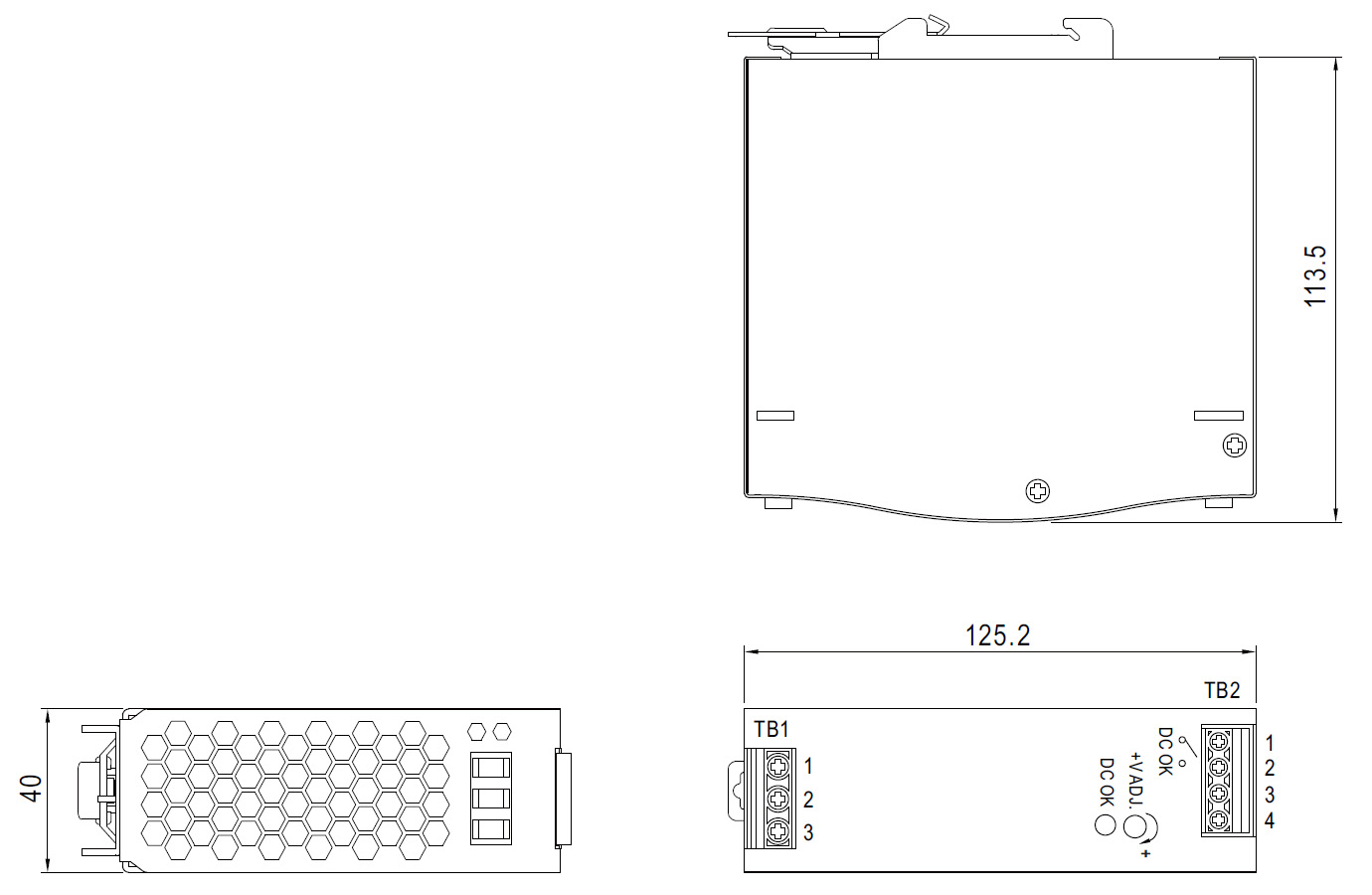

| Dimensions: | 125 x 124 x 41 mm |
| Manufacturer / Brand: | MEAN WELL |
| Guarantee: | 3 years |
Brand:
Mean Well
