SWITCHING ADAPTER MDR-10-12
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Output voltage: 12 V DC ; Output voltage adjustment: 10.8 ... 13.2 V ; Maximal load: 0.84 A ; Output power: 10 W ;
| Adapter type: | Switching |
| Power voltage: | 100 ... 240 V AC |
| Output voltage: | 12 V DC |
| Output voltage adjustment: | 10.8 ... 13.2 V |
| Voltage tolerance: | ± 1 % |
| Maximal load: | 0.84 A |
| Output power: | 10 W |
| Number of outputs: | 1 pcs |
| Efficiency: | 81 % |
| Housing type: | DIN |
| MTBF (Mean Time Between Faults): | 584000 hours |
| Vibration resistance: | IEC60068-2-6, 10 ... 500 Hz max. 2 G for 90 minutes |
| Protections: | |
| Operation temp. / Relative humidity: | -20 °C ... 70 °C / < 95 % |
| Weight: | 0.14 kg |

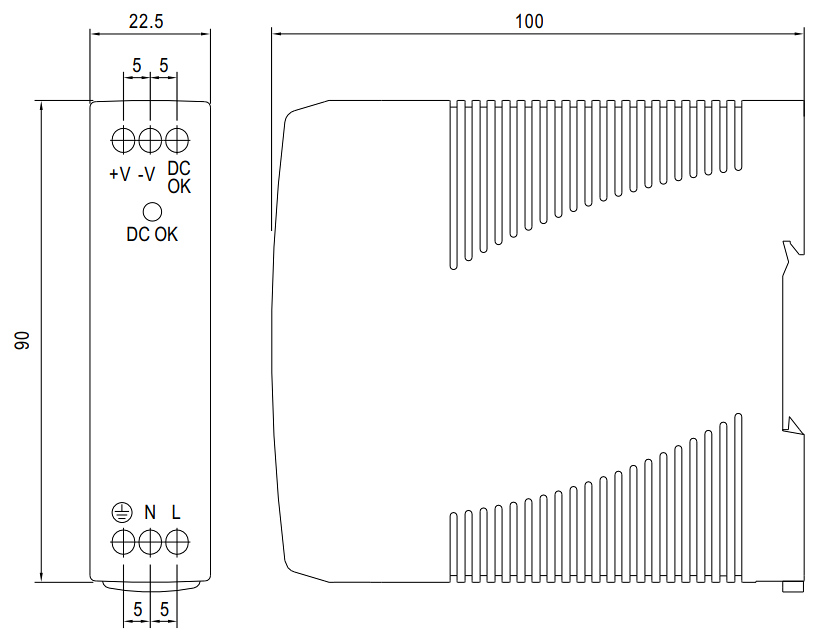

| Dimensions: | 22.5 x 100 x 90 mm |
| Guarantee: | 3 years |
Brand:
Mean Well
