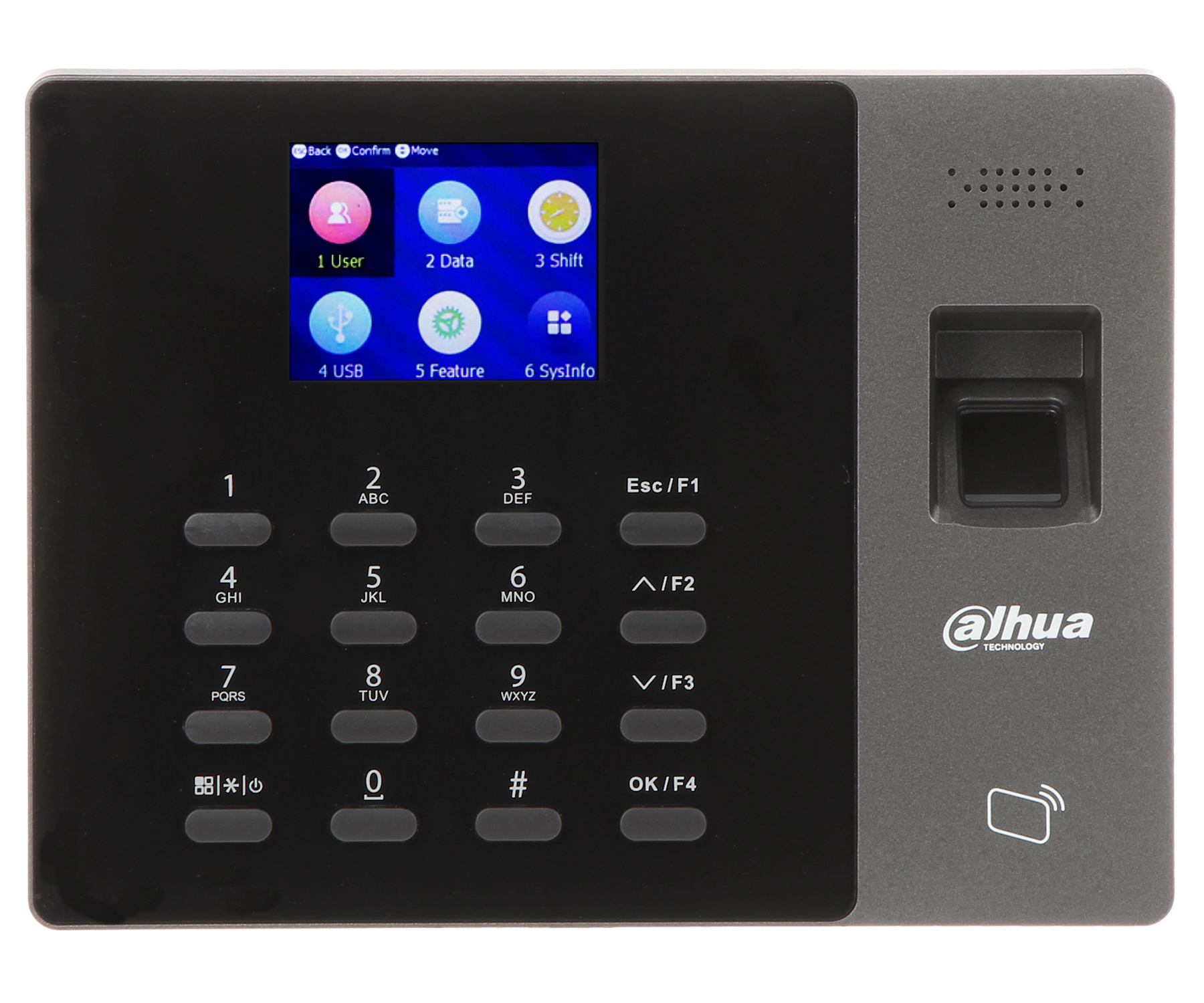

Identification time: < 1.5 s ; Autonomous operation; Communication: TCP/IP, ; Main features: Possibility of integration with systems based on SmartPSS software, 3000 indexed users, 3000 indexed fingerprints, Possibility to program up to 1000 user cards, Non-volatile log buffer of the last 100 000 events, LCD display - 2.4 ", Sound signaling ; Power supply: 12 V DC ;
| FINGERPRINT READER: | |
| Identification time: | < 1.5 s |
| PROXIMITY READER: | |
| Cards support: | 13.56 MHz S50 |
| Reading distance of prox-keys: | 1 ... 3 cm |
| Keyboard built-in: | ![]() |
| Autonomous operation: | ![]() |
| Doorbell button: | ![]() |

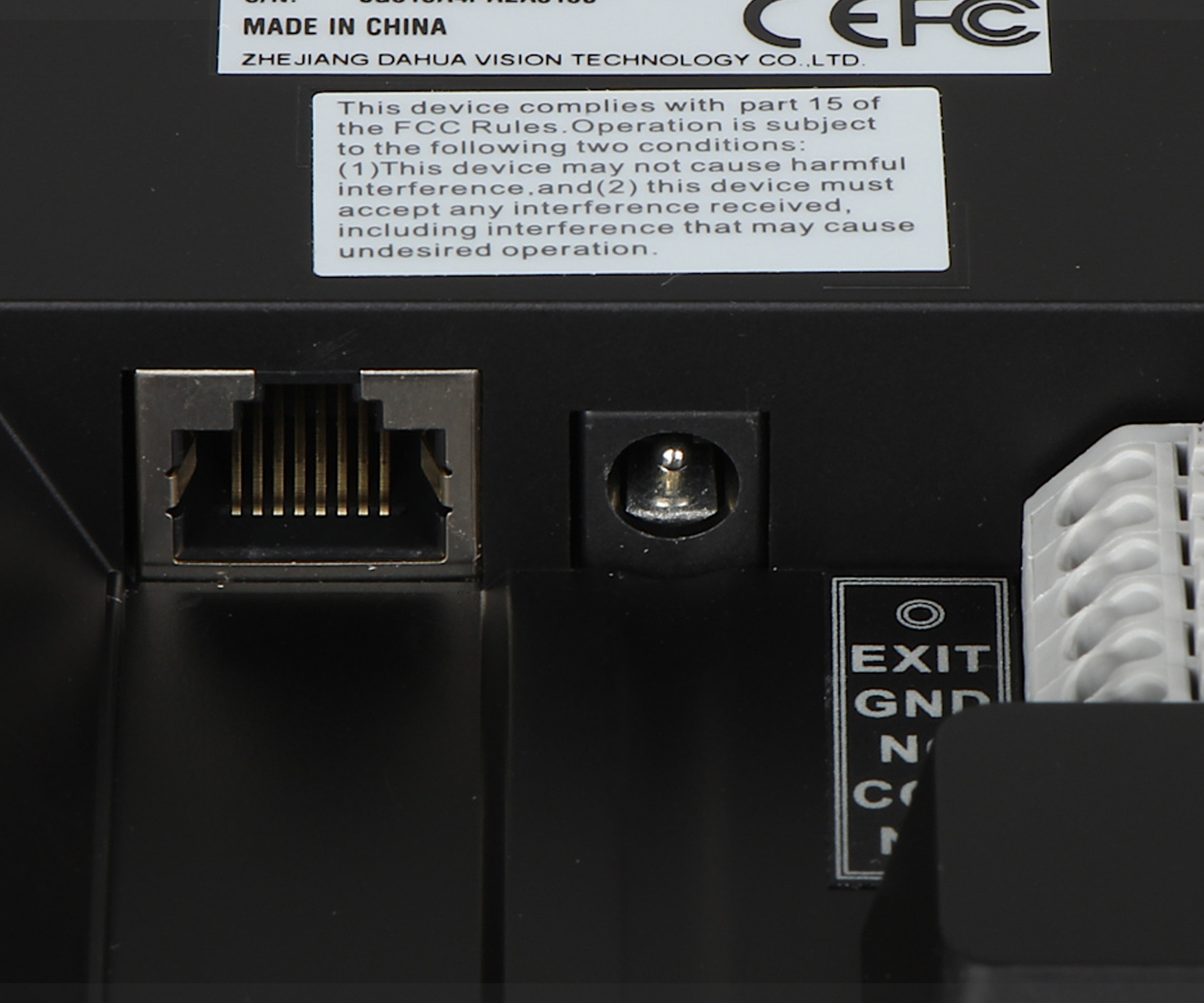

| Communication: | |

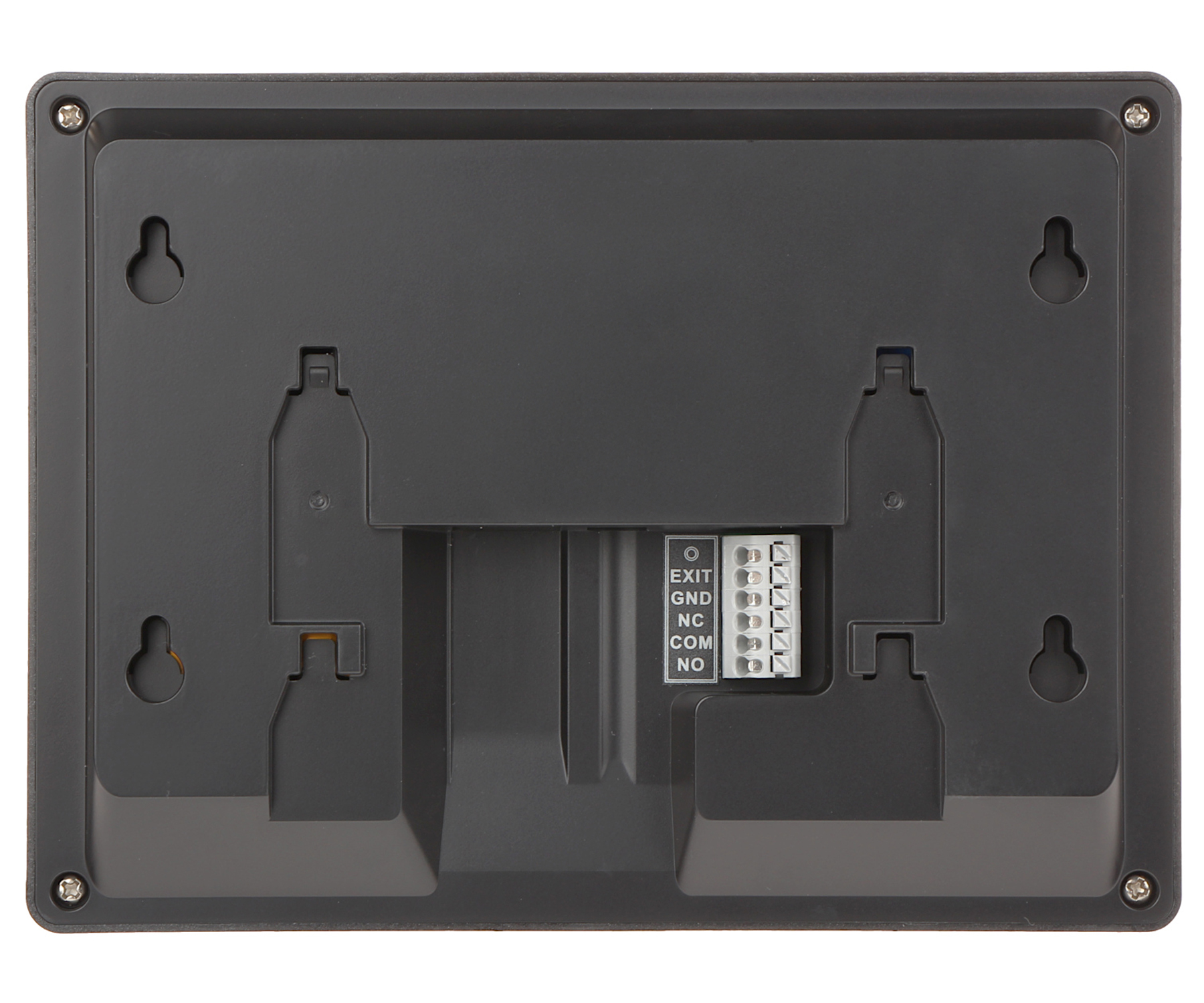

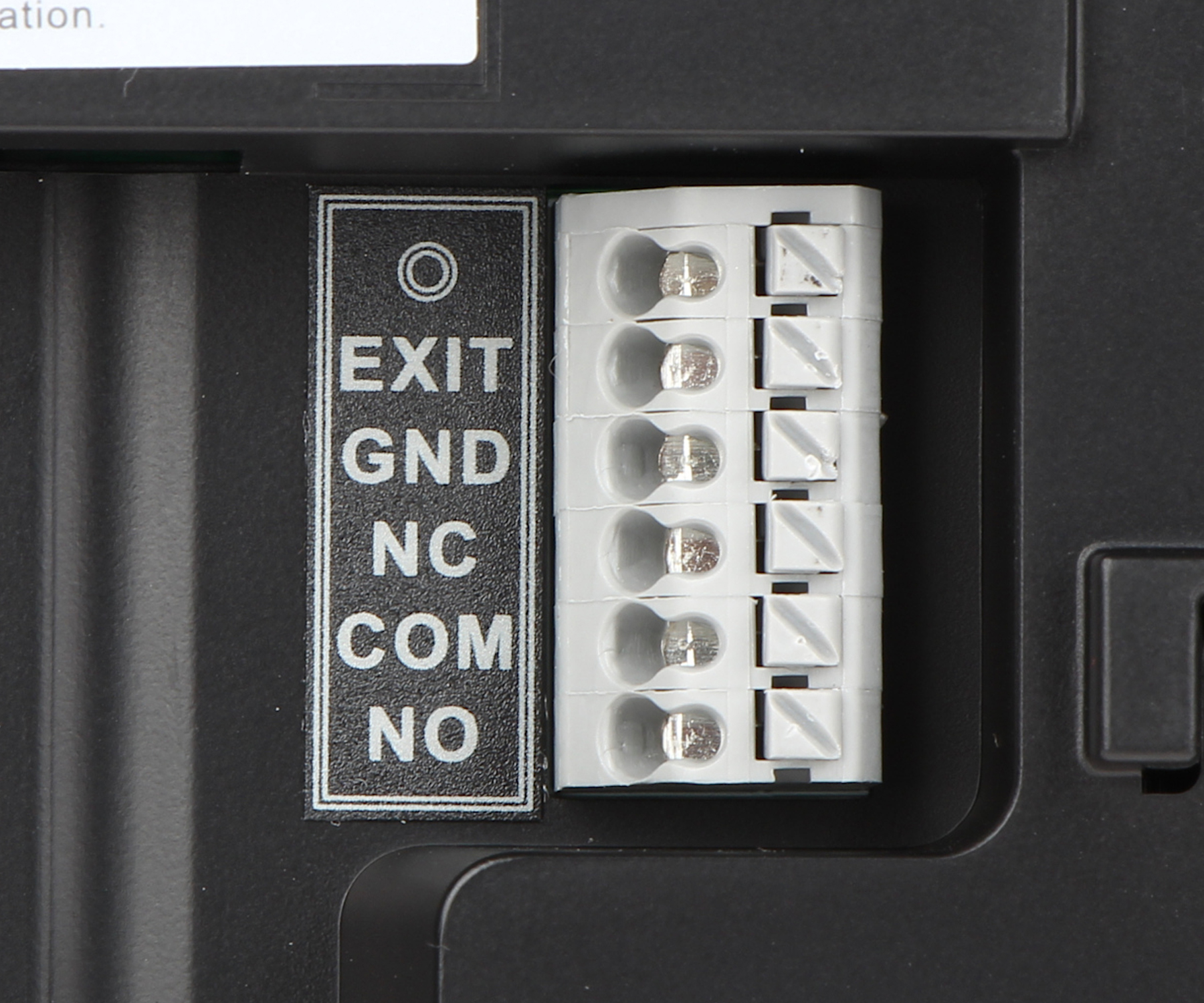

| Relay output: | 1 x NO/NC |
| Internal memory: | 8 MB |
| Memory card slot: | ![]() |
| Number of supported readers: | ![]() |
| Default admin user / password: | The administrator password should be set at the first start |
| Main features: | |

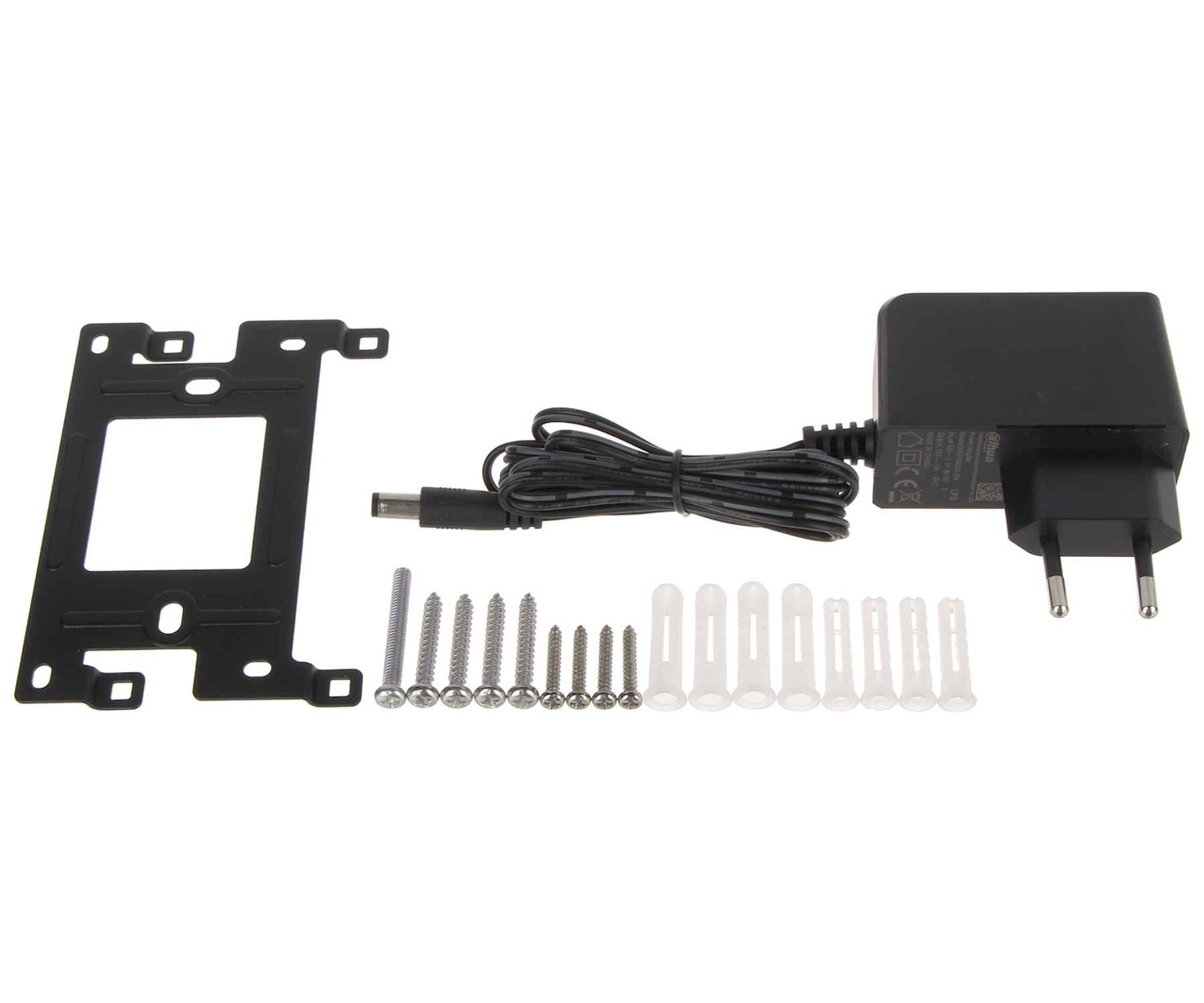

| Power supply: | 12 V DC / 1000 mA (power adapter included) |
| Weight: | 0.37 kg |

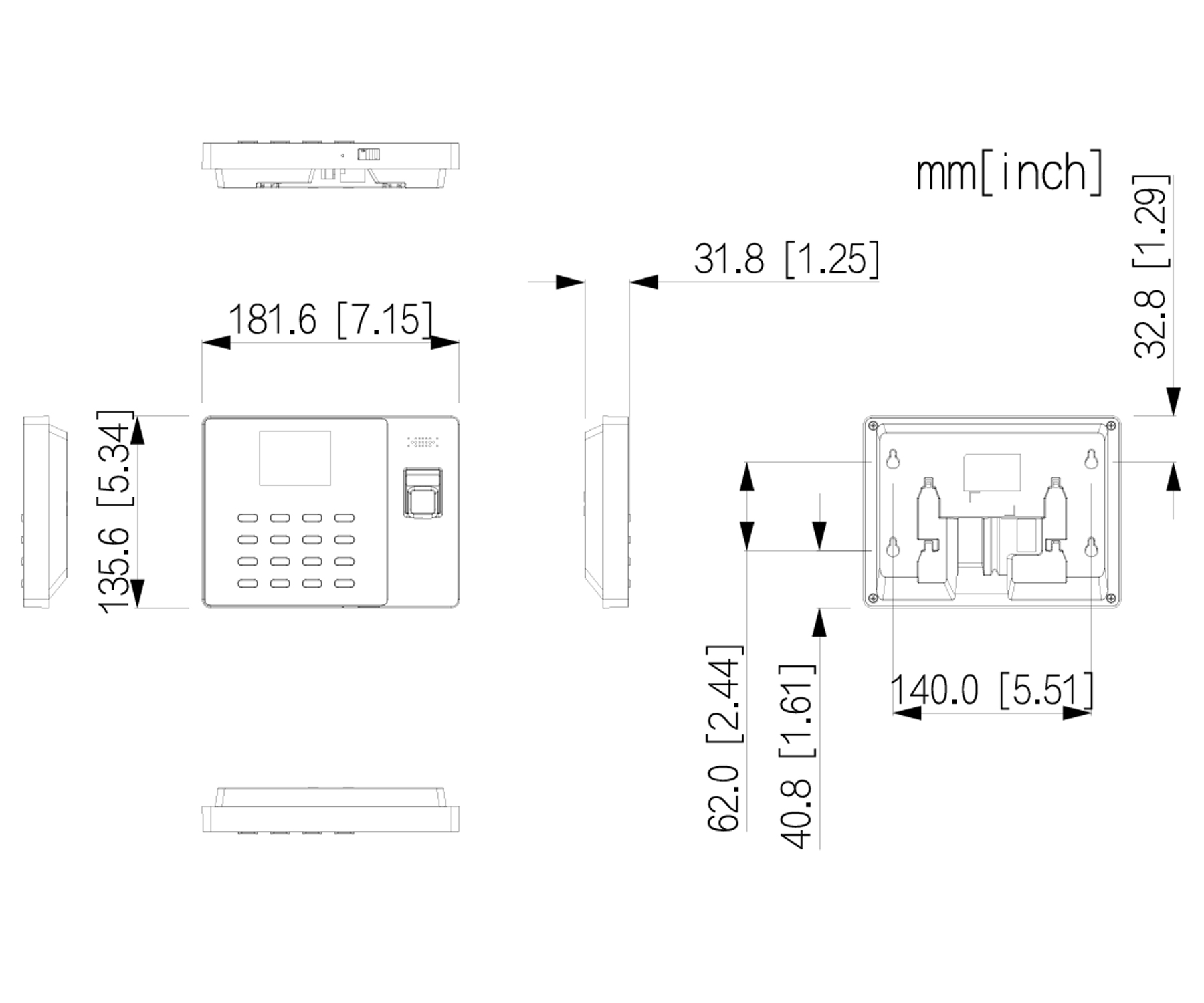

| Dimensions: | 182 x 136 x 33 mm |
| Operation temp: | -10 °C ... 55 °C |
| Permissible relative humidity: | 10 % ... 90 % |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
