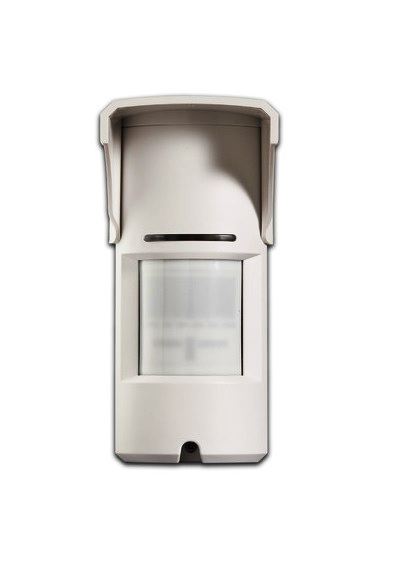

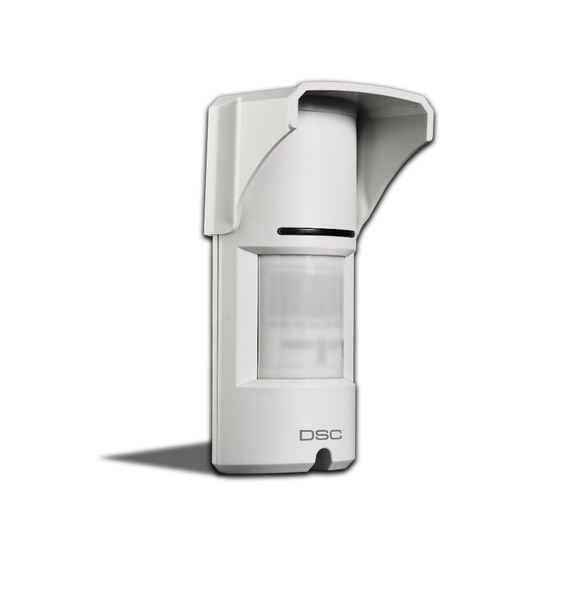

LC-151 - Внешний PIR+MW датчик 15m 90° PET 15kg IP65

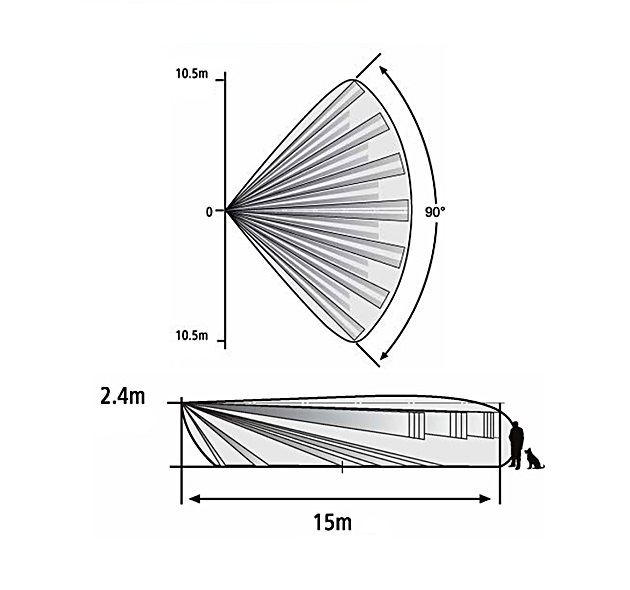

• Тип датчика: Уличный PIR(Пассивный инфракрасный датчик) + MW(Микроволновый датчик) • Дальность обнаружения: 15м • Угол обзора: 90° • Режим PET: 15кг • Кронштейн: Не входит в комплект
|
Model |
LC-151 |
|
Operating Voltage |
9.6 – 16 Vdc |
|
Current Draw |
21 mA @ Stand-by / 24 mA @ Alarm |
|
Temp Compensation |
Dual slope temperature compensation |
|
Microwave Frequency |
X-band (9.9GHz / 10.525GHz / 10.687GHz) |
|
Alarm Period |
2 (± 0.5 sec.) |
|
Alarm Output |
N.C. / N.O. 28 Vdc with 0.1 A with 10 Ohm series protection resistors |
|
Tamper Switch |
Two switches N.C. / N.O. 28 Vdc 0.1 A with 10 Ohm series protection resistors / Opens when cover is removed from unit’s base or if base is removed from wall |
|
RF Immunity |
10 V/m plus 80% AM from 80 MHz to 2GHz |
|
Warm-Up Period |
30 sec |
|
LED Indicator |
Green LED for PIR detection / Yellow LED for Microwave detection / RED LED for Alarm condition / All LEDs are ON during Alarm |
|
Electrostatic Immunity |
6 kV contact, 8 kV air |
|
Transient Immunity |
1 kV |
|
Operating Temperature |
From -35°C to +55° |
|
Weight |
210 g |
|
IP Rating |
IP 65 |
|
Dimensions |
160 x 70 x 45 mm |
