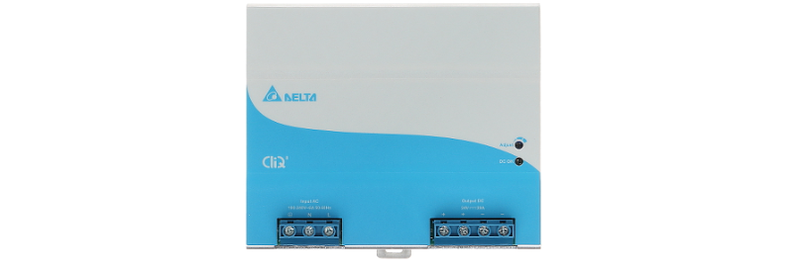

ИМПУЛЬСНЫЙ БЛОК ПИТАНИЯ 20A
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
|
Adapter type: |
Switching |
|
Power voltage: |
86 ... 264 V AC |
|
Output voltage: |
24 V DC |
|
Output voltage adjustment: |
22 ... 28 V |
|
Voltage tolerance: |
± 2 % |
|
Maximal load: |
20 A |
|
Output power: |
480 W |
|
Number of outputs: |
2 pcs |
|
Efficiency: |
> 90 % |
|
Housing type: |
DIN |
|
MTBF (Mean Time Between Faults): |
500000 hours |
|
Vibration resistance: |
IEC60068-2-6, 10 ... 500 Hz max. 3 G for 60 minutes |
|
Protections: |
· Short-circuit · Overvoltage · Overload protection |
|
Operation temp. / Relative humidity: |
-25 °C ... 75 °C / < 95 % |
|
Weight: |
1.48 kg |
|
Dimensions: |
144 x 121 x 119 mm |
|
Guarantee: |
2 years |
