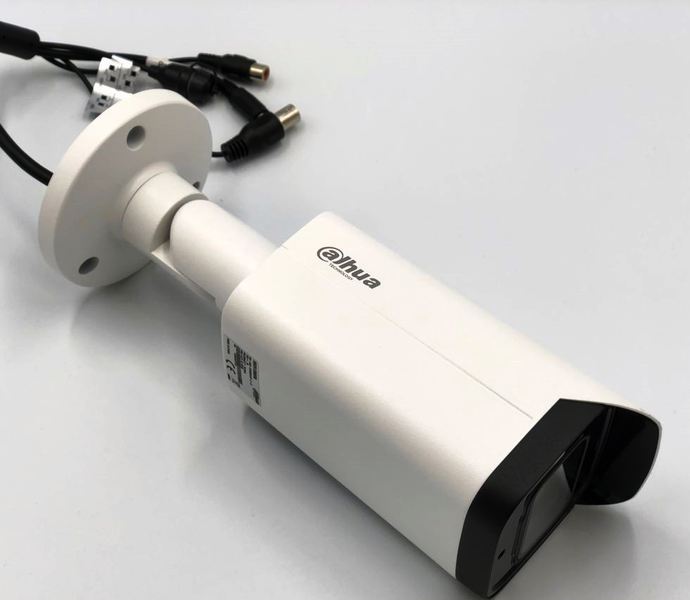

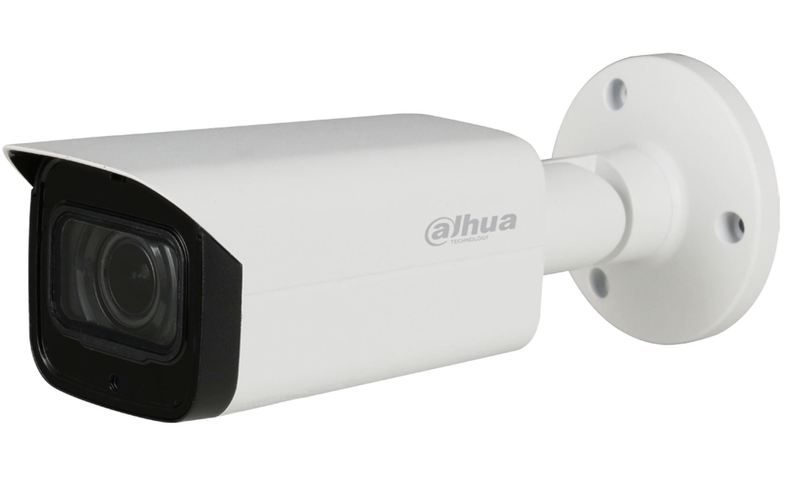

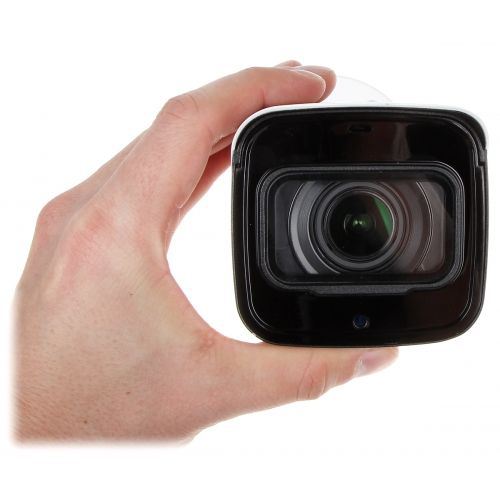

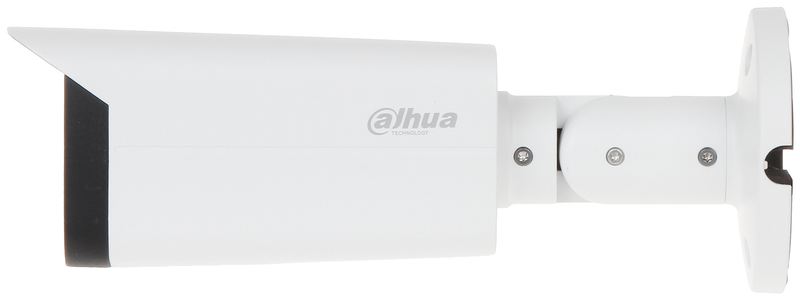

HAC-HFW2241T-Z-A-27135 - 2 MP Starlight, 2.7-13.5 mm, IR 80m,microphone
> Starlight, 120dB True WDR, 3DNR > Max. 30fps@1080P > HD/SD switchable > Audio in interface, built-in mic > 2.7-13.5mm motorized lens > Max. IR length 80m, Smart IR > IP67, DC12V±30%
|
Standard: |
AHD, HD-CVI, HD-TVI, PAL |
|
Sensor: |
1/2.8 " Progressive Scan CMOS |
|
Matrix size: |
2.1 Mpx |
|
Resolution: |
1920 x
1080 - 1080p , |
|
IR illuminator support: |
ICR - Movable InfraRed filter |
|
Video output: |
AHD, HD-CVI, HD-TVI, CVBS - 1 Vpp / 75 Ω |
|
Lens: |
2.7 ... 13.5 mm - Motozoom |
|
View angle: |
· 109 ° ... 29 ° (manufacturer data) · 104 ° ... 29 ° (our tests result) |
|
S/N ratio: |
> 65 dB |
|
Audio: |
· Microphone built-in - HD-CVI only · External microphone input - HD-CVI only |
|
Range of IR illumination: |
80 m |
|
IR illuminator power adjustment: |
Automatic |
|
OSD menu: |
OSD menu available via DAHUA recorder |
|
Main features: |
· Motozoom lens · WDR - 120 dB - Wide Dynamic Range · 3D-DNR - Digital Noise Reduction · BLC - Back Light Compensation · HLC - High Light Compensation (spot) · ICR - Movable InfraRed filter · AGC - Automatic Gain Control · Auto White Balance · Privacy zones · Motion Detection · Mirror - Mirror image · Sharpness - sharper image outlines |
|
Power supply: |
12 V DC / 680 mA |
|
Power consumption: |
≤ 8.2 W |
|
Housing: |
Compact, Aluminum |
|
Color: |
White |
|
"Index of Protection": |
IP67 |
|
Operation temp: |
-30 °C ... 60 °C |
|
Weight: |
0.78 kg |
|
Dimensions: |
244 x 90 x 90 mm |
|
Manufacturer / Brand: |
DAHUA |
|
Guarantee: |
3 years |
