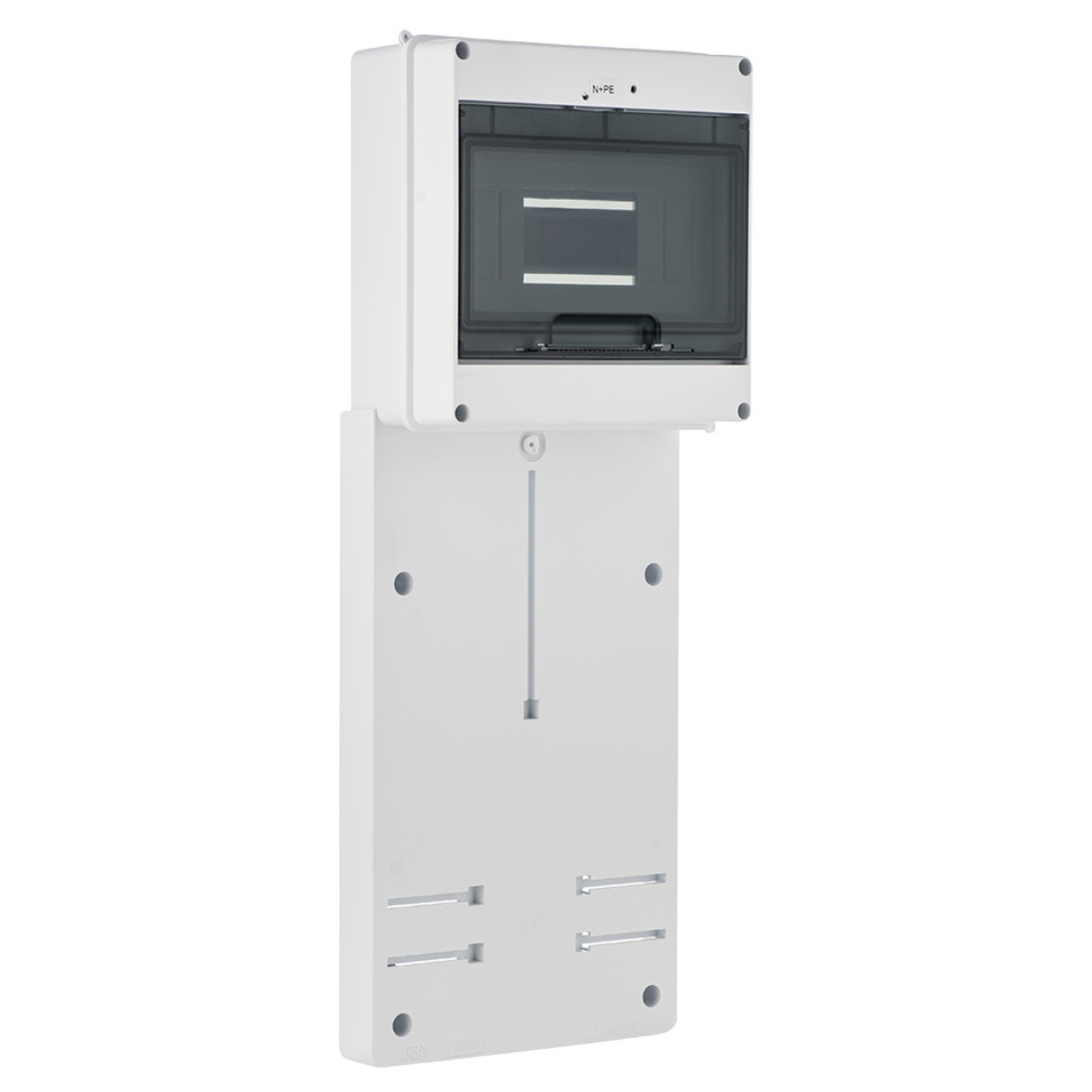

3-PHASE METER BOARD TL-3FZ+ZB+GL/EPN Elektro-Plast Nasielsk
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Number of mounted modules: 9 x 1 row ; "Index of Protection": IP20 ; Dimensions: 524 x 200 x 95 mm (Distribution cabinet with board) ;
| Method of mounting: | Surface-mounted |
| Number of mounted modules: | 9 x 1 row |
| Spacing between TH 35 rails: |  |
| Transparent door: |  |

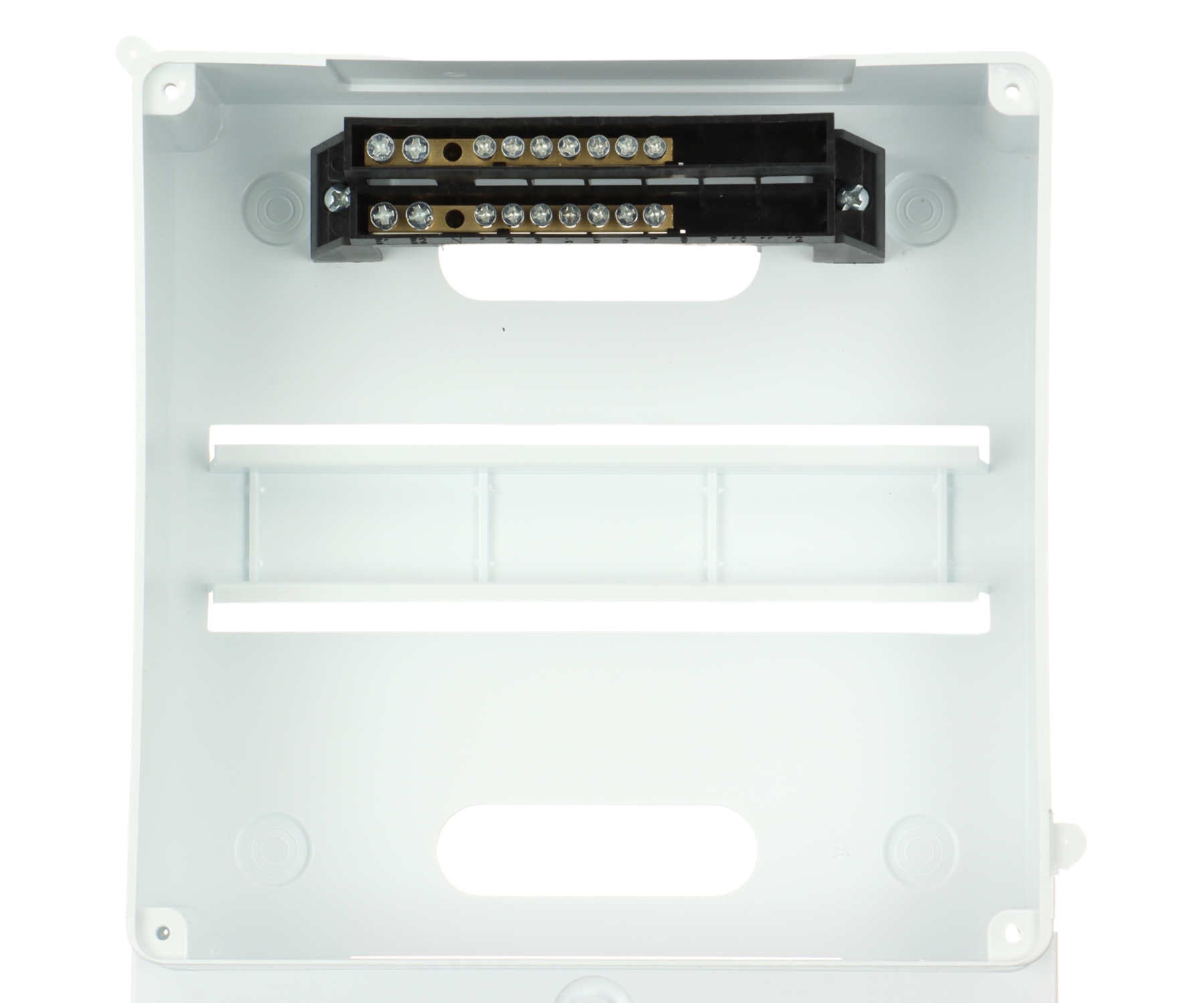

| Equipment: | Terminal blocks : |
| Material: | Plastic ( Polystyrene ) |
| Color: | RAL9003 ( White ) |
| Thermal endurance: | 650 °C |
| Rated voltage: | 400 V |
| "Index of Protection": | IP20 |
| IK rating: | |
| Compliance with standards: | PN-EN 62208:2011, PN-EN 60670-24:2013 |
| Weight: | 0.838 kg |
| Dimensions: | 524 x 200 x 95 mm (Distribution cabinet with board) 210 x 195 x 95 mm (Distribution cabinet) |
| Manufacturer / Brand: | Elektro-Plast Nasielsk |
| Guarantee: | 2 years |
Brand:
ELEKTRO-PLAST Nasielsk
