ACCESS CONTROLLER WITH TEMPERATURE MEASUREMENT APTI-AI70FRTD-V2 4.5 mm - 1080p
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Sensor: 1/2.8 " SONY Starvis™ Back-illuminated CMOS ; View angle: 68 ° ; Resolution: 1920 x 1080 ; Range of IR illumination: 5 m ; White light LED illuminator range: 5 m ; Temperature measurement range: 35 °C ... 42 °C ; Accuracy of temperature measurement: ± 0.3 °C ; Face recognition distance: 0.5 m ... 1.5 m (max 30 000 faces in the database) ; RS-485 interface; Wiegand interface; Alarm inputs / outputs: 0 / 2 ; Audio: Speaker built-in ; Power supply: 12 V DC ;
| Sensor: | 1/2.8 " SONY Starvis™ Back-illuminated CMOS |
| Matrix size: | 2.1 Mpx |
| Scanning system: | Progressive |
| Lens: | 4.5 mm |
| View angle: | 68 ° |
| Optical zoom: |  |
| Resolution: | 1920 x 1080 - 1080p |
Auxiliary camera:
| Sensor: | 1/5 " GC2145 |
| Matrix size: | 2 Mpx |
| Pixel pitch: | 1.75 µm |
| Lens: | 2.4 mm |
| View angle: | 70 ° |
| Resolution: | 800 x 600 - 0.48 Mpx |
General information:
| Standard: | TCP/IP |
| Range of IR illumination: | 5 m |
| White light LED illuminator range: | 5 m |
| Temperature measurement: |  |
| Temperature measurement range: | 35 °C ... 42 °C |
| Accuracy of temperature measurement: | ± 0.3 °C |
| Face recognition distance: | 0.5 m ... 1.5 m (max 30 000 faces in the database) |
| Temperature measurement distance: | 0.5 m ... 1.3 m optimal distance : 0.75 m |
| Internal memory: | Support storage of 25 000 records |
| Video output: | |
| RS-485 interface: | |
| Wiegand interface: | |
| Memory card slot: | |
| Alarm inputs / outputs: | 0 / 2 ( bolt control, signaling of exceeding the temperature ) |
| Audio: | Speaker built-in |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4, HTTP, HTTPS, TCP/IP |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| RS-485: | |
| Default IP address: | DHCP / 192.168.1.88 |
| Default admin user / password: | admin / 12345 |
| Web browser access ports: | 7080 |
| PC client access ports: | 7080 |
| Main features: | |
| Power supply: | 12 V DC |
| Power consumption: | ≤ 12 W |
| Housing: | Compact - Metal |
| Color: | Silver |
| "Index of Protection": | IP66 |
| Operation temp: | 15 °C ... 25 °C - temperature measurement only in closed rooms (stabilized temperature) |
| Weight: | 0.94 kg |

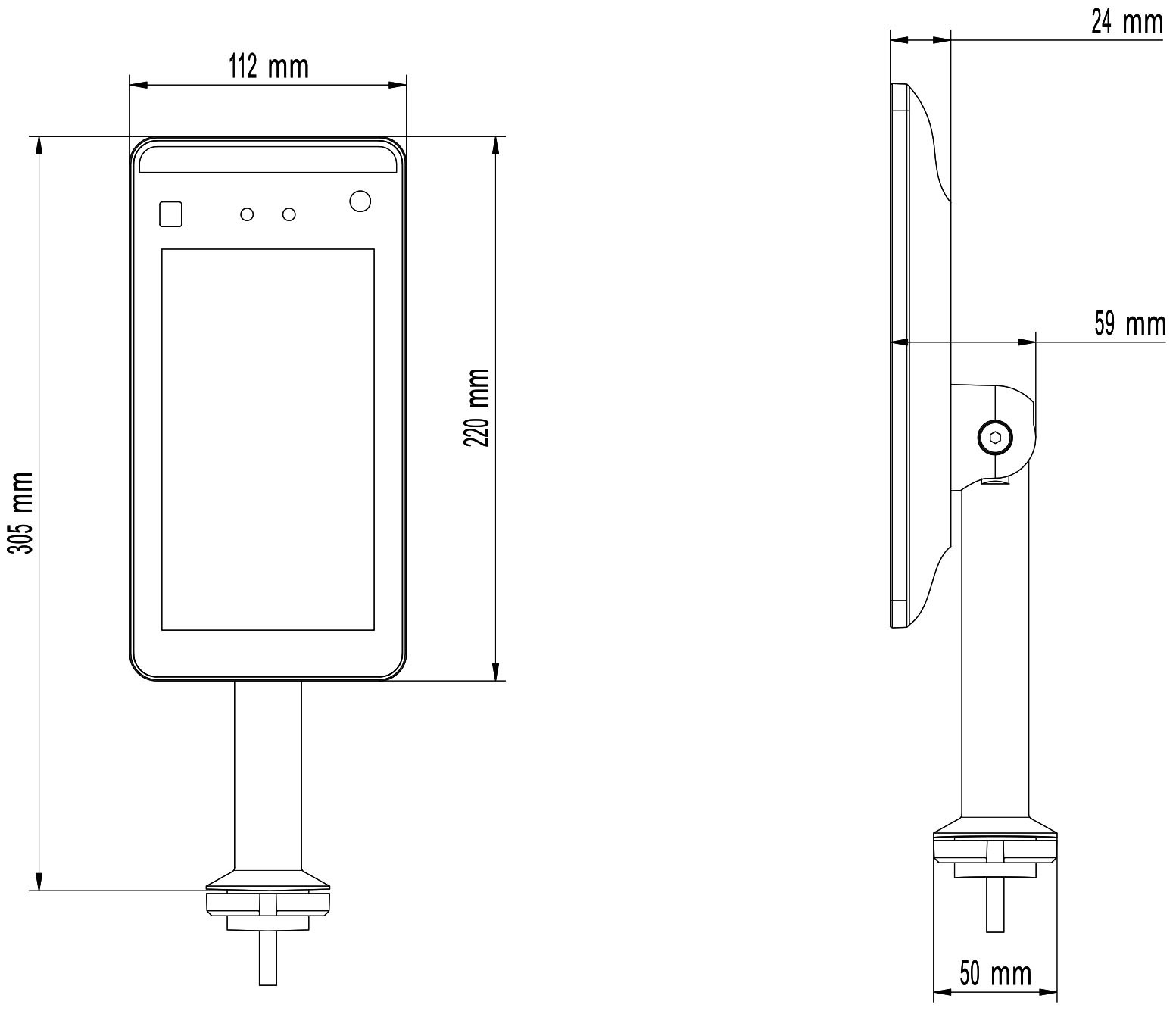

| Dimensions: | 305 x 112 x 59 mm |
| Montage hole diameter: | 33 mm |
| Length of the cable: | 64 cm |
| Supported languages: | Polish, English, French, Spanish, German, Portuguese, Russian, Turkish, Italian |
| Manufacturer / Brand: | APTI |
| Guarantee: | 3 years |
Brand:
Apti
