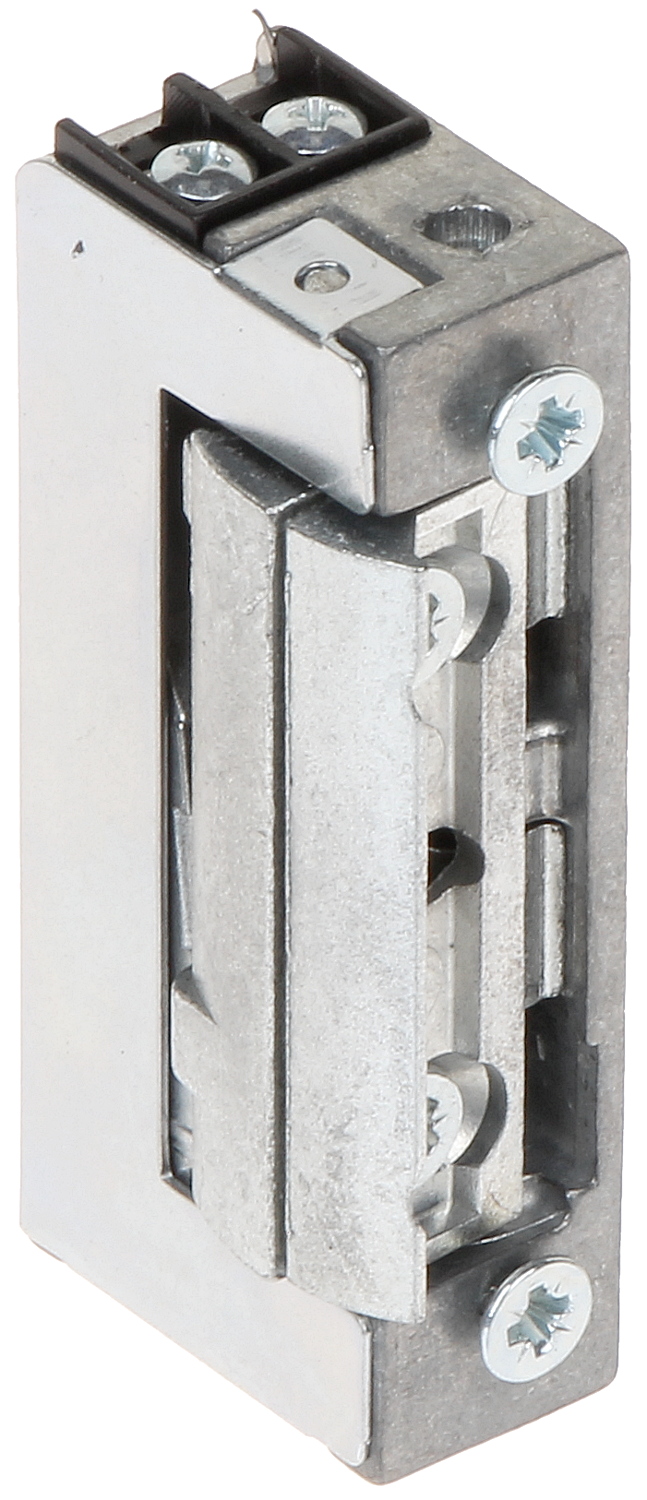

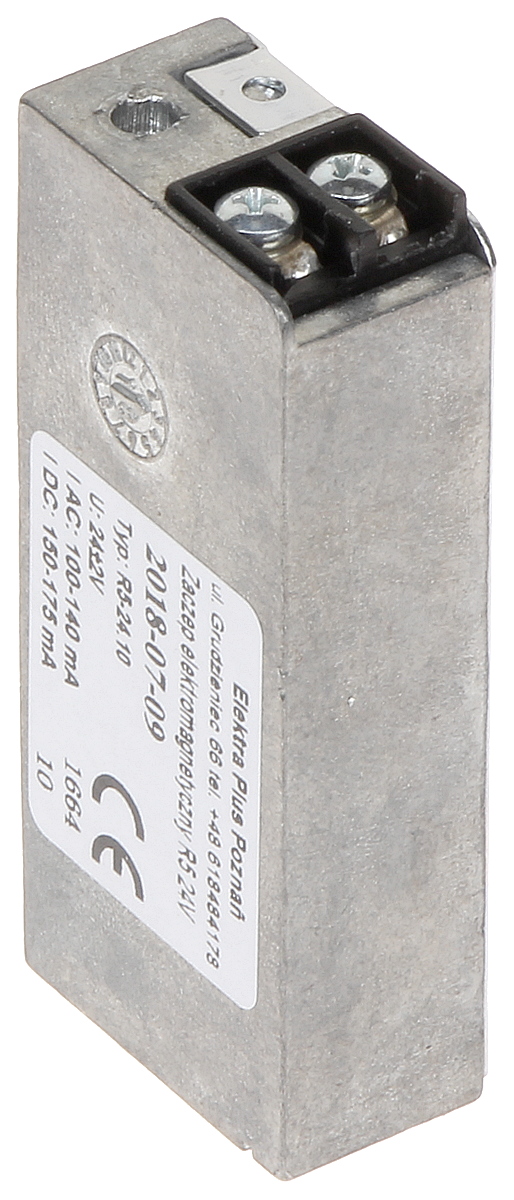

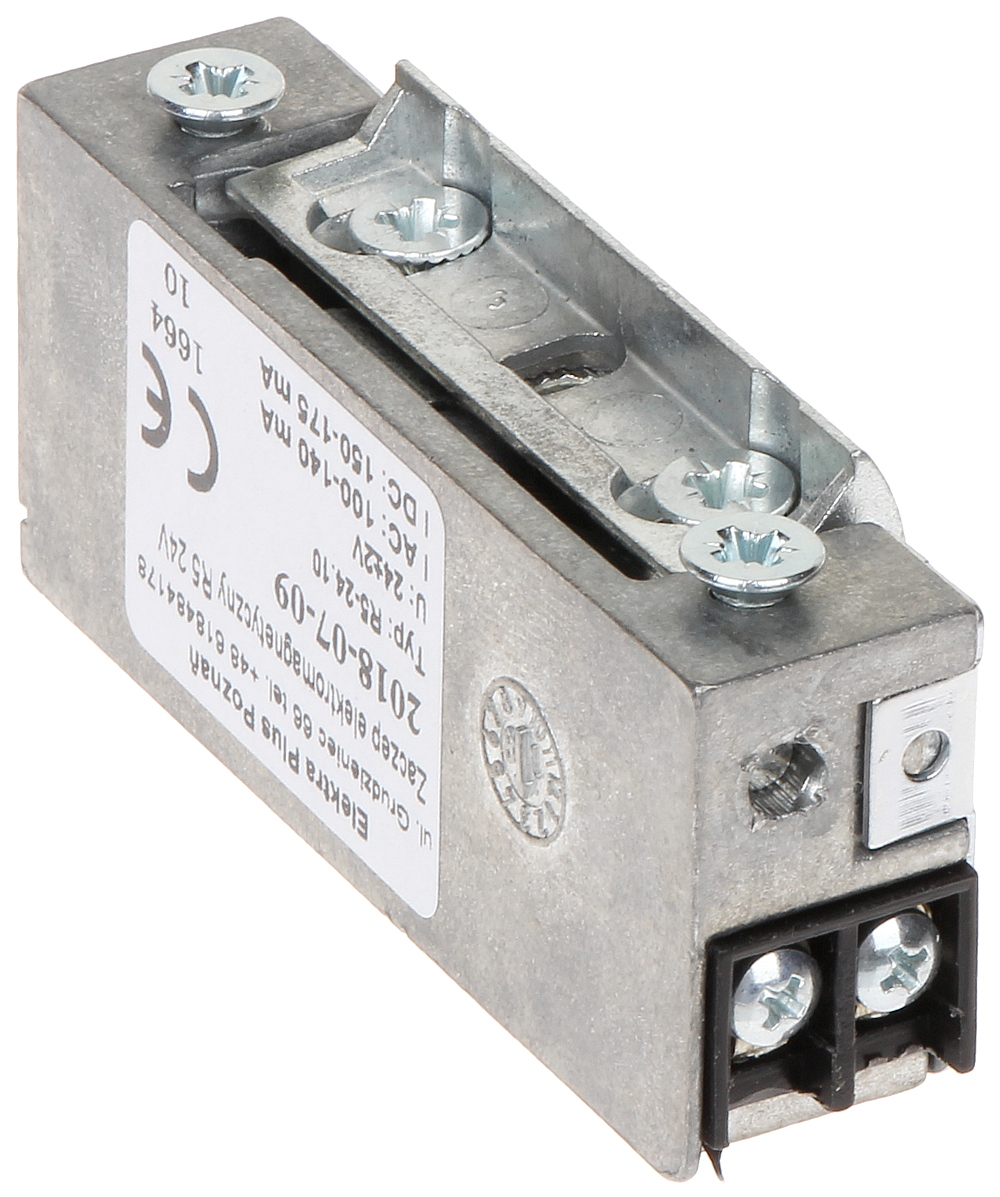

ELECTRIC STRIKE R5-24.10
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Rated voltage: 24 V ± 2 V AC/DC ; Application: right-side door / left-side door ; Clearance adjustment;
| Rated voltage: | 24 V ± 2 V AC/DC |
| Current consumption: | 100 ... 140 mA AC 150 ... 175 mA DC |

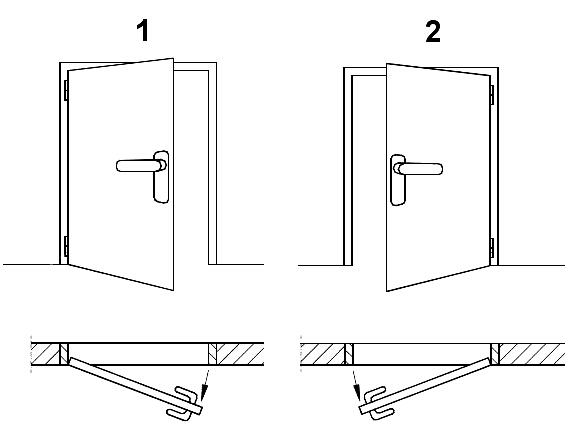

| Application: | right-side door / left-side door |
| Ratched lock: |  |
| Memory function: | |
| Reverse action: | |
| Clearance adjustment: |  |
| Allowable thrust on the door at ratchet release: | 30 N |
| Allowable load of the door impacting the lock: | 3000 N |
| Allowable uninterrupted operation time: | 30 minutes |
| Weight: | 0.13 kg |

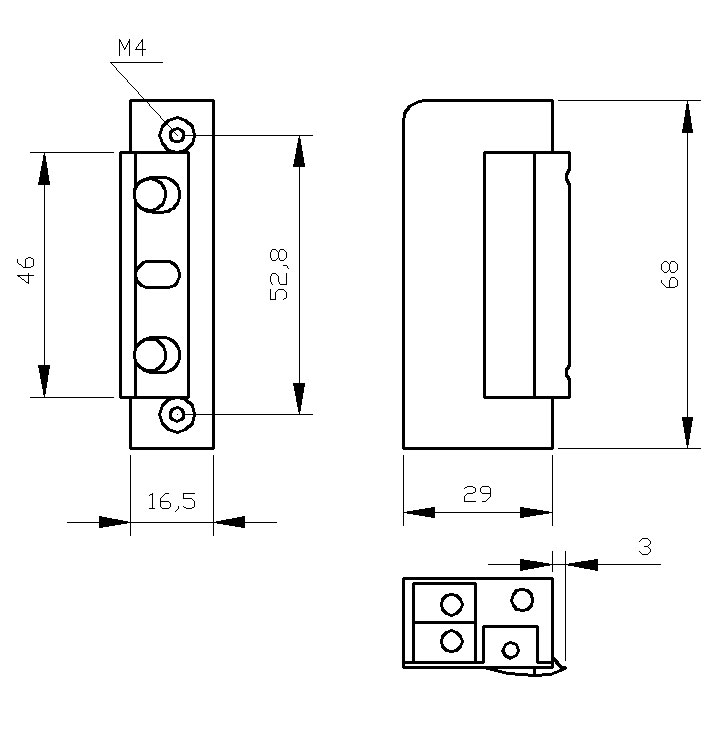

| Dimensions: | 16.5 x 29 x 68 mm |
| Guarantee: | 2 years |
