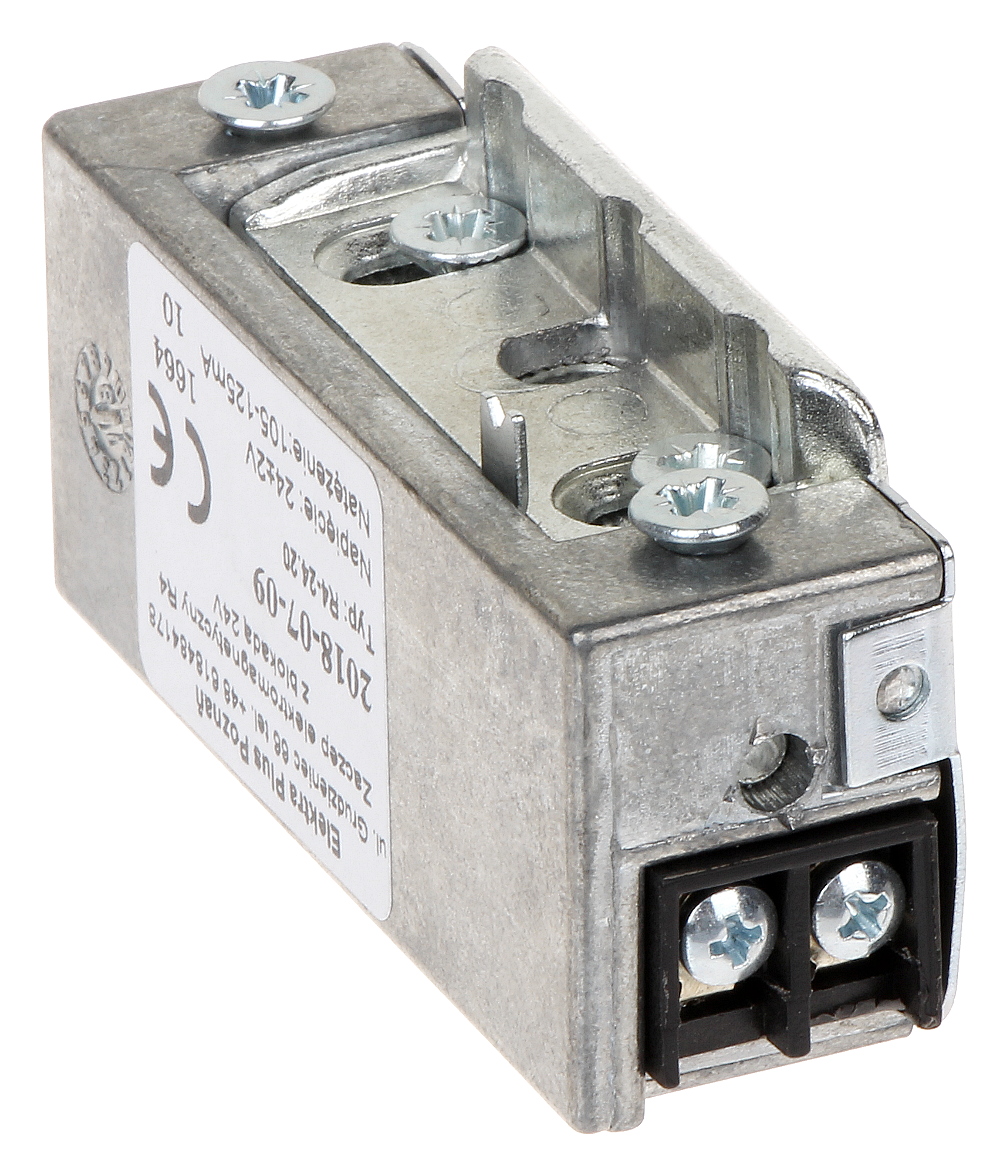

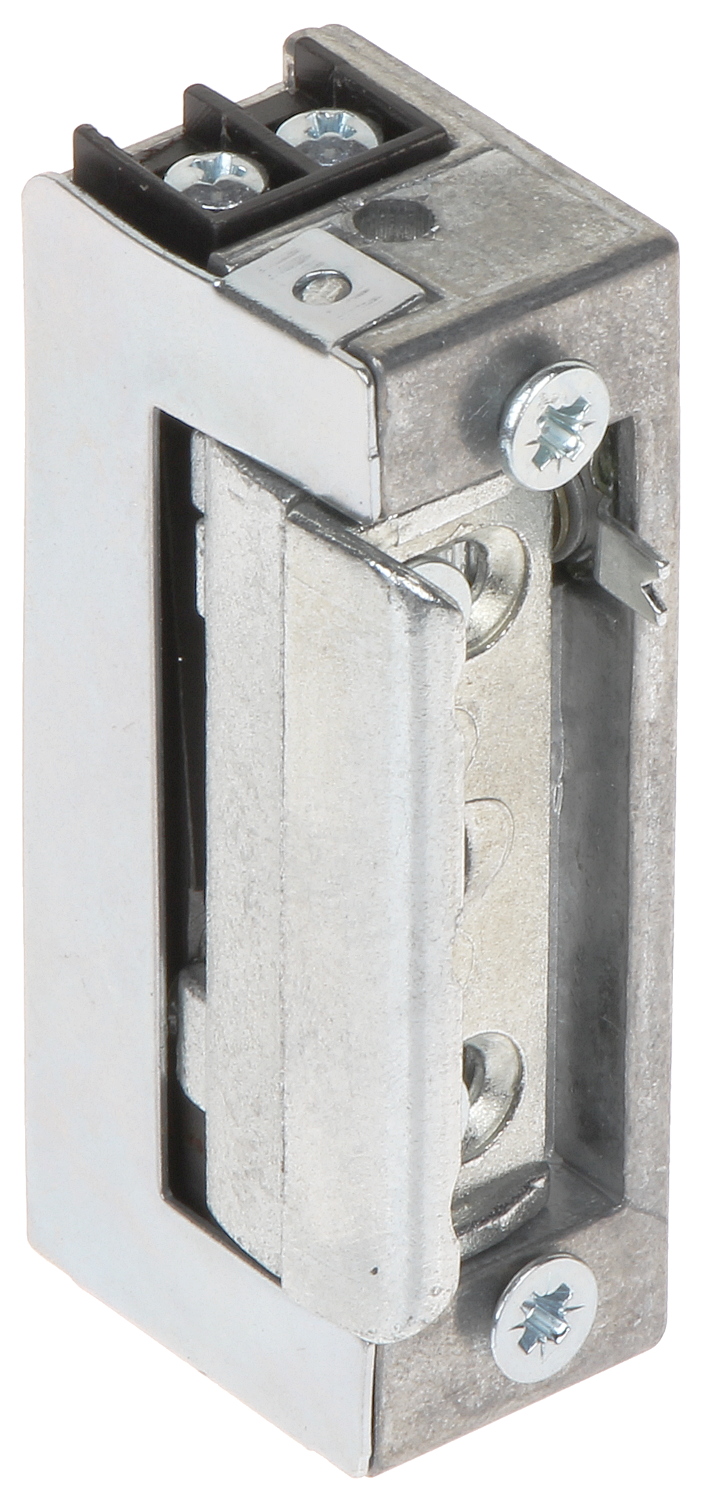

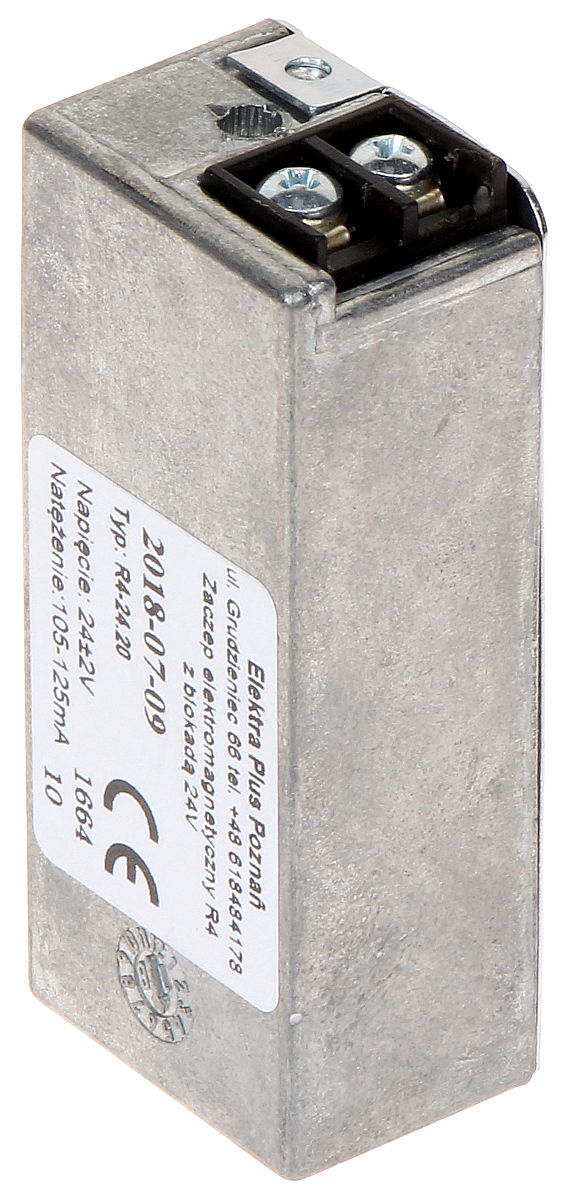

ELECTRIC STRIKE R4-24.20
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Rated voltage: 24 V ± 2 V AC/DC ; Application: right-side door / left-side door ; Ratched lock; Clearance adjustment;
| Rated voltage: | 24 V ± 2 V AC/DC |
| Current consumption: | 80 ... 100 mA AC 120 ... 140 mA DC |

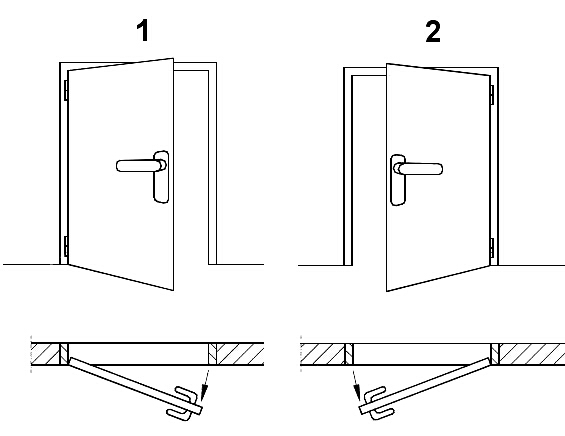

| Application: | right-side door / left-side door |
| Ratched lock: |  |
| Memory function: |  |
| Reverse action: | |
| Clearance adjustment: | |
| Allowable thrust on the door at ratchet release: | 30 N |
| Allowable load of the door impacting the lock: | 3000 N |
| Allowable uninterrupted operation time: | 30 minutes |
| Weight: | 0.166 kg |

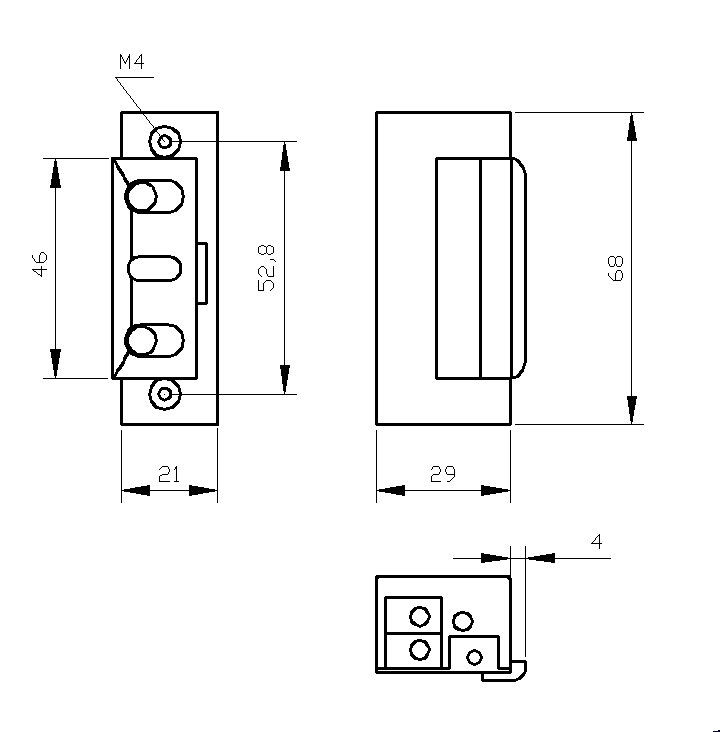

| Dimensions: | 21 x 29 x 68 mm |
| Guarantee: | 2 years |
