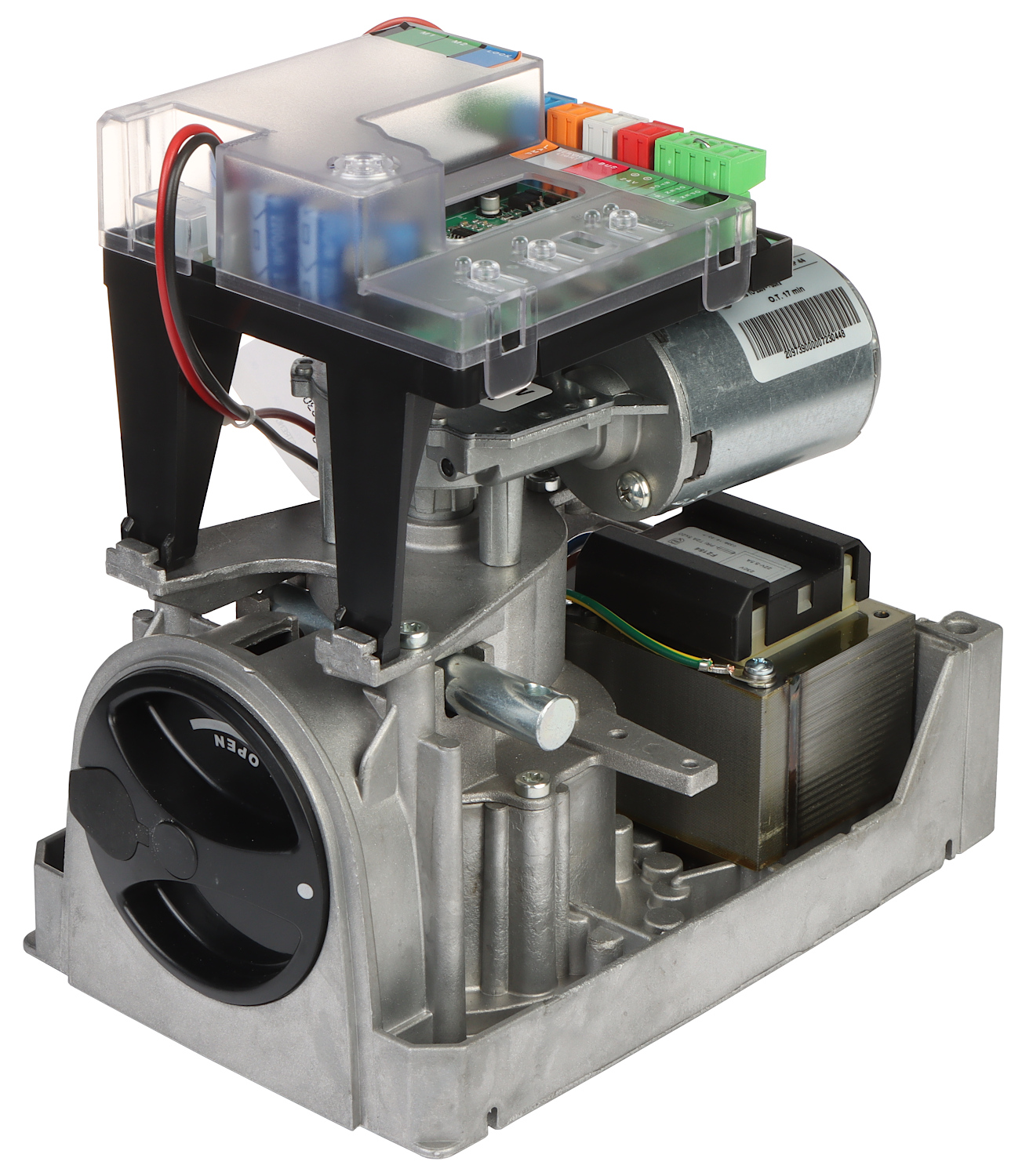

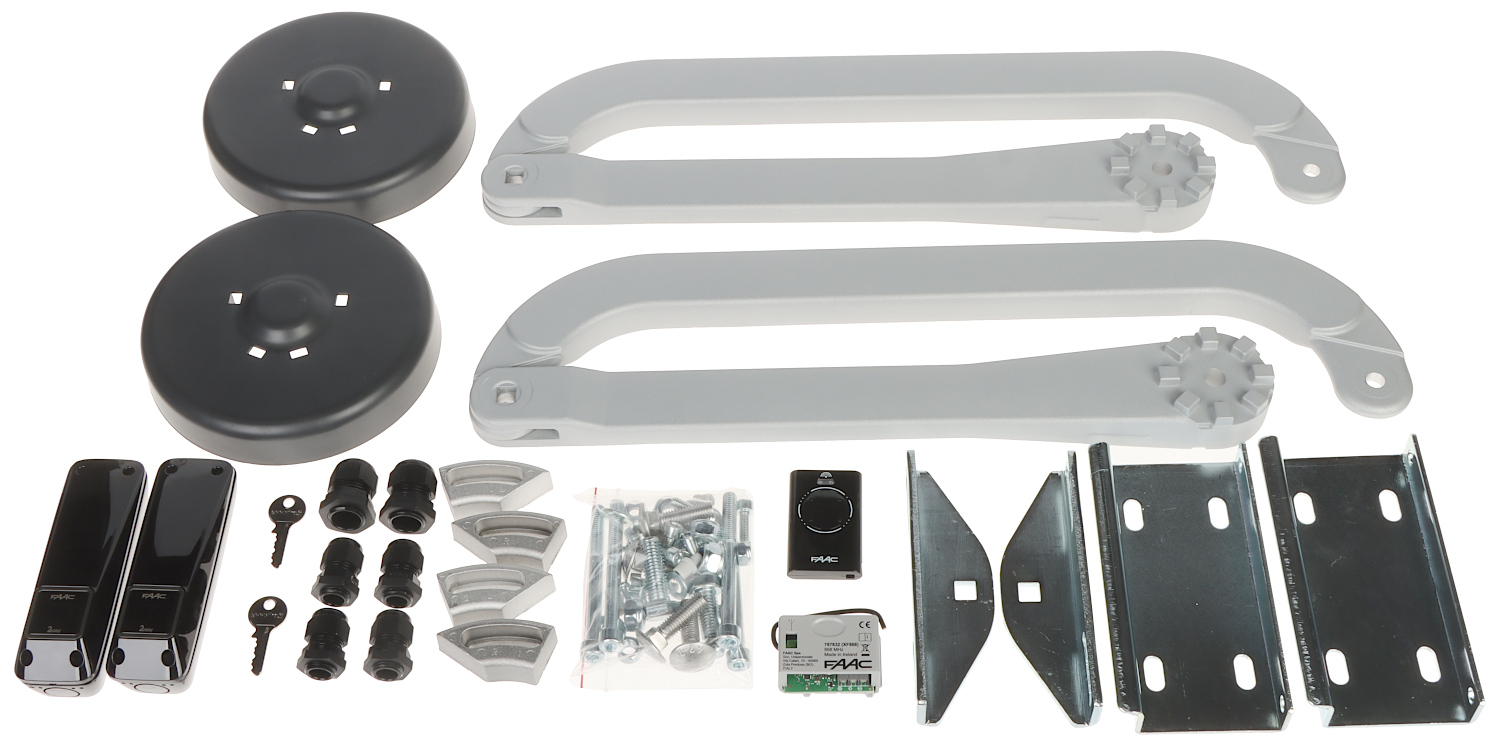

SWING GATE OPERATOR FAAC-ENERGY-24V/KIT - SET FOR A TWO-LEAF GATE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Gate operator type: Mechanical ; Torque: 250 Nm (max) ; Maximum weight of the gate: 300 kg @ 1 m (single leaf), 200 kg @ 2.5 m (single leaf) ; Maximum length of the gate: 2.5 m (single leaf) ; Angular speed: 13 °/s (max) ; Wireless transmission range: ≥ 50 m (in open area) ;
| Gate operator type: | Mechanical, For swing gates - set for a two-leaf gate |
| Torque: | 250 Nm (max) |

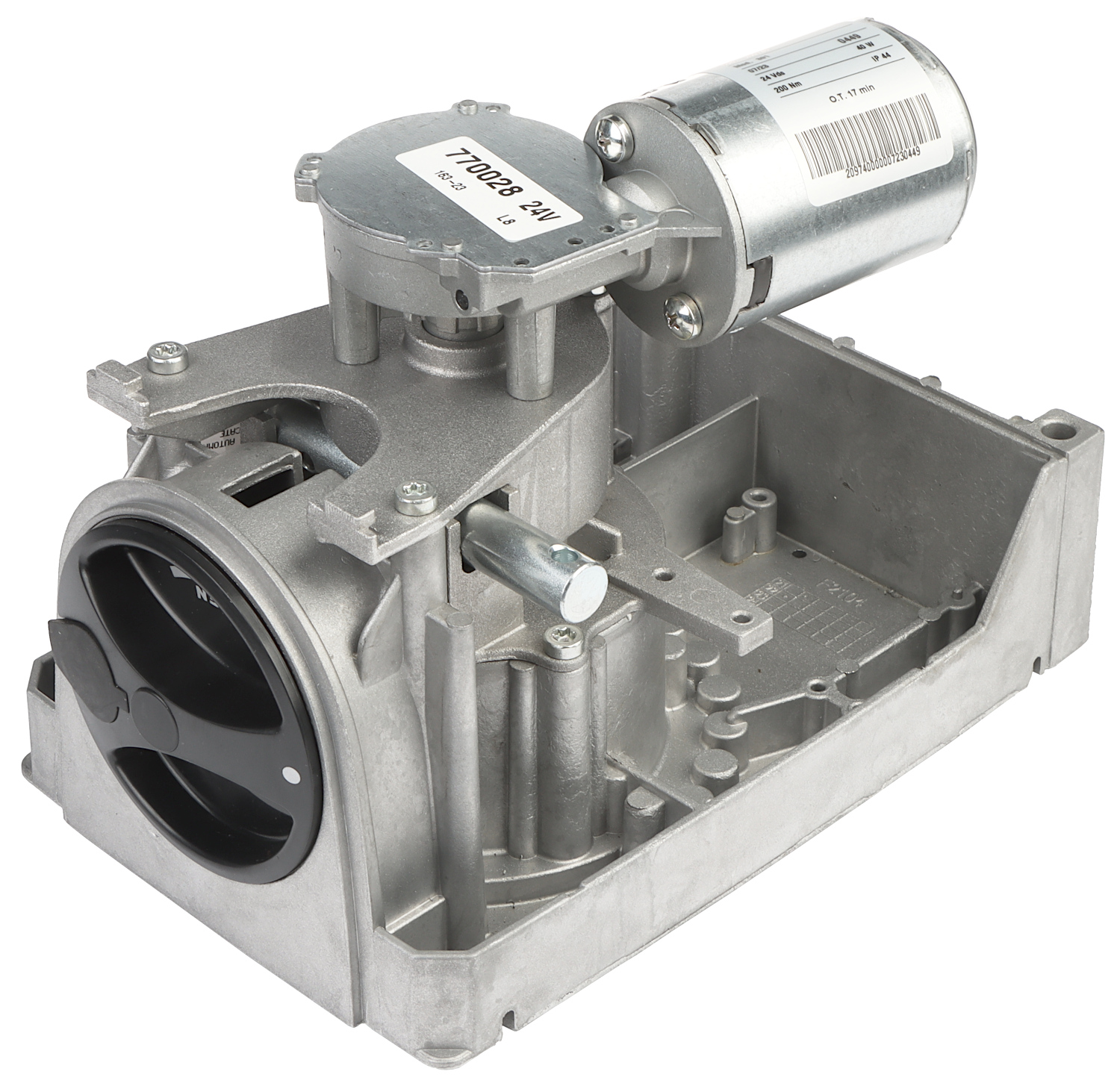

| Engine type: | Motor with brushes, 24 V DC |
| Maximum weight of the gate: | |
| Maximum length of the gate: | 2.5 m (single leaf) |
| Angular speed: | 13 °/s (max) |
| Limit switch: |  |

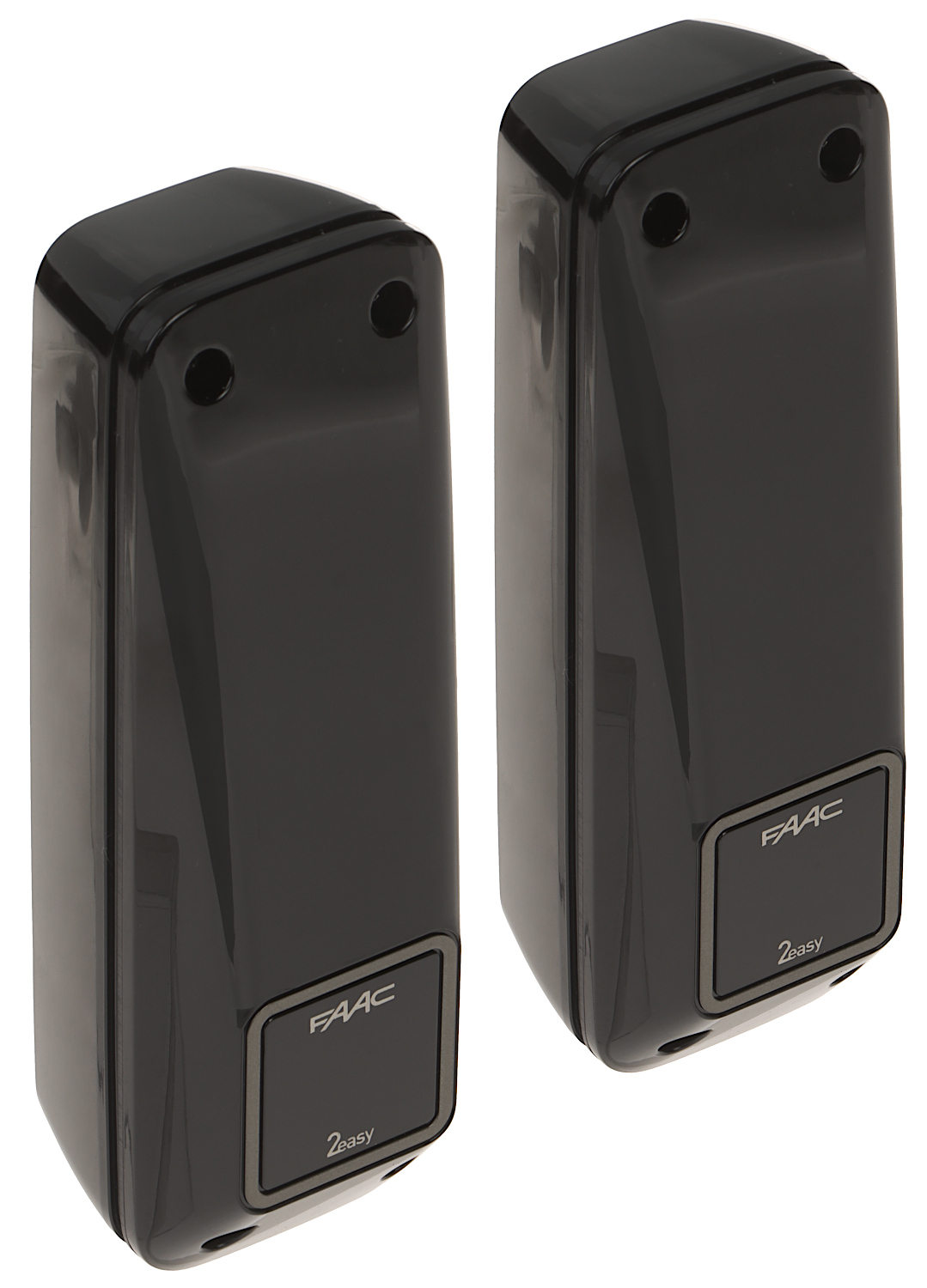

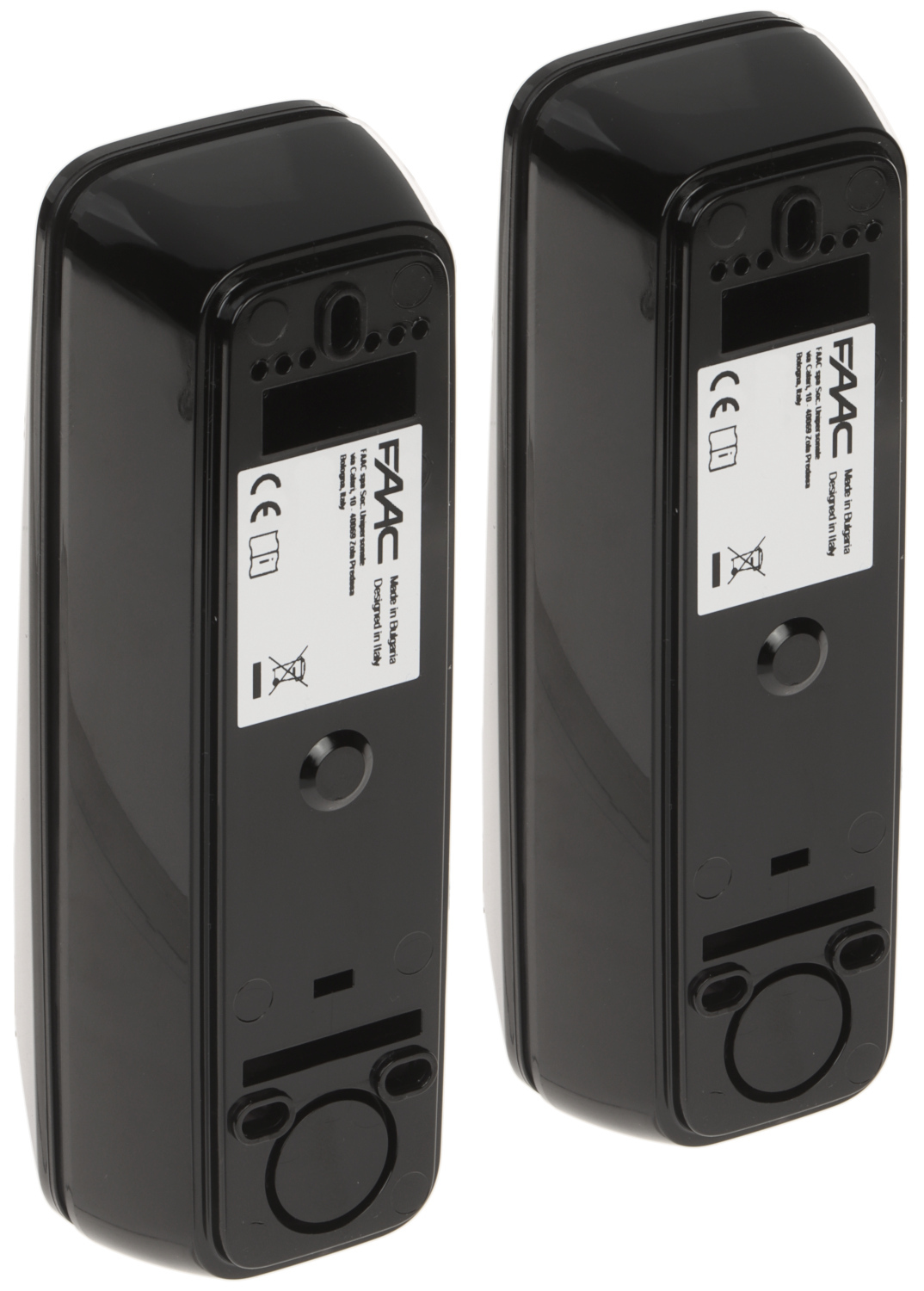

| Possibility of connecting the photocell: | |
| Possibility of connecting the signal lamp: | |

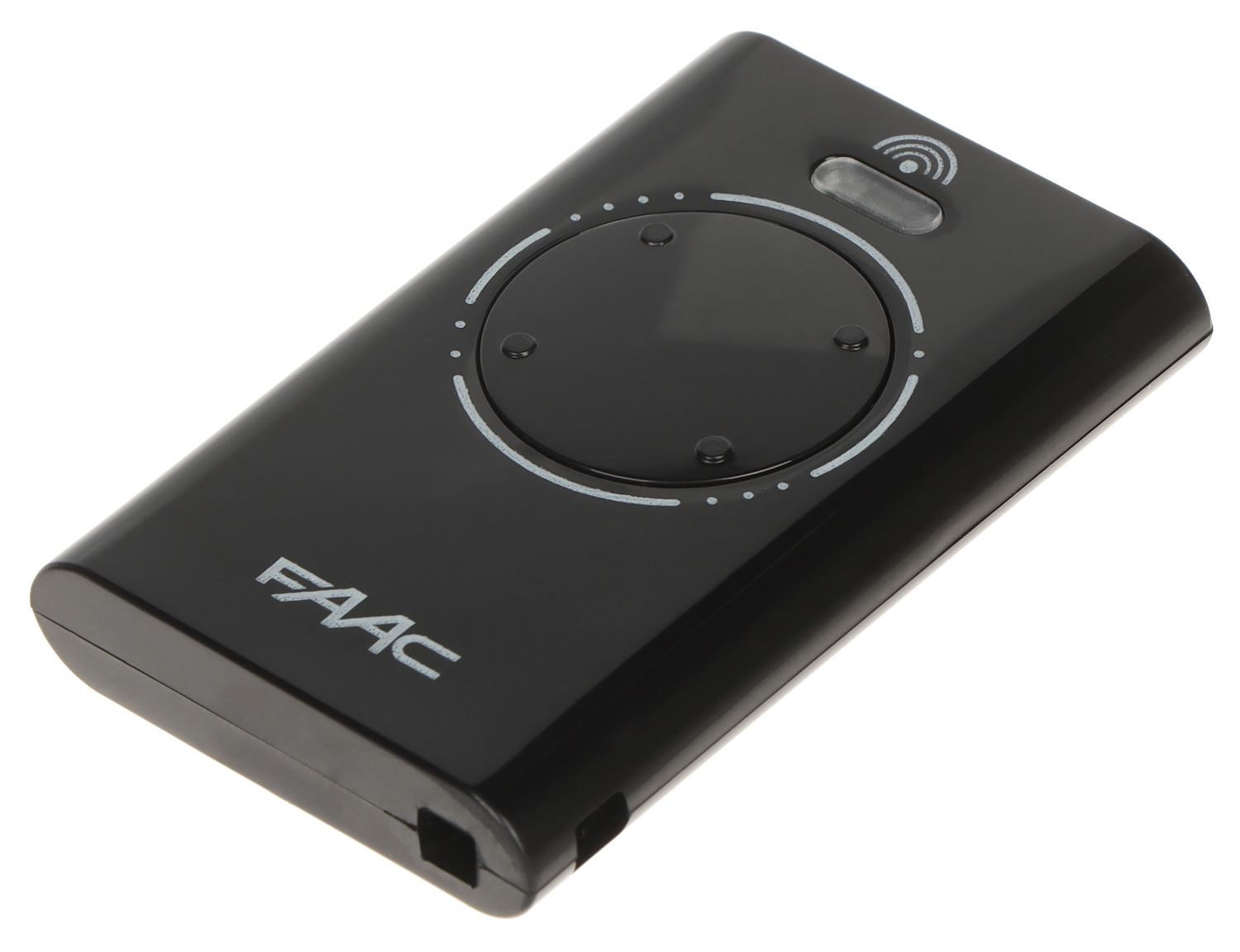

| Maximum number of programmed remote controls: | 250 Channels |
| Wireless transmission range: | ≥ 50 m (in open area) |

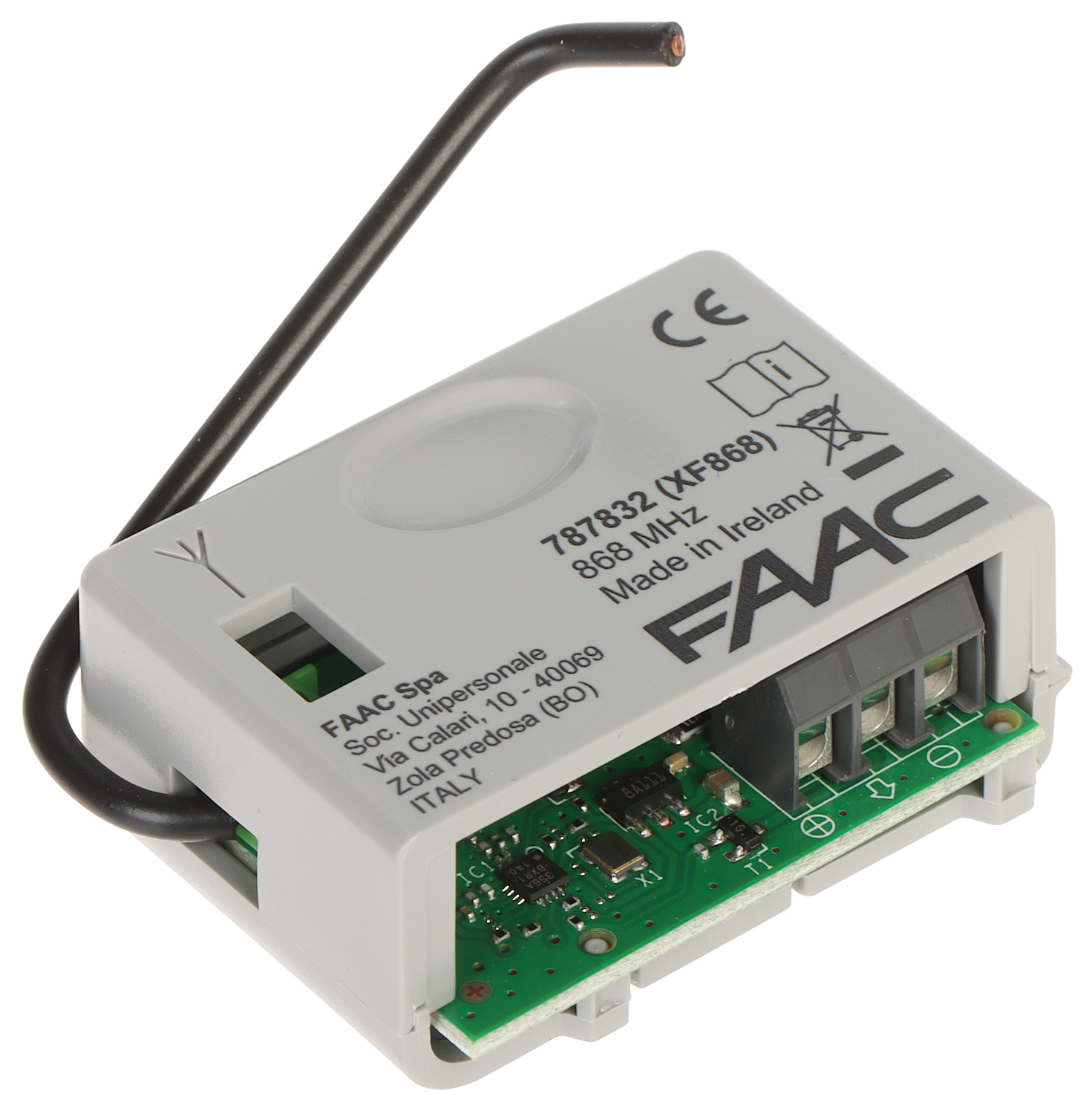

| Frequency bandwidth of the system: | 868.35 MHz |
| Number of cycles per day: | ≤ 80 |
| Main features: | Ability to work with the XBAT 24 emergency battery |
| Power supply: | 230 V AC / 50 Hz |

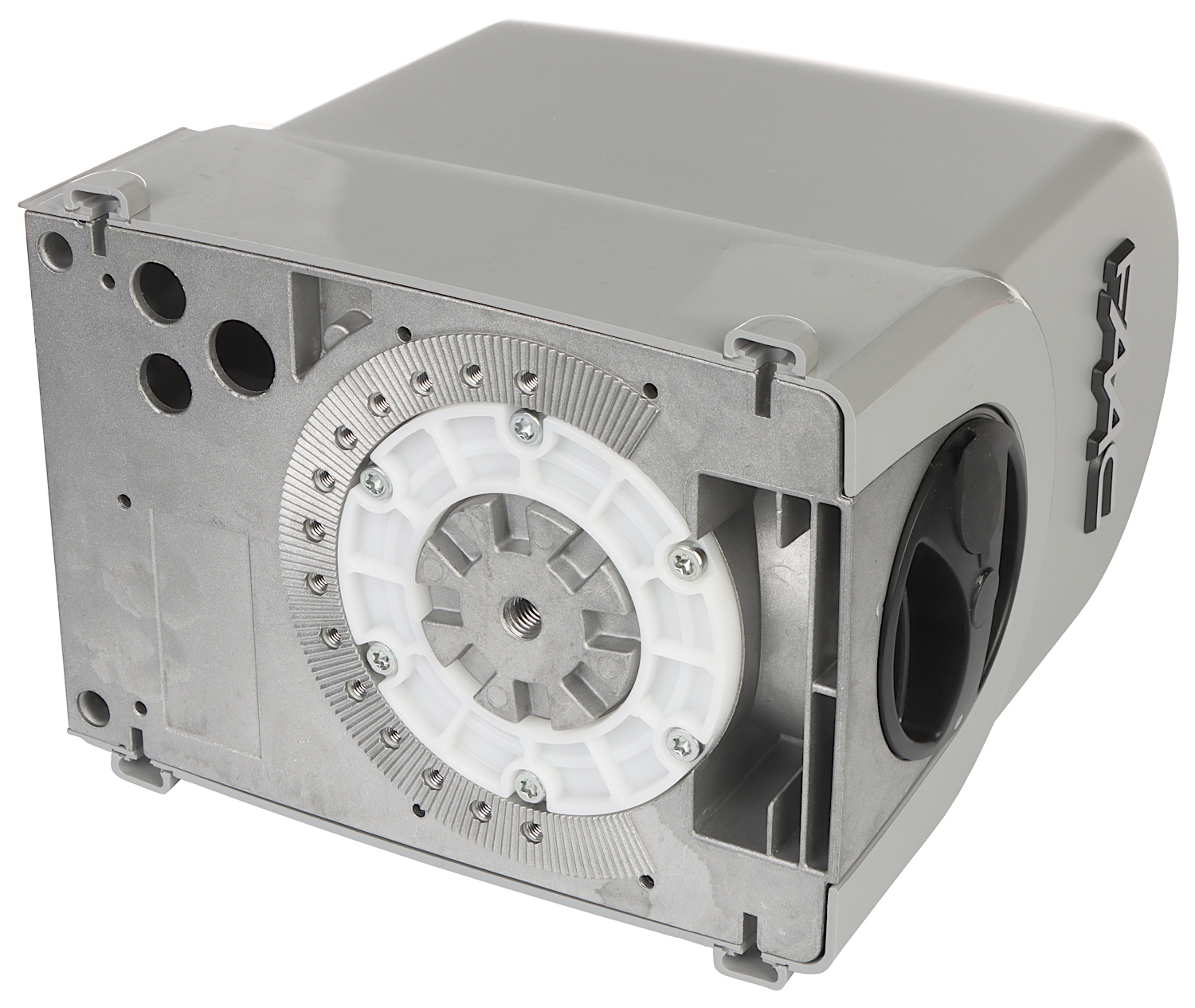

| Housing: | Plastic |
| "Index of Protection": | IP44 |
| Color: | Gray |
| Operation temp: | -20 °C ... 55 °C |
| Weight: | |
| Dimensions: | 310 x 260 x 185 mm (single gate opener) |
| Manufacturer / Brand: | FAAC |
| Guarantee: | 2 years |
