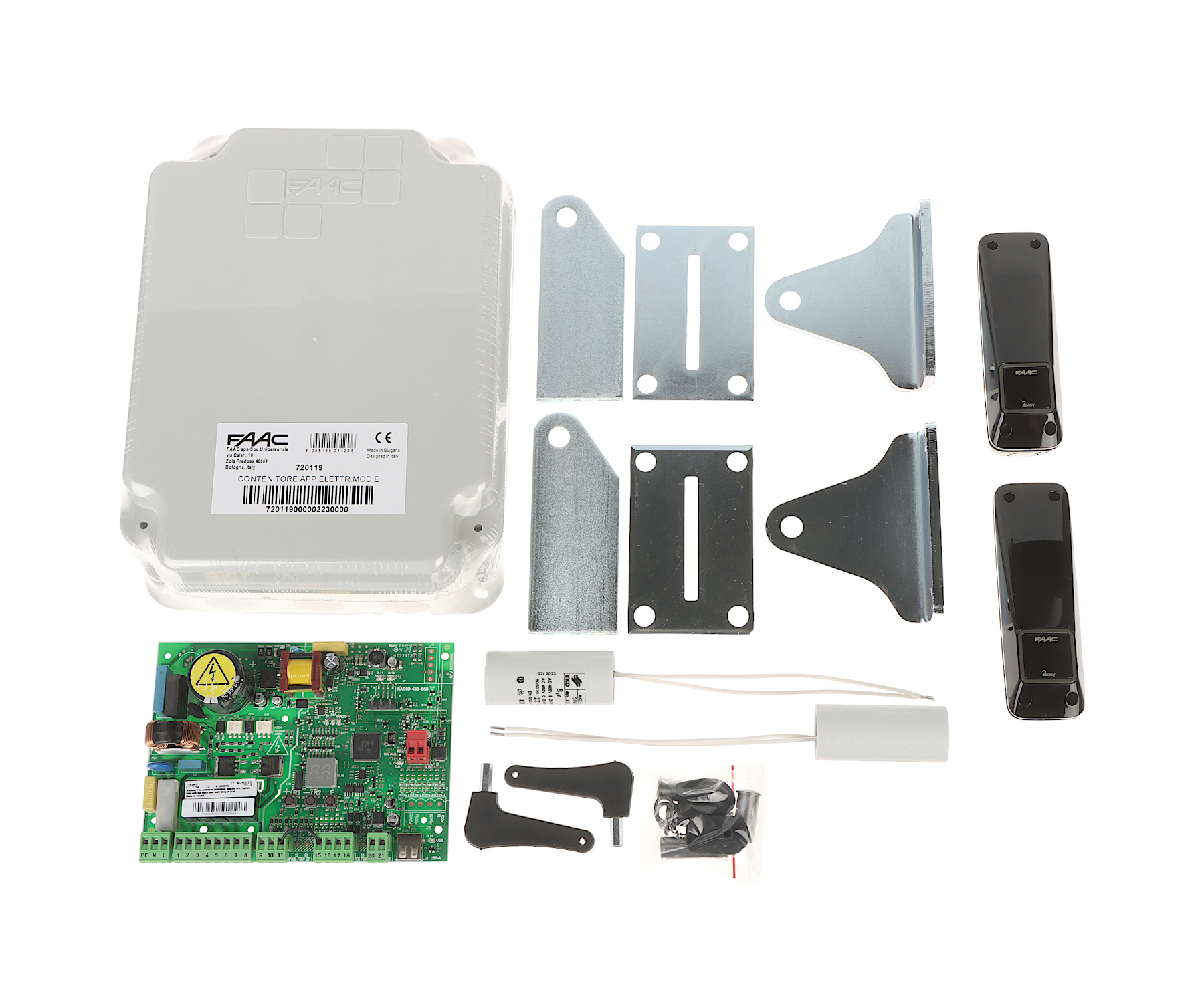

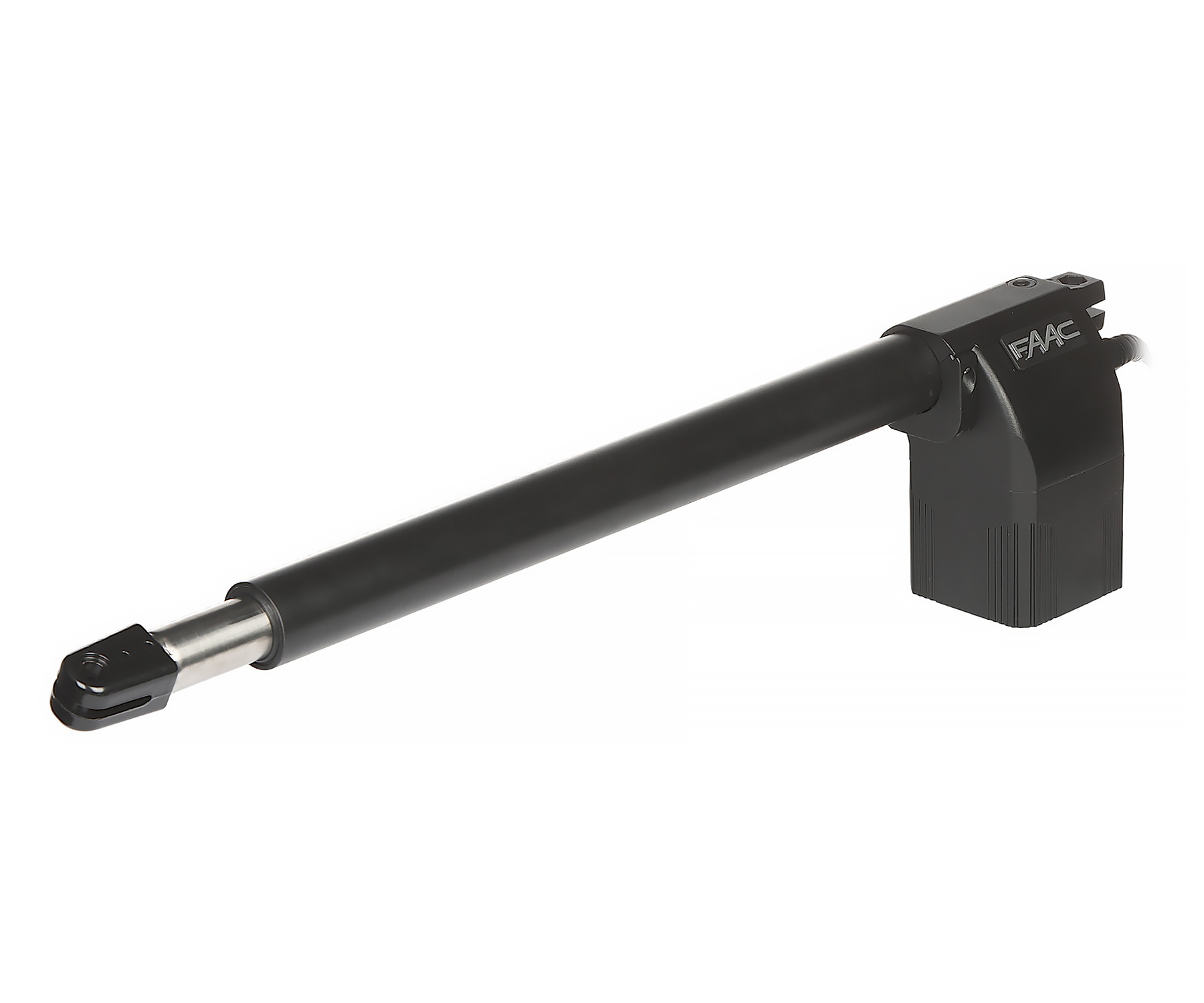

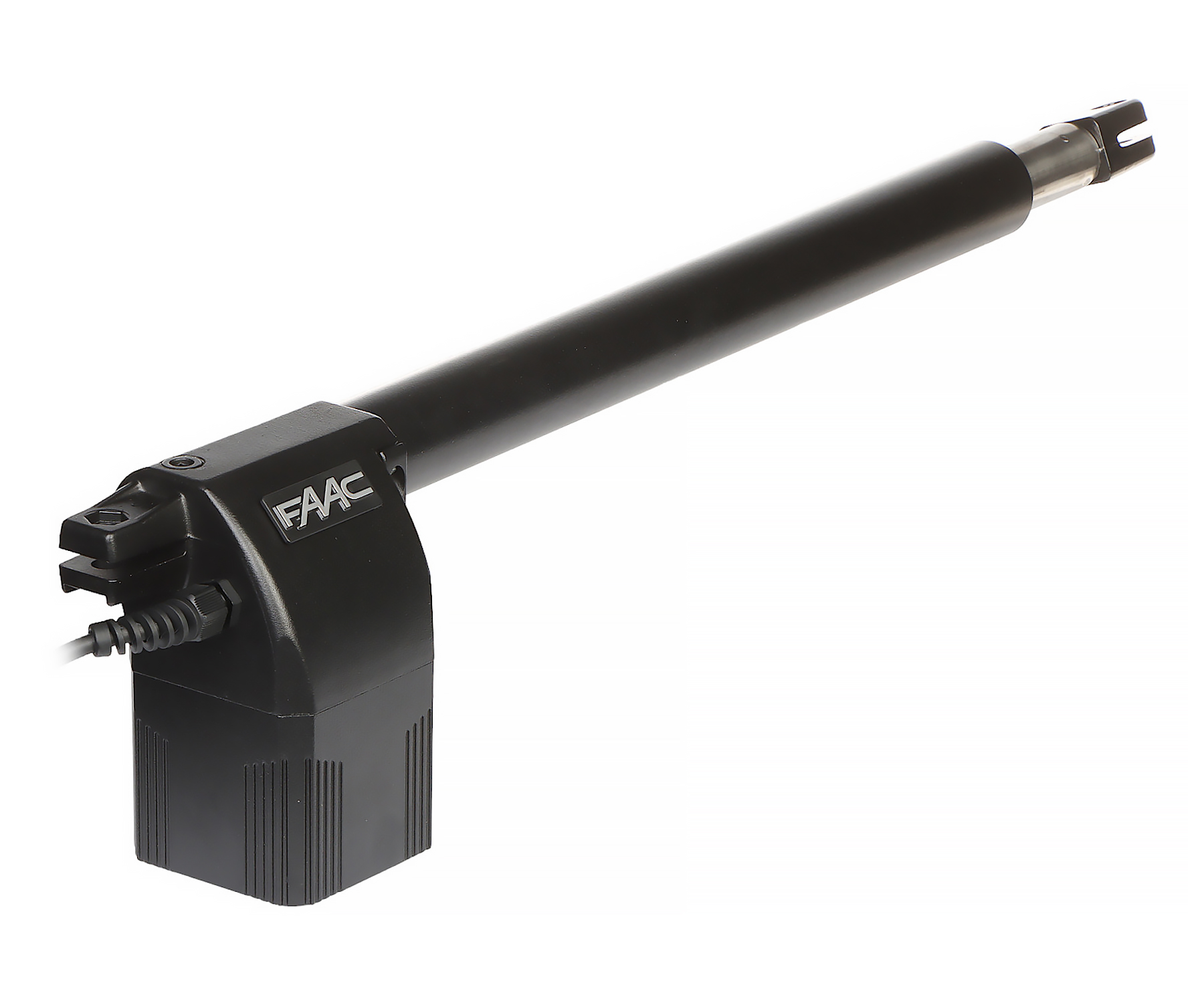

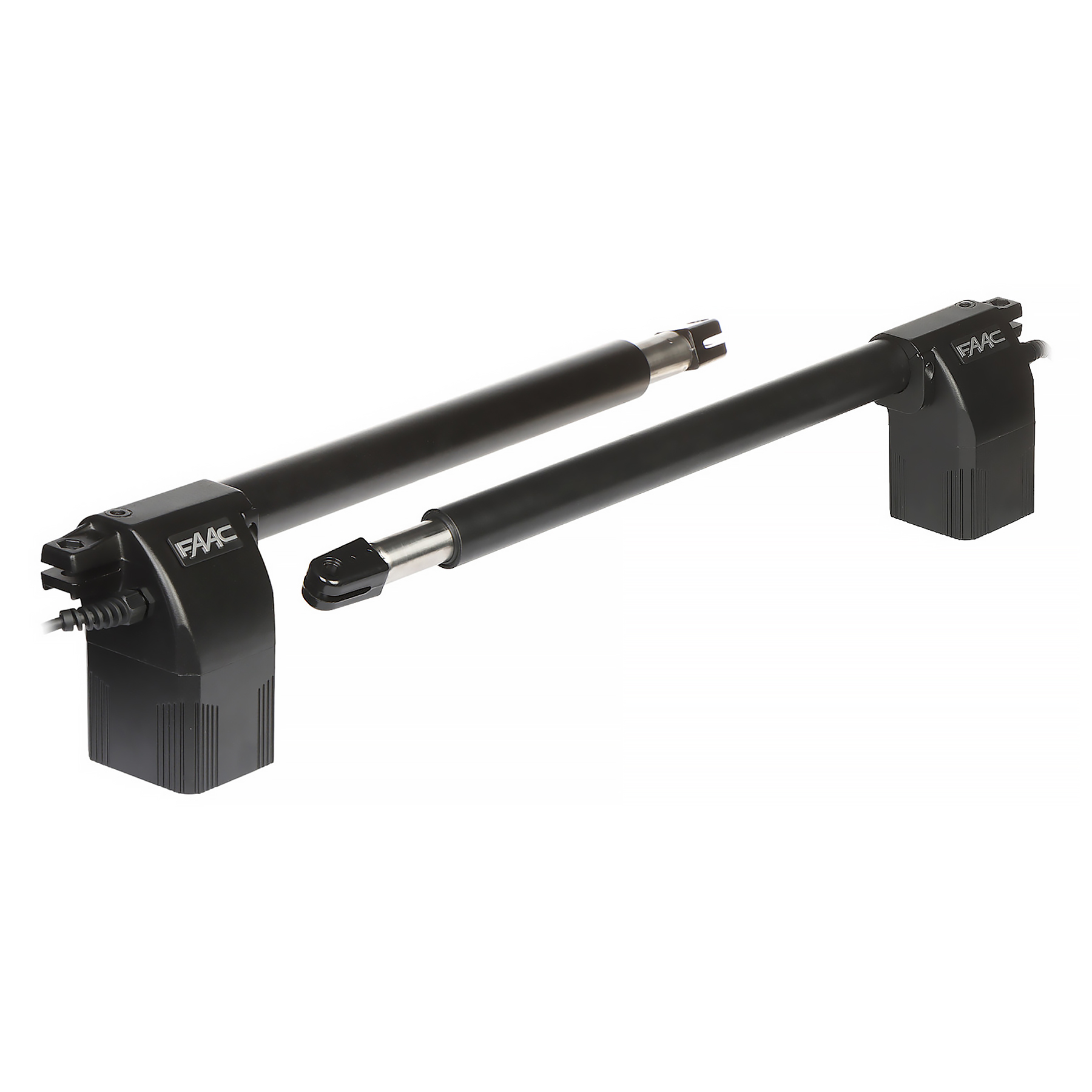

SWING GATE OPERATOR FAAC-ALFA-FDS/KIT - SET FOR A TWO-LEAF GATE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Gate operator type: Mechanical ; Maximum expressed force: 3500 N ; Maximum length of the gate: 3 ... 4 m (single leaf with the option of an electromagnetic lock) ; Linear speed: 16 mm/s (max) ; Rotation angle: 110 ° (max) ; Wireless transmission range: ≤ 50 m (in open area) ;
| Gate operator type: | Mechanical, For swing gates - set for a two-leaf gate |
| Maximum expressed force: | 3500 N |
| Engine type: | Asynchronous single-phase motor, 230 V AC |
| Maximum length of the gate: | 3 ... 4 m (single leaf with the option of an electromagnetic lock) |
| Linear speed: | 16 mm/s (max) |
| Rotation angle: | 110 ° (max) |
| Automatic closing of the gate: |  |
| Automatic locking of the operator: | |
| Limit switch: | |

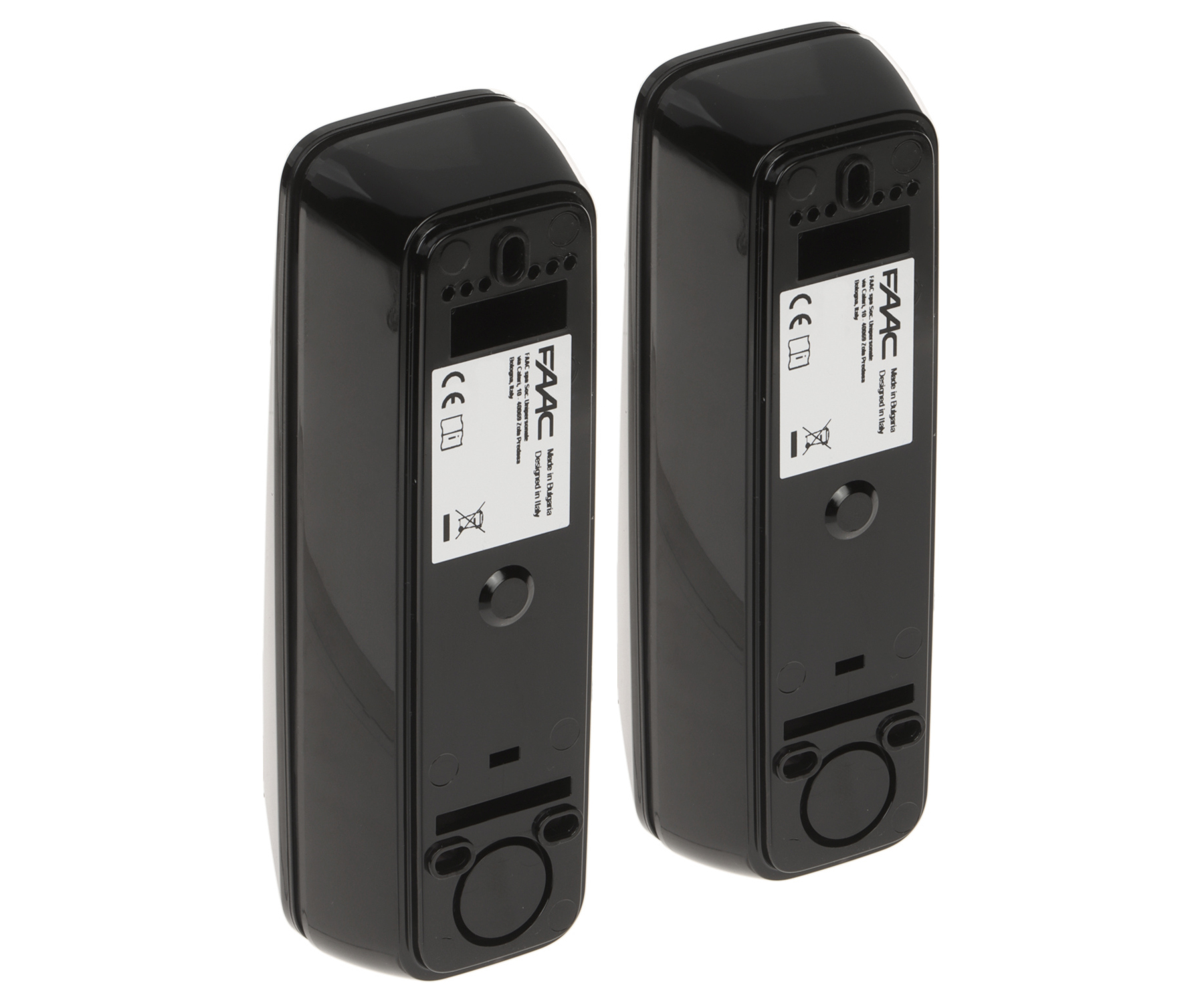

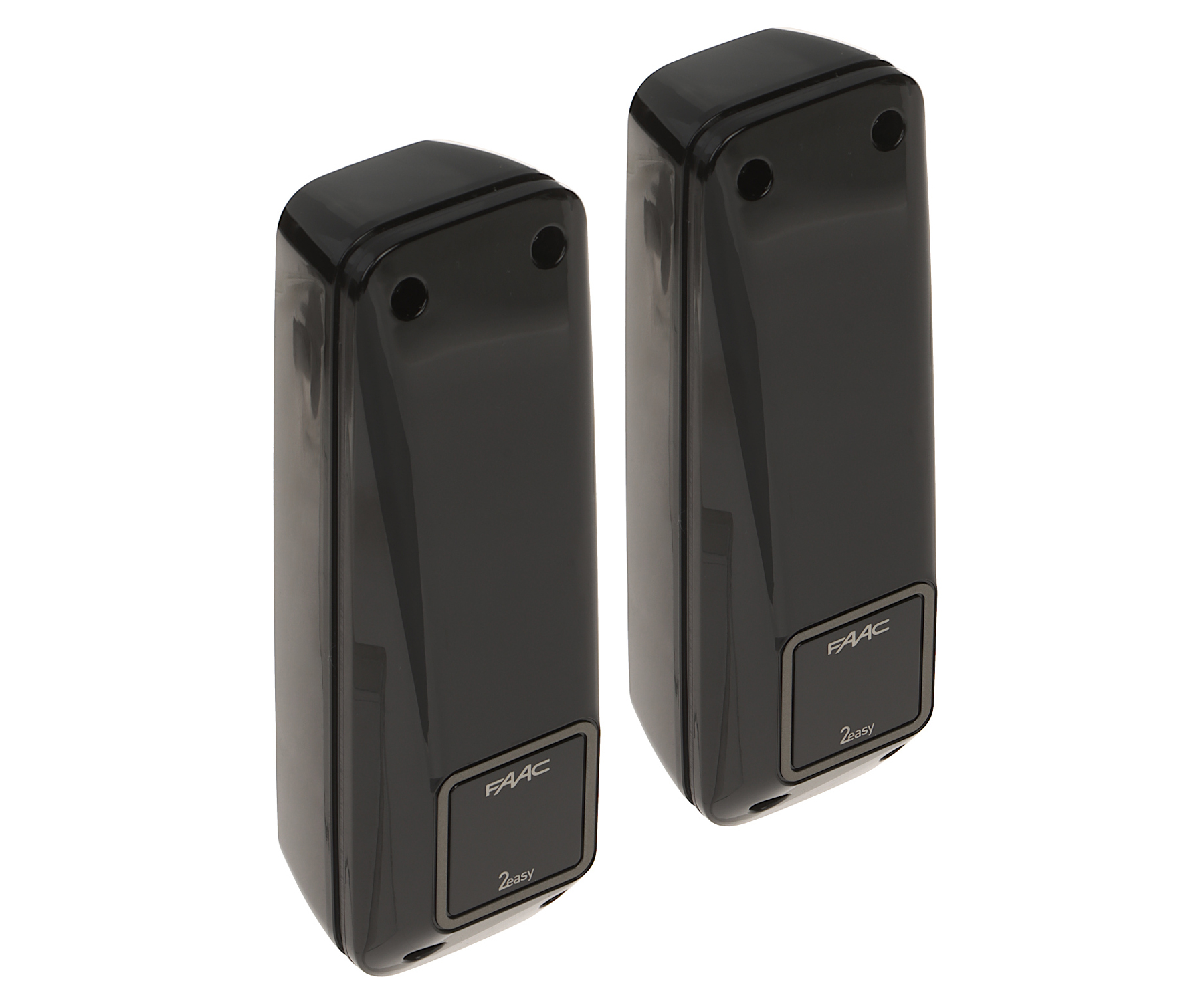

| Possibility of connecting the photocell: | |
| Possibility of connecting the signal lamp: | |

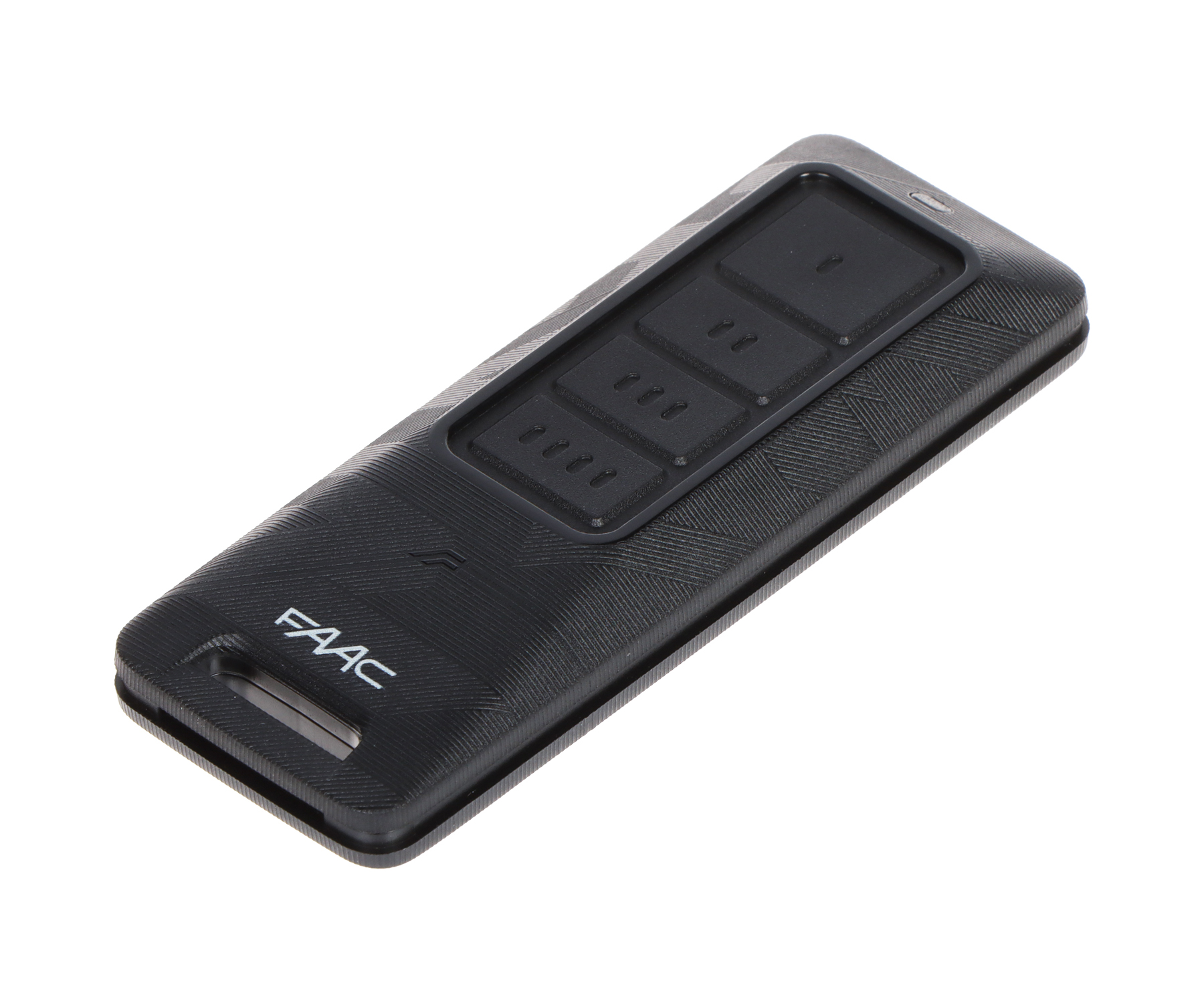

| Maximum number of programmed remote controls: | 250 Channels |
| Wireless transmission range: | ≤ 50 m (in open area) |

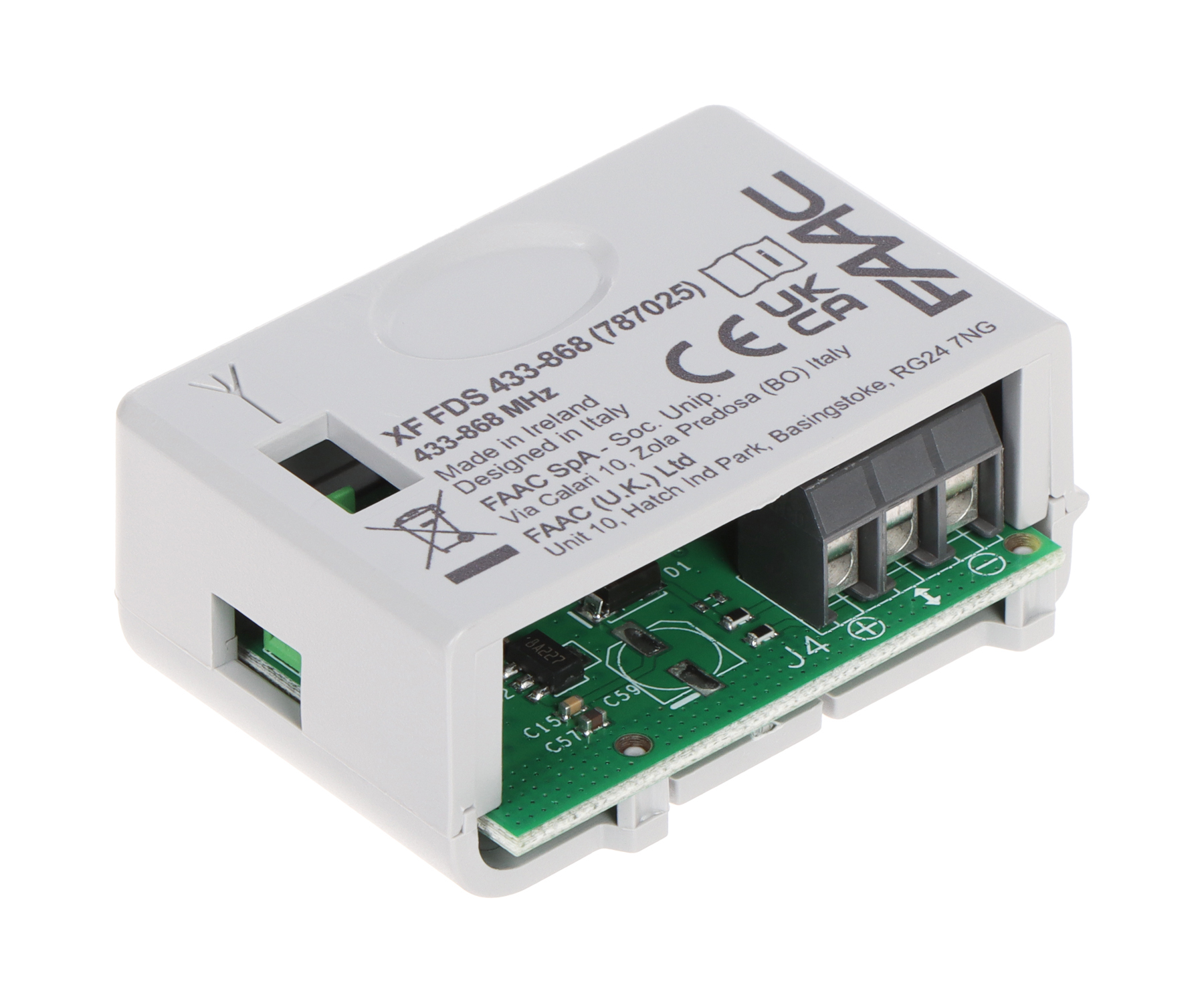

| Frequency bandwidth of the system: | 433.92 / 868.35 MHz - FAAC Digital Signature system |
| Number of cycles per hour: | ≤ 18 |
| Main features: |
|
| Power supply: | 220 ... 240 V AC, 50 / 60 Hz |
| Housing: | |
| "Index of Protection": | |
| Color: | |
| Operation temp: | -20 °C ... 55 °C |
| Weight: | 5.9 kg (single gate opener) |
| Dimensions: | |
| Manufacturer / Brand: | FAAC |
| Guarantee: | 2 years |
