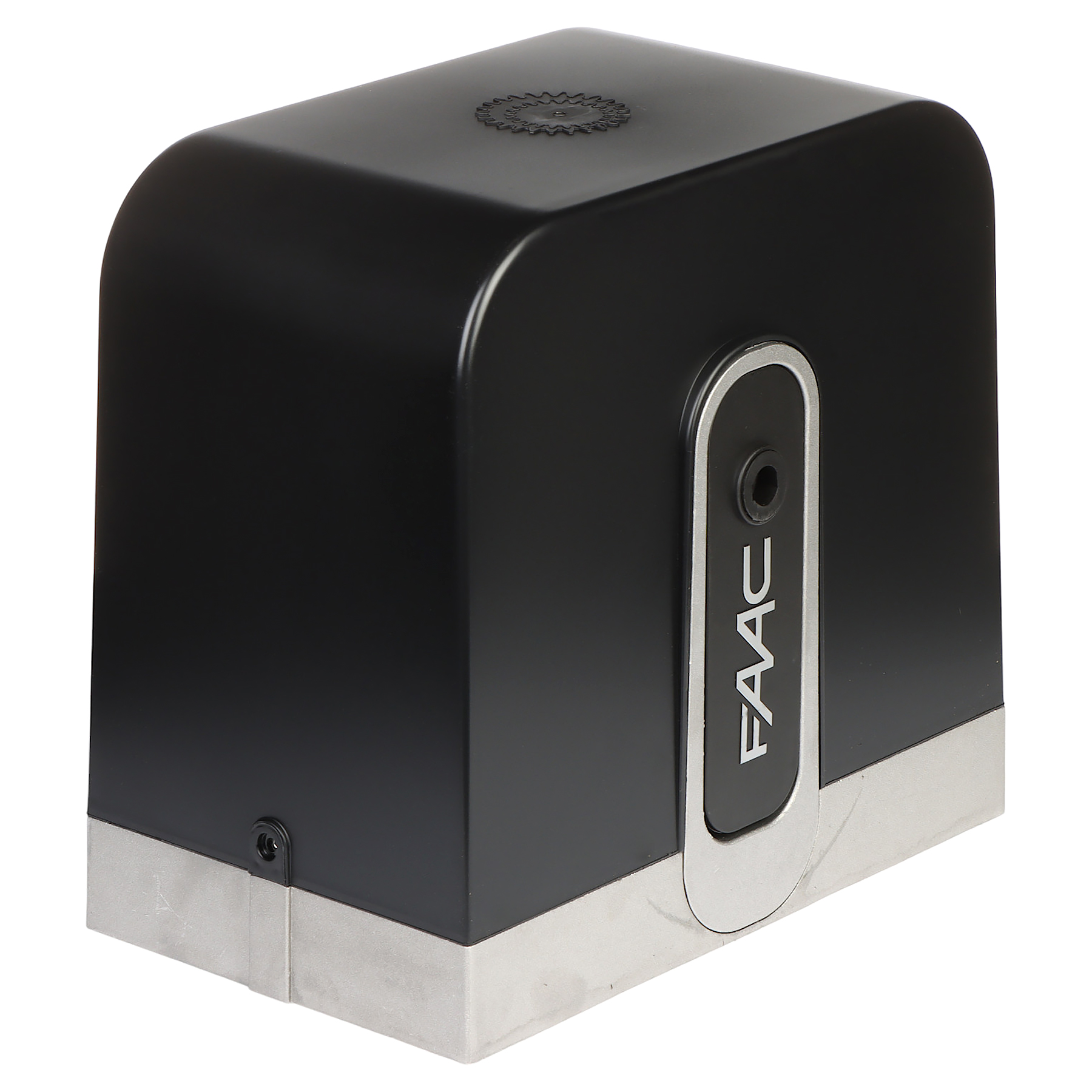

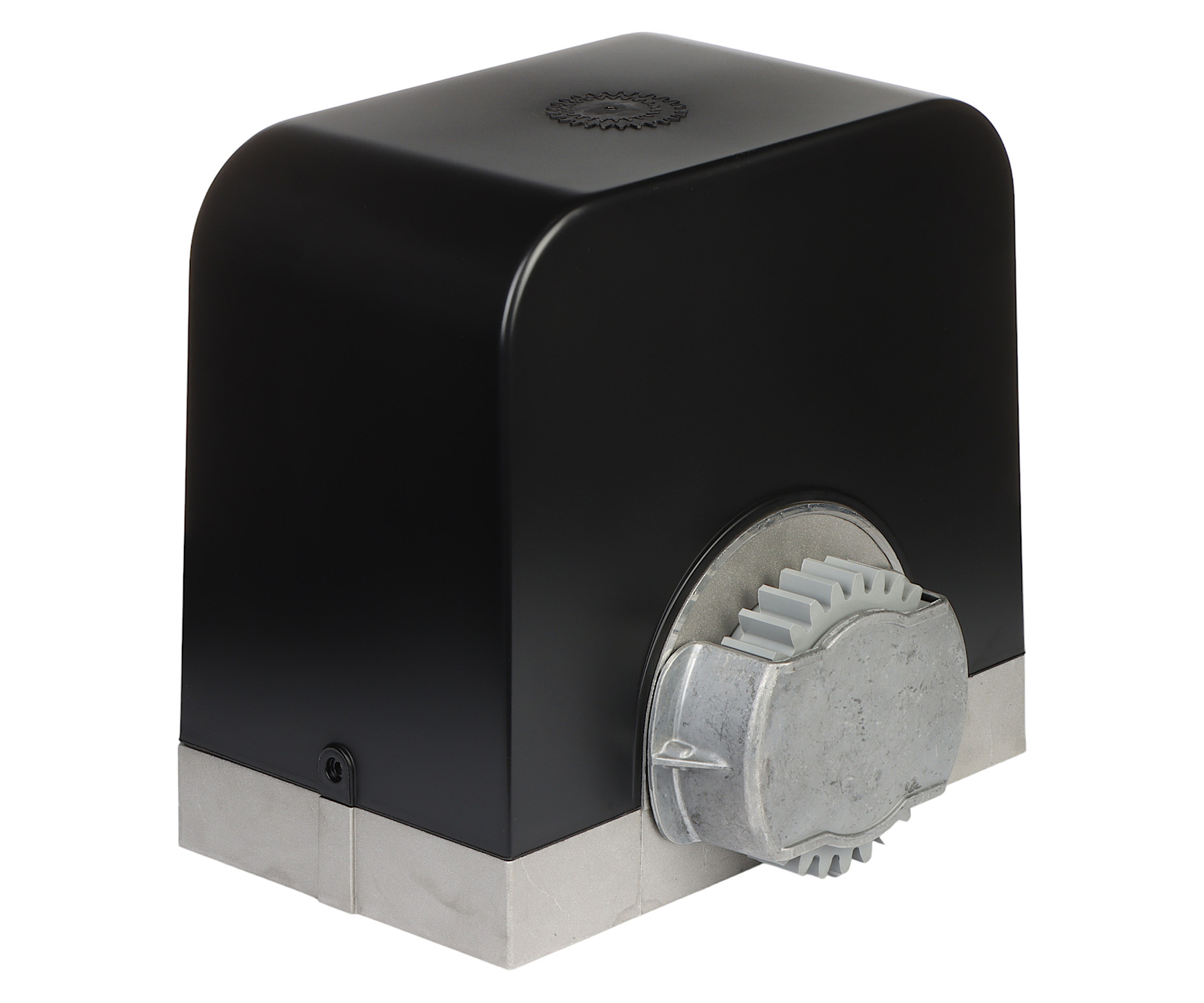

SLIDING GATE OPERATOR FAAC-CYCLO-24V-C720-FDS/KIT - START KIT
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Gate operator type: Mechanical ; Torque: 18 Nm (max) ; Maximum weight of the gate: 400 kg ; Maximum length of the gate: 15 m ; Linear speed: 18 m/min (max) ; Wireless transmission range: ≥ 50 m (in open area) ;
| Gate operator type: | Mechanical, For sliding gates - Start Kit |
| Torque: | 18 Nm (max) |
| Maximum expressed force: | 320 N |
| Engine type: | Motor with brushes, 24 V DC |
| Maximum weight of the gate: | 400 kg |
| Maximum length of the gate: | 15 m |
| Linear speed: | 18 m/min (max) |
| Automatic closing of the gate: |  |
| Automatic locking of the operator: | |
| Limit switch: | |

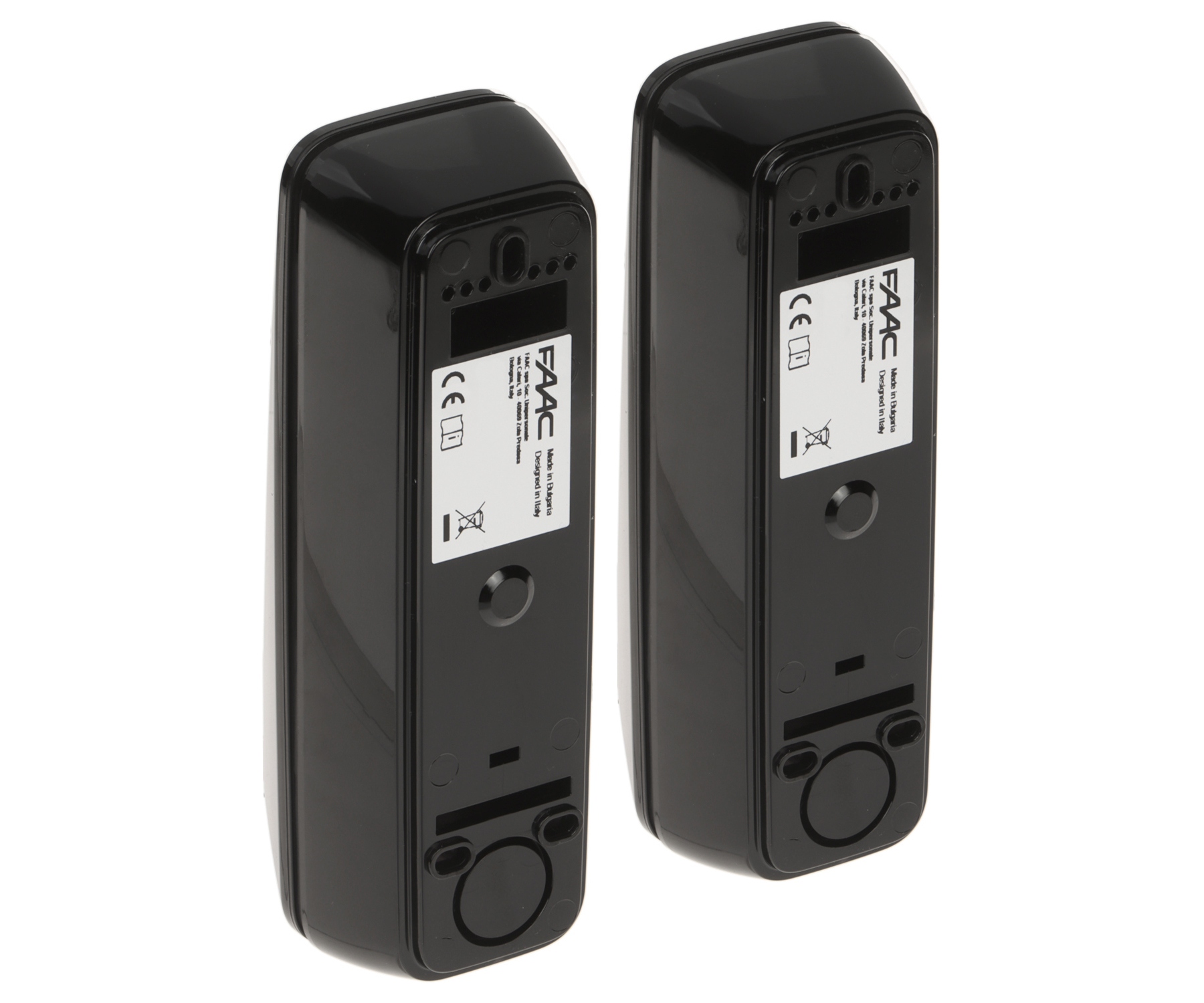

| Possibility of connecting the photocell: | |
| Possibility of connecting the signal lamp: | |
| Maximum number of programmed remote controls: | 250 Channels |
| Wireless transmission range: | ≥ 50 m (in open area) |

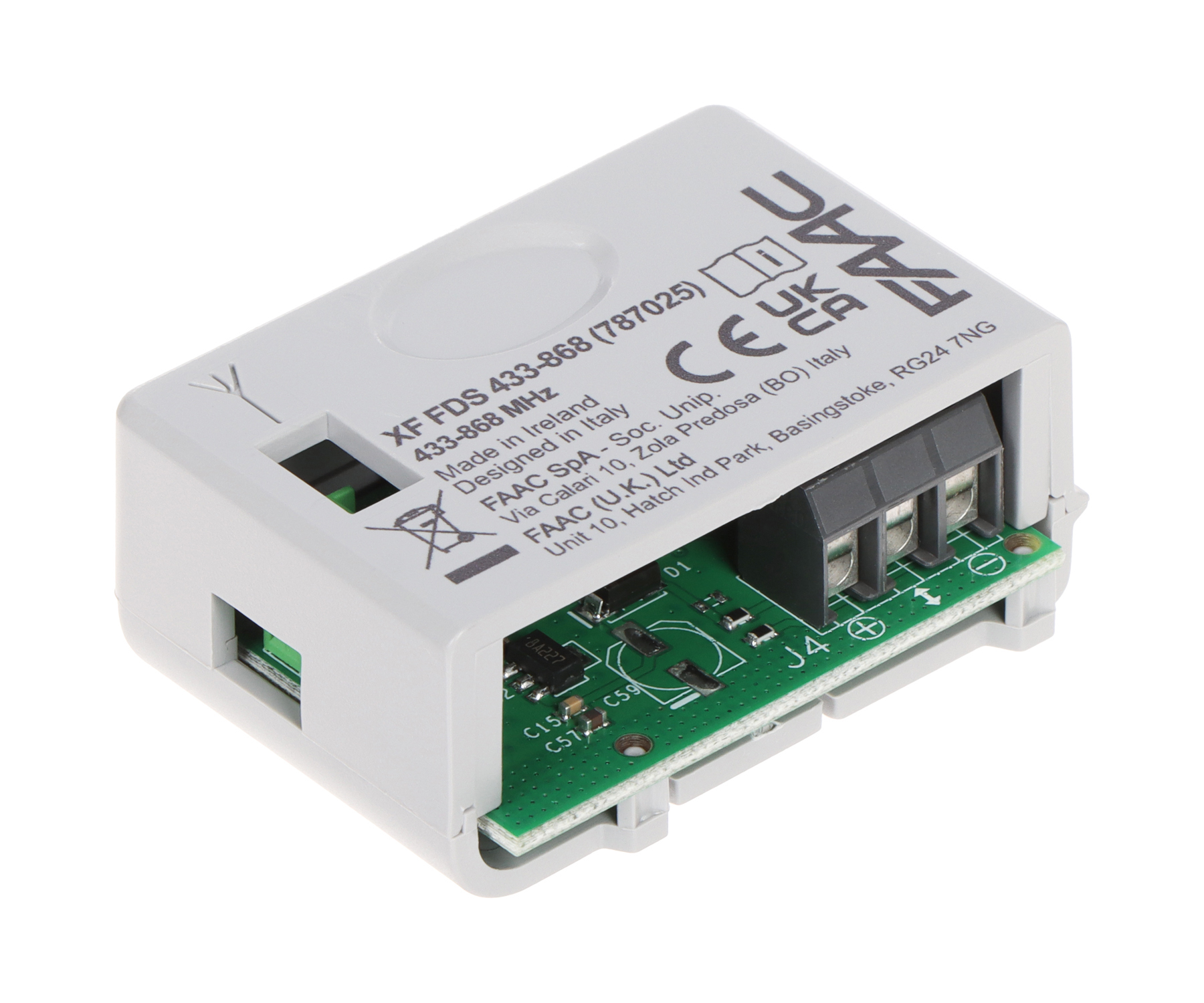

| Frequency bandwidth of the system: | 433.92 / 868.35 MHz - FAAC Digital Signature system |
| Main features: | |
| Power supply: | 230 V AC / 50 Hz |
| Housing: | Plastic |
| "Index of Protection": | IP44 |
| Color: | Gray |
| Operation temp: | -20 °C ... 55 °C |
| Weight: | 6.11 kg |
| Dimensions: | 304 x 282 x 180 mm |
| Manufacturer / Brand: | FAAC |
| Guarantee: | 2 years |
