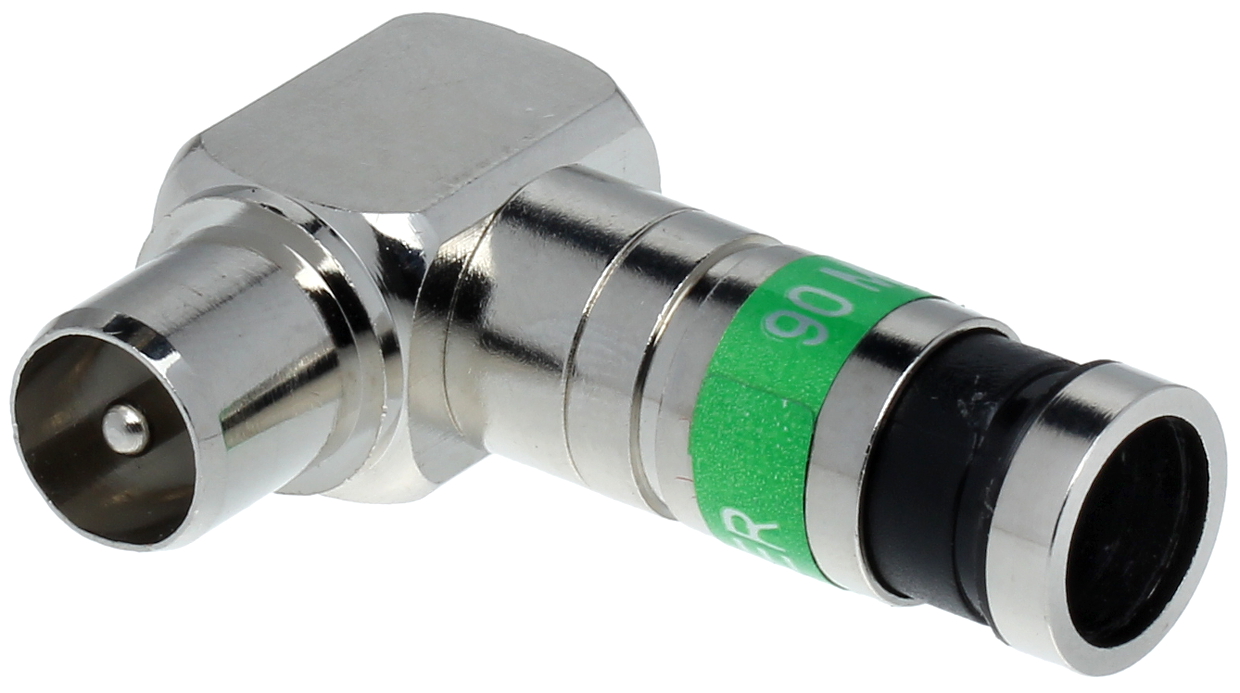

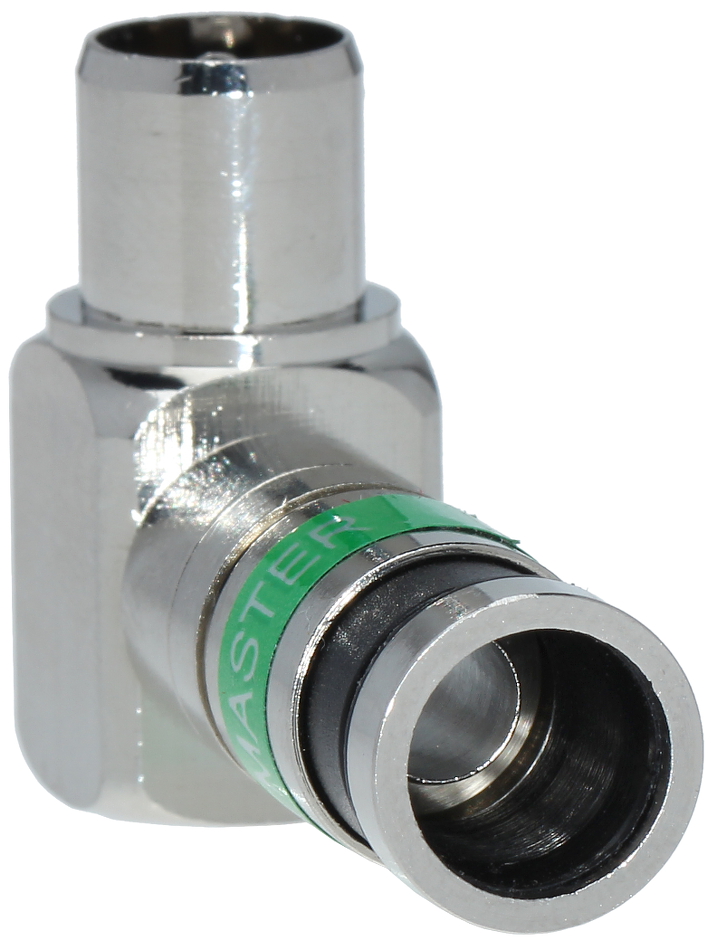

ANGULAR COMPRESSION PLUG IEC-WK/ZAC-TRI113
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Connector type: IEC Angular plug ; Attachment of connector elements: Compression mounting ; Application: Coaxial cable ; Cable diameter: max. 8.5 mm ;
| Connector type: | IEC Angular plug |
| Attachment of connector elements: | Compression mounting |
| Shield fastening: | Compression mounting |
| Wire mounting: | Pressing |
| Application: | Coaxial cable |
| Dielectric diameter: | max. 6.5 mm |
| Cable diameter: | max. 8.5 mm |
| Impedance: | 75 Ω |
| Material: | Brass (Nickel-platted) |
| Watertightness: |  |
| Example of application: | Triset113 |
| Main features: | |
| Weight: | 0.022 kg |
| Dimensions: | 12 x 39 x 26 mm |
| Guarantee: | 2 years |
Brand:
Master
