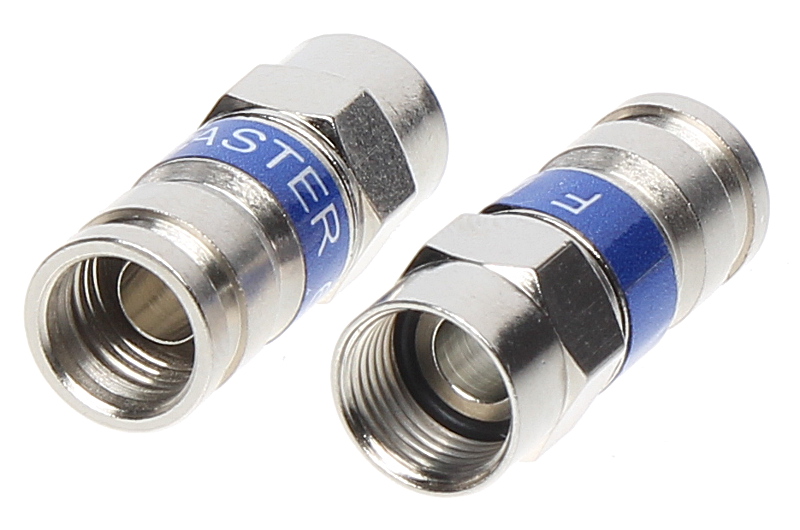

COMPRESSION PLUG F/ZAC-RG-6/MSR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Connector type: "F" Straight plug ; Attachment of connector elements: Compression mounting ; Application: Coaxial cable ; Cable diameter: max. 7.2 mm ; Main features: Elastic sealing ;
| Connector type: | "F" Straight plug |
| Attachment of connector elements: | Compression mounting |
| Application: | Coaxial cable |
| Impedance: | 75 Ω |
| Return loss: | - 28 dB to 3 GHz |
| Wire mounting: |  |
| Cable diameter: | max. 7.2 mm |

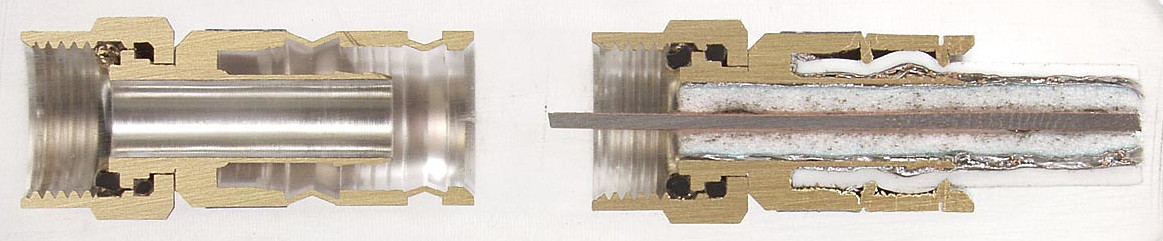

| Shield fastening: | Compression mounting |
| Insertion loss: | - 0.2 dB to 3 GHz |
| Shielding: | - 80 dB |
| Material: | Brass (Nickel-platted) |
| Watertightness: |  |
| Example of application: | |
| Main features: | |
| Weight: | 0.009 kg |
| Dimensions: | Ø 13 mm x 28 mm |
| Guarantee: | 2 years |
Brand:
Master
