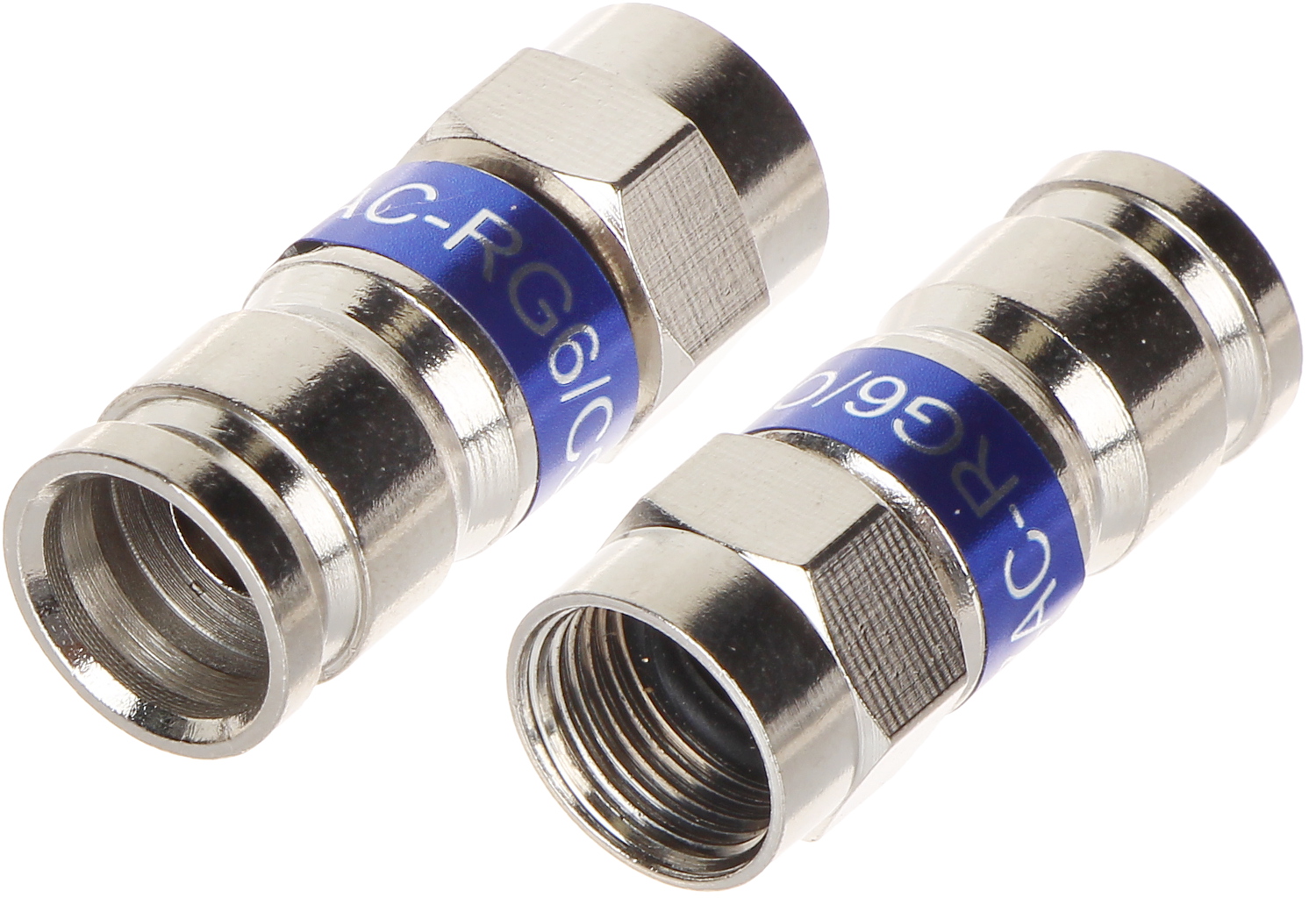

| Connector type: | "F" Straight plug |
| Attachment of connector elements: | Compression mounting |
| Application: | Coaxial cable |
| Impedance: | 75 Ω |

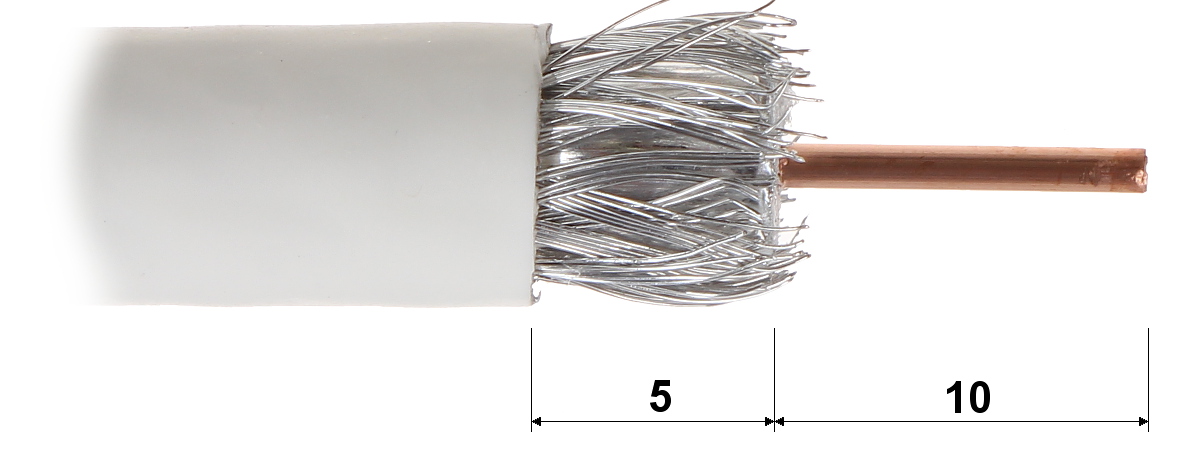

| Wire mounting: | ![]() |
| Cable diameter: | max. 8.0 mm |
| Shield fastening: | Compression mounting |
| Material: | Brass (Nickel-platted) |
| Watertightness: | ![]() |
| Example of application: | RG6, NS100-TRISHIELD, TCC-113-TRISHIELD, TRISET-113 |
| Main features: | |
| Weight: | 0.009 kg |
| Dimensions: | Ø 13 mm x 28 mm |
| Guarantee: | 2 years |
