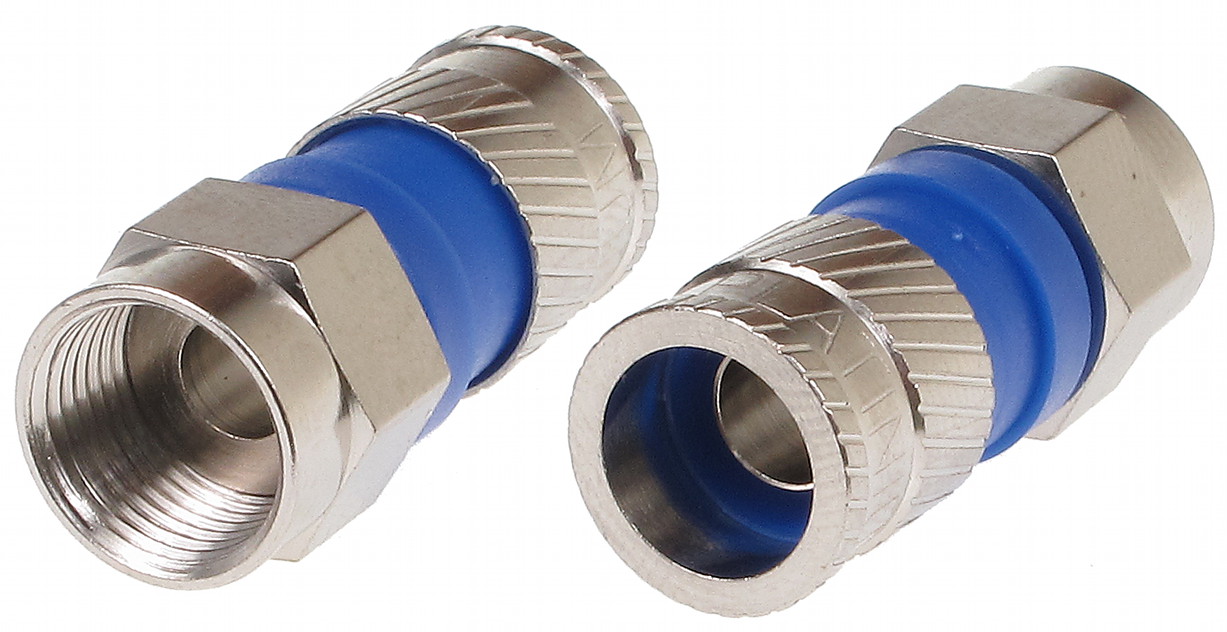

COMPRESSION PLUG F/6.8-ZAC-PLAT
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Connector type: "F" Plug ; Attachment of connector elements: Compression mounting ; Application: Coaxial cable ; Cable diameter: max. 6.8 mm ;
| Connector type: | "F" Plug |
| Attachment of connector elements: | Compression mounting |
| Application: | Coaxial cable |
| Frequency range: | 0 GHz ... 3 GHz |
| VSWR: | < 1.1 |
| Impedance: | 75 Ω |
| Return loss: | 30 dB |
| Wire mounting: |  |
| Cable diameter: | max. 6.8 mm |
| Shielding at 1GHz: | 100 dB |
| Shield fastening: | Compression mounting |
| Plastic bush: | DuPont Delrin 527UV* |
| Material: | Brass (Nickel-platted) |
| Bush: | EPDM |
| Watertightness: |  |
| Example of application: | Triset113 |
| Main features: | |
| Weight: | 0.075 kg |
| Dimensions: | Ø 13 mm x 27 mm |
| Guarantee: | 2 years |
Brand:
Master
