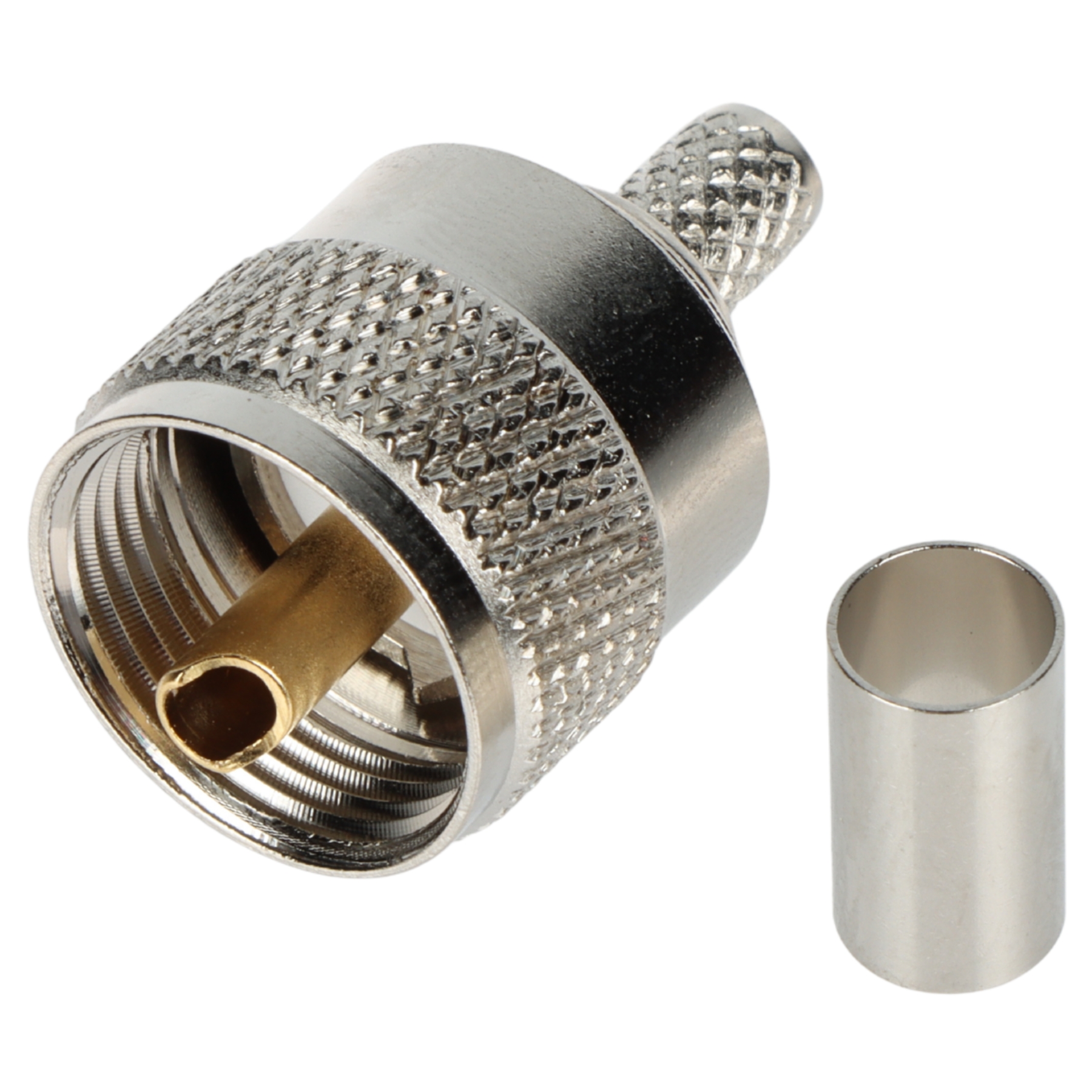

CRIMP PLUG UHF(UC1)-W/ZAC-H-155
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Connector type: UHF UC-1 Plug ; Attachment of connector elements: Crimping ; Cable diameter: 5.2 ... 6.0 mm ;
| Connector type: | UHF UC-1 Plug |
| Attachment of connector elements: | Crimping |
| Shield fastening: | Crimping |
| Wire mounting: | Soldering |
| Application: | Coaxial cable |
| Cable diameter: | |
| Impedance: | 50 Ω |
| Material: | Brass (Nickel-platted), The pin is gold plated |
| Example of application: | H-155 |
| Main features: | |
| Weight: | 0.012 kg |

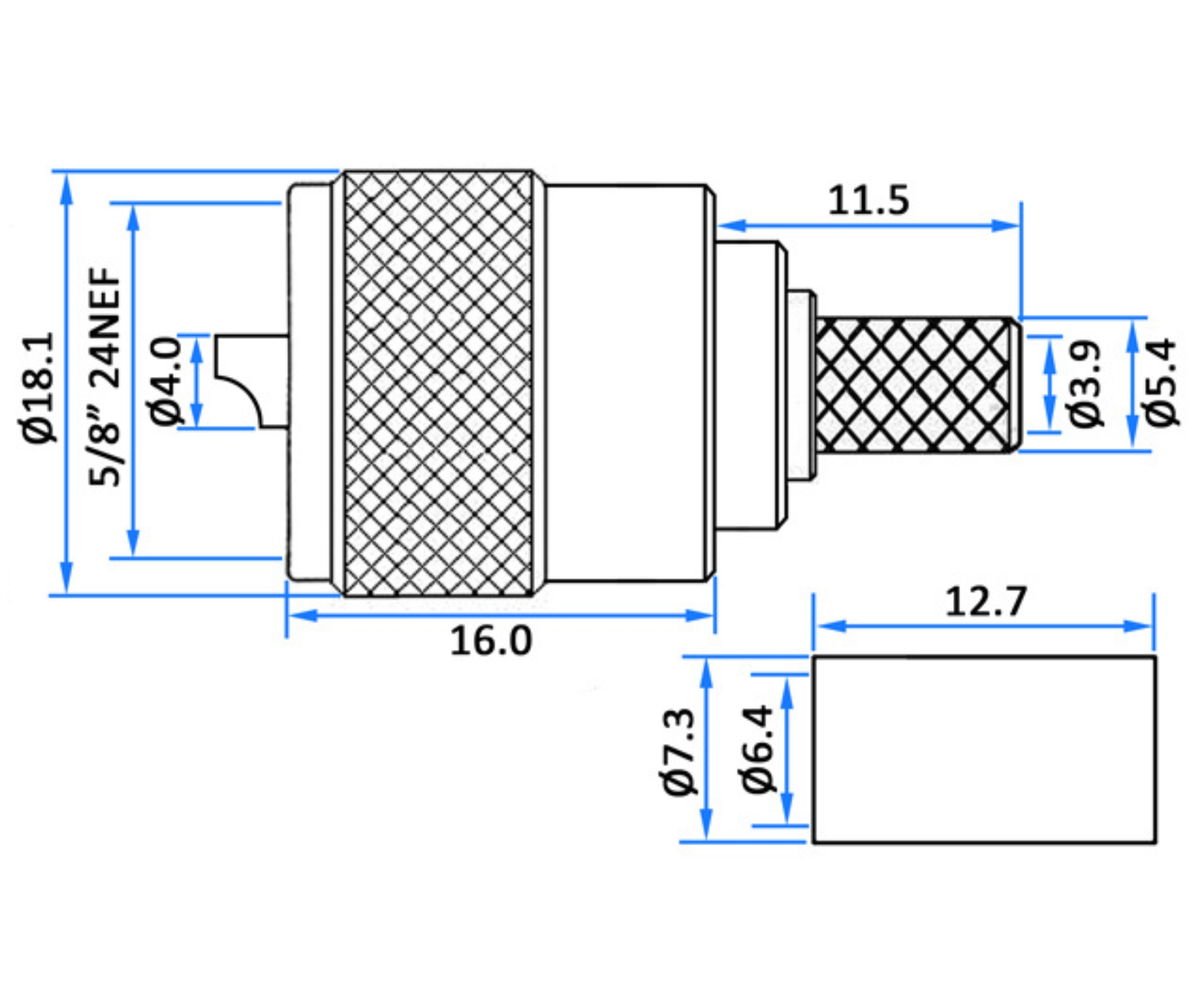

| Dimensions: | Ø 18 mm x 35 mm |
| Guarantee: | 2 years |
Brand:
Delta CCTV
