COAXIAL CABLE TRISET-PLUS/500 Dca LSZH A+
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

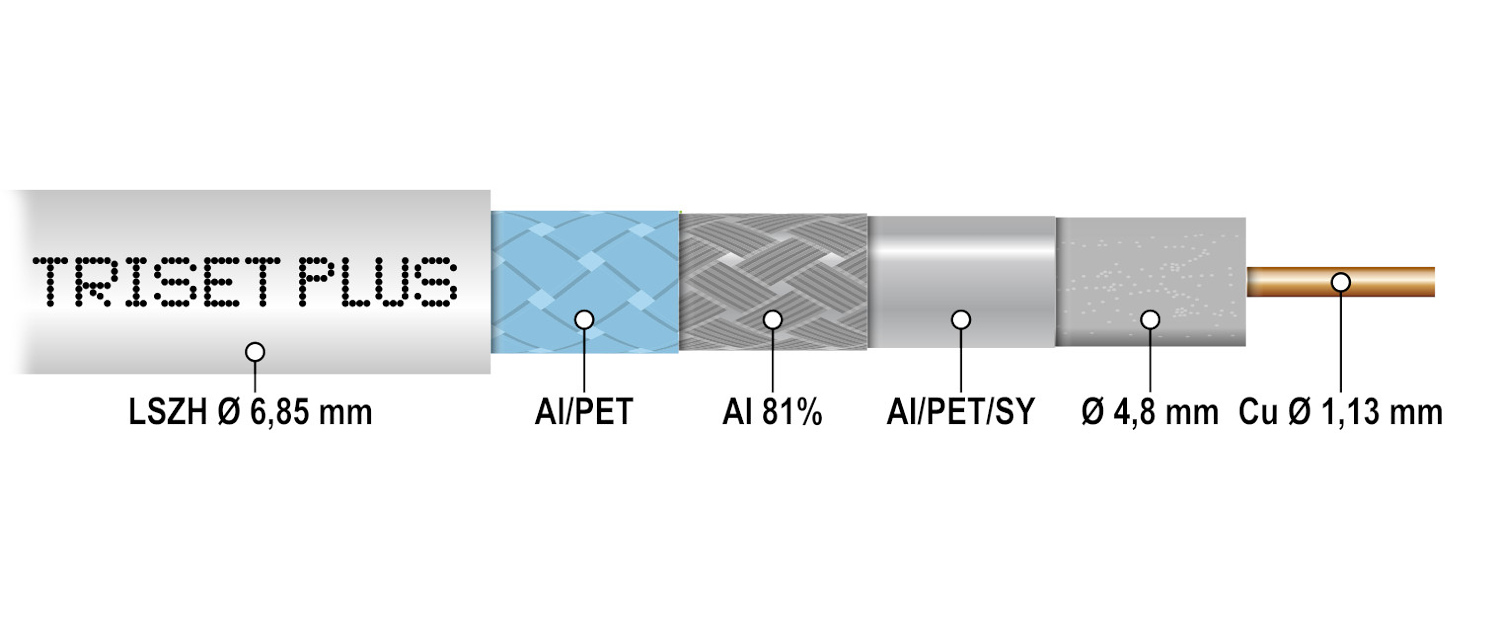

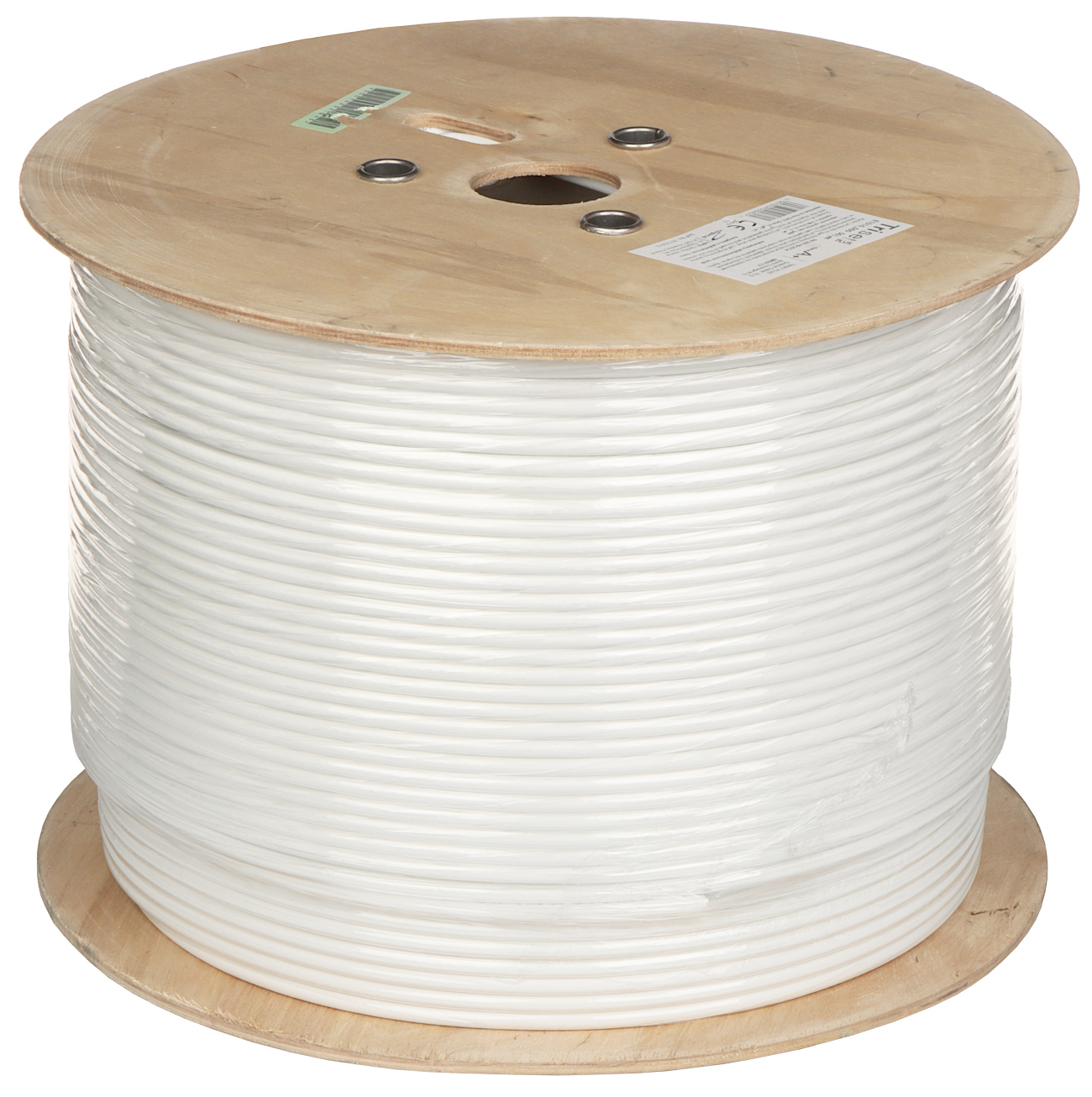

In section: 500 m . Price for 1m when buying a whole roll ; Coaxial cable: TRISET ; Inner conductor: Ø 1.13 mm Cu Wire ; Dielectric: Ø 4.8 mm ; Shield: : Al/PET/SY ;
| In section: | 500 m . Price for 1m when buying a whole roll |
| Coaxial cable: | TRISET |
| Inner conductor: | Ø 1.13 mm Cu Wire |
| Dielectric: | Ø 4.8 mm (physical foam) |
| Shield: | |
| Braid: | 81 % Al wire |
| Outer coating: | Ø 6.85 mm PVC LSZH |
| Coating color: | White |
| Minimal bend radius: | 70 mm |
| Impedance: | 75 Ω |
| Capacity: | 52 pF/m |
| Resistance of the inner conductor for DC current: | 16.85 Ω/km |
| Dielectric resistance: | 2500 MΩ/km |
| Screening efficiency: | > 95 dB @30 ... 1000 MHz > 85 dB @1 ... 2 GHz > 75 dB @2 ... 3 GHz |
| Shortening wave coefficient: | 84 % |
| Weight: | 41.4 kg/km |
| Main features: | |
| Guarantee: | 2 years |
Brand:
Triset
