COAXIAL CABLE TRISET-302-FCA-PE/500 TRISET
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
In section: 500 m . Price for 1m when buying a whole roll ; Coaxial cable: TRISET ; Inner conductor: Ø 1.02 mm Cu Wire ; Dielectric: Ø 4.6 mm ; Shield: - Al/PET/Al ; Main features: Reaction to fire class in accordance with CPR - Fca ;
| In section: | 500 m . Price for 1m when buying a whole roll |
| Coaxial cable: | TRISET |

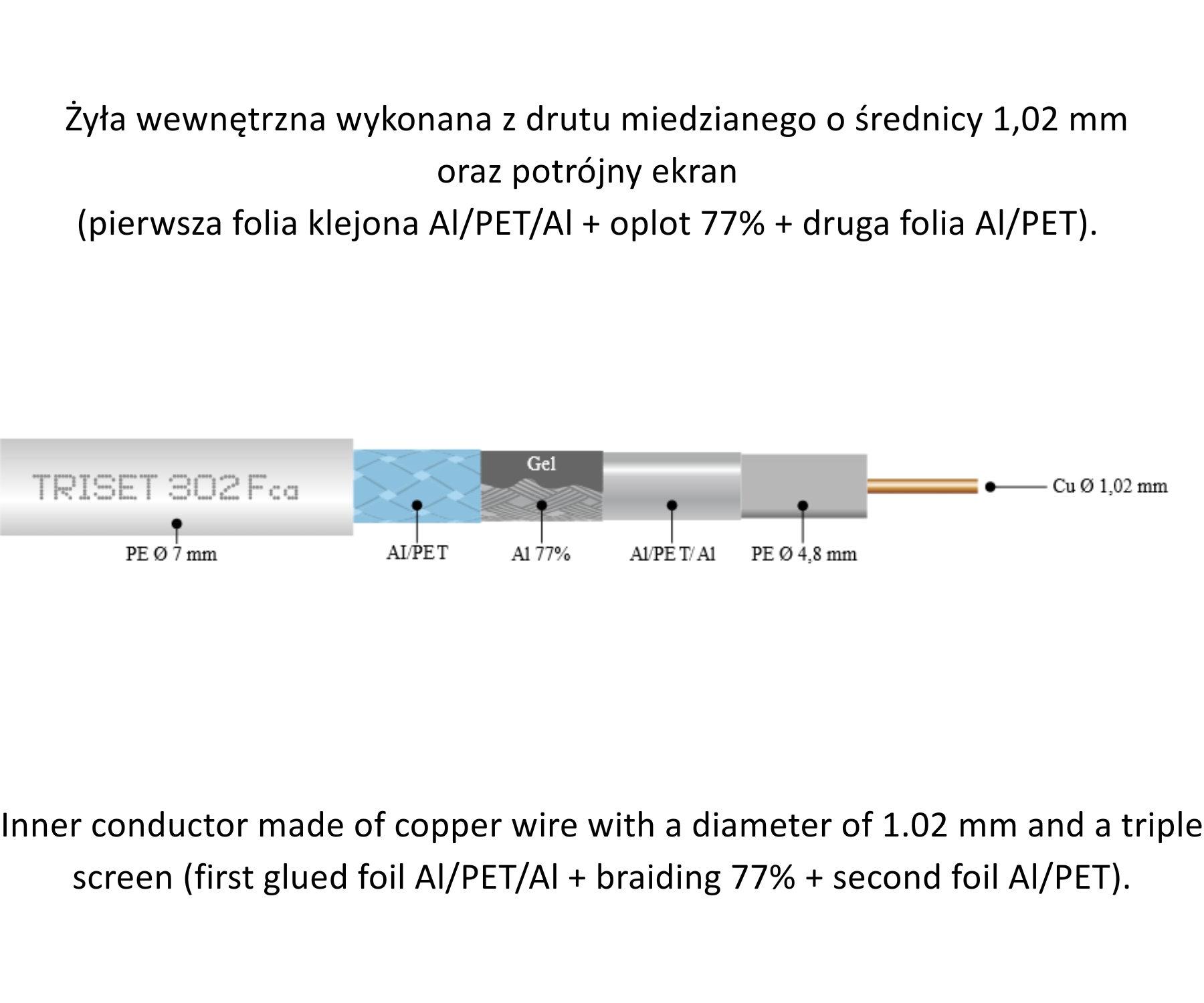

| Inner conductor: | Ø 1.02 mm Cu Wire |
| Dielectric: | Ø 4.6 mm (physical foam) |
| Shield: | Triple |

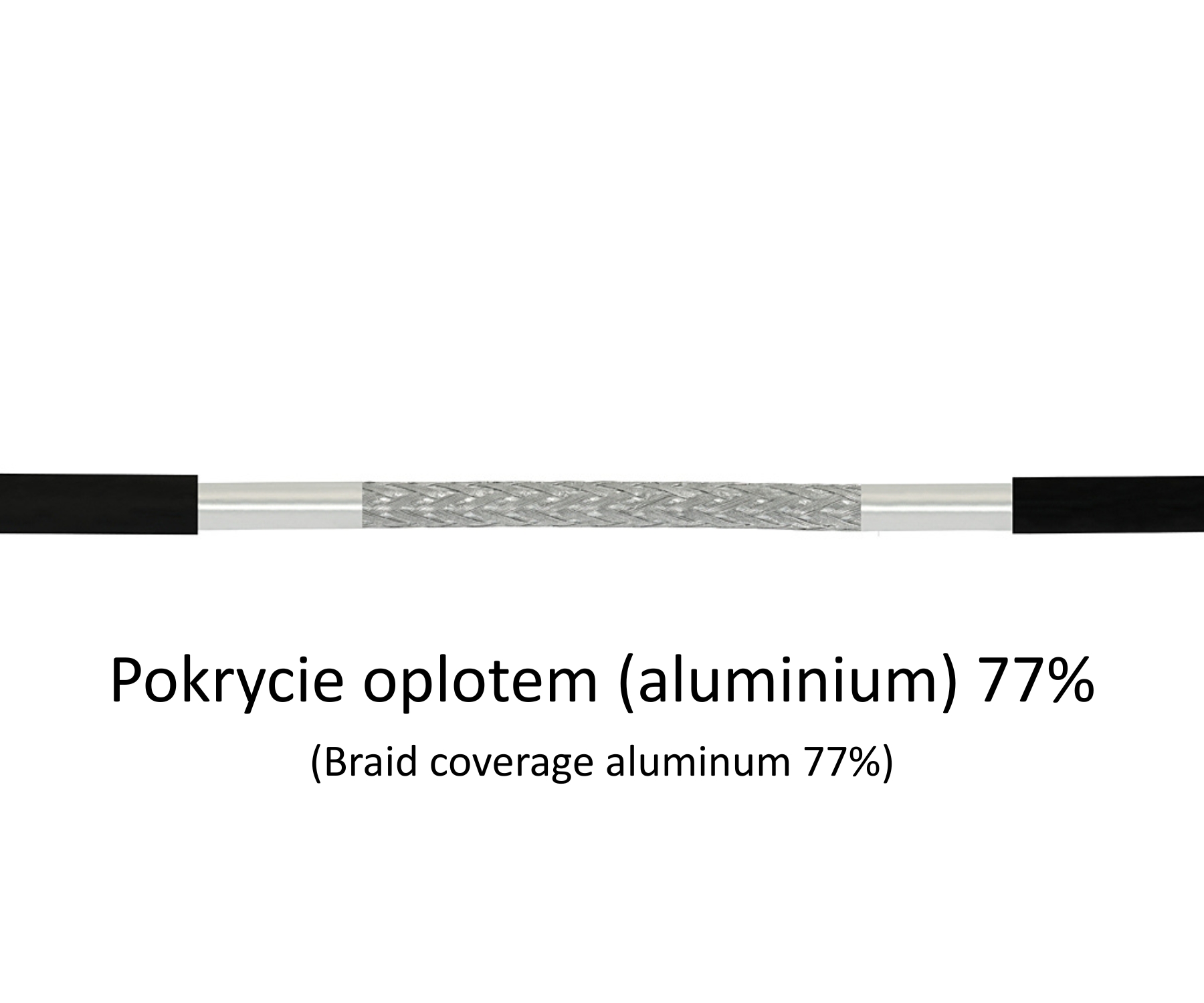

| Braid: | 77 % - Al wire |
| Outer coating: | Ø 7 mm PE |
| Coating color: | Black |

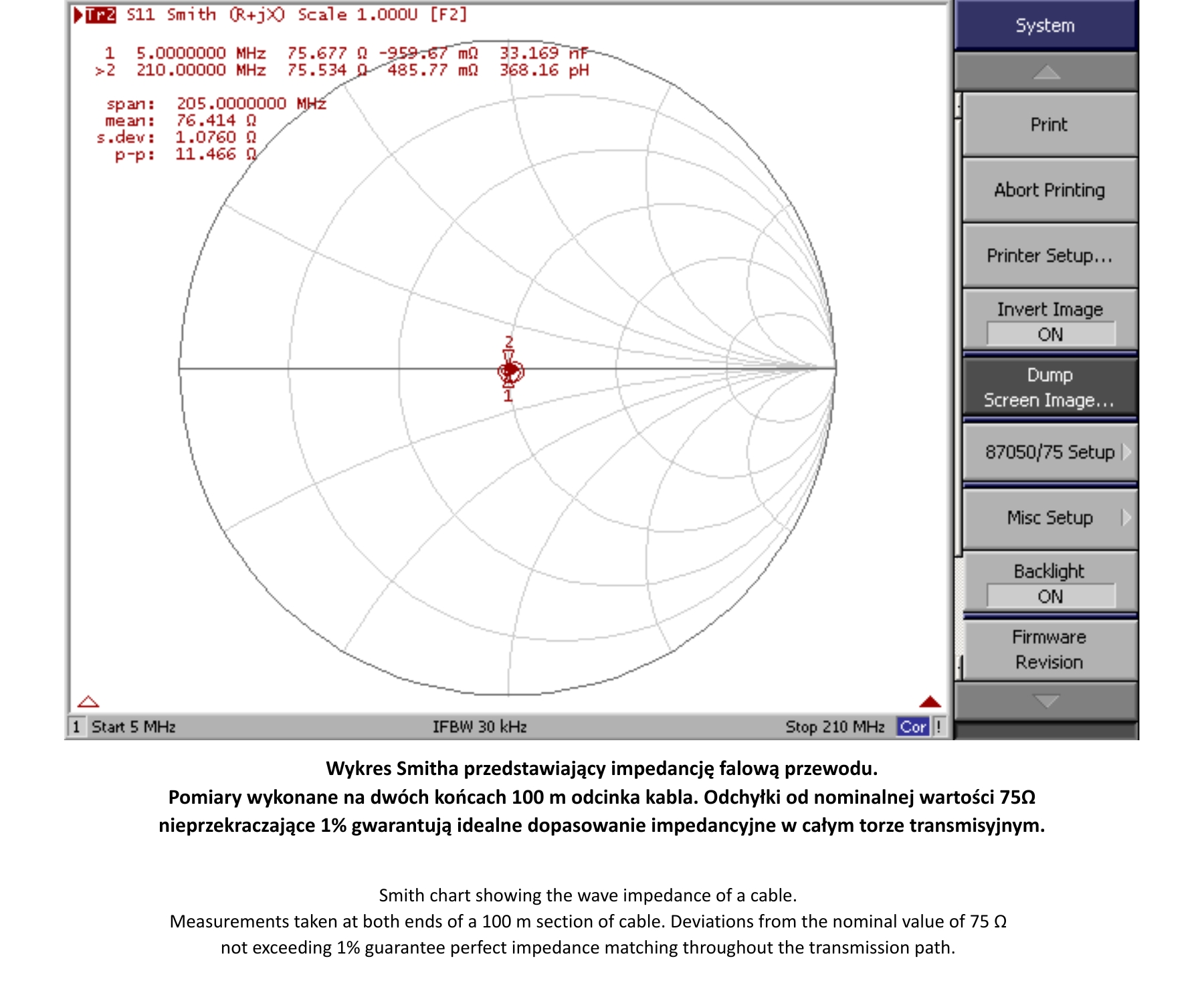

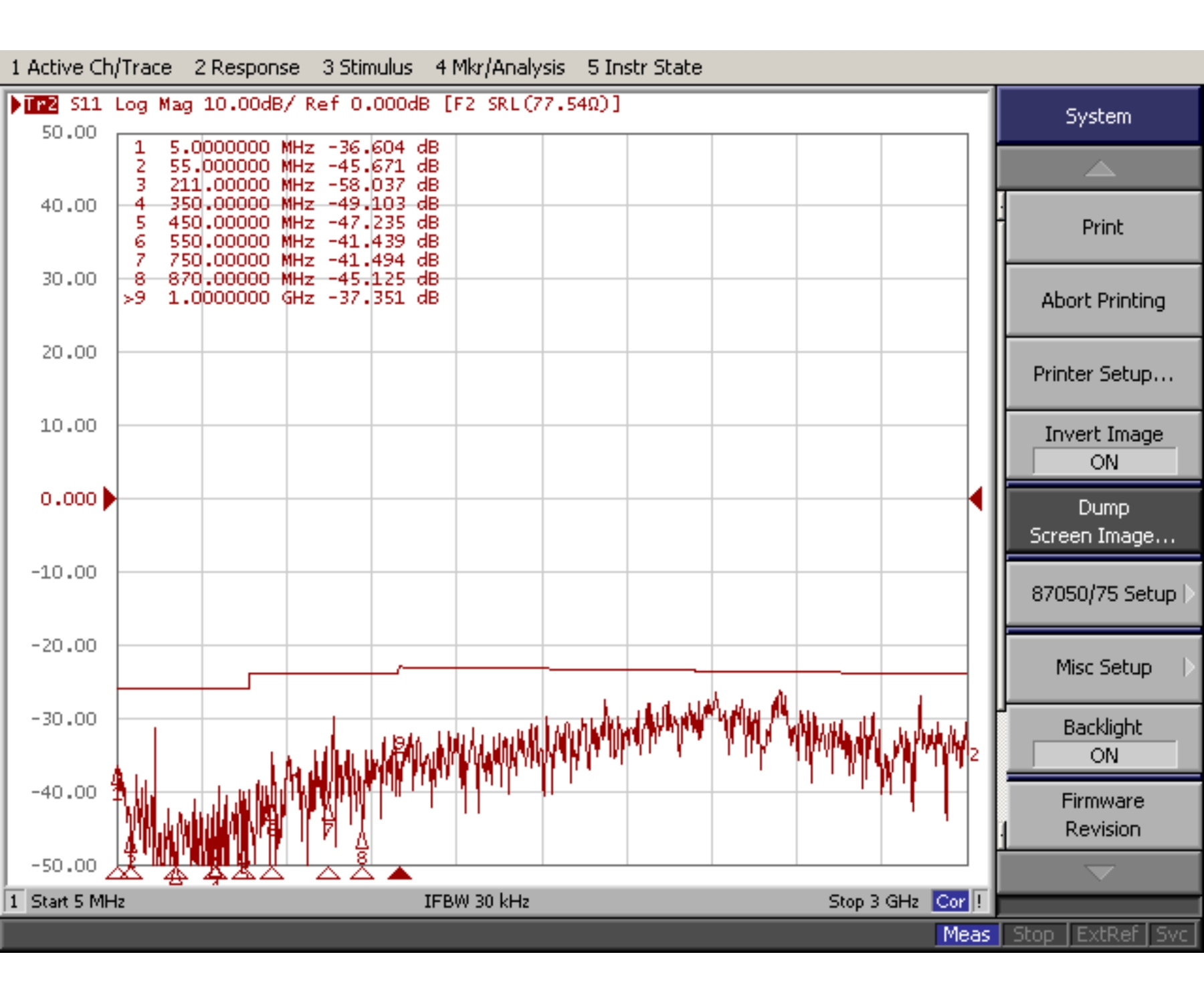

| Impedance: | 75 Ω |
| Capacity: | 52.5 pF/m |
| Resistance of the inner conductor for DC current: | 21.91 Ω/km |

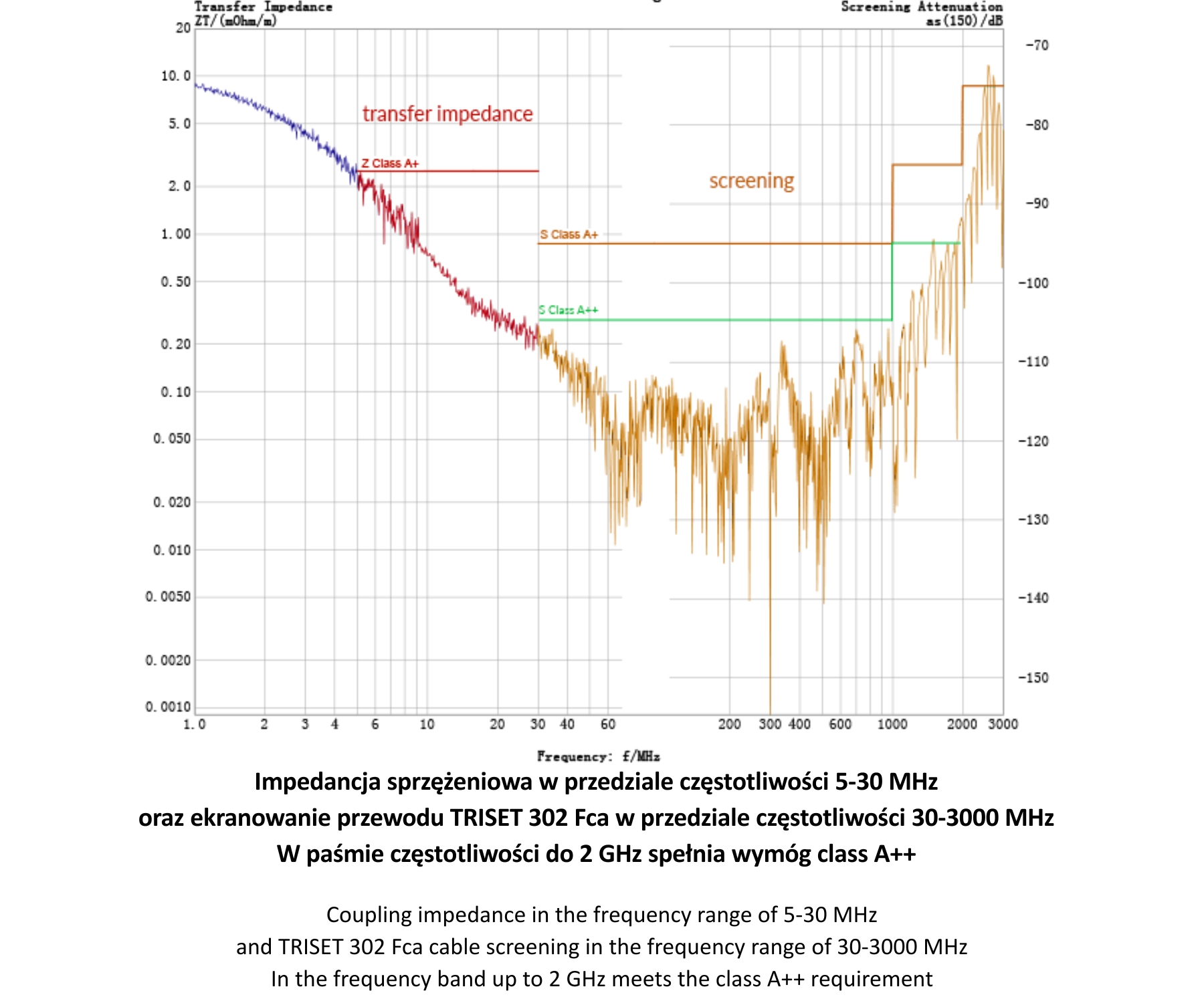

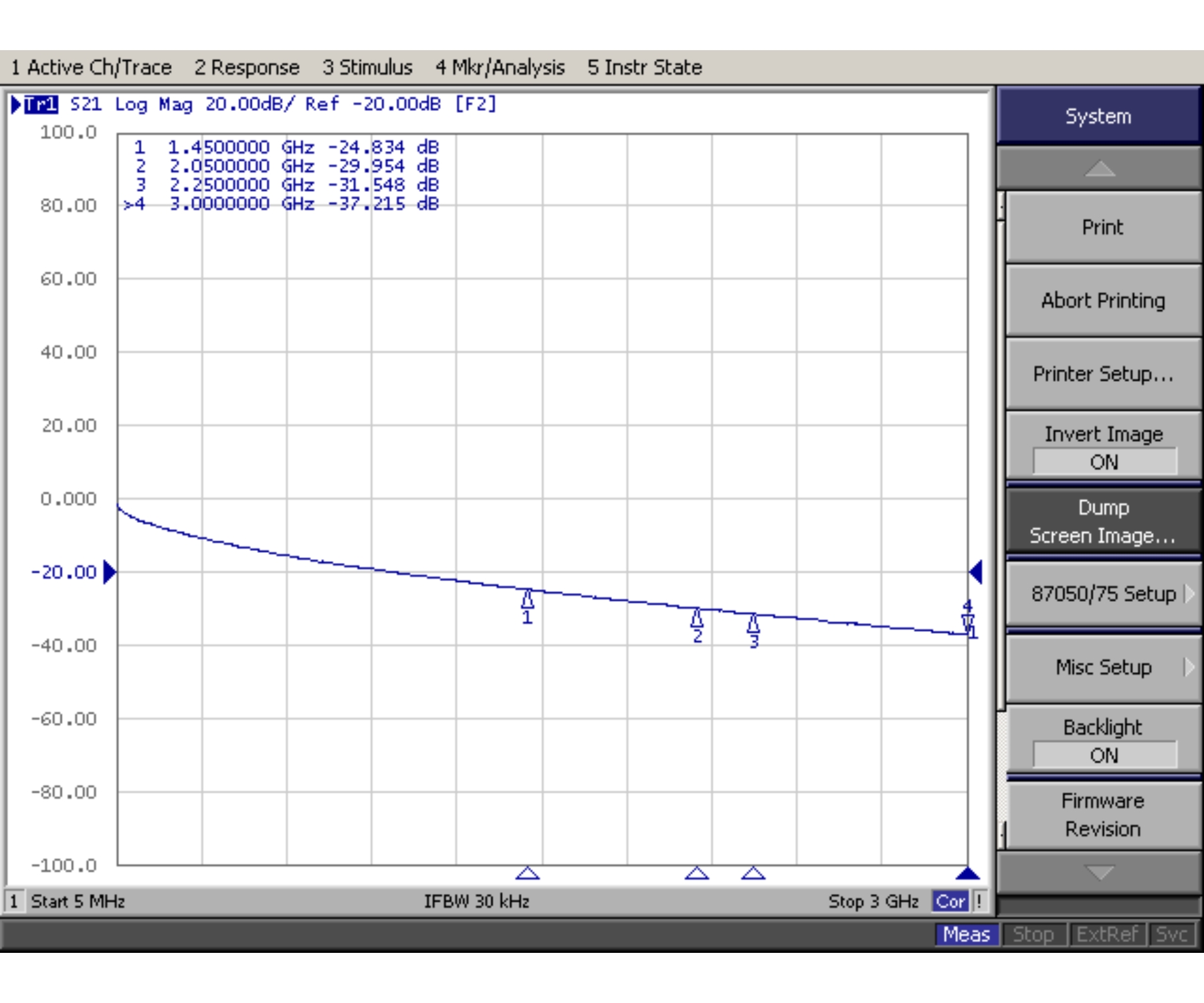

| Screening efficiency: | > 105 dB @30 ... 1000 MHz > 95 dB @1 ... 2 GHz > 85 dB @2 ... 3 GHz |
| Main features: | |
| Manufacturer / Brand: | TRISET |
| Guarantee: | 2 years |
