COAXIAL CABLE TRISET-113PE/500
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

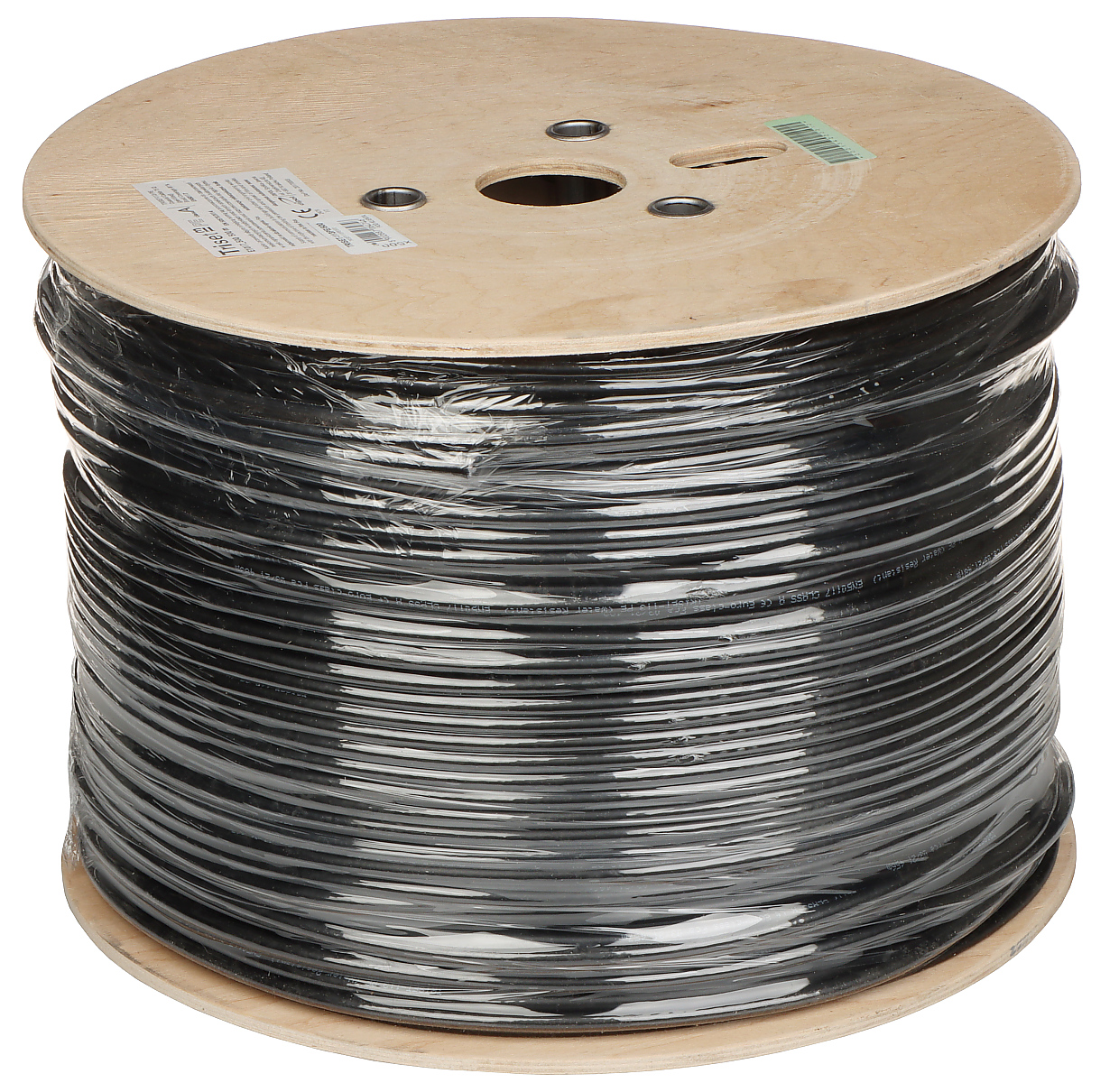

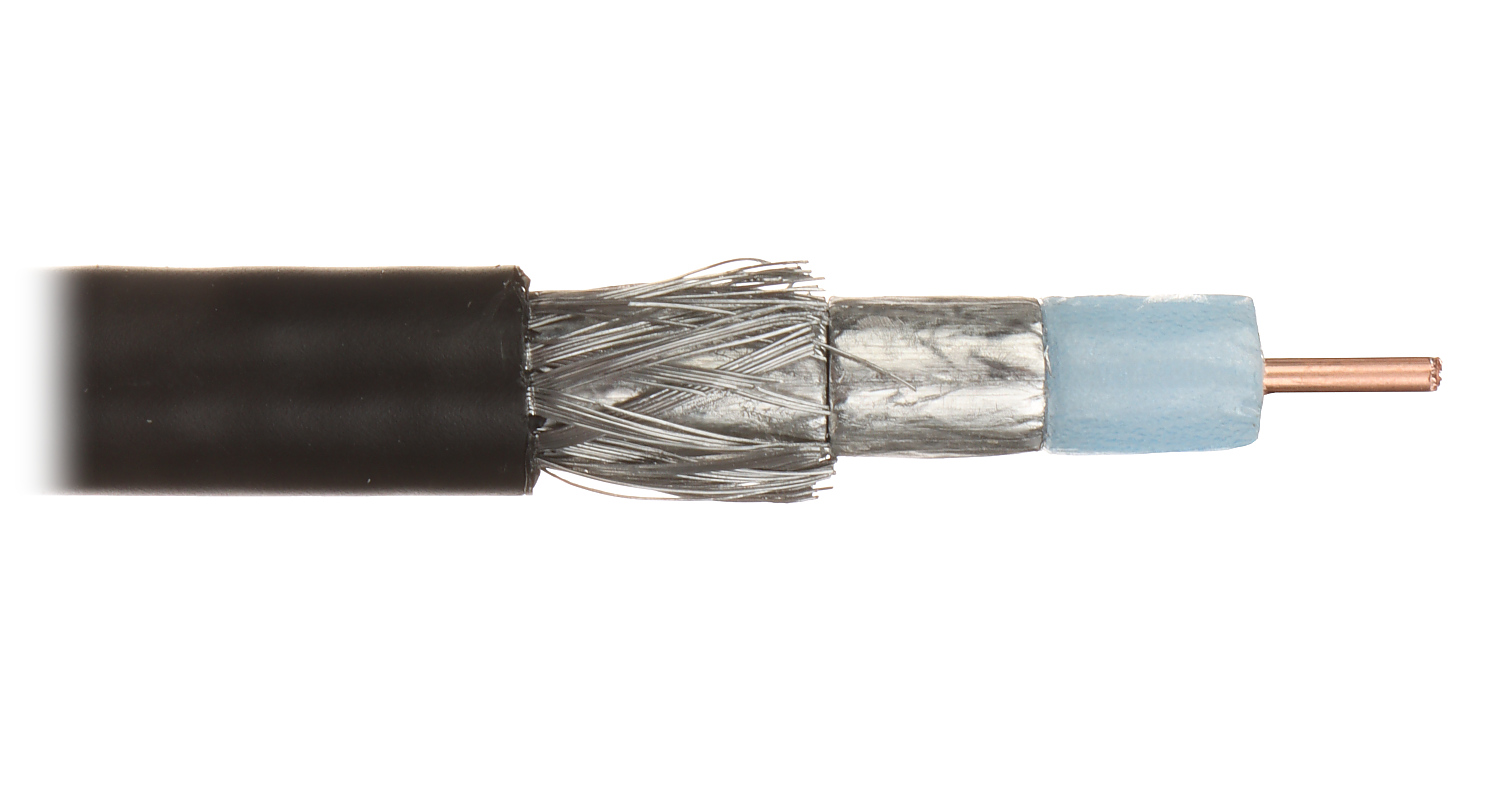

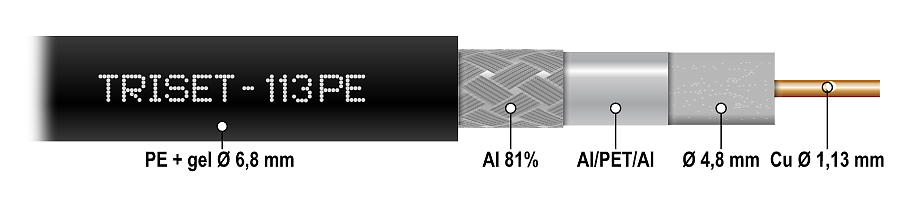

The cable is gel-fitted; In section: 500 m . Price for 1m when buying a whole roll ; Coaxial cable: TRISET ; Inner conductor: Ø 1.13 mm Cu ; Dielectric: Ø 4.8 mm (physical foam) ; Shield: Al/PET/Al ;
| In section: | 500 m . Price for 1m when buying a whole roll |
| Coaxial cable: | TRISET |
| Inner conductor: | Ø 1.13 mm Cu Wire |
| Dielectric: | Ø 4.8 mm (physical foam) |
| Shield: | Al/PET/Al - 30 µm / 12 µm / 30 µm |
| Braid: | 81 % Al wire |
| Outer coating: | Ø 6.8 mm PE + gel |
| Coating color: | Black |
| Resistance of the inner conductor for DC current: | 16.85 Ω/km |
| Capacity: | 52 pF/m |
| Dielectric resistance: | 2000 MΩ/km |
| Shortening wave coefficient: | 84 % |
| Impedance: | 75 Ω |

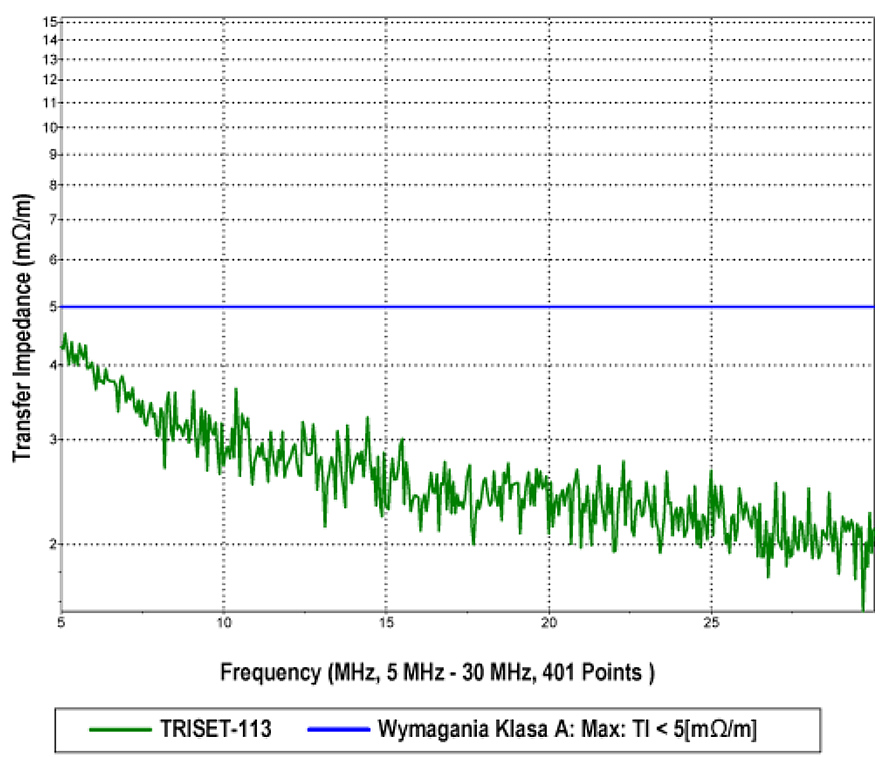

| Screening efficiency: | ≥ 90 dB @100-900 MHz |
| Minimal bend radius: | 35 mm |
| Main features: | |
| Weight: | 40 kg/km |
| Operation temp: | -30 °C ... 70 °C |
| Guarantee: | 5 years |
Brand:
Triset
