COAXIAL CABLE TCC-113-TRISHIELD
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

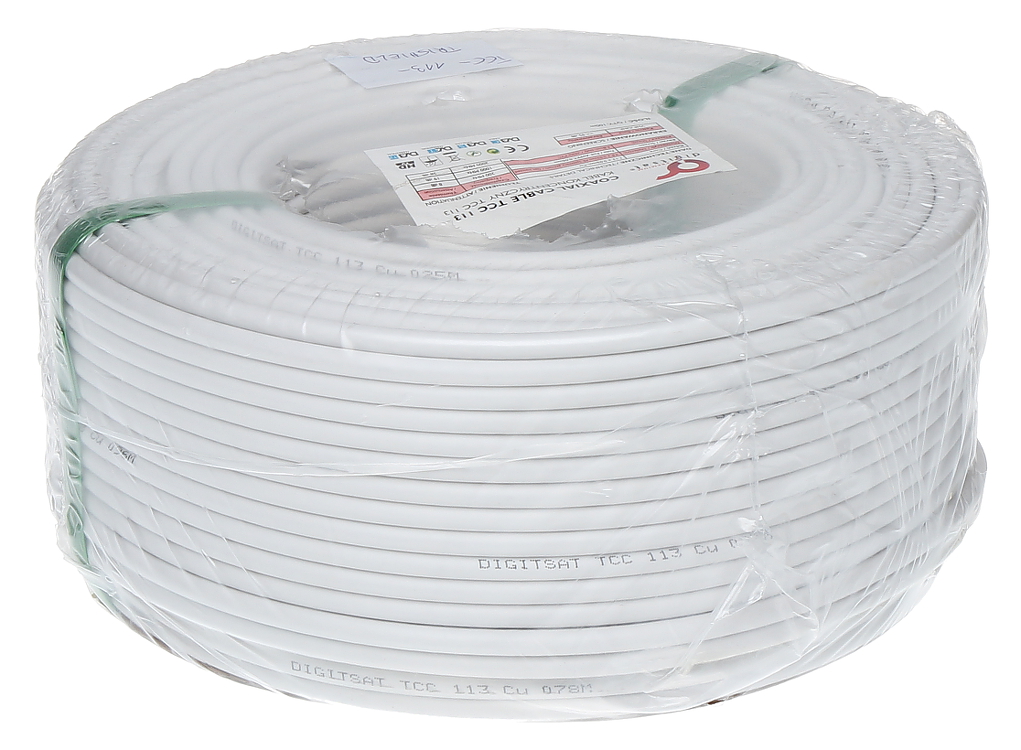

In section: 100 m . Price for 1m when buying a whole roll ; Inner conductor: Ø 1.13 mm Cu Wire ; Dielectric: Ø 4.8 mm ; Cable attenuation at 100m section: 19.2 dB @ 860 MHz ;
| In section: | 100 m . Price for 1m when buying a whole roll |

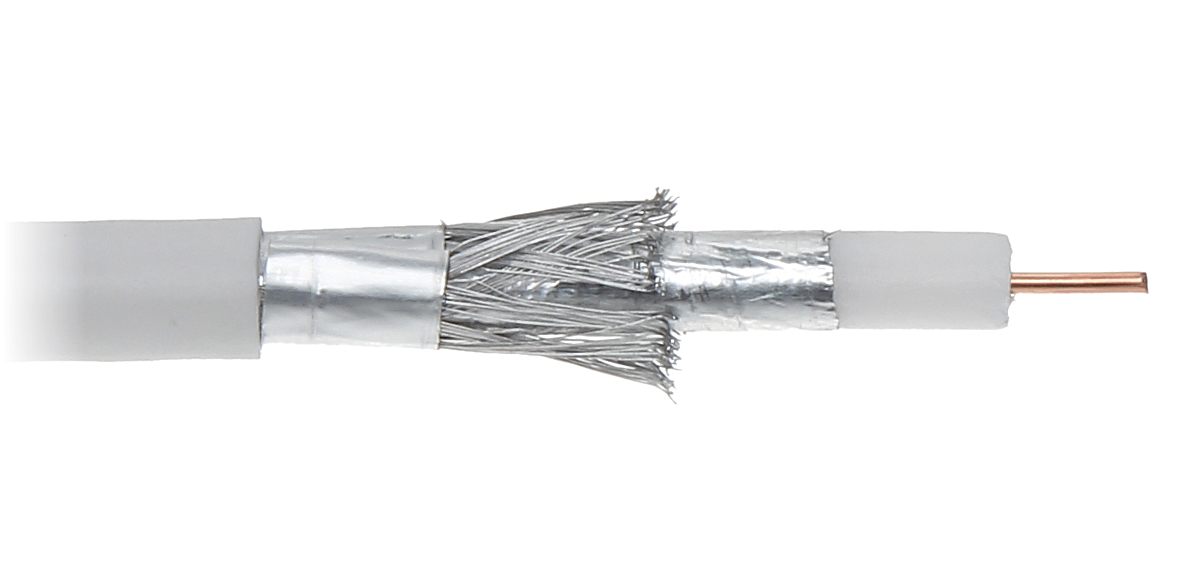

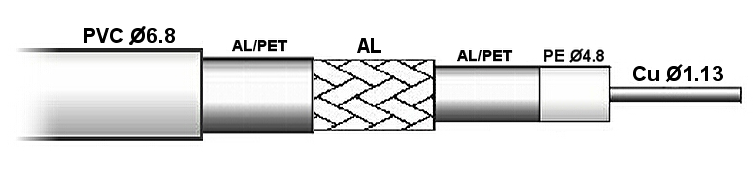

| Inner conductor: | Ø 1.13 mm Cu Wire |
| Dielectric: | Ø 4.8 mm (physical foam) |
| Shield: | Double Al/PET |
| Braid: | 144 x 0.12 mm Al wire / PET |
| Outer coating: | Ø 6.8 mm PVC |
| Coating color: | White |
| Impedance: | 75 Ω |
| Screening efficiency: | > 95 dB |

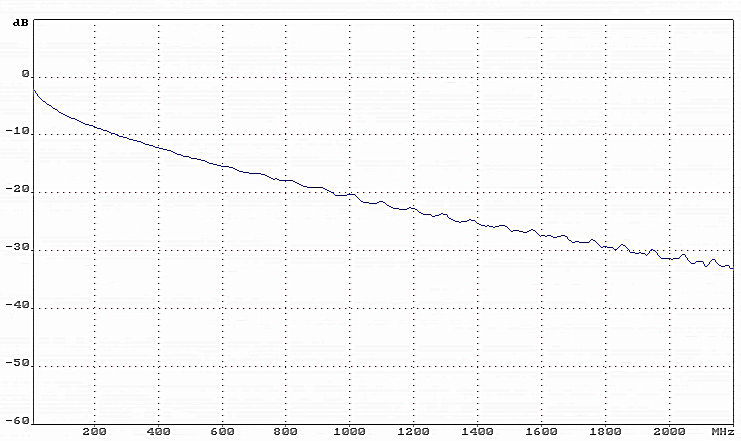

| Cable attenuation at 100m section: | 6.2 dB @ 50 MHz 9.1 dB @ 230 MHz 14.1 dB @ 470 MHz 19.2 dB @ 860 MHz 20.2 dB @ 1000 MHz 24.8 dB @ 1350 MHz 28.1 dB @ 1750 MHz 31.8 dB @ 2000 MHz 32.7 dB @ 2150 MHz |
| Guarantee: | 2 years |
