COAXIAL CABLE NS113-TRISHIELD
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
In section: 100 m . Price for 1m when buying a whole roll ; Inner conductor: Ø 1.13 mm Cu Wire ; Dielectric: Ø 4.8 mm ; Cable attenuation at 100m section: 17.3 dB @ 862 MHz ;

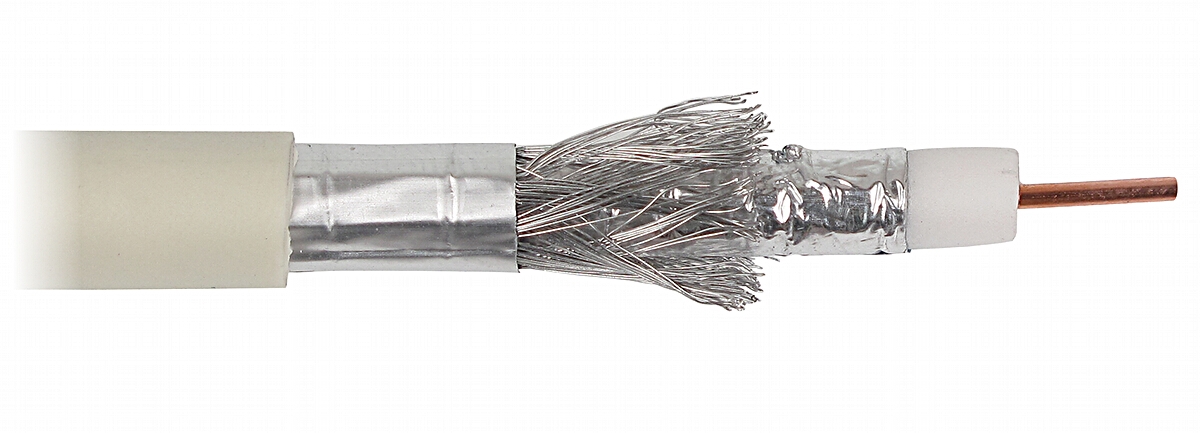

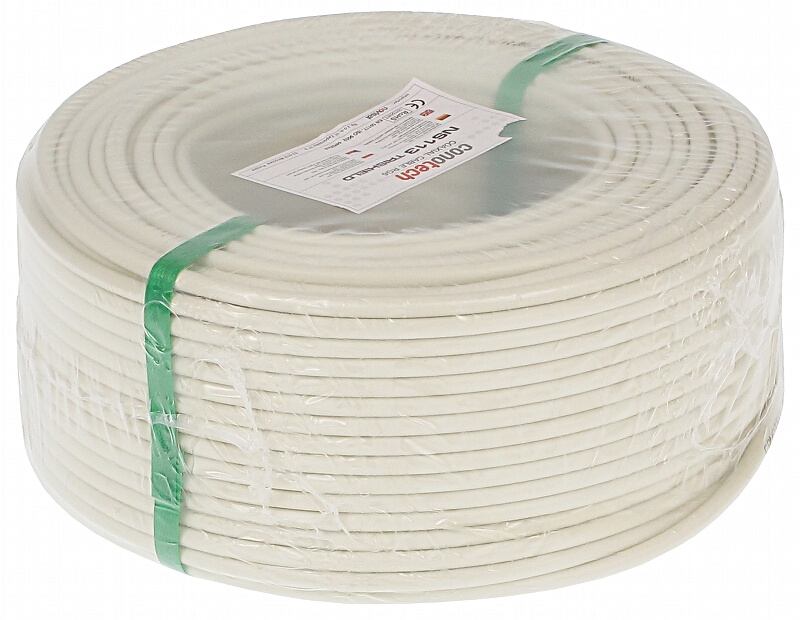

| In section: | 100 m . Price for 1m when buying a whole roll |
| Inner conductor: | Ø 1.13 mm Cu Wire |
| Dielectric: | Ø 4.8 mm (physical foam) |
| Shield: | Double Al/PET |
| Braid: | 144 x 0.12 mm Al wire / PET |
| Outer coating: | Ø 6.8 mm PVC |
| Coating color: | White |
| Impedance: | 75 Ω |

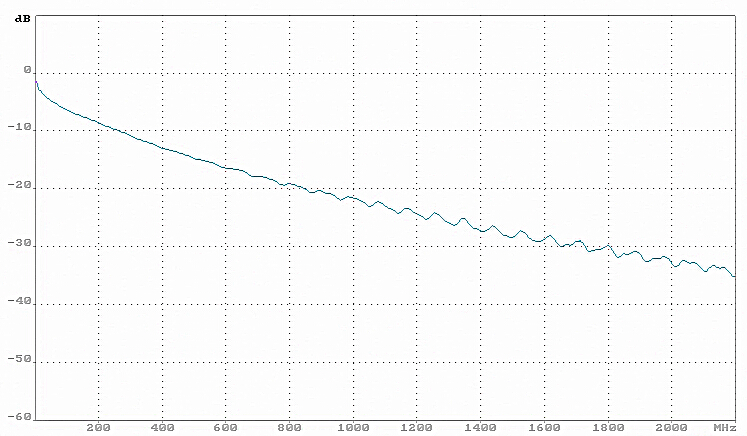

| Cable attenuation at 100m section: | 3.6 dB @ 50 MHz 6.2 dB @ 100 MHz 13 dB @ 500 MHz 17.3 dB @ 862 MHz 18.8 dB @ 1000 MHz 23.2 dB @ 1500 MHz 27.9 dB @ 2000 MHz |
| Guarantee: | 2 years |
Brand:
Conotech
