COAXIAL CABLE NS113-TRISHIELD-B2CA/500 CONOTECH
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
In section: 500 m . Price for 1m when buying a whole roll ; Inner conductor: Ø 1.13 mm Cu Wire ; Dielectric: Ø 4.8 mm ; Cable attenuation at 100m section: 17.8 dB @ 800 MHz ;
| In section: | 500 m . Price for 1m when buying a whole roll |

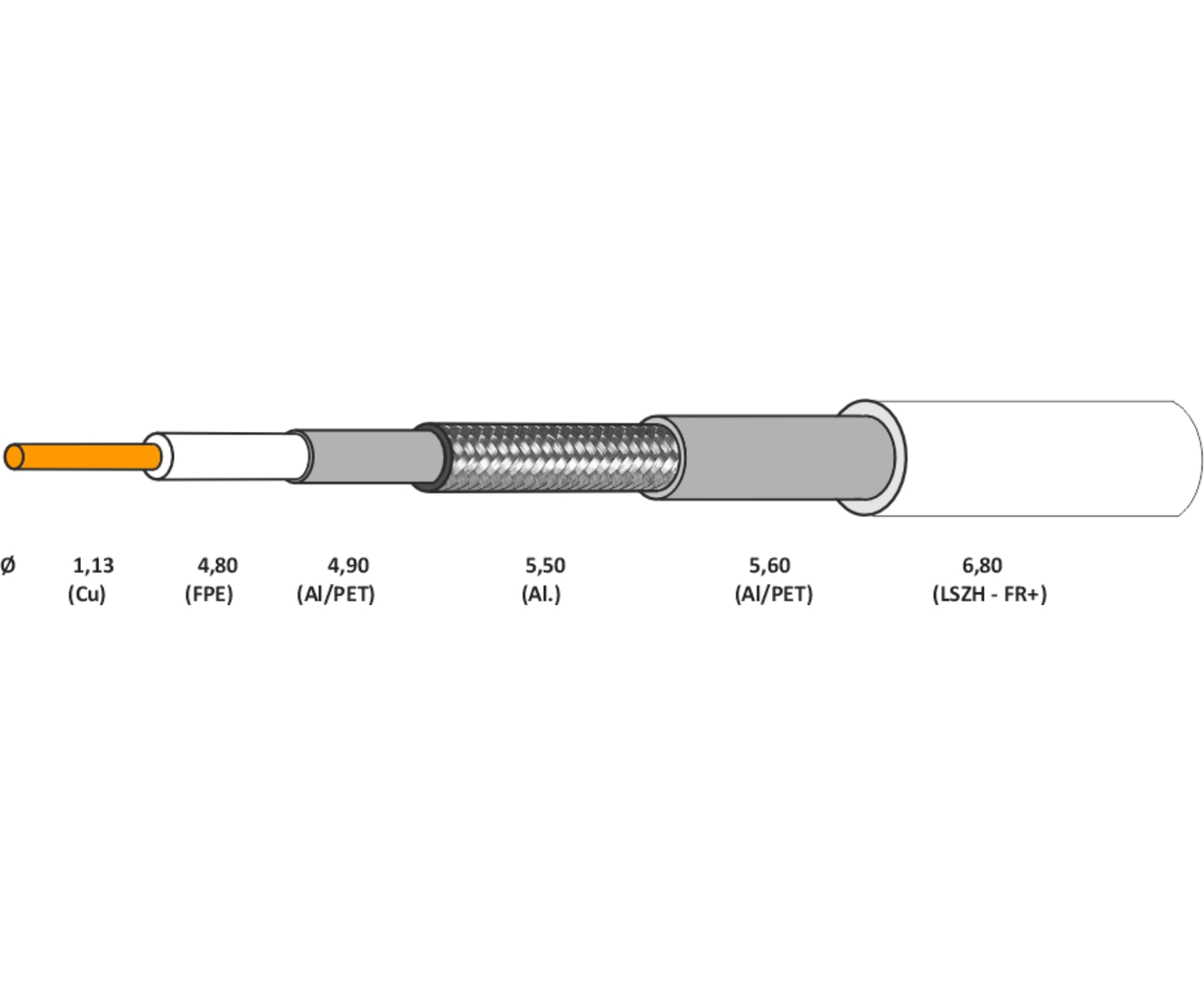

| Inner conductor: | Ø 1.13 mm Cu Wire |
| Dielectric: | Ø 4.8 mm (physical foam) |
| Shield: | Double Al/PET |
| Braid: | 144 x 0.12 mm Al wire / PET |
| Outer coating: | Ø 6.8 mm LSZH (LS0H) |
| Coating color: | White |
| Impedance: | 75 Ω |
| Main features: | |

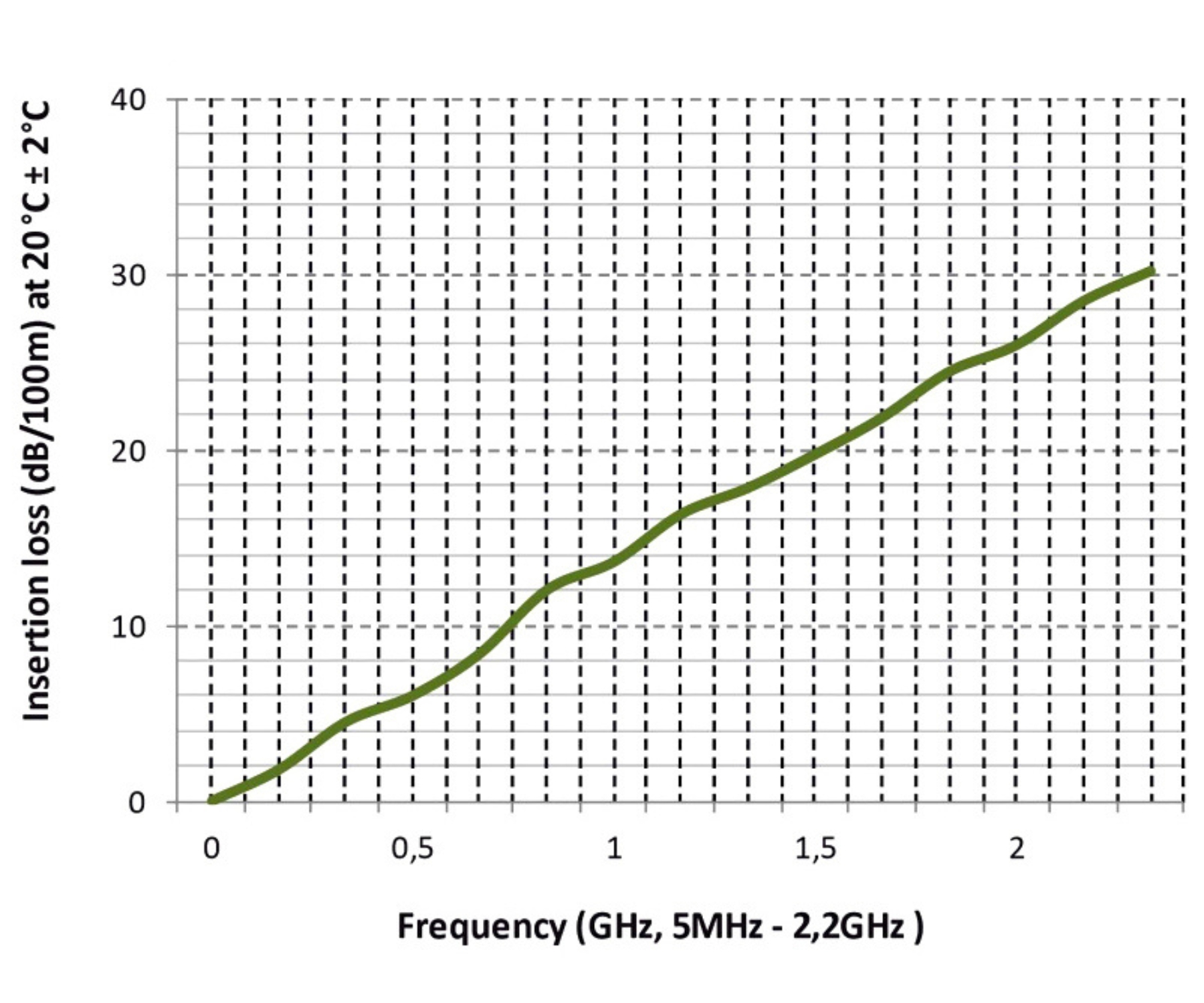

| Cable attenuation at 100m section: | 4.5 dB @ 50 MHz 6.0 dB @ 100 MHz 13.6 dB @ 500 MHz 17.8 dB @ 800 MHz 19.7 dB @ 1000 MHz 24.4 dB @ 1500 MHz 28.4 dB @ 2000 MHz |
| Manufacturer / Brand: | CONOTECH |
| Guarantee: | 2 years |
Brand:
Conotech
