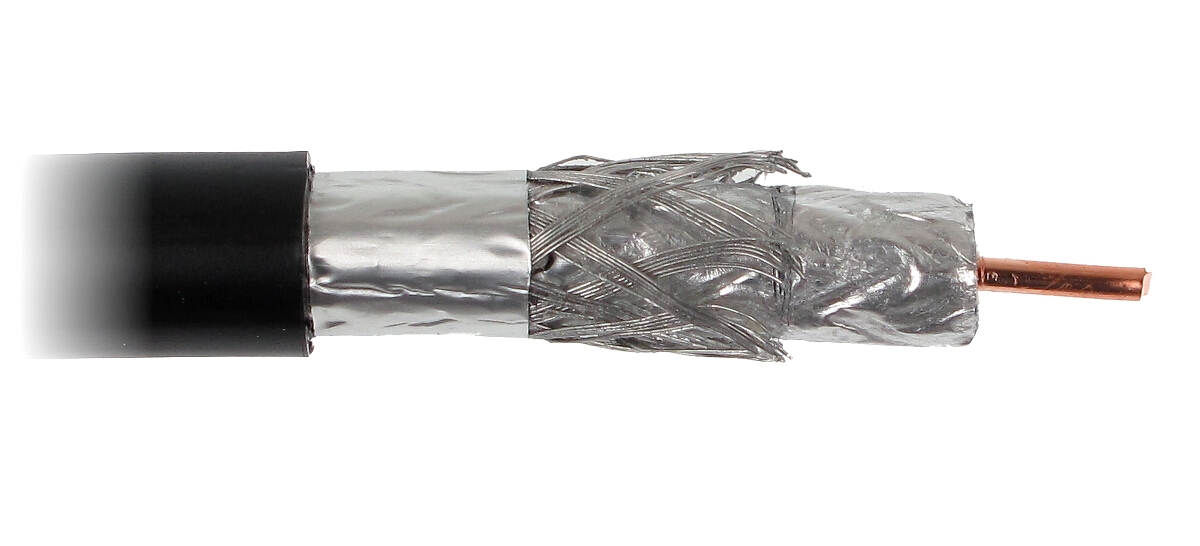

COAXIAL CABLE CTF-167/ZEL CTF 167
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
In section: 100 m . Price for 1m when buying a whole roll ; Coaxial cable: CTF 167 ; Inner conductor: Ø 1.63 mm Cu ; Dielectric: Ø 7.11 mm ; Cable attenuation at 100m section: 12.9 dB @ 860 MHz ;

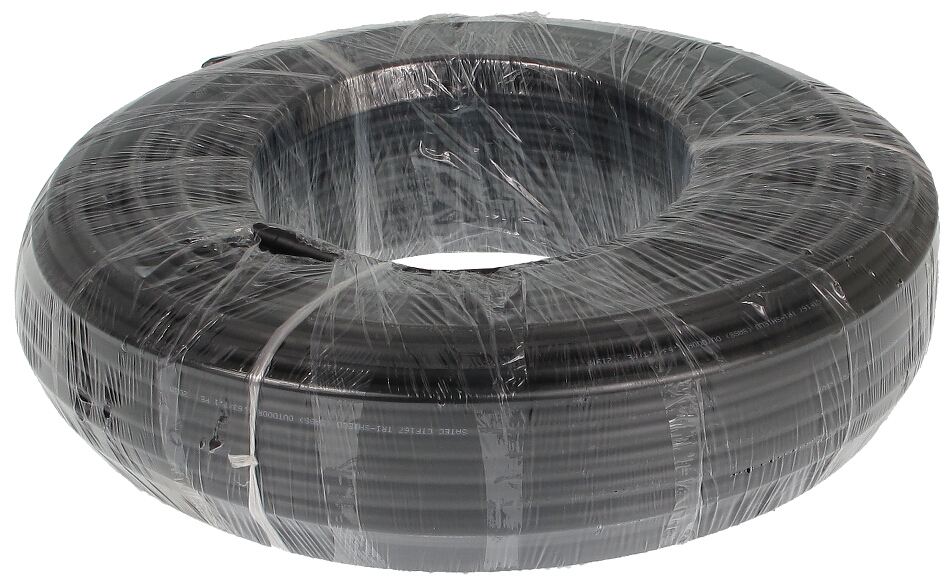

| In section: | 100 m . Price for 1m when buying a whole roll |

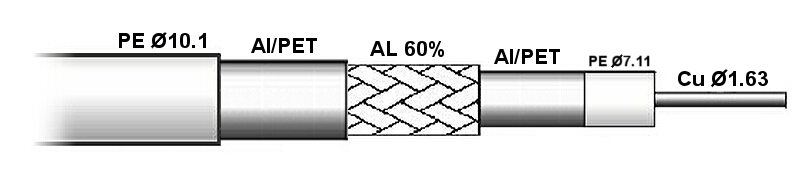

| Coaxial cable: | CTF 167 |
| Inner conductor: | Ø 1.63 mm Cu Wire |
| Dielectric: | Ø 7.11 mm (physical foam) |
| Shield: | 2 x Foil Al/PET - Gel-filled |
| Braid: | Al wire |
| Braid density: | 60 % |
| Outer coating: | Ø 10.1 mm PE |
| Coating color: | Black |
| Impedance: | 75 Ω ± 3 Ω |
| Capacity: | 54 pF/m ± 2 |
| Resistance of the inner conductor for DC current: | 9 Ω/km |
| Screening efficiency: | > 110 dB @30 ... 1000 MHz |
| Return loss: | 24 dB @470 MHz 20 dB @1000 MHz 18 dB @3000 MHz |
| Shortening wave coefficient: | 85 % |
| Weight: | 35 kg/km |
| Cable attenuation at 100m section: | 3.1 dB @ 50 MHz 6.1 dB @ 200 MHz 9.1 dB @ 450 MHz 12.9 dB @ 860 MHz 14.3 dB @ 1000 MHz 17.1 dB @ 1350 MHz 20.1 dB @ 1750 MHz 23 dB @ 2150 MHz 27.3 dB @ 3000 MHz |
| Guarantee: | 2 years |
Brand:
Satec
