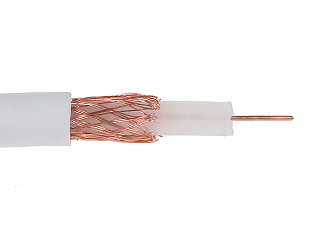

COAXIAL CABLE RG-59
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
In section: 100 m . Price for 1m when buying a whole roll ; Inner conductor: Ø 0.59 mm Cu Wire ; Outer coating: Ø 5.9 mm PVC ; Cable attenuation at 100m section: 27.0 dB @ 500 MHz ;
| In section: | 100 m . Price for 1m when buying a whole roll |
| Inner conductor: | Ø 0.59 mm Cu Wire |
| Dielectric: | Ø 3.7 mm PE full |
| Shield: |  |
| Braid: | Wire Cu |
| Braid density: | 85 % |
| Impedance: | 75 Ω |
| Outer coating: | Ø 5.9 mm PVC |
| Cable attenuation at 100m section: | 11.3 dB @ 100 MHz 16.3 dB @ 200 MHz 27.0 dB @ 500 MHz 40.6 dB @ 1000 MHz 57.2 dB @ 1750 MHz |
| Guarantee: | 2 years |
Brand:
Mercor
